Manuel et logiciel
- Guide de l’utilisateur LiteMarker : Télécharger
- Guide de l’utilisateur du marquage EZCAD3 2.5D : Télécharger
- Guide de l’utilisateur EZCAD3 Deep Marking : Télécharger
- Guide de l’utilisateur du marquage de texte EZCAD3 : Télécharger
- Logiciel EzCad3 Instructions rapides: Télécharger
- Logiciel EzCad3: Télécharger
- Manuel du logiciel EzCad3: Télécharger
- Guide de l’utilisateur du marquage rotatif EZCAD3 : Télécharger
- YDFLP-E-100-M7-M-R Manuel de l’utilisateur: Télécharger
- Manuels de dépannage des machines de gravure laser : Télécharger
Caractéristiques et avantages de la machine
- Opération simple avec une sécurité élevée;
- Facile à mettre au point l’objectif variable avec un galvanomètre à grande vitesse (ZBTK);
- Mise au point facile avec le double dispositif rouge de point;
- Marquage et gravure sur métaux et certains non-métaux
- Colonne de levage électrique
- Garantie de 2 ans et support technique à vie
- 2.5D Gravure profonde précise ; Découpe précise des métaux
- Marquage noir en aluminium anodisé, marquage couleur titane et acier inoxydable (JPT M7)
-
Fonction de nettoyage partiel: élimination de la rouille métallique (pas pour le nettoyage professionnel)
- Notification: nous ne recommandons pas aux clients d’utiliser cette fonction (nettoyage) pour les demandes professionnelles car elle est stricte avec des paramètres en raison des différents composants des matériaux. Un fonctionnement incorrect peut entraîner des dommages à votre matériel.

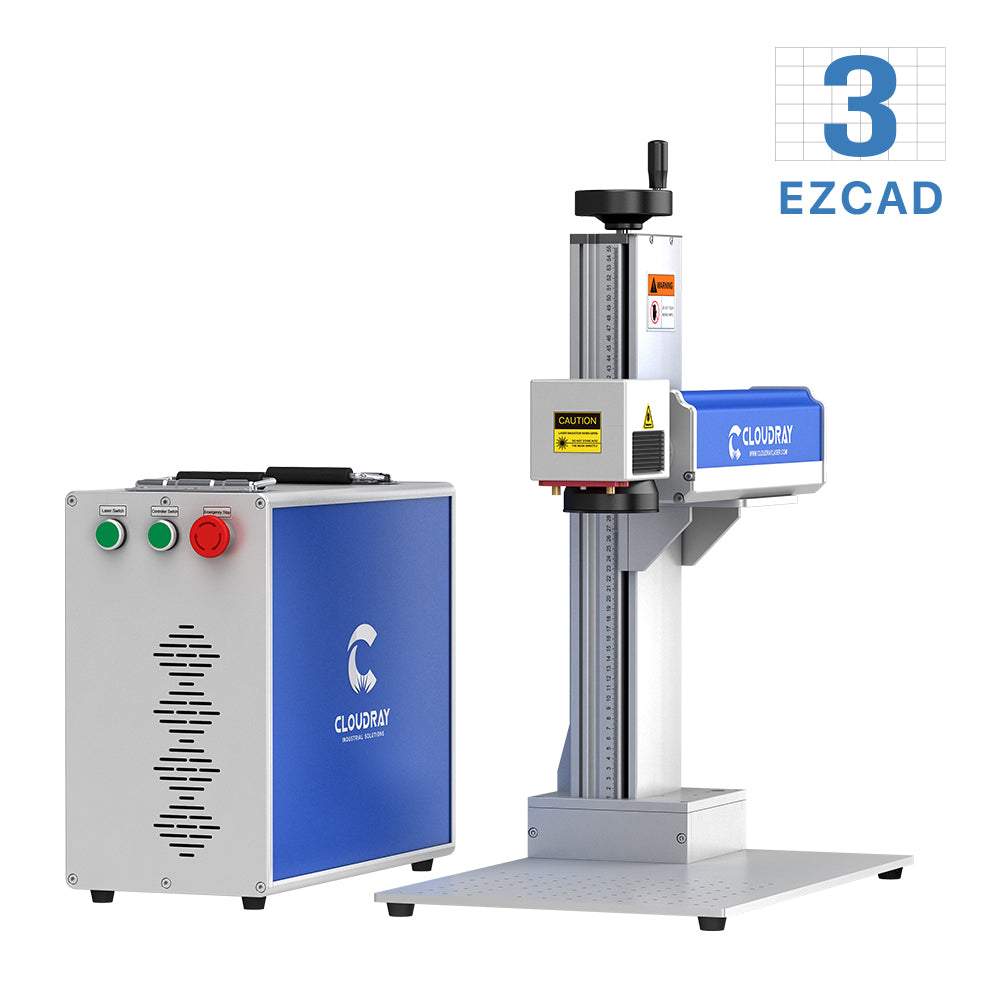

Spécification de la machine laser
Informations succinctes :
- Marque: Cloudray
- Série de produits : Série AR
- Modèle: AR-100
- Zone de marquage (objectif): 4.3 « x 4.3 » (110 * 110mm)
- Poids net: 41kg
- Dimensions du paquet: 38 * 21.3 * 22 in (96 * 54 * 56 CM)
- Poids du colis: 56kg
- Expédition mondiale rapide: DHL / UPS
Technique Spécifications
Puissance de sortie | Fréquence de laser | Longueur d'onde centrale |
100W | 1 -4000 kHz | 1064 nm |
Dimensions | Zone de traitement | Max. Vitesse de marquage |
38 "x 21,3" x 22" | 110*110mm | 7000 mm/s (275.6 ips) |
Max. Profondeur de gravure (Single Pass) | Faisceau Diamètre | Min. Qualité du faisceau (Max. M²) |
≤ 2mm ( Dépend du matériel) | 7.0 ± 0.5mm | 1.4 |
Durée d'impulsion | Max. Énergie d'impulsion | Précision de positionnement |
2-500 ns | 1,5 mJ | ± 0.1μm |
Durée de vie prévue (MTTF) | Logiciel d'exploitation de soutien | Systèmes d'exploitation compatibles |
100 000 hr | EZCAD3 | Windows XP, Vista, 7, 8 ou 10, 11/ macOS |
Garantie de 2 ans et support technique à vie |
Les caractéristiques d'Ezcard 3

1. EZCAD3 adopte un noyau logiciel 64 bits. La vitesse de traitement des fichiers est plus rapide et le fichier de traitement de niveau GB peut être ouvert.
2. EZCAD3 prend en charge les fonctions de marquage profond 2.5D et de marquage en relief.
3. EZCAD3 peut générer rapidement des tableaux de différents paramètres de traitement via l'assistant de paramètres pour trouver les meilleurs paramètres de traitement.
4. Plus de méthodes de remplissage de marque: 8 types d'EZCAD3 et 5 types d'EZCAD2.
Application
https://youtu.be/3-BbMLGECdE
Comparaison de vitesse de coupe de laser de la fibre 50W/ 60W/ 100W ( 1mm Laiton ):
https://youtu.be/Bu1KWE3azbE
Série M7 (largeur d'impulsion réglable)
Documents applicables :
Métaux : aluminium, or, argent, cuivre, acier inoxydable, laiton, titane, tungstène,
Non-métaux : Colored Acrylique, Plastiques durs, Brique, Granite, Marbre, Carrelage, Nylon, Light B[]ight [][]B[][][][]B[]0127510[][]]utton, ABS, PVC, PES, Céramic, Rock, Stone, Marble, Artificial Leather, etc.
* Certains acryliques à base de PVC peuvent créer des fumées toxiques lorsqu’ils sont mis au laser.
Contactez-nous avec des questions sur des matériaux spécifiques non répertoriés, nous pouvons traiter un échantillon pour confirmation.
Secteur d’activité applicable :
Atelier, industrie de la quincaillerie, boutique de cadeaux, boutique d'impression, numérique 3C, boutique de souvenirs, bijouterie, animalerie, usage médical, petite entreprise, vendeur Esty, munitioner, éducation, bureau, bricolage, entrepreneur Kickstarter.
Cas d’application :
Gravure sur bijoux, armes à feu, armes à feu, lames, haches, couteaux, pièces de monnaie, timbres, fourchettes, cuillères, couverts, flacons, portefeuilles, gobelets, tasses, plaques d'identité, sous-verres d'ardoise, etc.
Marquage noir en aluminium anodisé, marquage couleur titane et acier inoxydable, logo de marque laser, texte, code-barres, numéros, numéros de série, image, photo sur pièces et outils en métal et en plastique, clés, outils de mesure, articles sanitaires, acier inoxydable, équipement médical, bagages, cadeaux, fond de table, montures de lunettes, instruments.


Accessoires et pièces nécessaires :
Prolonner la durée de vie de votre machine laser En savoir plus )
https://www.cloudraylaser.com/collections/marking-accessories
Guide de mise à niveau et de personnalisation :
https://www.cloudraylaser.com/pages/cloudray-upgrading-customization-support
Liste de colisage
- Machine laser à fibre x1
- U disque (manuels et logiciels) x1
- Puissance Câble x1
- Clé Allen x1
- Tournevis x2
- Barre de positionnement (avec vis) x2 (M6 4Pcs)
- Câble USB x1
- Feuille d'aluminium de couleur x1
- Interrupteur de pied x1
- Lunettes de protection x1
- Clé à verrouiller
