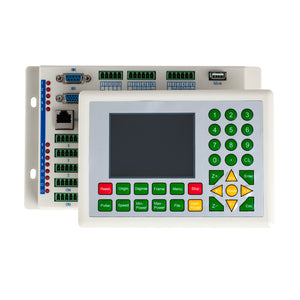

Laser Controller RDC6332G

RDC6332G system is the latest laser engraving & cutting control system developed by Ruida Technology, this control system has better stable hardware with antistatic, resistance to high pressure. The human-machine operation system based on LINUX, with better operation interface and power functions, excellent motion control functions, high-capacity file memory, with strong compatible 2-way independent adjustable analog/digital laser power control interface, strong compatible U disk drive program, multiple ways gerneral/dedicated IO control. Integrated dedicated time system supporting hardware encryption algorithm.

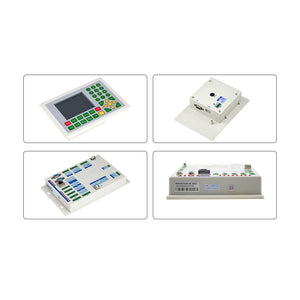

Product Structure

Techniacal Parameter

1.Digital laser control signals:
      (1) Differential output, TTL level, 20 mA, drive capability
      (2) PWM frequency 2K-50K for adjustable
      (3) PWM duty ratio is 1% ~ 99%, adjustable
      (4) PWM value is up to 4.5 V
2.Analog laser control signal:0 ~ 5V tracing adjustable automatically.
3.Motor control signal: differential output, TTL level, drive capability 20 mA.
4.Motor control pulse frequency:Max.500 KHZ.
5.USB: Max. transmission rate is 12M bps ; the longest distance is 5 meters.
6.Interpolation: Linear/circular arc/B spline, accuracy + / - 0.5 pulse.
7.Output:4-channel, photoelectric isolated OC gate output; max. drive capability is 500mA.
8.Input:4-channel, photoelectric isolated input, TTL level.

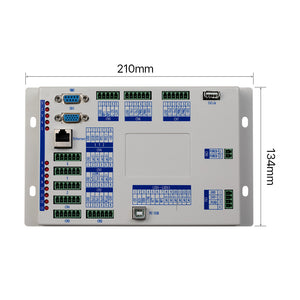

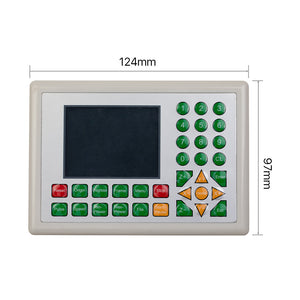

Product Size

Pcking List

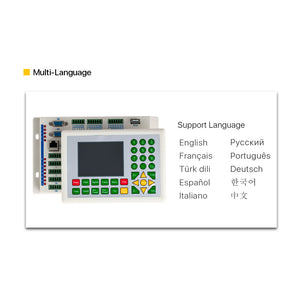

Multi-Language
