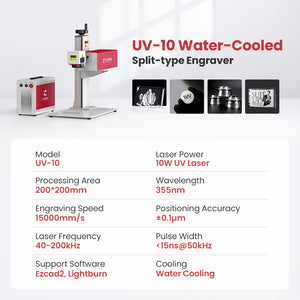

Engraver Specification | Cloudray UV-10 Water-Cooled Split-type Engraver
UV-10 Engraver Applications: Crystal Glass Internal Engraving, Reflective Metal Precision, Heat-Sensitive Materials & Paint Removal | Cloudray UV-10 Water-Cooled Split-type Engraver

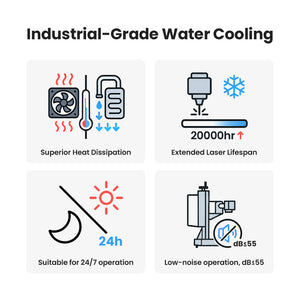

Industrial-Grade Water Cooling with Superior Heat Dissipation, Extended Laser Lifespan, 24/7 Operation & Low Noise | Cloudray UV-10 Water-Cooled Split-type Engraver

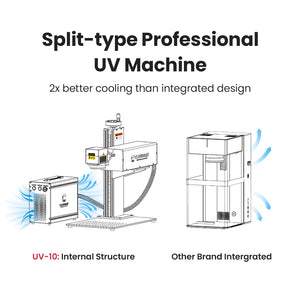

Split-type Professional UV Engraver | Cloudray UV-10 Water-Cooled Split-type Engraver
Built-in 10x Beam Expander, 0.001mm High Engraving Accuracy Comparison for Ultra-Fine Lines and Clean Edges | Cloudray UV-10 Water-Cooled Split-type Engraver

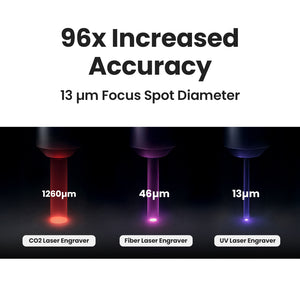

96x Increased Accuracy, 13 μm Focus Spot Diameter | Cloudray UV-10 Water-Cooled Split-type Engraver
Power & Precision to Cut 10mm Basswood Effortlessly | Cloudray UV-10 Water-Cooled Split-type Engraver

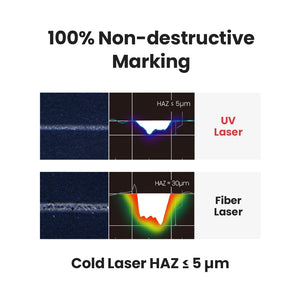

100% Non-destructive Marking, Cold Laser HAZ ≤ 5 μm | Cloudray UV-10 Water-Cooled Split-type Engraver

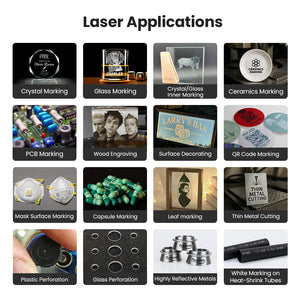

UV-10 Laser Powers Diverse Applications, Including Crystal/Glass Inner Marking, PCB/Leaf Marking, Metal Cutting & More, Turning Ideas to Reality | Cloudray UV-10 Water-Cooled Split-type Engraver
UV Lasers' Wide Applications in Electronics, Medical, Mold, Packaging, Glass, Jewelry & Other Industries | Cloudray UV-10 Water-Cooled Split-type Engraver

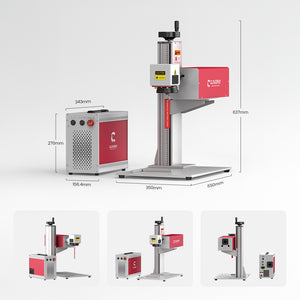

Engraver Size | Cloudray UV-10 Water-Cooled Split-type Engraver

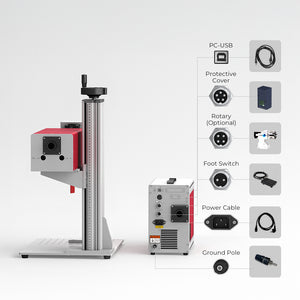

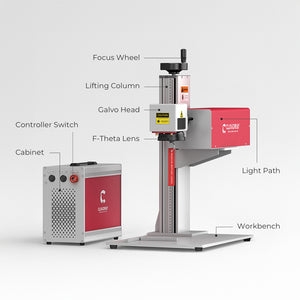

Engraver Structure | Cloudray UV-10 Water-Cooled Split-type Engraver
Engraver Structure | Cloudray UV-10 Water-Cooled Split-type Engraver

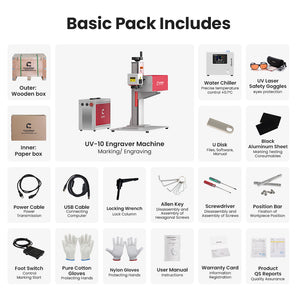

Engraver Packing List | Cloudray UV-10 Water-Cooled Split-type Engraver

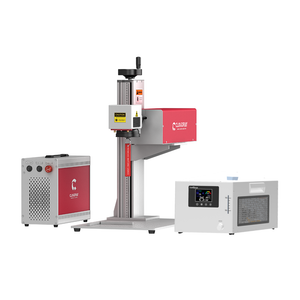

Cloudray UV-10 10W Water-Cooled High-stability & High Efficiency UV Laser Engraver
Engraver Specification | Cloudray UV-10 Water-Cooled Split-type Engraver
UV-10 Engraver Applications: Crystal Glass Internal Engraving, Reflective Metal Precision, Heat-Sensitive Materials & Paint Removal | Cloudray UV-10 Water-Cooled Split-type Engraver
Industrial-Grade Water Cooling with Superior Heat Dissipation, Extended Laser Lifespan, 24/7 Operation & Low Noise | Cloudray UV-10 Water-Cooled Split-type Engraver
Split-type Professional UV Engraver | Cloudray UV-10 Water-Cooled Split-type Engraver
Built-in 10x Beam Expander, 0.001mm High Engraving Accuracy Comparison for Ultra-Fine Lines and Clean Edges | Cloudray UV-10 Water-Cooled Split-type Engraver
96x Increased Accuracy, 13 μm Focus Spot Diameter | Cloudray UV-10 Water-Cooled Split-type Engraver
Power & Precision to Cut 10mm Basswood Effortlessly | Cloudray UV-10 Water-Cooled Split-type Engraver
100% Non-destructive Marking, Cold Laser HAZ ≤ 5 μm | Cloudray UV-10 Water-Cooled Split-type Engraver
UV-10 Laser Powers Diverse Applications, Including Crystal/Glass Inner Marking, PCB/Leaf Marking, Metal Cutting & More, Turning Ideas to Reality | Cloudray UV-10 Water-Cooled Split-type Engraver
UV Lasers' Wide Applications in Electronics, Medical, Mold, Packaging, Glass, Jewelry & Other Industries | Cloudray UV-10 Water-Cooled Split-type Engraver
Engraver Size | Cloudray UV-10 Water-Cooled Split-type Engraver
Engraver Structure | Cloudray UV-10 Water-Cooled Split-type Engraver
Engraver Structure | Cloudray UV-10 Water-Cooled Split-type Engraver
Engraver Packing List | Cloudray UV-10 Water-Cooled Split-type Engraver

(Almacén en EE. UU.) Máquina de grabado láser UV planar Cloudray de 10 W (refrigerada por agua)

SKU FM14LMUVV1F10WU-USA
40
La gente está viendo esto ahora mismo.
Precio habitual $ 9,999.00 USD Precio de oferta $ 6,999.00 USD

¡Date prisa! ¡La oferta termina en:

Destino de envío: Estados Unidos
Enchufar: Enchufe americano
Agregar a comparación
Los gastos de envío se calculan en la pantalla de pago.
Dedicated Customer Support: US & EU Based Tech.
Laser Machine: 2-Year Warranty.
Laser engravers with FDA, CE, ROHS certifications, and QC quality inspection report.

Seguro y protegido

frecuentemente compramos juntos

Cloudray UV-10 10W Water-Cooled High-stability & High Efficiency UV Laser Engraver
Cloudray Flexible Fixture
Rectangular Crystal | Cloudray Laser Marking & Engraving Materials Blank Crystal Blocks (4pcs)
Software Cloudray Partner LightBurn para control láser/control láser Galvo
Éste ítem: (Almacén en EE. UU.) Máquina de grabado láser UV planar Cloudray de 10 W (refrigerada por agua)
Precio habitual $ 9,999.00 USD Precio de oferta $ 6,999.00 USD
Dispositivo de fijación flexible Cloudray para piezas irregulares
Precio de oferta $ 269.00 USD
Bloques de cristal en blanco Cloudray para marcado y grabado láser
Precio de oferta $ 65.00 USD
Software Cloudray Partner LightBurn para control láser/control láser Galvo
Precio de oferta $ 199.00 USD
Cloudray UV-10 10W Water-Cooled High-stability & High Efficiency UV Laser Engraver

(Almacén en EE. UU.) Máquina de grabado láser UV planar Cloudray de 10 W (refrigerada por agua)

Cloudray UV-10 Professional 10W UV & Water-Cooled Split-type Engraver | Cloudray UV-10 Engraver
Cloudray UV Laser Engraver Capabilities: Crystal Glass Internal Engraving, Reflective Metal Precision, Heat - Sensitive Material Safety & Paint Removal | Cloudray UV-10 Engraver
Split-type Professional Engraver, 2X better cooling than integrated design | Cloudray UV-10 Engraver
Cloudray Laser Engraver Advantages: Stable Power, Anti-Interference, 20000-Hour Lifespan, Easy Maintenance | Cloudray UV-10 Engraver
Industrial-Grade Water Cooling Maintains Stability During -15°c and 55°c of Operating Temperature,  with Superior Heat Dissipation, Extended Laser Lifespan, 24/7 Operation & Low Noise | Cloudray UV-10 Engraver
96x Increased Accuracy, 13 μm Focus Spot Diameter | Cloudray UV-10 Engraver
Power & Precision to Cut 10mm Basswood Effortlessly | Cloudray UV-10 Engraver
100% Non-destructive Marking, Cold Laser HAZ ≤ 5 μm | Cloudray UV-10 Engraver
Eco-Friendly & Clean Marking Process of UV Laser Marker, Featuring Zero Emissions & Contamination | Cloudray UV-10 Engraver
UV Laser's 355nm Wavelength Works on Almost All Materials, Covering Transparent, Heat-Sensitive, Reflective & More | Cloudray UV-10 Engraver
UV-10 Laser Applications in Various Materials & Industries, Including Marking, (Internal) Engraving & Cutting | Cloudray UV-10 Engraver
UV Lasers' Wide Applications in Electronics, Medical, Mold, Packaging, Glass, Jewelry & Other Industries | Cloudray UV-10 EngraverEngraver Packing List | Cloudray UV-10 Engraver

Specifications

Model UV-10
Laser 10W UV Laser
Wavelength 355 nm
Working Area 200 × 200 mm
Laser Frequency 40–200 kHz
Pulse Duration <15 ns @ 50 kHz
Beam Quality M² < 1.3
Max. Engraving Speed 15,000 mm/s
Positioning Accuracy ±0.1 μm
Beam Diameter (1/e²) 0.45 ± 0.15 mm
Built-in Beam Expander 10×
Min. Line Width 0.01 mm
Min. Character 0.1 mm
Software EZCAD2, LightBurn
Estimated Laser Service Life 20,000 hrs
Package Weight 48 kg
Package Size 97 × 55 × 48 cm
Power Consumption Max. 675 W
Supported Files .ai, .bmp, .dx, .dxf, .gif, .jpg
Ambient Conditions Operating Temperature: -15°C to 55°C
Equipment Protection IP54 (Marking Head)
IP20 (Laser Unit)
Power Requirements AC 220 V / 50 Hz or AC 110 V / 60 Hz
Warranty 2 Years for Machine
1 Year for Laser
Compatible Operating Systems Windows XP, Vista, 7, 8, 10, 11 / macOS

UV-10 vs UV-5

Model UV-10 UV-5
Laser 5W UV Laser
Design Type Integrated
Cooling Air Cooling
Built-in Beam Expander
Working Area 110 × 110 mm
Laser Frequency 10–150 kHz
Pulse Duration <12 ns @ 30 kHz
Beam Quality M² < 1.6
Beam Diameter (1/e²) 0.77 ± 0.1 mm
Basswood Cutting 8 mm
Supported Operating Temperature 10°C to 35°C
Thin Metal Cutting ×
Internal Engraving in Crystal Glass ×

UV Series UV-10 User Guide V1.1
User Manual
Download
USB Drive Files
Software & Tutorials Included
Download
UV-10 QC Report
Quality Report
Download
UV Series UV-10 Packing List
Packing List
Download
Water Chiller User Manual
User Manual
Download
FDA Certificate
Certification
Download
CE Certificate
Certification
Download

preguntas frecuentes
Serie QS: Opción económica y económica para marcado y grabado básico. Profundidad de grabado de hasta 1 mm.
Serie MP: Opción de calidad profesional. Profundidad de marcado/corte mejorada: Hasta 5 mm
Serie GM: Rendimiento avanzado para uso industrial. Grabado profundo 2.5D + Corte preciso de metal.
Serie UV: Grabadores que admiten todo tipo de materiales. Grabado 3D interior y de superficie.
Serie EC: Grabador de precisión de CO2 para marcado y corte de materiales no metálicos
Por favor envíenos un correo electrónico (info@cloudray.com) directamente para ofrecernos sus materiales de trabajo, junto con el efecto esperado sobre dichos materiales por la máquina, acompañado de fotografías o vídeos.
Sí, son diferentes. El sitio web oficial y las tiendas Cloudray en plataformas de compra (Amazon, eBay, Aliexpress, etc.) son equipos diferentes con distintas configuraciones de equipos y ofertas.
1. Somos el sitio web oficial y, a diferencia de las tiendas de Cloudray en plataformas, no pagamos comisiones ni comisiones adicionales por transacción a las plataformas de compra. Por eso, nuestra oferta es más asequible incluso con configuraciones más avanzadas. Ofrecemos soporte técnico de por vida, parámetros de marcado/grabado y materiales gratuitos para pedidos directamente en... www.cloudraylaser.com, no adaptado a ningún pedido de otros canales de venta.
2. Diferentes tipos y configuraciones de máquinas. Las máquinas láser estarán equipadas con configuraciones únicas (solo para máquinas en www.cloudraylaser.com) con alta estabilidad y eficiencia de marcado. Permite la personalización de su máquina láser y la actualización de soluciones si es necesario.
3. Servicio de atención al cliente Solo podemos ofrecer servicio posventa para clientes que hayan realizado pedidos en www.cloudraylaser.comNo nos hacemos responsables de los pedidos realizados en plataformas de compra, ya que no tenemos la información de su pedido en nuestro sistema. Por favor, contacte con la tienda en las plataformas para obtener ayuda oportuna.
4. Beneficios oficiales para clientes lealesRealizaremos una campaña de prueba gratuita de vez en cuando para los clientes leales que hayan realizado pedidos directamente en www.cloudraylser.comNo está adaptado para clientes de otros canales de venta. Además, ofrecemos obsequios a quienes realicen pedidos durante grandes festividades.
Toda la información de productos, políticas y ofertas adicionales publicadas en el sitio web se adaptan únicamente a los pedidos realizados en www.cloudraylaser.com, y no está adaptado a las tiendas en las plataformas de compra.
La velocidad máxima de marcado del sistema de galvanómetro Cloudray es de 15.000 mm/s.
Cloudray recomienda un rango de velocidad de marcado común de 2000 a 5000 mm/s, lo que permite un marcado de alta calidad para caracteres de 1 mm.
Normalmente, la velocidad máxima de marcado puede alcanzar la velocidad de posicionamiento más alta del galvanómetro, dependiendo de las especificaciones del grabador.
La máquina tiene 2 años de garantía. Si se avería, por lo general, nuestro técnico determinará el problema según los comentarios de los clientes. Las piezas, excepto las consumibles, se reemplazarán gratuitamente si el problema se debe a defectos de calidad. Incluso si la máquina ya no está cubierta por la garantía, podemos ofrecerle asistencia técnica una vez realizado su pedido. www.cloudraylaser.com
