Controlador láser Cloudray Ruida RDC6344G
SKU: LC08R6344G

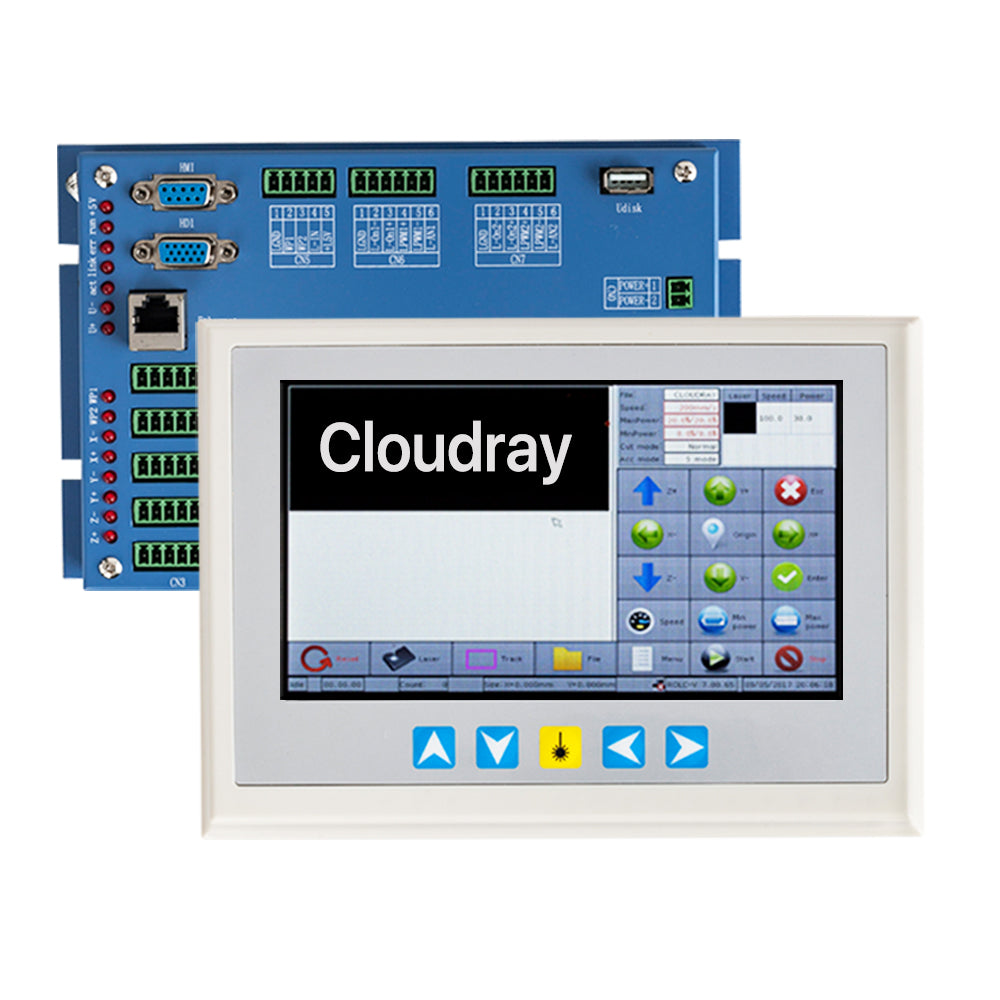

Controlador láser Rduida RAC6344G

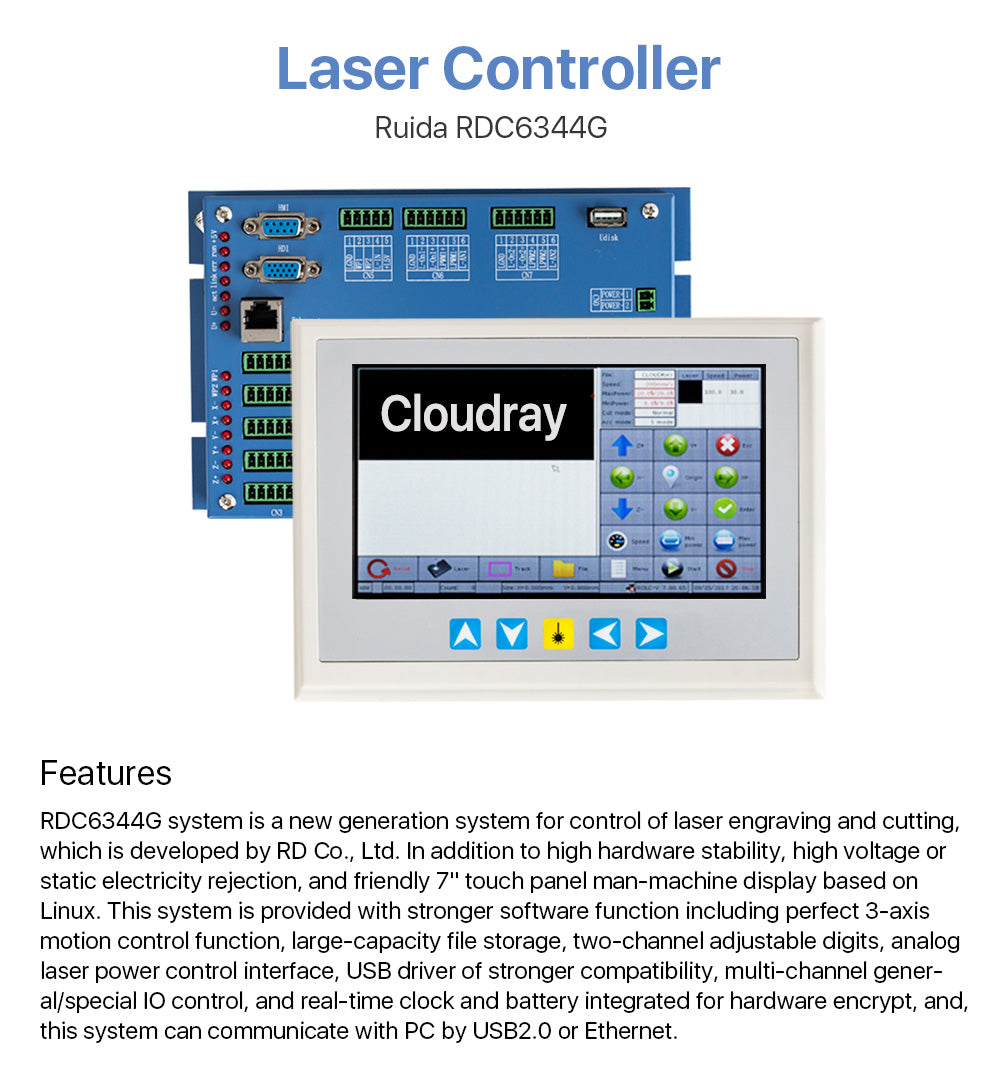

El sistema RDC6344G es un sistema de nueva generación para el control de grabado y corte por láser, desarrollado por RD Co., Ltd. Además de alta estabilidad de hardware, alto voltaje o rechazo de electricidad estática y amigable 7'' Pantalla táctil hombre-máquina basada en Linux. Este sistema cuenta con una función de software más sólida que incluye una función de control de movimiento de 3 ejes perfecta, almacenamiento de archivos de gran capacidad, dígitos ajustables de dos canales, interfaz de control de potencia láser analógica, controlador USB de mayor compatibilidad, control IO general/especial multicanal, y reloj en tiempo real y batería integrados para cifrado de hardware, y este sistema puede comunicarse con la PC por USB 2.0 o Ethernet.

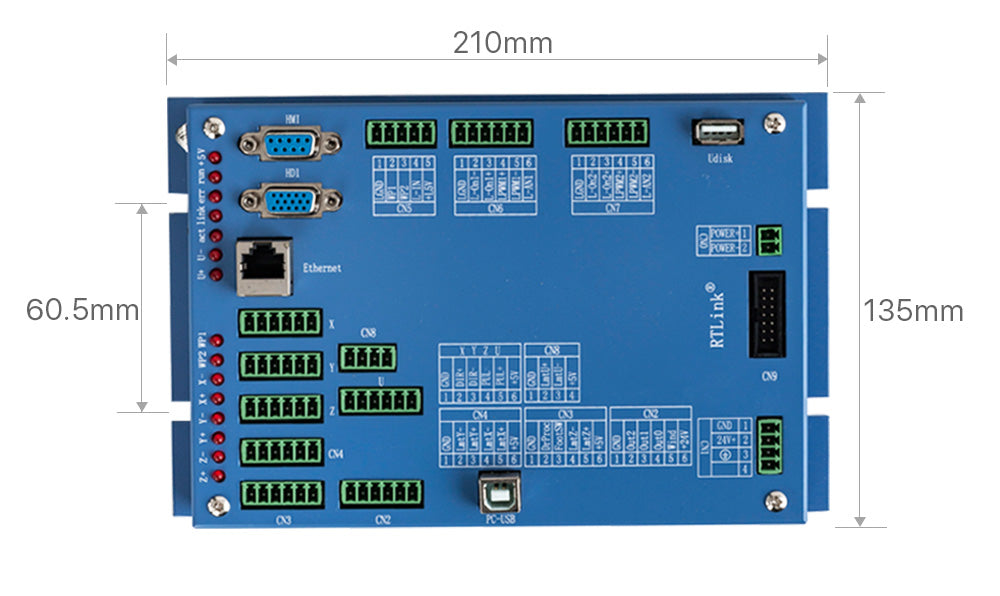

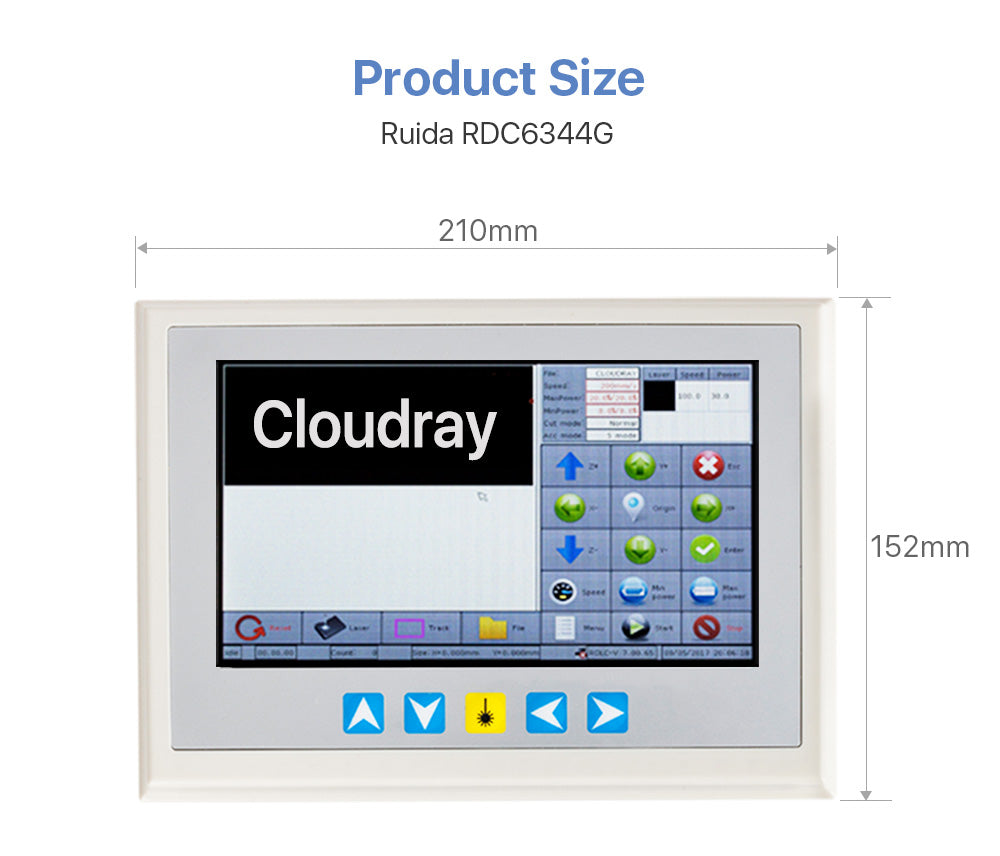

Tamaño del producto

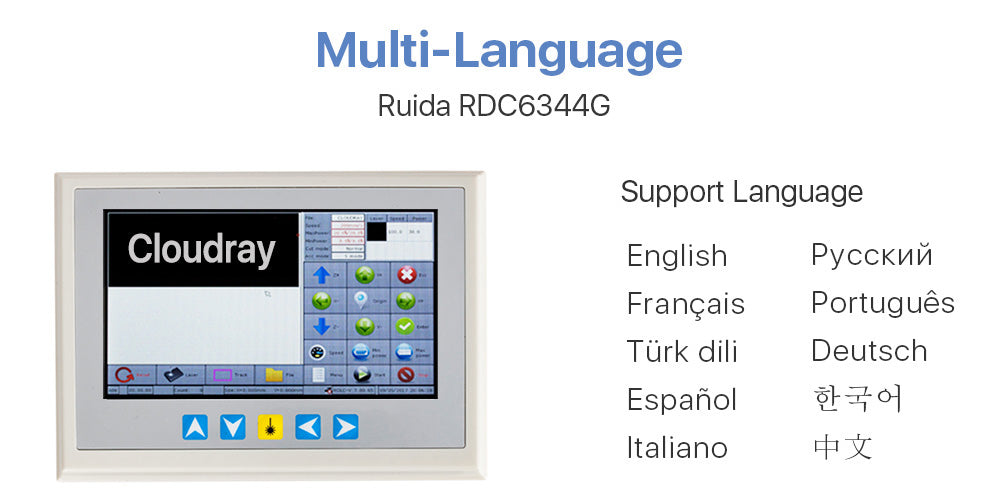

Multilenguaje
Parámetro técnico
1. Señales de control láser digital:
(1) Salida diferencial, nivel TTL, 20 mA, capacidad de accionamiento
2K-50K para ajustable
(3) La relación de trabajo de PWM es del 1 % al 99 %, ajustable
(4) El valor de PWM es de hasta 4,5 V
2. Señal de control de láser analógica: 0 ~ 5 V trazado ajustable automáticamente. t2> 4. Frecuencia de pulso de control del motor: Máx. 500 KHZ.
5.USB: Máx. la velocidad de transmisión es de 12 Mbps; la distancia más larga es de 5 metros.
6. Interpolación: Lineal/arco circular/B spline, precisión + / - 0,5 pulso.
7. Salida: 4- canal, salida de compuerta OC aislada fotoeléctrica; la capacidad máxima de la unidad es de 500 mA.
8. Entrada: 4 canales, entrada aislada fotoeléctrica, nivel TTL.

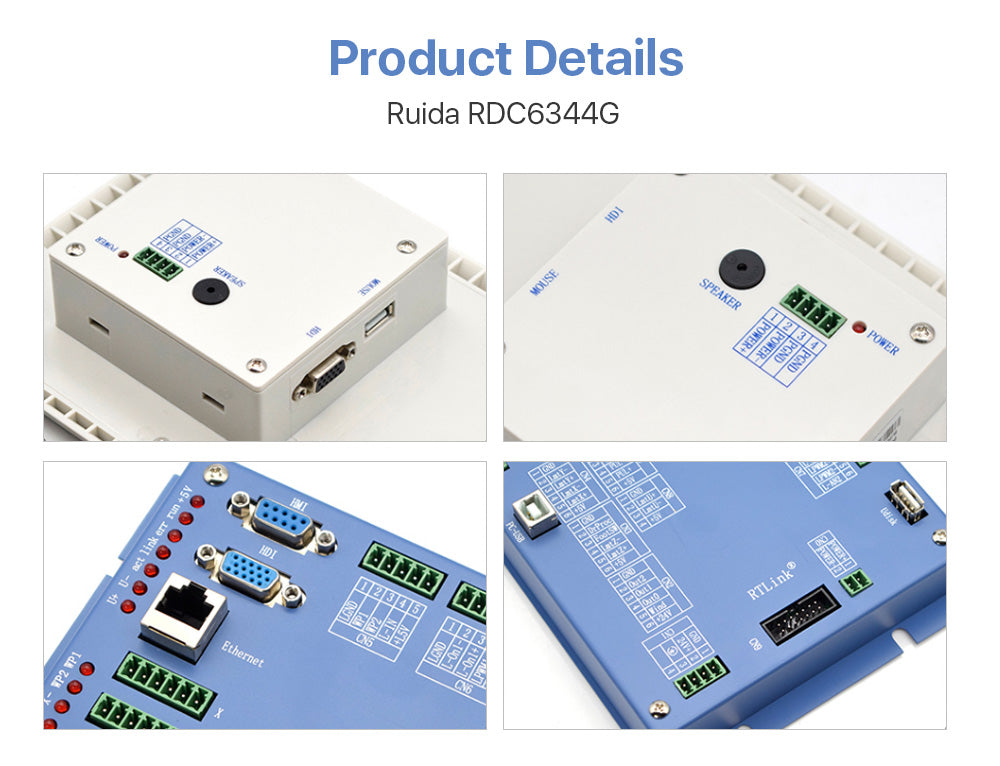

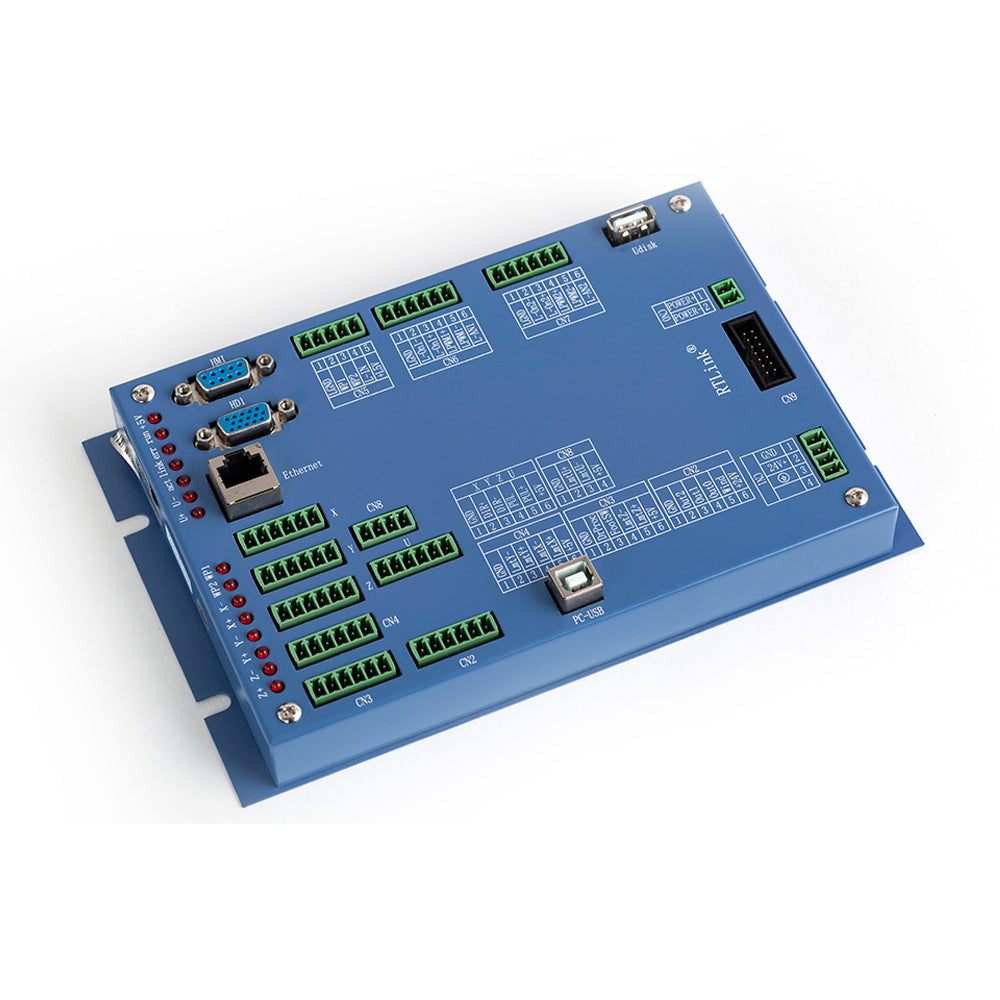

Detalles del producto

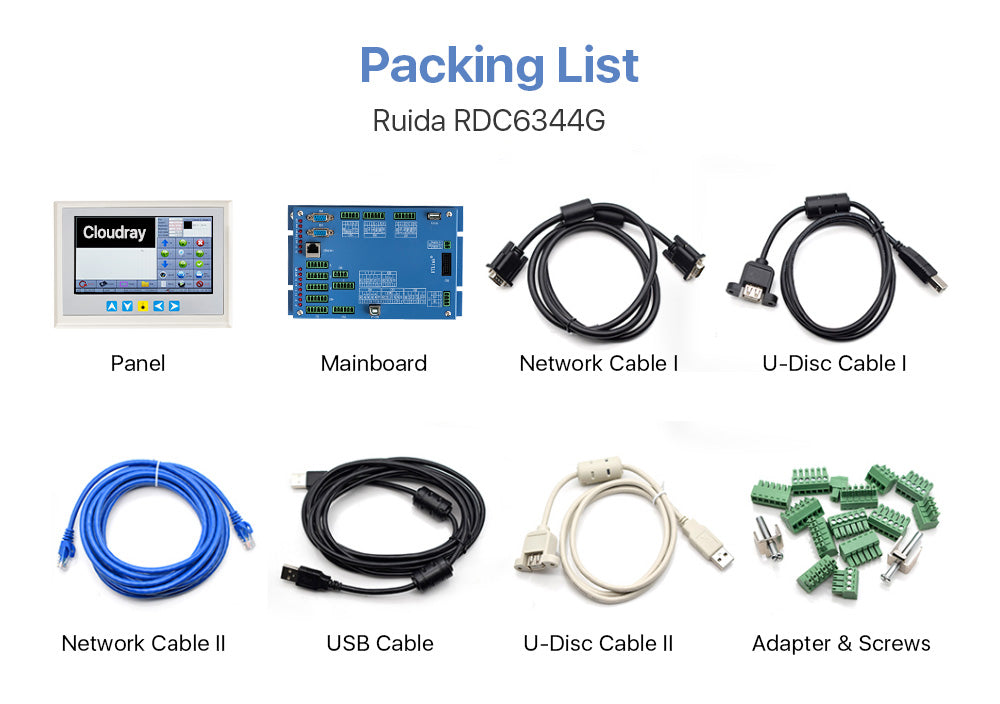

Lista de embalaje
