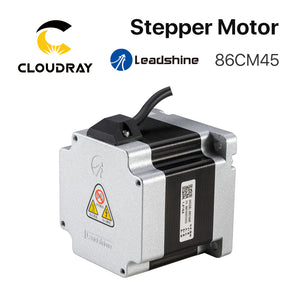

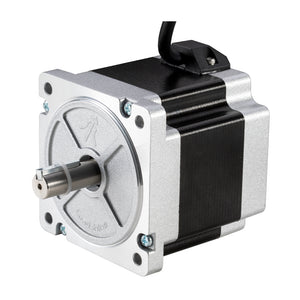

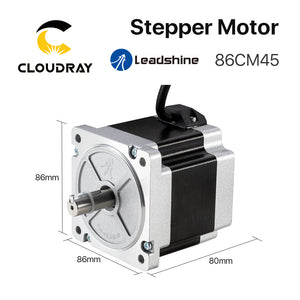

Hechos de cobre laminado en frío de alta calidad e imán permanente anti-alta temperatura, los motores paso a paso de Leadshine son altamente confiables y generan un bajo calentamiento del motor. Debido a sus buenas características de amortiguación interna, esos motores paso a paso pueden funcionar muy suavemente y no tienen un área de resonancia obvia dentro de todos los rangos de velocidad. El motor paso a paso de dos fases 86HS45 es adecuado para una amplia gama de aplicaciones de control de movimiento. Terminado con 8 cables de motor, el motor se puede conectar de varias formas diferentes, incluidas serie bipolar, paralelo bipolar y unipolar.
1. Ángulo de paso de 1,8 grados de 2 fases.
2. NEMA 34.
3. Toque de sujeción de 4,5 N*m (637 oz-in).
4. Alta precisión.
5. Movimiento suave.
6. Bajo calentamiento del motor.
7. Bajo ruido de movimiento.

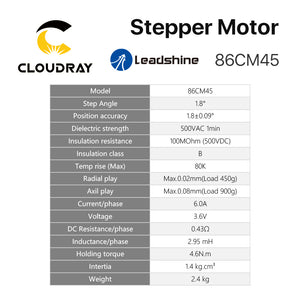

Especificaciones generales
Grado de ángulo de pason
|
1,8 grados
|
Precisión del ángulo de paso
|
más o menos 5 % (paso completo, sin carga)
|
Aumento de temperatura
|
80 centígrados máximo
|
Temperatura ambiente
|
-10 centígrados --+50 centígrados
|
Resistencia de aislamiento
|
100 M ohmios mín. 500 V CC
|
Fuerza dieléctrica
|
500 V CA durante un minuto
|
Juego radial del eje
|
0,06 máx. (carga de 450 g)
|
Juego axial del eje
|
0,08 máx. (carga de 450 g)
|
Especificaciones eléctricas
Número de modelo
|
Conexión
|
Longitud del motor L pulgadas (mm)
|
Par de retención Oz-in (Nm)
|
Número de clientes potenciales
|
Corriente de fase (amperios)
|
Resistencia de fase (ohmios)
|
Inductancia de fase (mH)
|
Inercia del rotor Oz-en-seg^2 (g.cm^2)
|
Torque de tope Oz-in (g.cm)
|
Peso en onzas (kg)
|
86HS45
|
(Bipolar) Paralelo
|
3.13(80)
|
637,2(4,5)
|
8
|
6.0
|
0.375 más o menos 10%
|
3.4 más o menos 20%
|
0.01988 (1400) |
18.2 (1300) |
81.1(2.3)
|
Serie (bipolar)
|
637,2(4,5)
|
3.0
|
1.5 más o menos 10%
|
14 más o menos 20 %
|
||||||
Unipolar
|
453,12(3,2)
|
4.2
|
0,75 más o menos 10 %
|
3.4 más o menos 20%
|




La media bobina unipolar y bipolar, debido a que usamos menos vueltas, no nos brinda un gran par de baja velocidad, pero debido a la baja inductancia, mantiene el par a altas velocidades. La serie bipolar utiliza la bobina completa, por lo que proporciona un par de torsión a baja velocidad muy bueno. Pero debido a la alta inductancia, el par cae rápidamente. El paralelo bipolar también utiliza la bobina completa, por lo que ofrece un buen rendimiento a baja velocidad. Y su baja inductancia permite que el par se mantenga a altas velocidades. Pero recuerda, debemos aumentar la corriente en un 40% para obtener esas ventajas. Las curvas de par-velocidad muestran los pares máximos que se pueden generar a una velocidad determinada. Al seleccionar un motor, asegúrese de que el par requerido esté dentro de la curva particular.
