Cloudray Ruida 6445GT Touch Screen Laser Controller

SKU: LC08RDC6445GTTSW
Cloudray Ruida 6445GT Touch Screen Laser Controller
Cloudray Ruida 6445GT Touch Screen Laser Controller
Cloudray Ruida 6445GT Touch Screen Laser Controller
Cloudray Ruida 6445GT Touch Screen Laser Controller
Cloudray Ruida 6445GT Touch Screen Laser Controller
Cloudray Ruida 6445GT Touch Screen Laser Controller
Cloudray Ruida 6445GT Touch Screen Laser Controller
Cloudray Ruida 6445GT Touch Screen Laser Controller
Cloudray Ruida 6445GT Touch Screen Laser Controller
Cloudray Ruida 6445GT Touch Screen Laser Controller
Cloudray Ruida 6445GT Touch Screen Laser Controller
Cloudray Ruida 6445GT Touch Screen Laser Controller

Cloudray Ruida 6445GT Touch Screen Laser Controller

SKU: LC08RDC6445GTTSW
Model
/
  • Cloudray Official Quality Inspection（100% brand new original authentic）
  • More Details of Configurations in Description (Click to Expand)
  • Secure payments; Lifetime Tech Support (Specialists)
  • Support Shipping Worldwide
Spedizione calcolata alla cassa.

Laser Controller Ruida 6445GT

1.Support up to 4 channels of servo/stepping motor control.
2.Support 1 way extended serial port, which can communicate with EPLC-400, wireless handheld devices (BWK201R, BWK301R), and other devices with RS232 standard interface.
3.Support 4 OC gate outputs, which can directly drive 5V/24 relays.
4.Support mobile APP;
5.Support double-head electric mutual movement control and over-format cutting.
6.Support double-head asynchronous processing.
7.Support processing methods such as large format vision, mark point vision cutting and projection cutting.
8.Support controller and HMI firmware updating by U disk
9.Startup screen can be upgraded through software

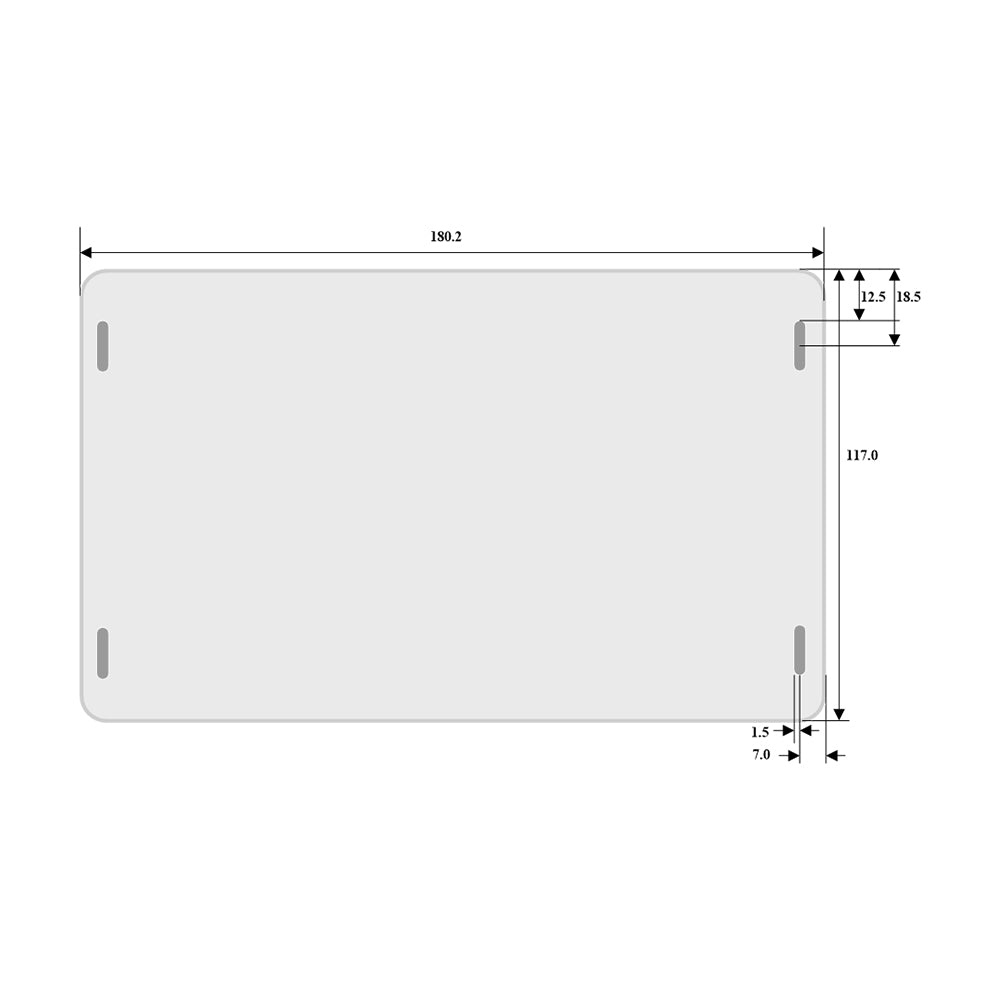

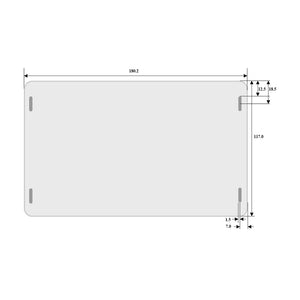

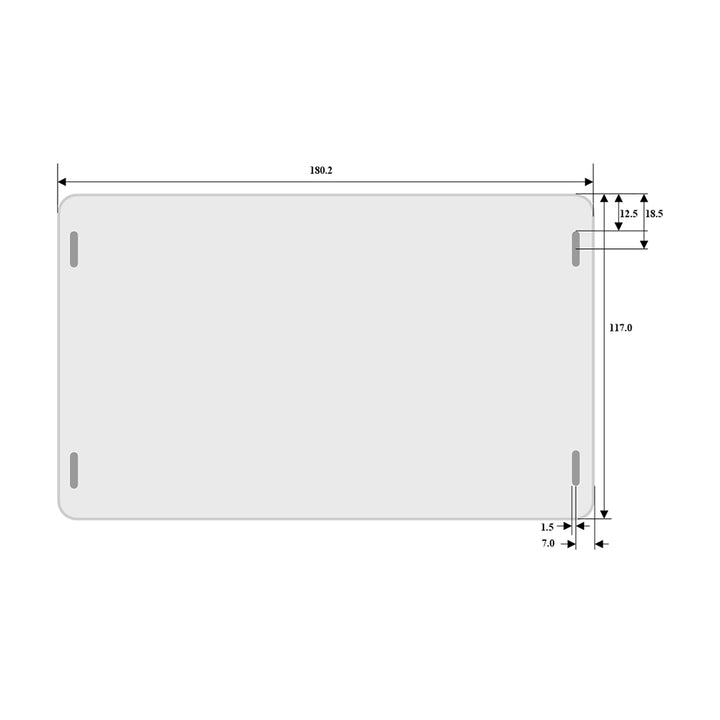

Product Dimension

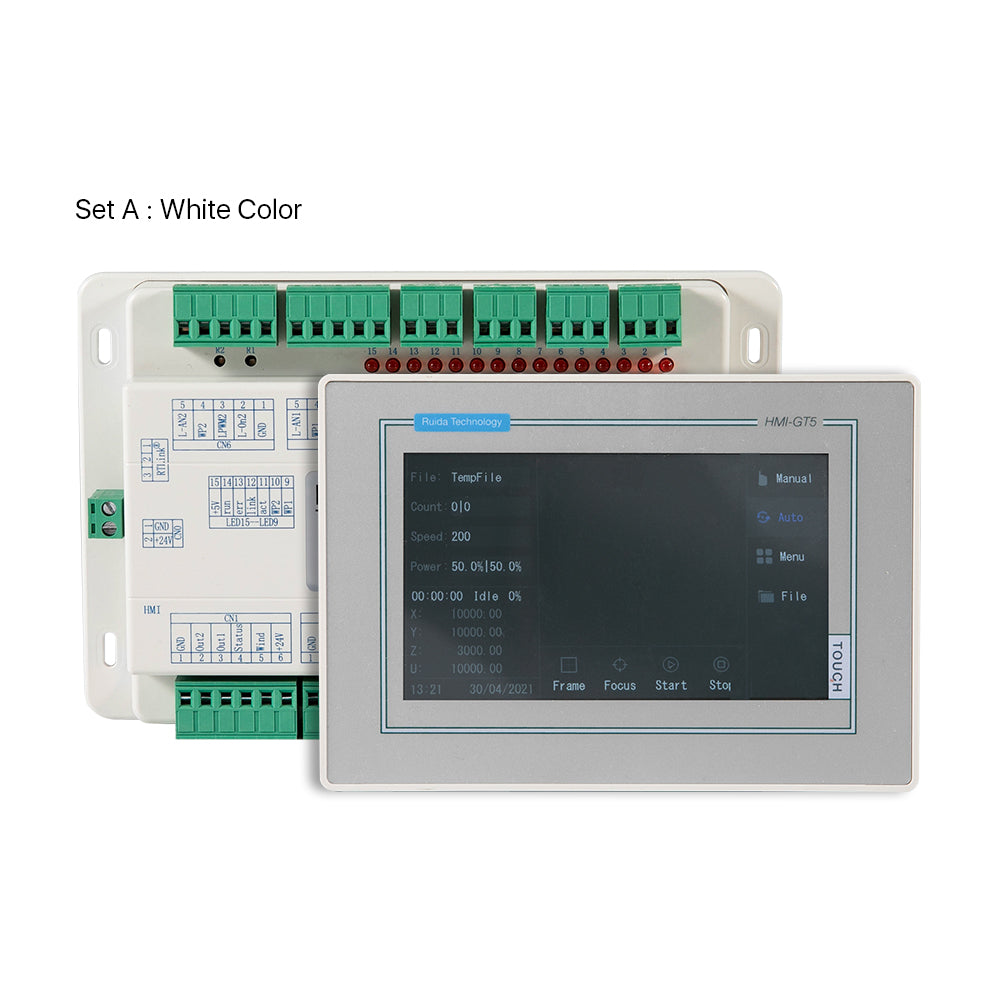

Set A: White Color

Set B: Black Color

Panel(mm)

Controller(mm)

Technical Parameter

1. 4 motor interfaces, maximum output is 400KHZ frequency; drive capacity 20mA, common anode interface.
2.Onboard 128M memory.
3.The maximum USB transfer rate is 12M, and the longest distance is 5 meters.
4. 4The maximum transmission rate of the network cable is 100M, and the maximum transmission distance is 200M;
5.Linear/arc/B-spline interpolation accuracy +/-0.5 pulse.
6. 4 general photoelectric isolation OC gate output, maximum 300mA drive capability (with continuous current protection), can directly drive 24V/5V DC relay.
7. 4 general optical isolation inputs, compatible with 5V/12V/24V logic level.

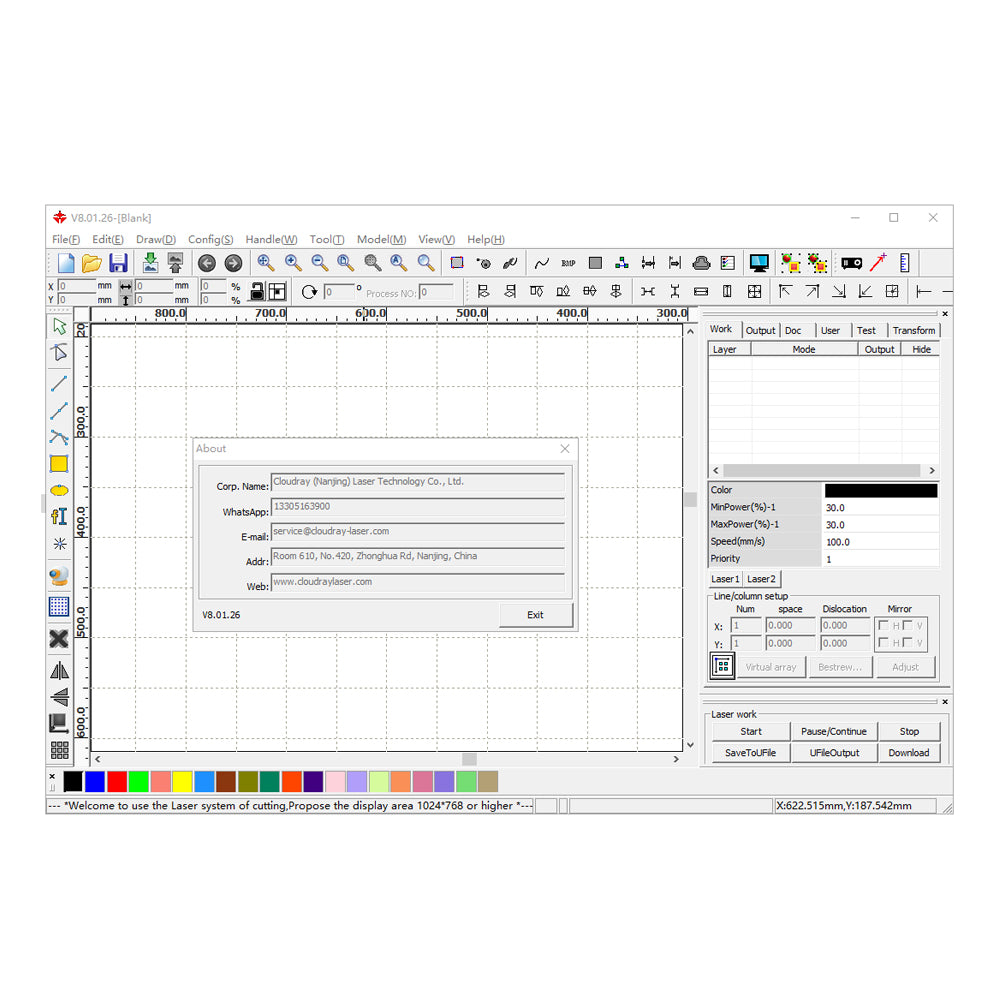

Software RDWorks V8

Multi-Language

What's included

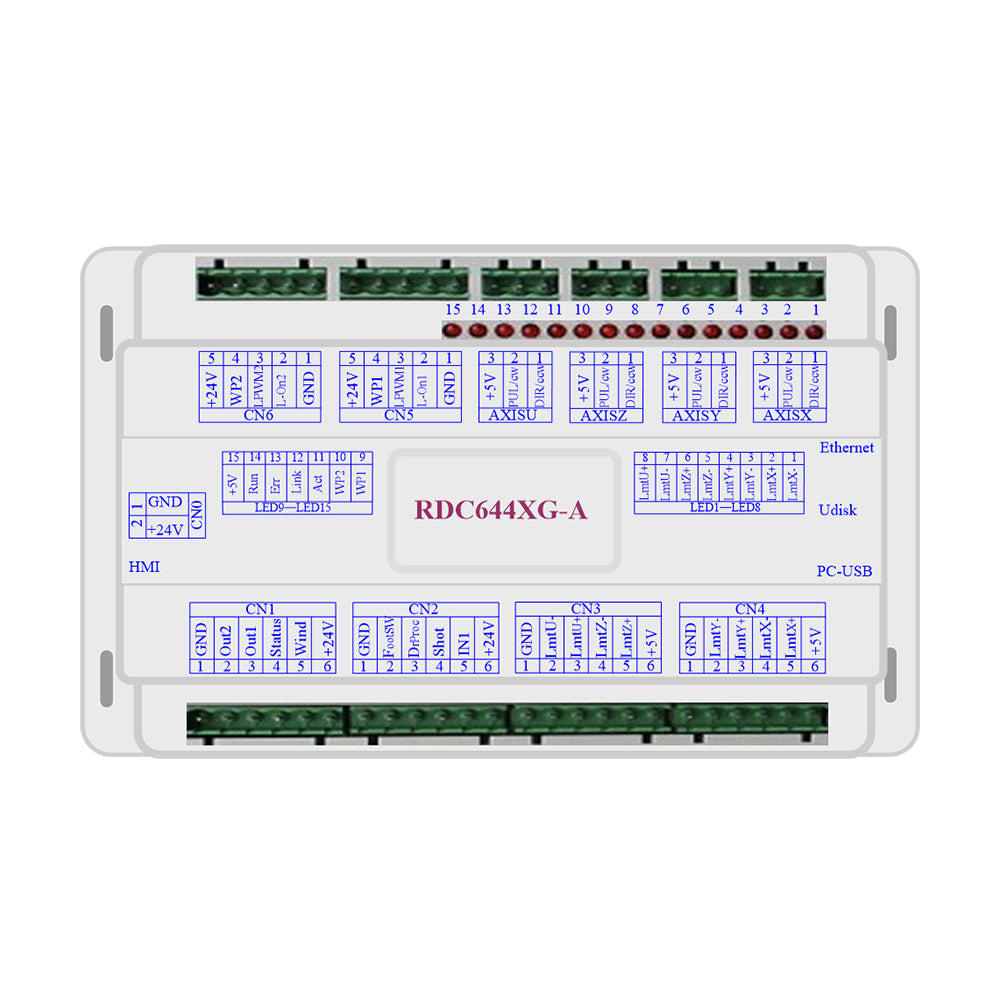

Connection Diagram

Related Products

Certification







RDC6445GT5-Laser-cutting-system-hardware-user-manualV1.1

Notification: Customs clearance inspections (CN Warehouse) will cause delays 2-3 days in logistics.

1. Accessories sitewide: 3-7 Business Days

2. Machine with the default configuration: CN Warehouse: 5-7 Business Days
USA/EU Warehouse: 3-7 Business Days

3. Customized Machine (Only Support Shippment From China Warehouse)
The average period of production: 7-10 Business Days
Shipping: 7-10 Business Days
