Heim Cloudray 60 mm 0,71 Nm 1,8 A 2-Phasen-Nema17-Schrittmotor mit offenem Regelkreis

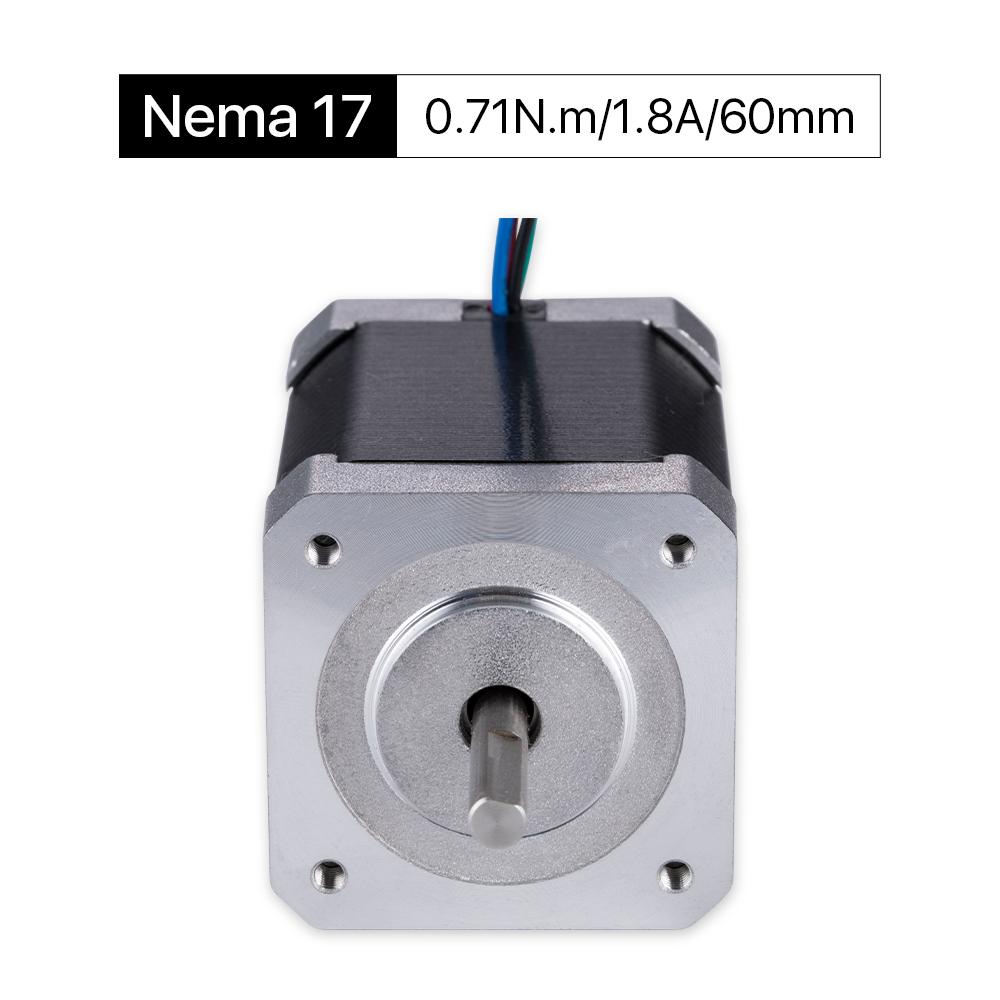

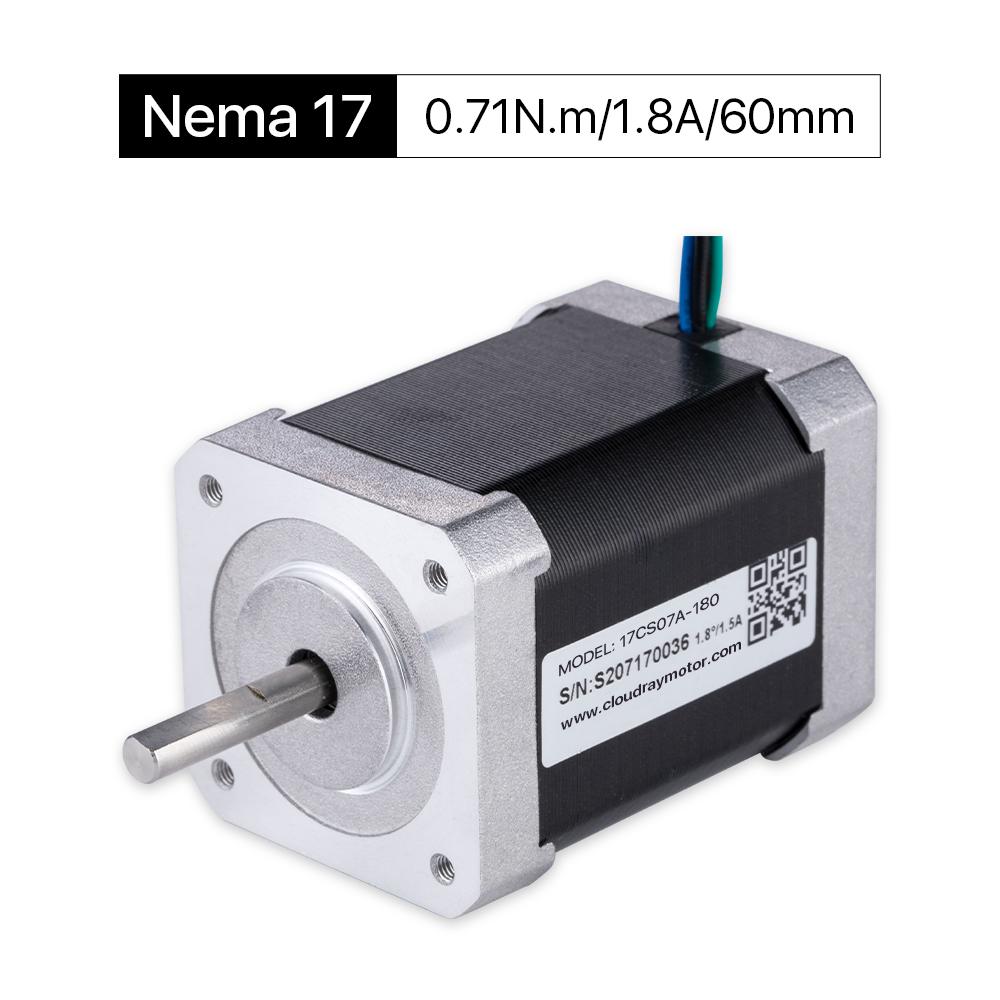

Cloudray Nema 17 Open-Loop Stepper Motor 17CS07A-180 with D-Cut Shaft for CNC Automation
Cloudray Stepper Motor Back Cover View Featuring CE RoHS Certification and Product SKU Label

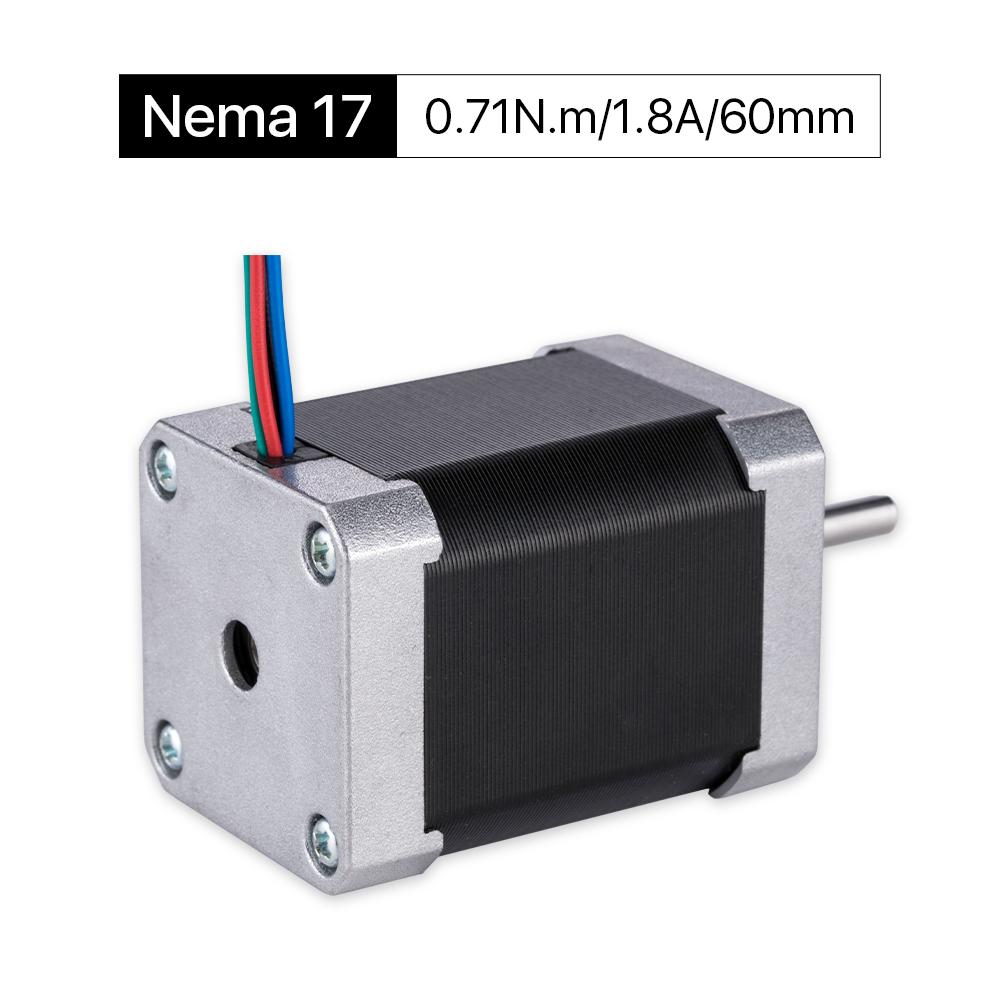

Cloudray 17CS07A-180 Stepper Motor Side Profile with Quality Certificate and Integrated Lead Wires
Cloudray Nema 17 Stepper Motor Specifications: 0.8 N.m Holding Torque and 1.8° Step Angle

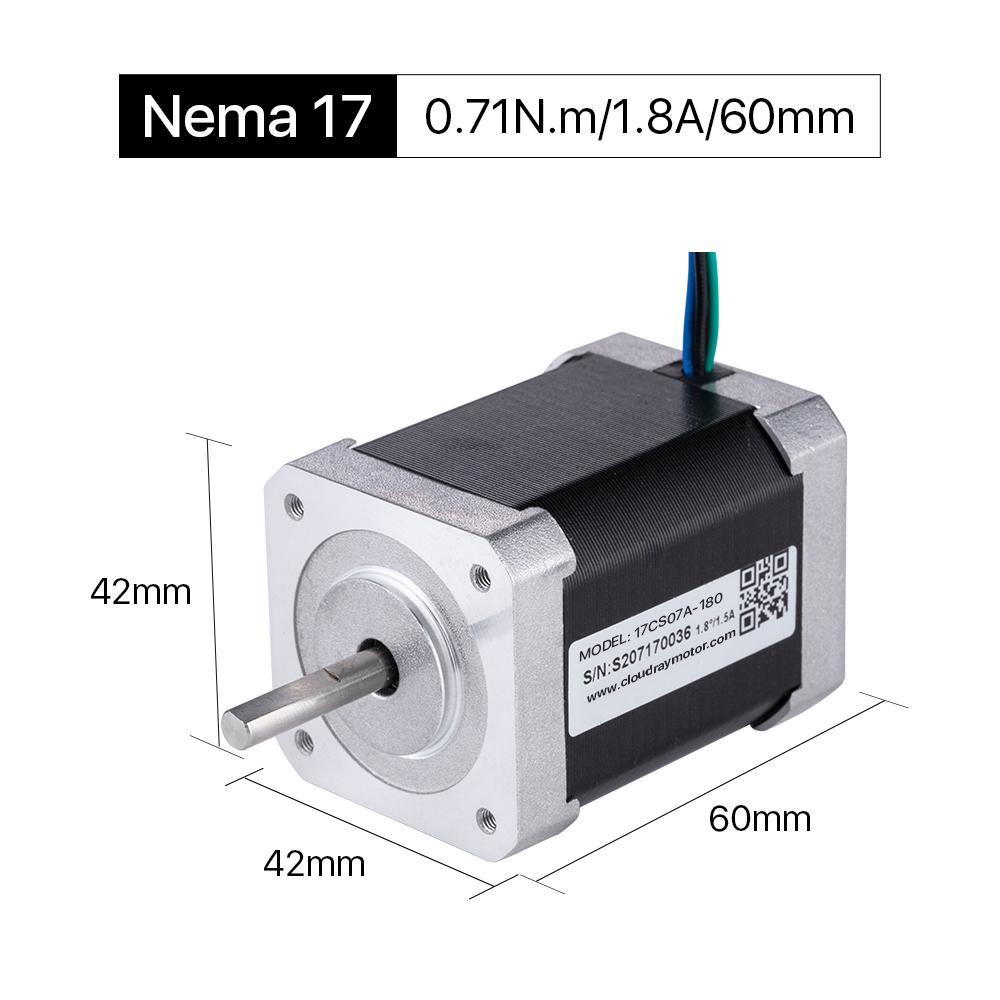

Cloudray Stepper Motor Mechanical Dimensions: 42x42x60mm Body and 5mm D-Cut Shaft Length Details
Cloudray Stepper Motor Mounting Hole Dimensions: 31mm Pitch, M3 Mounting Threads, and 500mm UL Lead Wire
Cloudray Nema 17 Open-Loop Stepper Motor 17CS07A-180 with D-Cut Shaft for CNC Automation
Cloudray Stepper Motor Back Cover View Featuring CE RoHS Certification and Product SKU Label
Cloudray 17CS07A-180 Stepper Motor Side Profile with Quality Certificate and Integrated Lead Wires
Cloudray Nema 17 Stepper Motor Specifications: 0.8 N.m Holding Torque and 1.8° Step Angle
Cloudray Stepper Motor Mechanical Dimensions: 42x42x60mm Body and 5mm D-Cut Shaft Length Details
Cloudray Stepper Motor Mounting Hole Dimensions: 31mm Pitch, M3 Mounting Threads, and 500mm UL Lead Wire

Cloudray 60 mm 0,71 Nm 1,8 A 2-Phasen-Nema17-Schrittmotor mit offenem Regelkreis

SKU SM47N17CS07A180
40
Die Leute sehen sich das gerade an
Verkaufspreis $ 13.00 USD
Zur Wunschliste hinzufügen Hinzufügen zum vergleichen
Versand wird beim Checkout berechnet

Sicher und geschützt

Cloudray Nema 17 Open-Loop Stepper Motor 17CS07A-180 with D-Cut Shaft for CNC Automation

Cloudray 60 mm 0,71 Nm 1,8 A 2-Phasen-Nema17-Schrittmotor mit offenem Regelkreis

$ 13.00 USD
Cloudray Nema 17 Open-Loop Stepper Motor 17CS07A-180 for CNC and Laser Engraving
Cloudray 17CS07A-180 Stepper Motor Specification Table: 0.8 N.m Holding Torque and 3.88A Rated Current

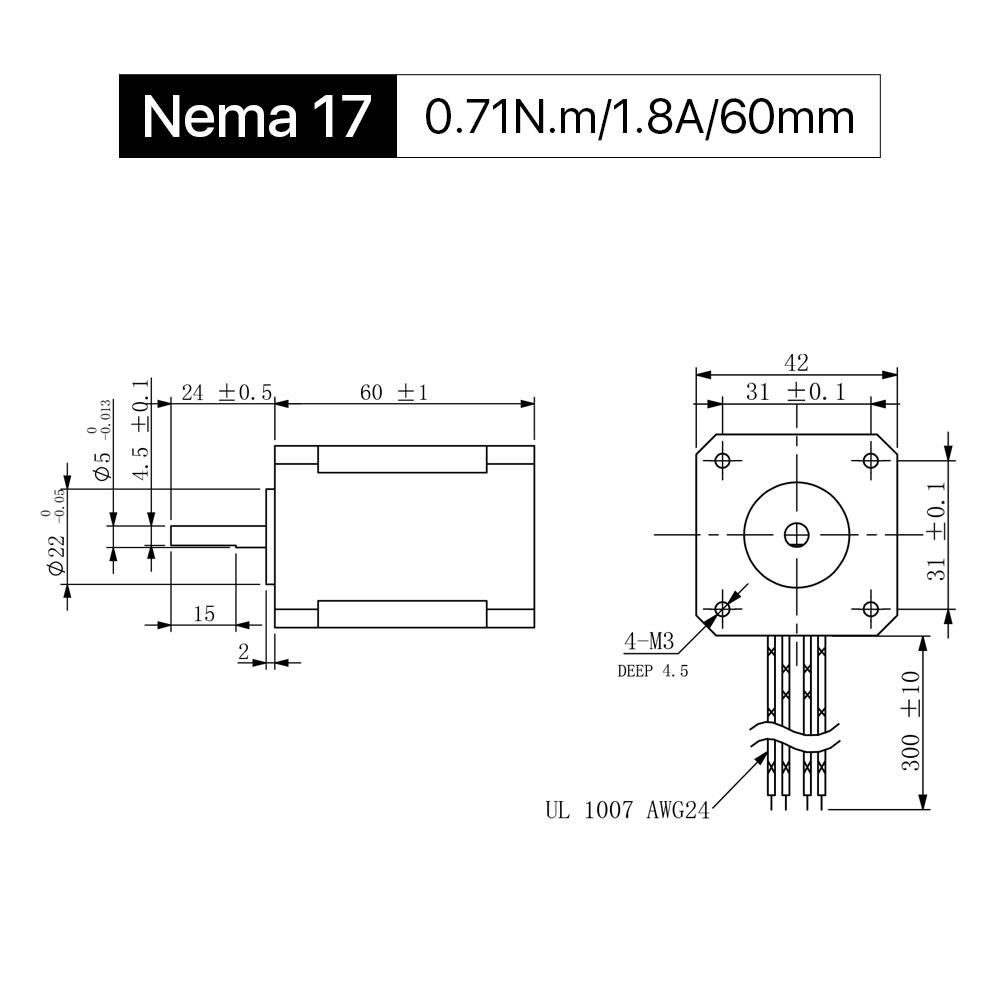

Cloudray Nema 17 Stepper Motor Dimensions Diagram: 42x42x60mm Body with 5mm Shaft Diameter
Cloudray 4-Lead 2-Phase Open-Loop Stepper Motor Connection Diagram and Wiring Color Guide
Cloudray Stepper Motor Model Numbering Nomenclature and Technical Parameter Selection Guide
Cloudray Stepper Motor CE and RoHS Certificates of Conformity for Industrial Automation
Cloudray Stepper Motor Applications for 3D Printers, CNC Machines, Textile Equipment, and Laser Cutting
