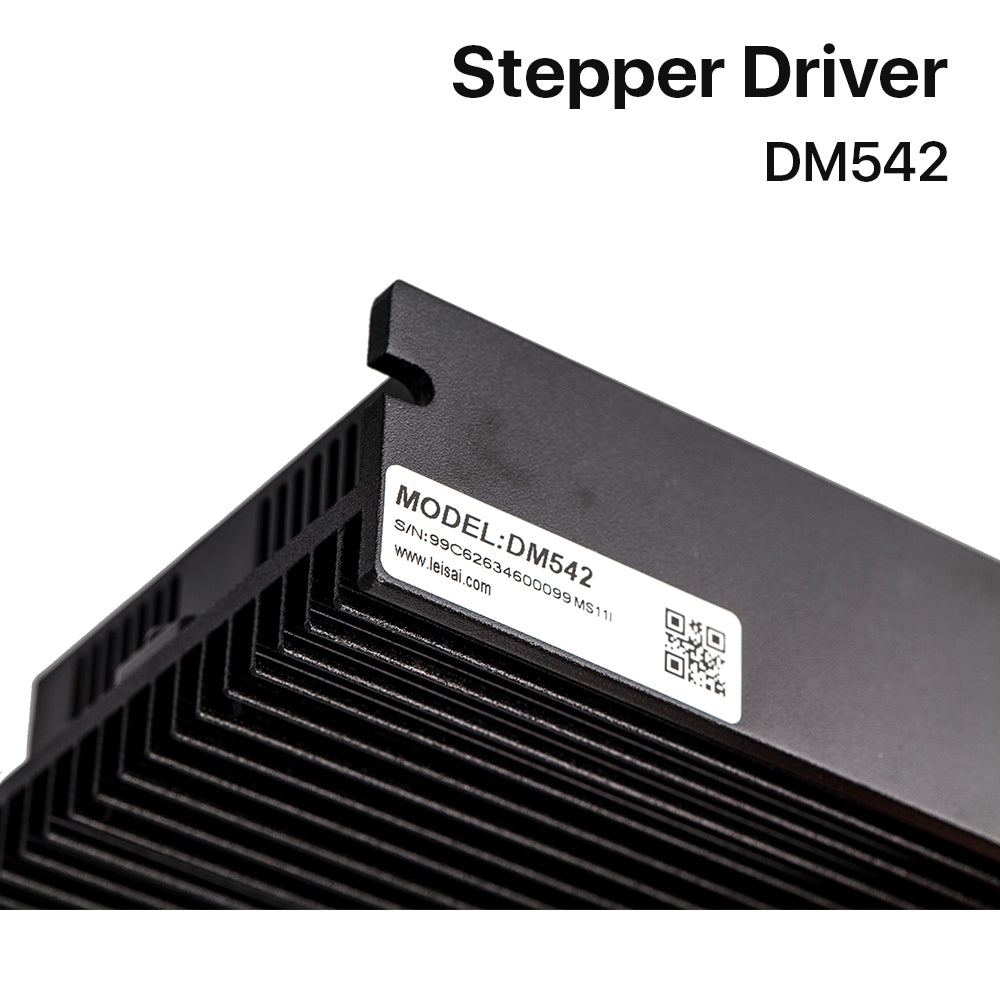

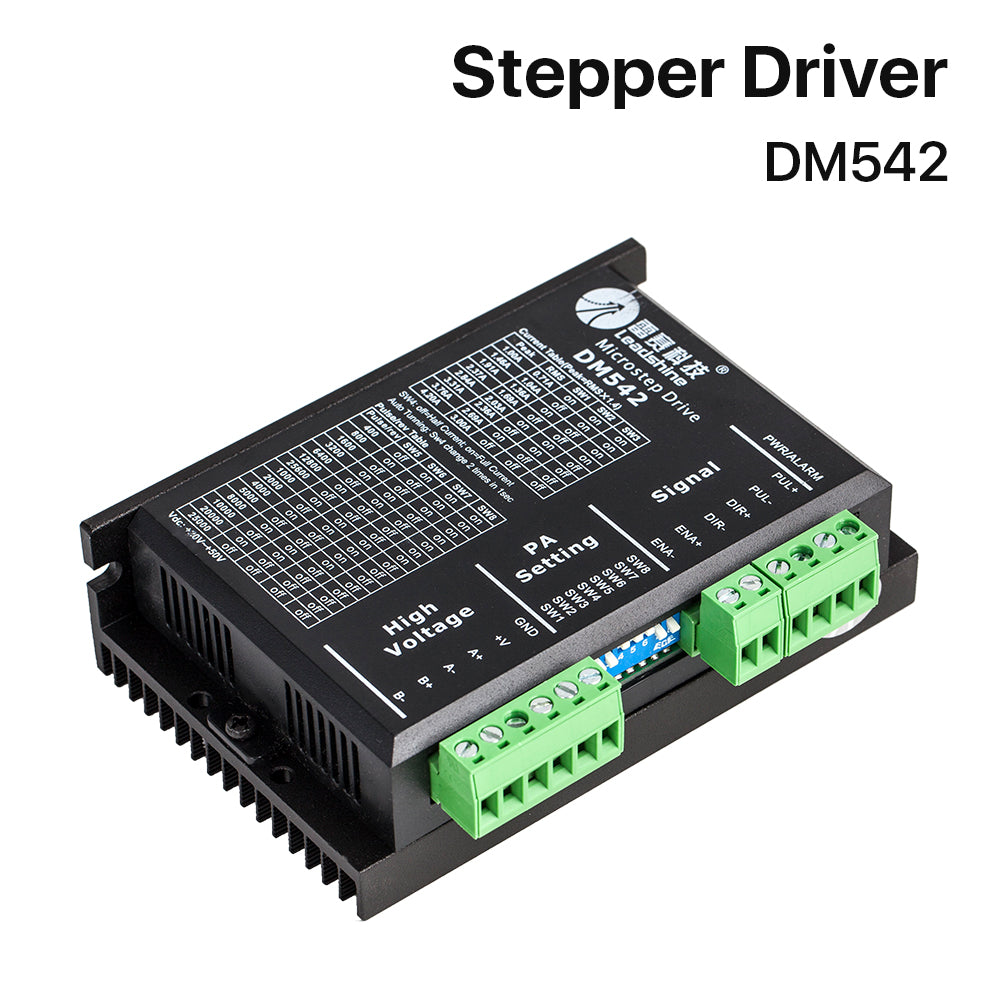

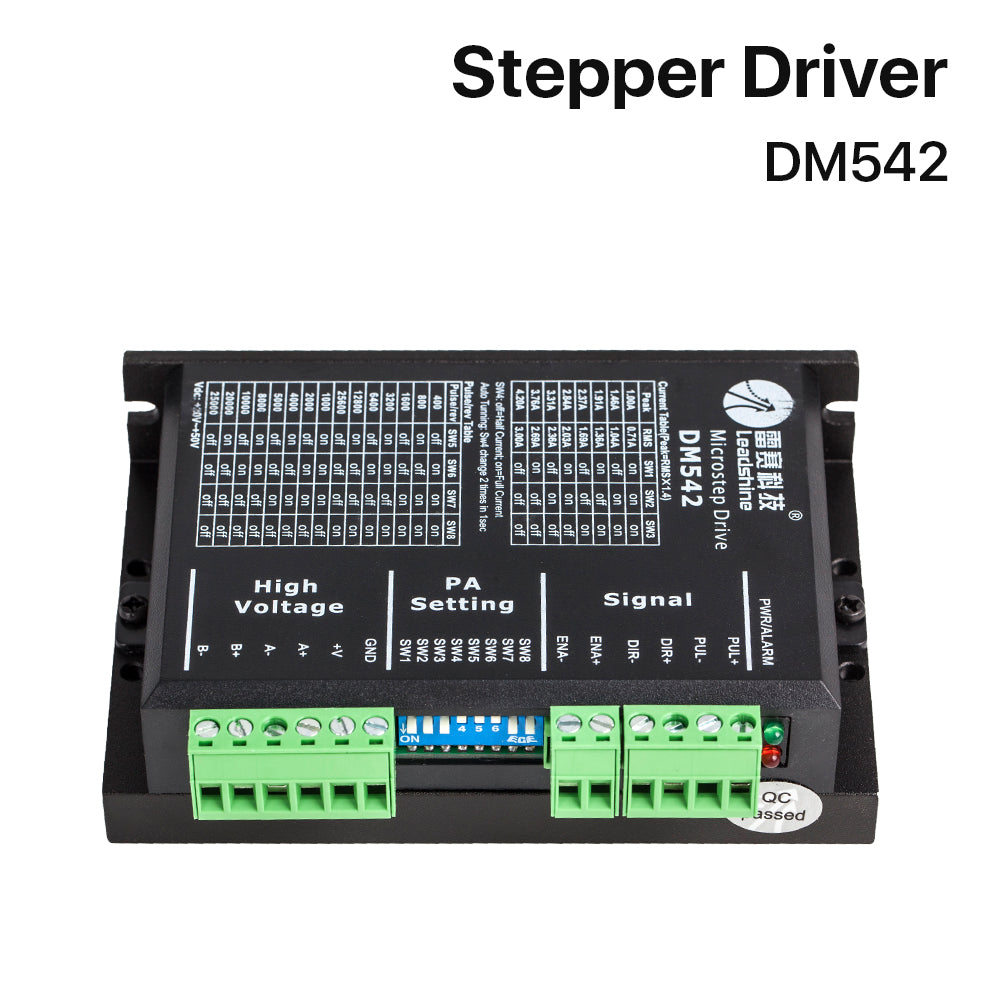

Cloudray Leadshine DM542 2-фазный драйвер шагового двигателя

Name: Cloudray Leadshine DM542 2-фазный драйвер шагового двигателя
Brand: Leadshine
SKU: SMD10L2PDM542
Price: 36.0 USD
Availability: InStock

Notification: Cloudray Official Customer Service is only for orders directly on cloudraylaser.com. Please check our FAQ before purchasing.
Please directly consult info@cloudray.com if you need bulk quantities, we will offer you wholesale prices depending on the required amounts.

Цена

Cloudray Official Quality Inspection（100% brand new original authentic）

More Details of Configurations in Description (Click to Expand)

Secure payments; Lifetime Tech Support (Specialists)

Support Shipping Worldwide （For International Shipping, the customer needs to pay customs fees to your local customs, we will not charge this part of the fee）

Количество

Параметры	DM542
Параметры	Мин	Обычный	Макс.	Отряд
Выходной ток	1.0	-	4,2 (3,0 среднеквадратичное значение)	А
Напряжение питания	20 В переменного тока	24–48 В переменного тока	50 В переменного тока	В
Ток логического сигнала	7	10	16	мА
Частота импульсного входа	0	-	200	кГц
Шаговая революция	400		25600	Импульс/обороты
Сопротивление изоляции	500			МОм
Подходящие шаговые двигатели	NEMA 16,17,23

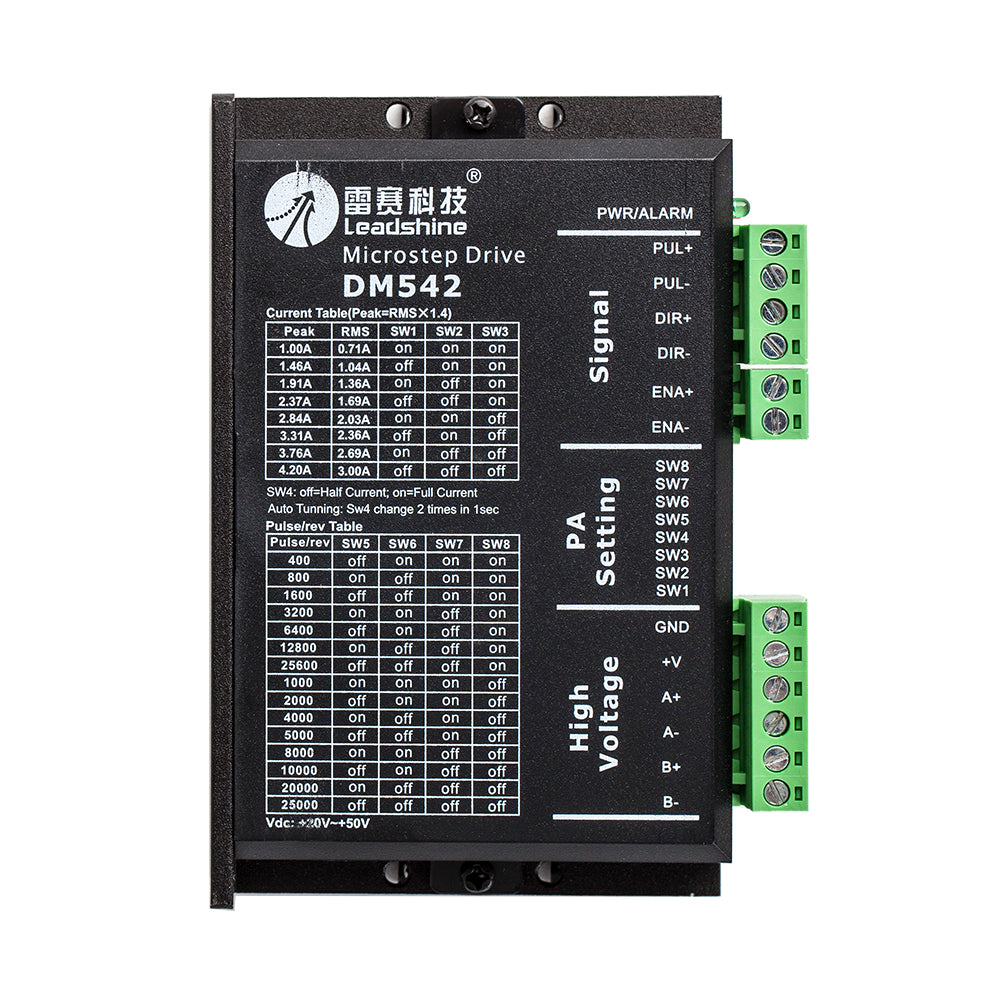

Функция P1	Детали DM542
ПУЛ	Импульсный сигнал: импульс активен по переднему фронту; 4-5В при ИМПУЛЬС-ВЫСОКИЙ, 0-0,5В при ИМПУЛЬС-НИЗКИЙ. Минимальная ширина импульса 2,5 мкс. Добавьте резистор для ограничения тока при входном логическом напряжении +12 В или +24 В (1 кОм для +12 В, 2 кОм для +24 В). Аналогично сигналам DIR и ENA.
КАТАЛОГ	Сигнал DIR: этот сигнал имеет низкий/высокий уровни напряжения для представления двух направлений вращения двигателя. Минимальное время установки направления 5 мкс. Также переключение двух проводов катушки (например, A+ и A-) к приводу изменит направление вращения двигателя.
ЭНА	Сигнал включения: Этот сигнал используется для включения/отключения привода. Высокий уровень +5В (управляющий сигнал NPN) для включения привода и низкий уровень для отключения привода. Сигналы PNP и дифференциального управления наоборот, а именно низкий уровень для включения. По умолчанию он остается НЕПОДКЛЮЧЕННЫМ (ВКЛЮЧЕНО).

Функция P2	Детали DM542
+Vdc	Положительное соединение источника питания. Рекомендуемое напряжение питания 24–48 В постоянного тока
Земля	Земля питания.
А+, А-	Фаза двигателя A
В+, В-	Фаза двигателя B
