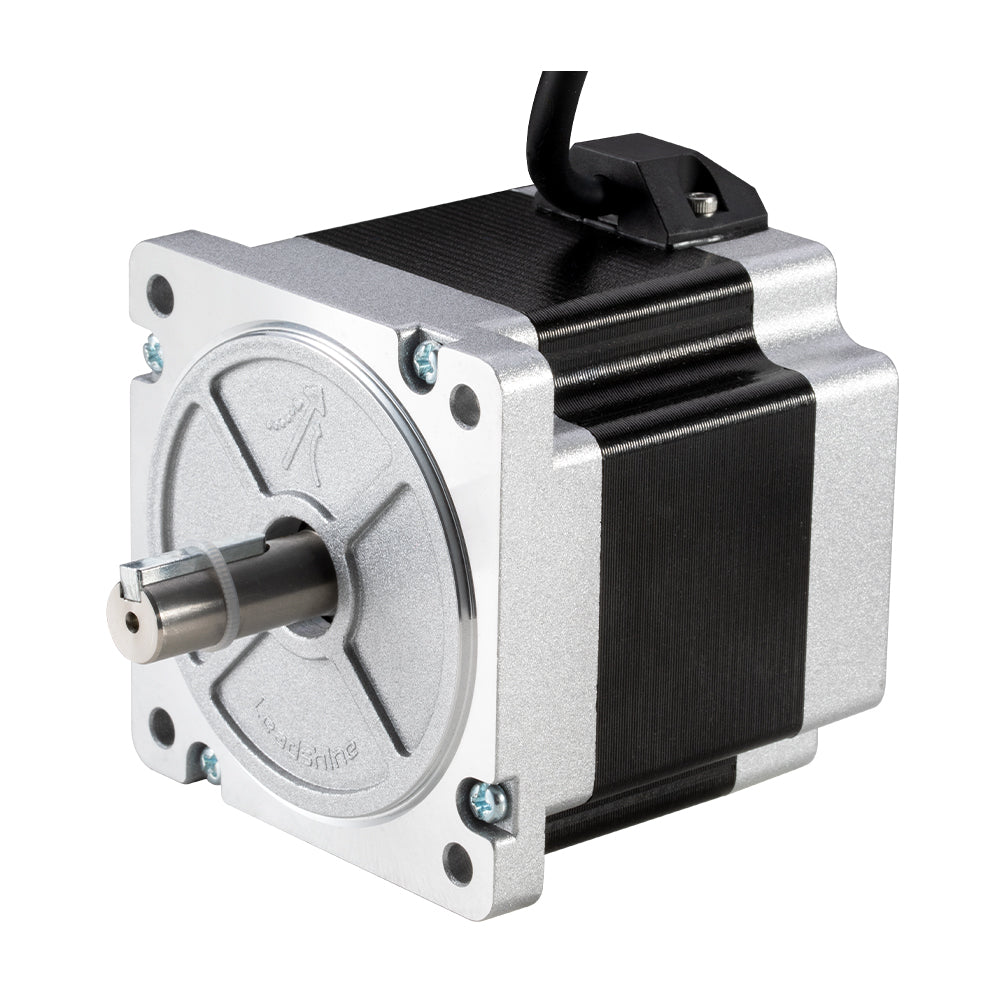

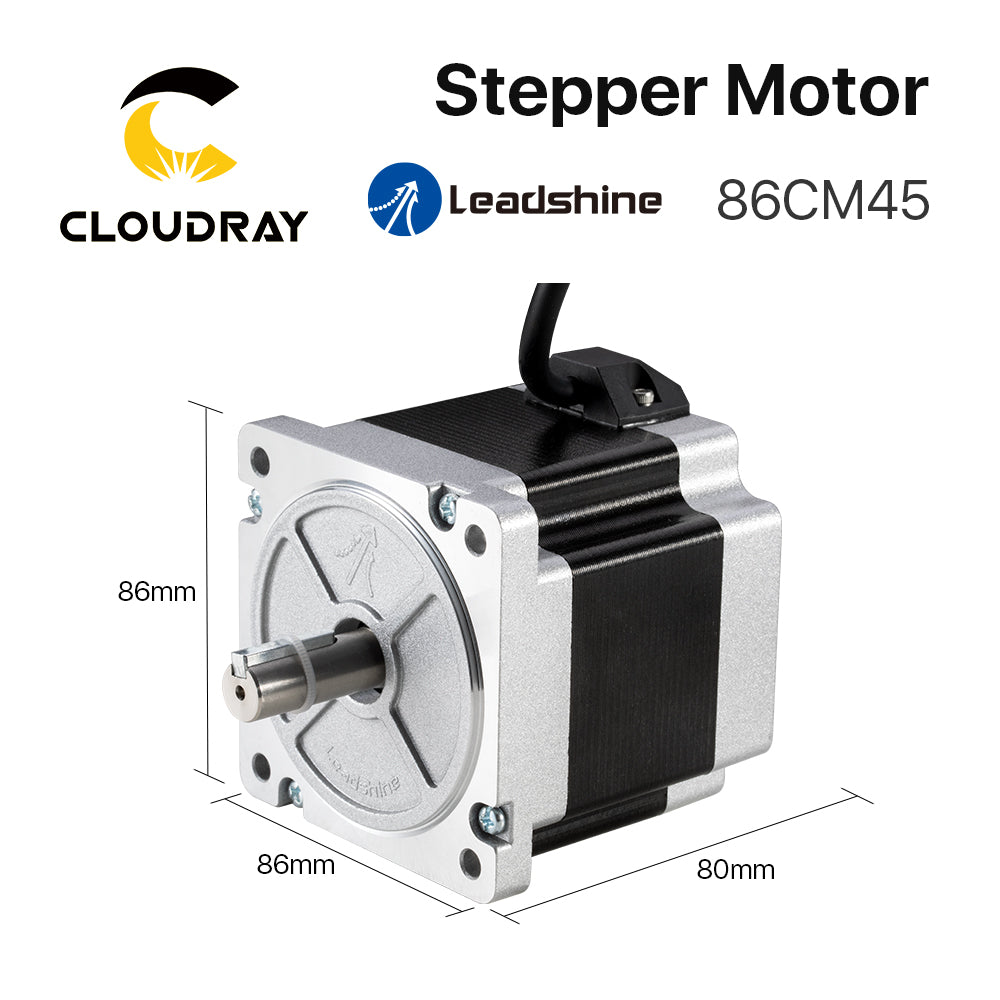

Изготовленные из высококачественной холоднокатаной листовой меди и постоянного магнита, устойчивого к высоким температурам, шаговые двигатели Leadshine отличаются высокой надежностью и мало нагреваются. Благодаря своим хорошим характеристикам внутреннего демпфирования эти шаговые двигатели могут работать очень плавно и не иметь явного резонанса во всем диапазоне скоростей. Двухфазный шаговый двигатель 86HS45 подходит для широкого спектра приложений управления движением. Оконченный 8 выводами двигателя, двигатель может быть подключен несколькими различными способами, в том числе биполярным последовательным, биполярным параллельным и однополярным.
1. 2 фаза 1. Угол наклона 8 градусов.
2. НЕМА 34.
3. Удерживающий момент 4. 5 Н*м (637 унций на дюйм).
4. Высокая точность.
5. Плавное движение.
6. Низкий нагрев двигателя.
7. Низкий шум движения.


Общие характеристики
Угол шага в градусах
|
1. 8 степень
|
Точность угла шага
|
плюс-минус 5%(полный шаг, без нагрузки)
|
Повышение температуры
|
Макс. 80 градусов по Цельсию
|
Температура окружающей среды
|
-10°С --+50°С
|
Сопротивление изоляции
|
100 МОм мин. 500 В пост. тока
|
Прочность диэлектрика
|
500 В переменного тока в течение одной минуты
|
Радиальный люфт вала
|
0. 06 Макс. (загрузка 450 г)
|
Осевой люфт вала
|
0. 08 макс. (загрузка 450 г)
|

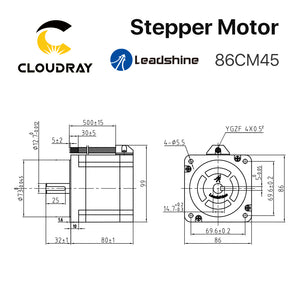

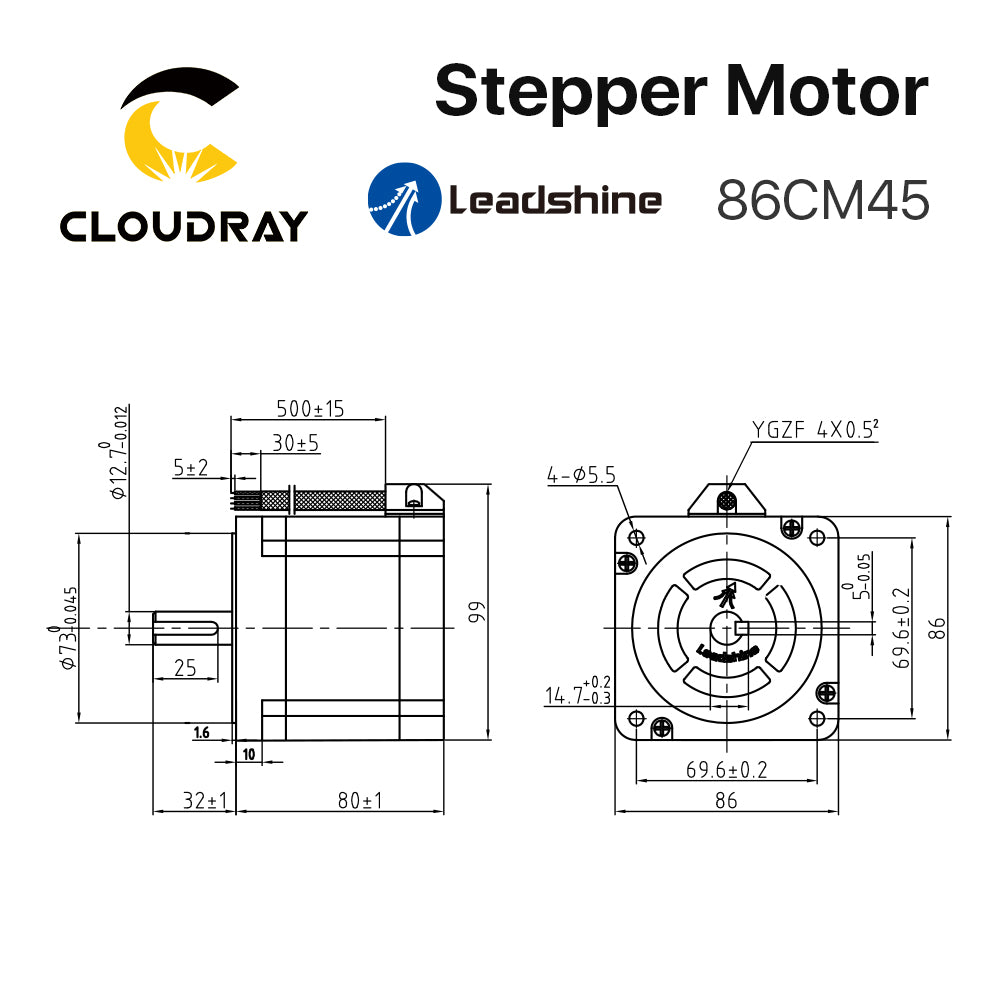

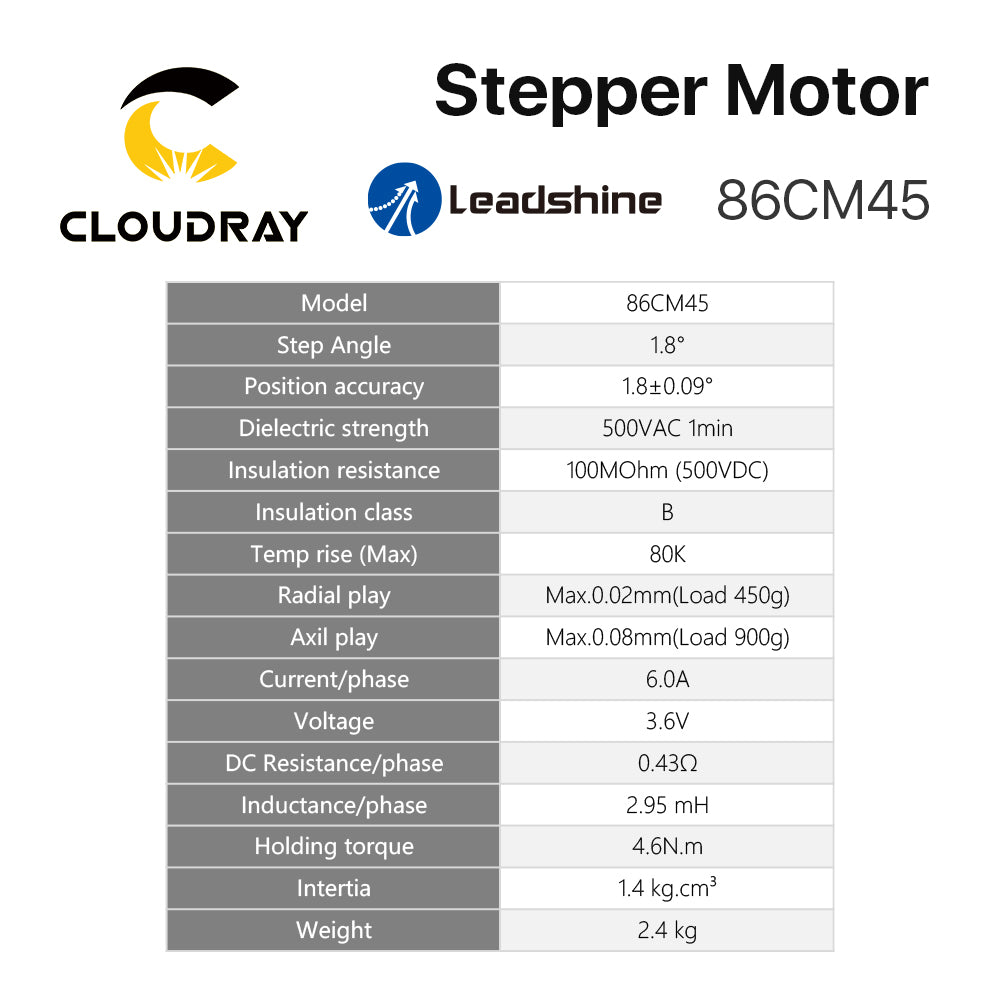

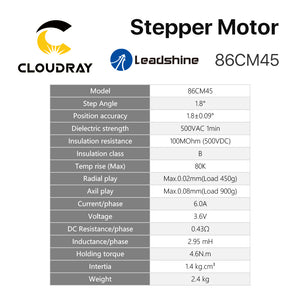

Электрические характеристики
Номер модели
|
Соединение
|
Длина двигателя L, дюймы (мм)
|
Удерживающий момент, унции-дюйм (Нм)
|
Количество отведений
|
Фазовый ток (А)
|
Сопротивление фазы (Ом)
|
Фазовая индуктивность (мГн)
|
Инерция ротора, унции в секунду^2 (г. см^2)
|
Момент фиксации, унция-дюйм (г. см)
|
Вес (кг)
|
86HS45
|
(Биполярный) Параллельный
|
3. 13(80)
|
637. 2(4. 5)
|
8
|
6. 0
|
0. 375 плюс-минус 10%
|
3. 4 плюс-минус 20%
|
0. 01988 (1400) |
18. 2 (1300) |
81. 1(2. 3)
|
(Биполярная) серия
|
637. 2(4. 5)
|
3. 0
|
1. 5 плюс-минус 10%
|
14 плюс-минус 20%
|
||||||
Униполярный
|
453. 12(3. 2)
|
4. 2
|
0. 75 плюс-минус 10%
|
3. 4 плюс-минус 20%
|




Униполярная и биполярная половинная катушка, поскольку мы используем меньше витков, не дает нам большой крутящий момент на низких скоростях, но из-за низкой индуктивности удерживает крутящий момент на высоких скоростях. Биполярная серия использует полную катушку, поэтому она обеспечивает очень хороший крутящий момент на низких скоростях. Но из-за высокой индуктивности крутящий момент быстро падает. Биполярная параллель также использует полную катушку, что дает хорошие характеристики на низких скоростях. А его низкая индуктивность позволяет поддерживать крутящий момент на высоких скоростях. Но помните, мы должны увеличить ток на 40%, чтобы получить эти преимущества. Кривые скорость-момент показывают максимальные крутящие моменты, которые могут быть получены при данной скорости. При выборе двигателя убедитесь, что требуемый крутящий момент соответствует конкретной кривой.
