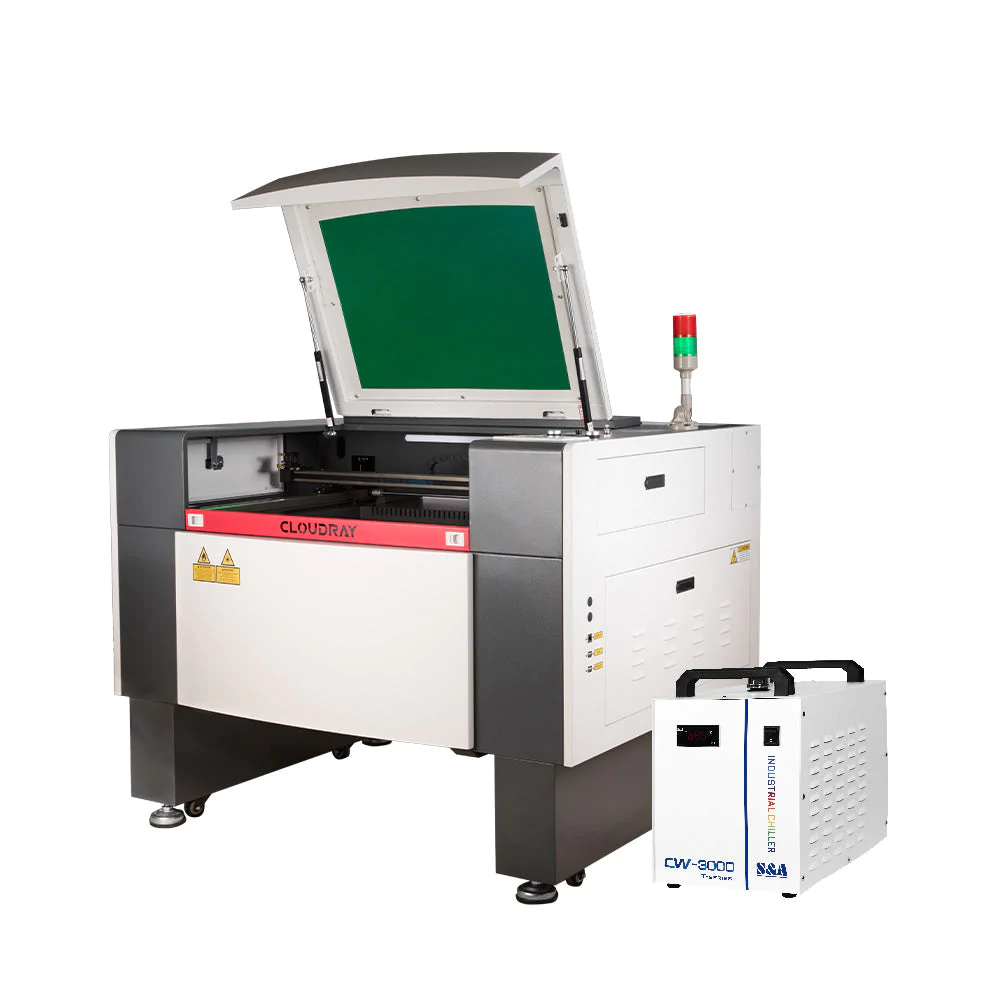

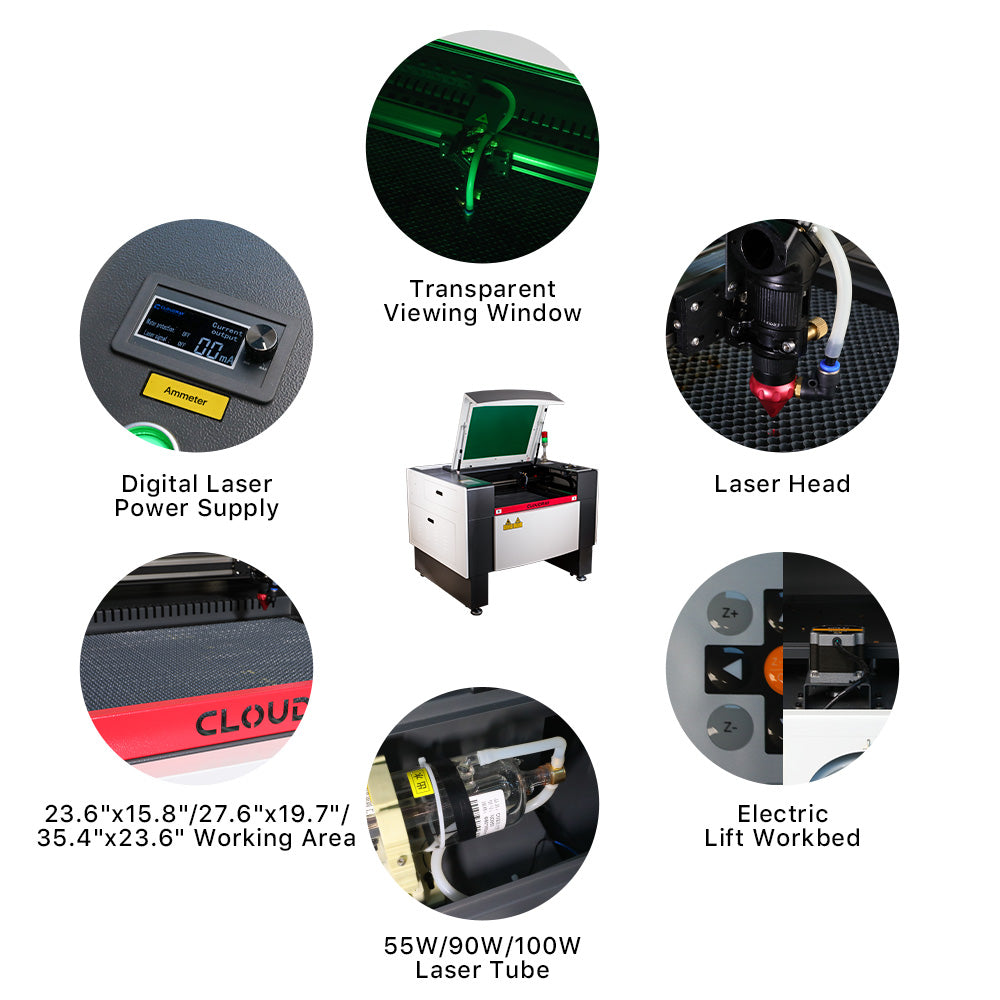

(Flash Sale)US Warehouse Cloudray CR Series 55W CO2 Laser Cutting Machine With Industrial Chiller
Brand: Cloudray
Machine Dimensions L*W*H (mm): 1130*820*930
Net Weight (Ibs): 531
Cutting Area: 23.6" X 15.8" (600 X 400 mm)
Laser Power: 55W
Power Supply: AC 110V 60Hz
Chiller: S & A CW3000
Software: Rdwork V8 Lightburn Software
Class: Class 4 Laser
Motor Type: Nema 23 Steppers
Z Table: Push Buttom Lower or Raise 10"
Venting Attachment: Air Exhaust Fan With Venting Pipe
Os Compatibility: Windows (32 or 64 Bit), Linux, Or Mac OS
Warranty: 2 Year
Rail Type: Internal Sliding Rail
Work Table Capacity: 300LB. Static, 200LB. Lifting
Laser / PC Connectivity: USB Connect, Ethernet or WIFI Option
Material Capability: Organics / Non- Metals + Coated Matals
Machine Dimensions L*W*H (mm): 1130*820*930
Net Weight (Ibs): 531
Cutting Area: 23.6" X 15.8" (600 X 400 mm)
Laser Power: 55W
Power Supply: AC 110V 60Hz
Chiller: S & A CW3000
Software: Rdwork V8 Lightburn Software
Class: Class 4 Laser
Motor Type: Nema 23 Steppers
Z Table: Push Buttom Lower or Raise 10"
Venting Attachment: Air Exhaust Fan With Venting Pipe
Os Compatibility: Windows (32 or 64 Bit), Linux, Or Mac OS
Warranty: 2 Year
Rail Type: Internal Sliding Rail
Work Table Capacity: 300LB. Static, 200LB. Lifting
Laser / PC Connectivity: USB Connect, Ethernet or WIFI Option
Material Capability: Organics / Non- Metals + Coated Matals
CR Series Specs
Software
Software
- Works on Windows XP, 2000, Vista, WIN 7, 8, 10 & 11, both 64 & 32 bit
- MacOS (Version 10.11 and higher) ONLY with LightBurn software
- Compatible with Lightburn, RDWorks, Coreldraw, Auto-CAD
- Supported image formats: BMP, HPGL, GIF, JPG, JPEG, DXF, DST, AI and others

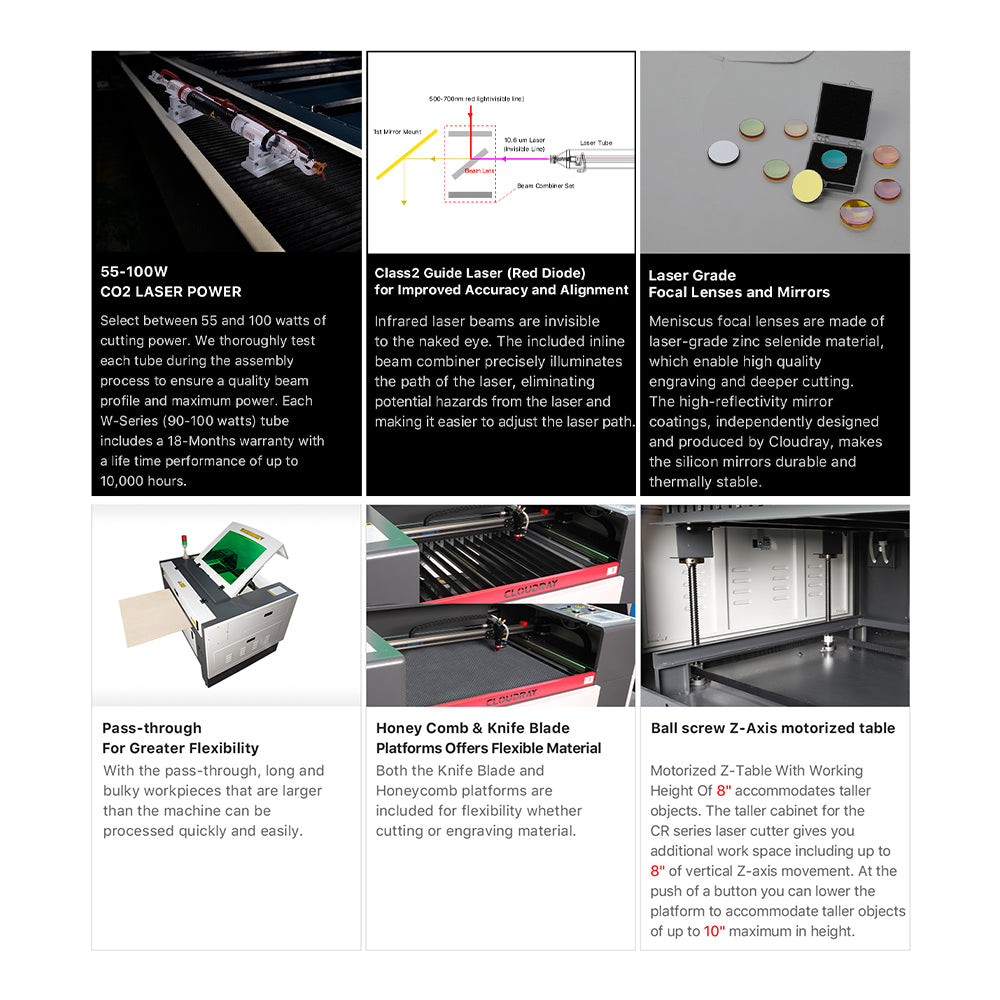

- Custom CO2 glass laser tube capable of continuous operation at 10,640 nm;

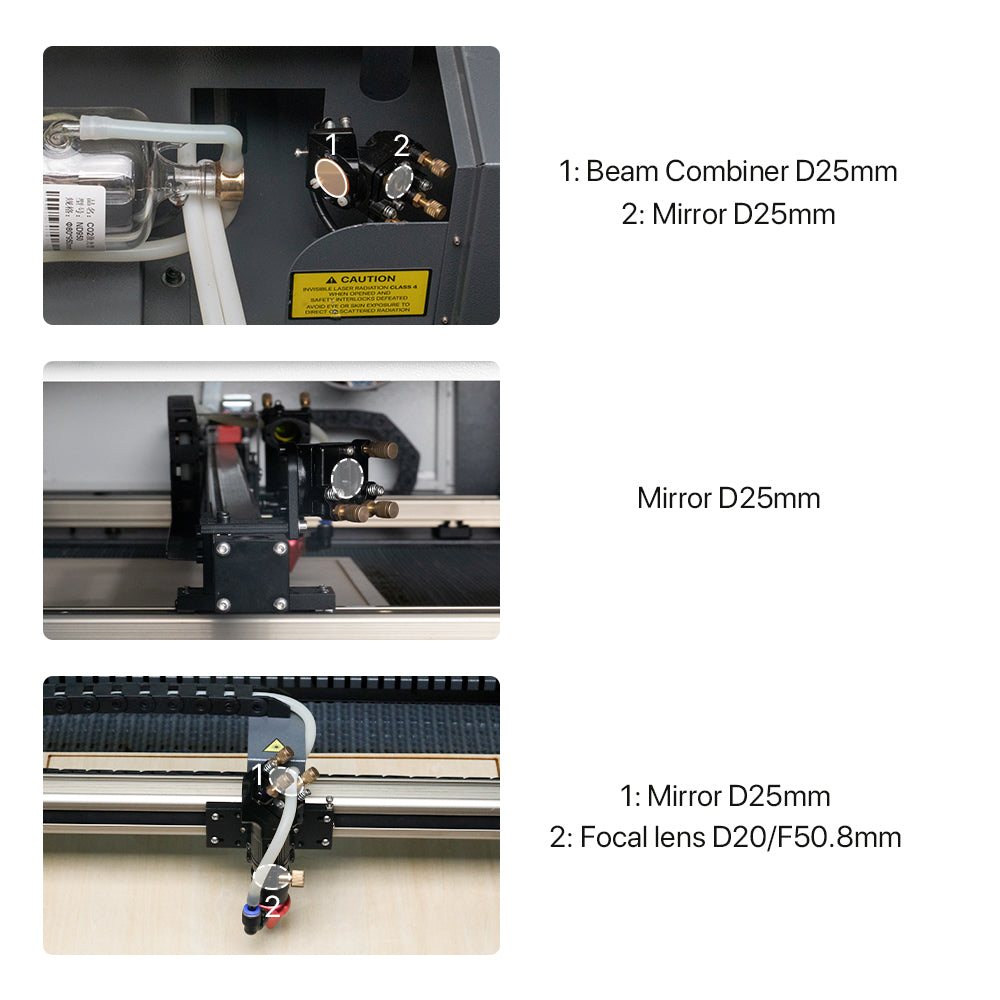

- Easy-to-adjust Optical path;
- 20mm Focal lens diameter & 50.8mm Focal distance;
- 25mm Mirror diameter;
- Recommended engraving speed: 100 - 500mm/s
- Recommended cutting speed: 1 - 30mm/s (actual speed depends on the thickness of the material)

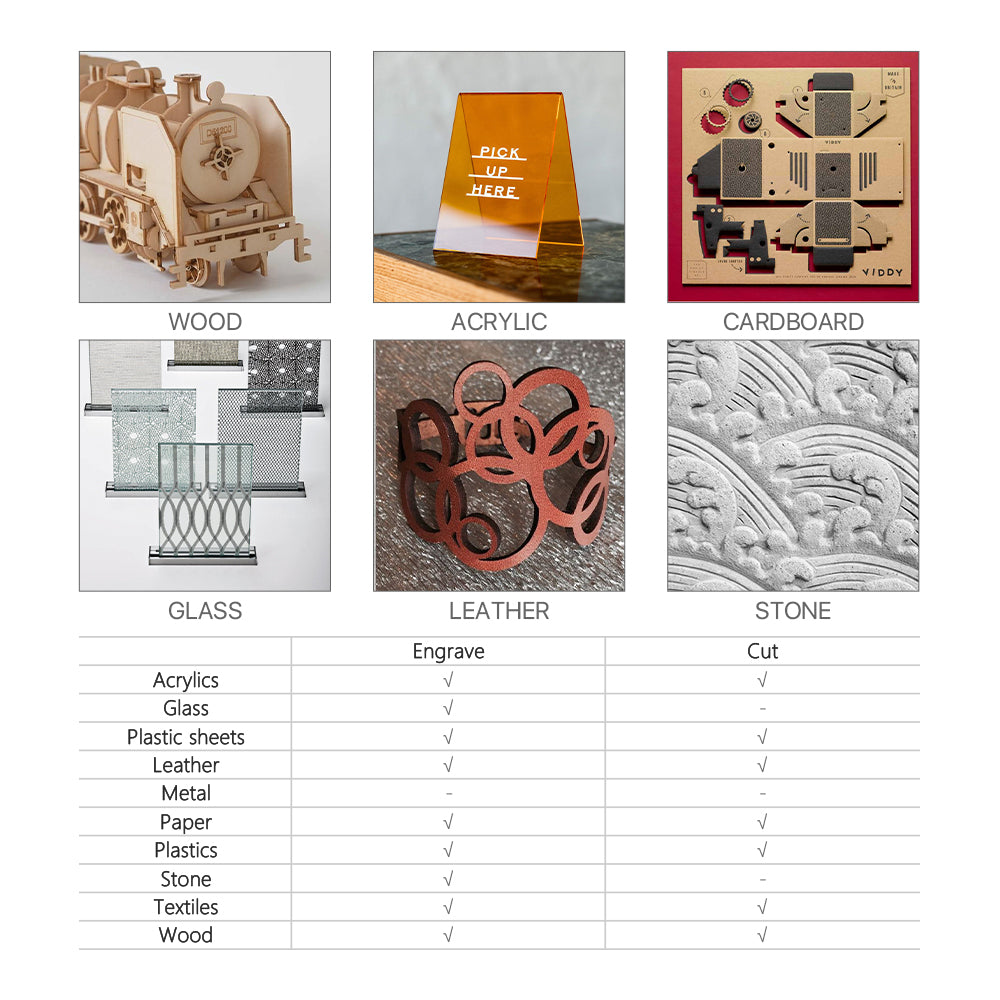

- Can safely engrave or cut any laser-compatible material
- wood, glass, acrylic, fabric, leather, paper, cardboard, rubber
- Contact us with questions on specific materials not listed. If necessary, we can test it for you
Cloudray Laser Engraver Machine
Litemarker Series had been offline, a new machine had been on sale, and only 2 quotas left for the former version. Clearance Price, grab it.
(Flash Sale)MP-60 LiteMarker 60W Split Laser Engraver Fiber Marking Machine With 11.8” X 11.8” Lens With D80 Rotary Axis Compatible with Lightburn
Brand: Cloudray
Product Series: MP-60
Package Dimensions: 39" x 22" x22" (98.5 x 56 x57 cm)
Package Weight: 60kg
Lifespan: Around 100,000 hours
Warranty: 2 Year
Laser Source: 60W JPT Mopa

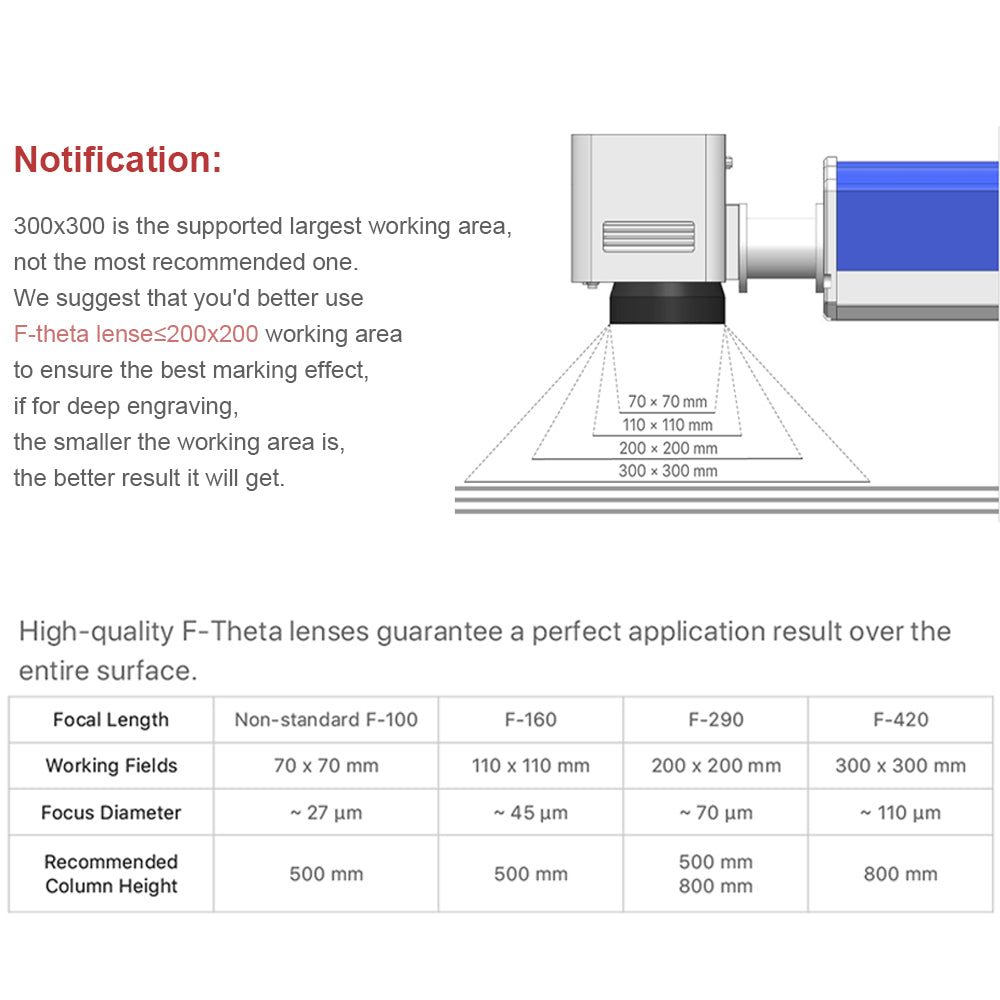

Working Area: 300*300 mm
Max Marking Speed: 5000 mm/s
Pulse Duration: 2-500ns
Engraving Depth: ≤1.5mm (just for depends on materials)
Laser Wavelength: 1064nm
Laser Repetition frequency:1-4000kHz
Z- Axis Control: Manual
Positioning Accuracy: ±0.1 μm

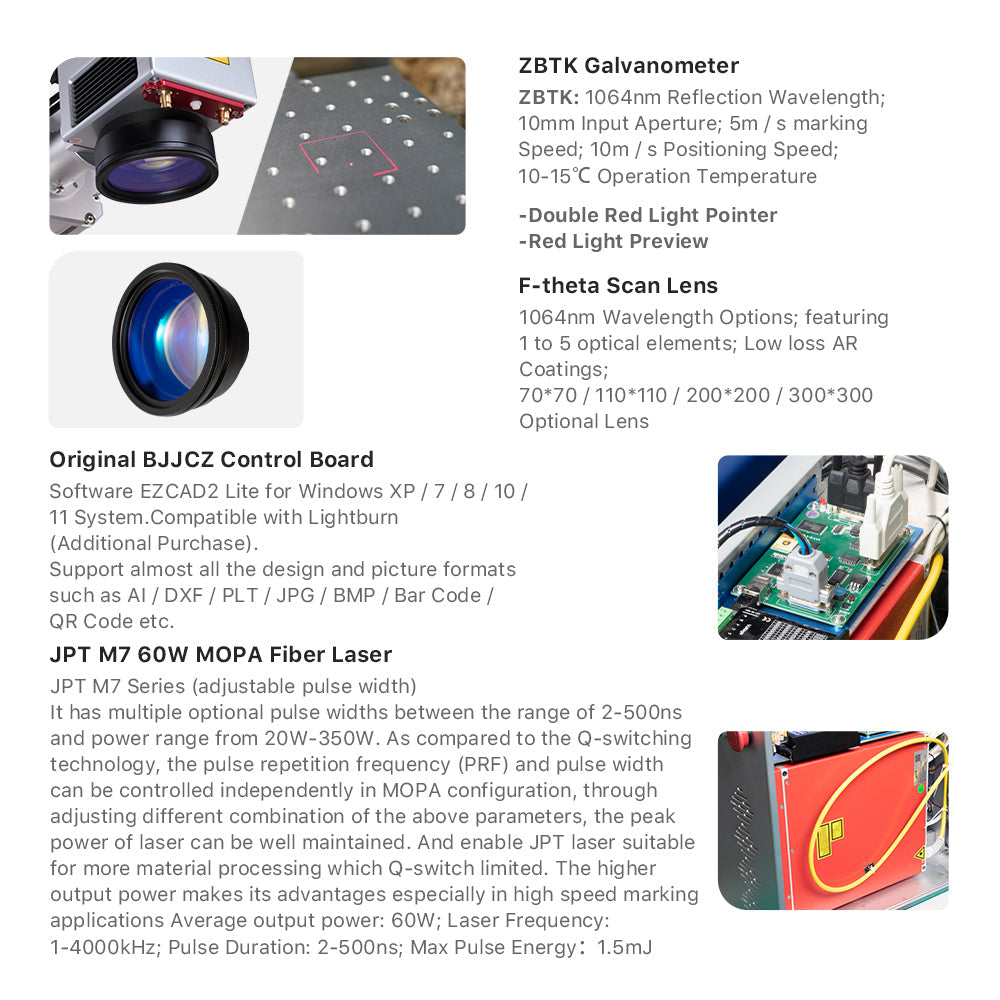

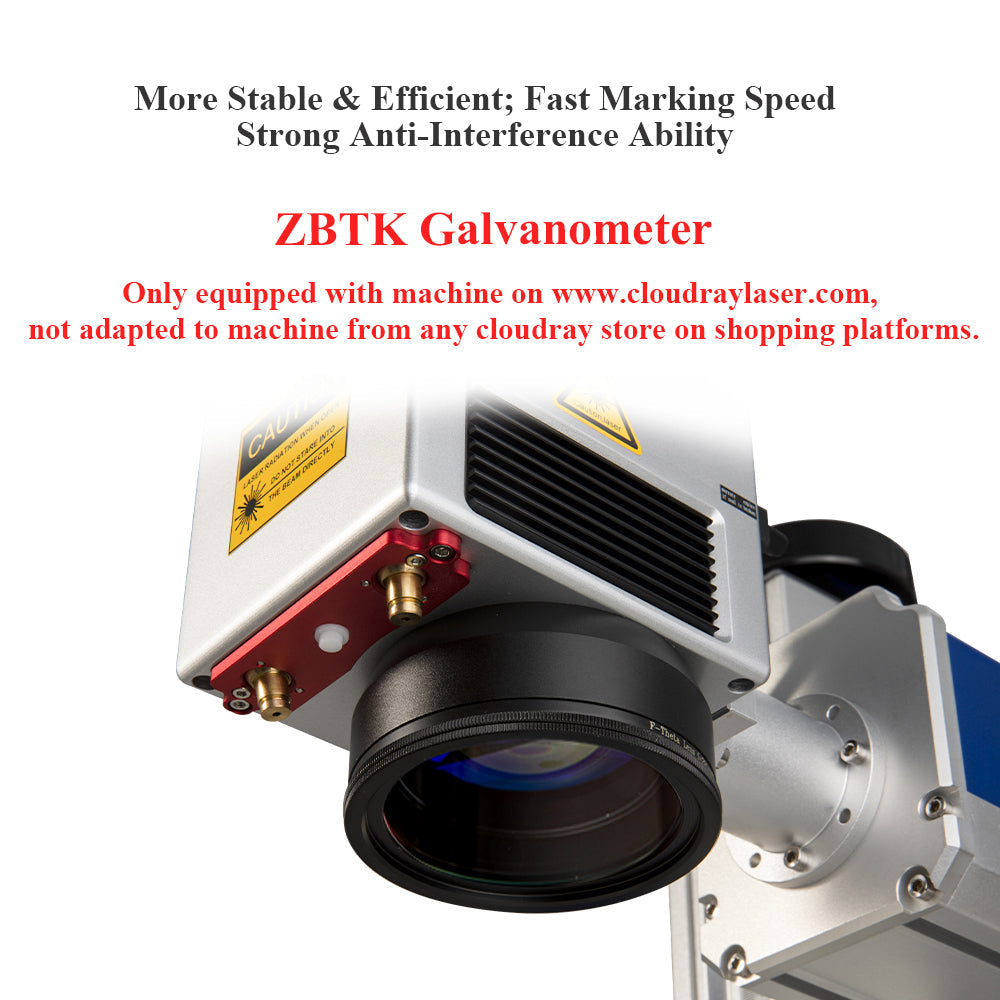

Easy to focus the variable lens with a high-speed galvanometer (ZBTK);
Easy focusing with Dual Red Dot Device;
Faster Marking and engraving on Metals & some Nonmetals
Anodized Aluminum Black Marking, Stainless Steel Color Marking (JPT M7)
Have high contrast and accuracy on materials
2-Year Warranty & Lifetime Tech Support
Product Series: MP-60
Package Dimensions: 39" x 22" x22" (98.5 x 56 x57 cm)
Package Weight: 60kg
Lifespan: Around 100,000 hours
Warranty: 2 Year
Laser Source: 60W JPT Mopa
Working Area: 300*300 mm
Max Marking Speed: 5000 mm/s
Pulse Duration: 2-500ns
Engraving Depth: ≤1.5mm (just for depends on materials)
Laser Wavelength: 1064nm
Laser Repetition frequency:1-4000kHz
Z- Axis Control: Manual
Positioning Accuracy: ±0.1 μm
Machine Features & Benefits
Simple operation with high safety;Easy to focus the variable lens with a high-speed galvanometer (ZBTK);
Easy focusing with Dual Red Dot Device;
Faster Marking and engraving on Metals & some Nonmetals
Anodized Aluminum Black Marking, Stainless Steel Color Marking (JPT M7)
Have high contrast and accuracy on materials
2-Year Warranty & Lifetime Tech Support
YOU CAN ENGRAVE ON THESE MATERIALS
🟡Aluminum 🟡Gold 🟡Silver 🟡Stainless Steel 🟡Brass 🟡Titanium 🟡Tungsten 🟡Artificial Leather
🟡Colored Acrylic 🟡Hard Plastics 🟡Brick 🟡Granite 🟡Marble 🟡Tile 🟡ABS 🟡PVC 🟡Ceramic 🟡Stone
Applicable Industry
Workshop, Hardware industry, Gift Shop, Print Shop, 3C Digital, Souvenir Shop, Jewelry Store, Pet Store, Medical Use, Small Business, Esty Seller, Munitioner, Education, Office， DIY, Kickstarter Entrepreneur.
Application Cases
Engraving on jewelry, guns, firearms, blades, axes, knives, coins, stamps, forks, spoons, cutlery, flasks, wallets, tumblers, mugs, cups, dog tags, slate coasters, etc.
Laser mark logo, text, barcode, numbers, serial numbers, image, photo on metal & plastic parts and tools, wrenches, measuring tools, sanitary ware, stainless steel, medical equipment, luggage, gifts, table bottom, glasses frames, and instruments.
