Cloudray UV Pro Series 5-in-1 5W 10W 15W UV Laser Water-Cooled Autofocus Inner 3D, 2.5D & Surface Engraver compatible with Lightburn

SKU: FM14LMUVEUX25WA-USA
40
People are viewing this right now
Regular price $ 5,999.00 USD Sale price $ 4,999.00 USD
Laser Power: 5W
Shipping Destination: United States
Plug: American Plug
Add to Wishlist Add to Compare
Shipping calculated at checkout.
Dedicated Customer Support: US & EU Based Tech.
Laser Machine: 2-Year Warranty.
Laser engravers with FDA, CE, ROHS certifications, and QC quality inspection report.

Safe & secure

Frequently Bought Together

Cloudray UV Pro Series 5W 10W 15W water-cooled UV laser engraver with chiller
Cloudray Flexible Fixture
Rectangular Crystal | Cloudray Laser Marking & Engraving Materials Blank Crystal Blocks (4pcs)
Cloudray Partner LightBurn Software For Laser Cutter Control / Galvo Laser Control
This item: Cloudray UV Pro Series 5-in-1 5W 10W 15W UV Laser Water-Cooled Autofocus Inner 3D, 2.5D & Surface Engraver compatible with Lightburn
Regular price $ 5,999.00 USD Sale price $ 4,999.00 USD
Cloudray Flexible Fixture
Sale price $ 249.00 USD
Cloudray Blank Crystal Blocks for Laser Marking & Engraving
Sale price $ 65.00 USD
Cloudray Partner LightBurn Software For Laser Cutter Control / Galvo Laser Control
Sale price $ 199.00 USD
Cloudray UV Pro Series 5W 10W 15W water-cooled UV laser engraver with chiller

Cloudray UV Pro Series 5-in-1 5W 10W 15W UV Laser Water-Cooled Autofocus Inner 3D, 2.5D & Surface Engraver compatible with Lightburn

Cockpit 3D tool for converting 2D images into 3D crystal engraving files for UV laser engravers
Cloudray UV Pro Series 5-in-1 5W 10W 15W water-cooled autofocus UV laser engraver for crystal 3D inner engraving and surface markingCloudray UV Pro Series UV laser engraver features 355nm wavelength, 15000mm per second marking speed, 0.001mm accuracy and water cooling

High-Precision 3D Inner Engraving in Crystal and Glass, 1M+ Point Cloud Support, 0.04mm Minimum Dot Size, Up to 70×70×100mm Engraving Examples | Cloudray UV-P-5 Engraver
Precise & Rapid 3D Crystal Point Engraving | Cloudray UV-P-5 EngraverCloudray UV Pro Series 2.5D relief and deep engraving on wood with smooth edges and tactile texture

Cloudray UV Pro Series dual F-theta lenses for 50x50x100mm crystal 3D inner engraving and 200x200mm 2D surface markingCloudray UV Pro Series autofocus system for efficient UV laser engraving setup and accurate focusing
Built-in 10x Beam Expander, 0.001mm High Engraving Accuracy Comparison for Ultra-Fine Lines and Clean Edges | Cloudray UV-P-5 Engraver
15x Increased Accuracy with UV Laser, Smaller Spot Size for Precise and Delicate Engraving and Marking | Cloudray UV-P-5 Engraver
1μm-level Marking Depth with UV Laser | No Burn or Deformation, More Details for Heat-Sensitive Materials | Cloudray UV-P-5 Engraver

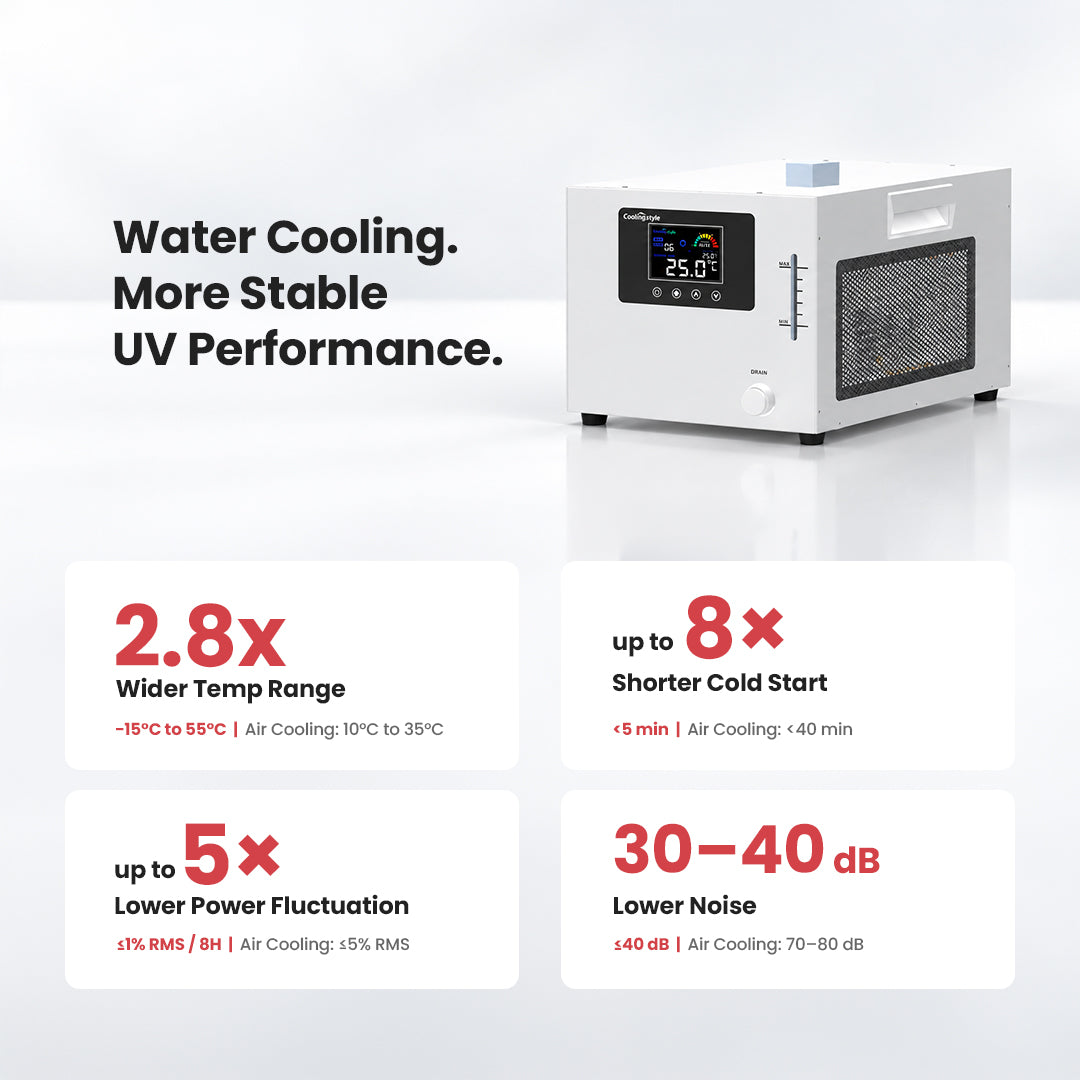

Industrial-Grade Water Cooling Maintains Stability During -15°c and 55°c of Operating Temperature,  with Superior Heat Dissipation, Extended Laser Lifespan, 24/7 Operation & Low Noise | Cloudray UV-P-5 Engraver

Eco-Friendly & Clean Marking Process of UV Laser Marker, Featuring Zero Emissions & Contamination & UV Laser’s 355nm Wavelength Works on Almost All Materials, Covering Transparent, Heat-Sensitive, Reflective & More | Cloudray UV-P-5 Engraver

Cloudray UV Pro Series Raycraft software for 3D inner engraving, 2.5D relief engraving, autofocus and LightBurn support

Cloudray UV Pro Series laser applications for glass marking, PCB marking, QR code marking, mask marking, capsule marking and thin metal cutting
Cloudray UV Pro Series UV laser engraver for electronics, medical, mold, packaging, glass and custom gifting industries
Cloudray UV Pro Series compared with other UV laser engravers for 5-in-1 engraving, 10x beam expansion, water cooling and 24 hour operation
Cloudray UV Pro Series laser engraver package includes water chiller, UV safety goggles, crystal blanks, foot switch, cables and tools

Model UV Pro Series
Watt 5W 10W 15W
Wavelength 355nm
Max. Marking Speed 15000mm/s
Positioning Accuracy ±0.1μm
Processing Area 3D: 50*50*100mm   2D: 200×200mm
Frequency 40-200kHz 50-200kHz 50-200kHz
Pulse Duration <15ns@50kHz <14ns@60kHz <16ns@60kHz
Beam Quality M²<1.3
Beam Diameter 0.45 ±0.1mm 0.45 ±0.1mm 0.5 ±0.1mm
Beam Expander inside 10X
Min Line Width 0.01mm
Min Charavter 0.1mm
Software Raycraft
Compatible Operating Systems Windows XP、Vista、7、8、10、11 / macOS
Supported Files .png, .bmp, .jpg, .jpeg, .dxf, .plt, .ai, .svg
Product Dimensions 350*636*638 mm
Warranty 2 Years for machine (1 year for laser)
Power Consumption Max. 675 W
Power Supply AC220V/50Hz Or AC110V/60Hz
Ambient conditions Operating temperature -15 to 55°C

Cloudray will continuously release the latest version of Cloudray software— please keep your device connected to the internet to receive the latest versions for a better experience.

FAQs
QS Series: Smart Budget Option for Entry-Level Marking & Engraving. Up to 1mm engraving Depth.
MP Series: Professional-Grade Option. Enhanced Marking /Cutting Depth: Up to 5mm
GM Series: Advanced Performance for Industrial Use. 2.5D Deep Engraving +Precise Metal Cutting
UV Series: All-Material & Material-Friendly Engrvers. 3D Inner & Surface Engraving
EC Series: CO2 Precision Engraver for Non-metal Marking & Cutting
Please email us (info@cloudray.com) directly to offer us your working materials, along with the expected effect on those materials by machine, accompanied by pictures or videos.
It refers to the machine's ability to perform surface plane engraving, internal plane engraving, 3D internal crystal engraving, 2.5D relief, and deep engraving.
The standard configuration is 50 × 50 × 100 mm.
It can be expanded to a maximum of 70 × 70 × 100 mm with a high-value field lens, which is sold separately.
Water cooling uses an external chiller to provide efficient heat dissipation, making it suitable for long-term continuous operation and applications requiring high stability.
Air cooling features a simpler design without an external chiller, offering lower maintenance and operating costs for short-term or less demanding applications.
1. Use deionized water or purified water to prevent scale buildup and blockage in the cooling lines.
2. Check the water level regularly to avoid operating the system without sufficient coolant.
3. Ensure the chiller and the laser machine are properly grounded for safe operation.
4. Replace the cooling water periodically to maintain clean and stable water quality.
5. In cold environments, take anti-freezing precautions to prevent damage to hoses and the water pump.
Yes, the ball must be fully immersed in engraving oil to control laser refraction and reflection
Yes, the machine is compatible with LightBurn.
The maximum marking speed of Cloudray galvanometer system is 15,000 mm/s.
Cloudray recommends a common marking speed range of 2,000 to 5,000 mm/s, which enables high-quality marking for 1mm characters.
Typically, the maximum marking speed can reach the highest positioning speed of the galvanometer, depending on the engraver's specifications.
The machine has 2 years guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to clients’ feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality faults. Even if the machine is beyond the warranty, we can still offer technical assistance as your order is placed on www.cloudraylaser.com.
If the autofocus position is inaccurate, you can manually recalibrate and save a new autofocus position:
1. Manually move the laser head to the correct focal position. In the software, go to Advanced → Region.
2.Click Get Height, Confirm and save the setting.
