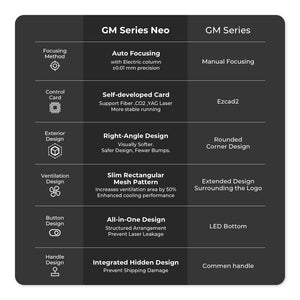

Upgraded features | Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver
Engraver Introduction Video | Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver

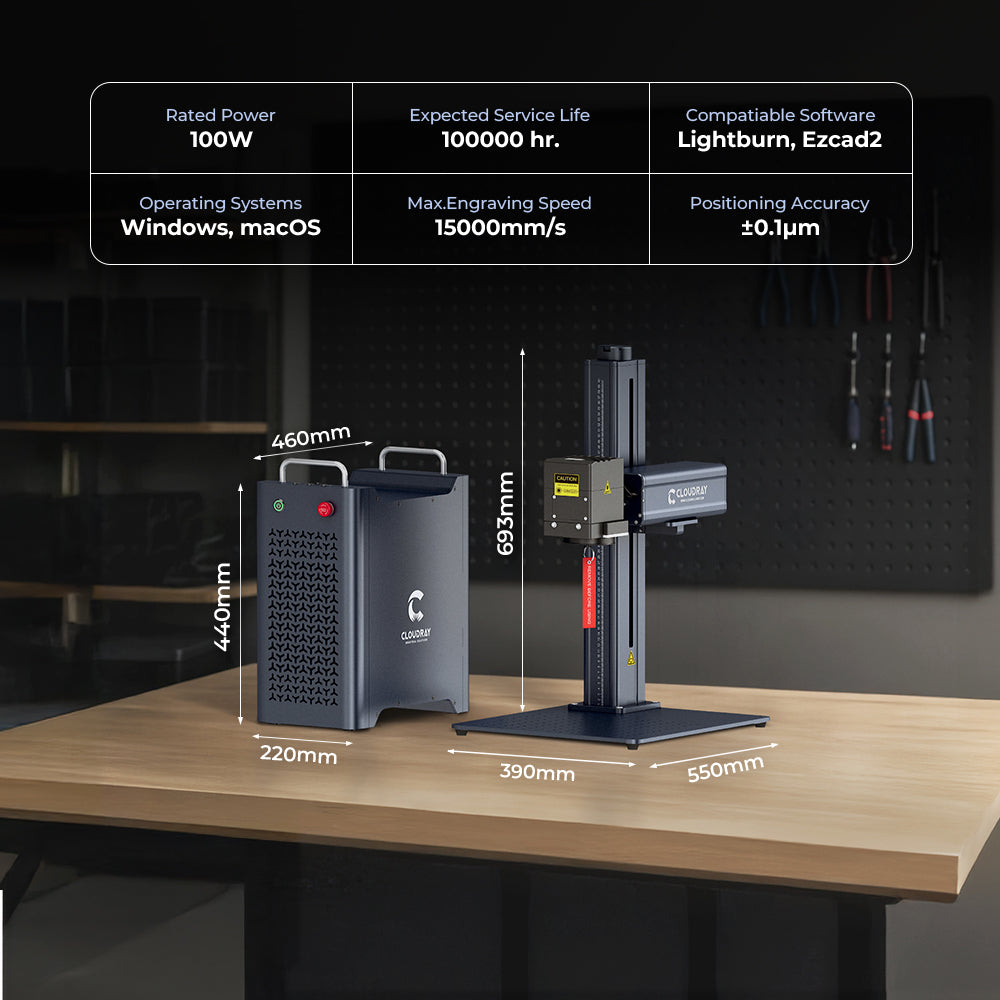

Engraver Size | Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver

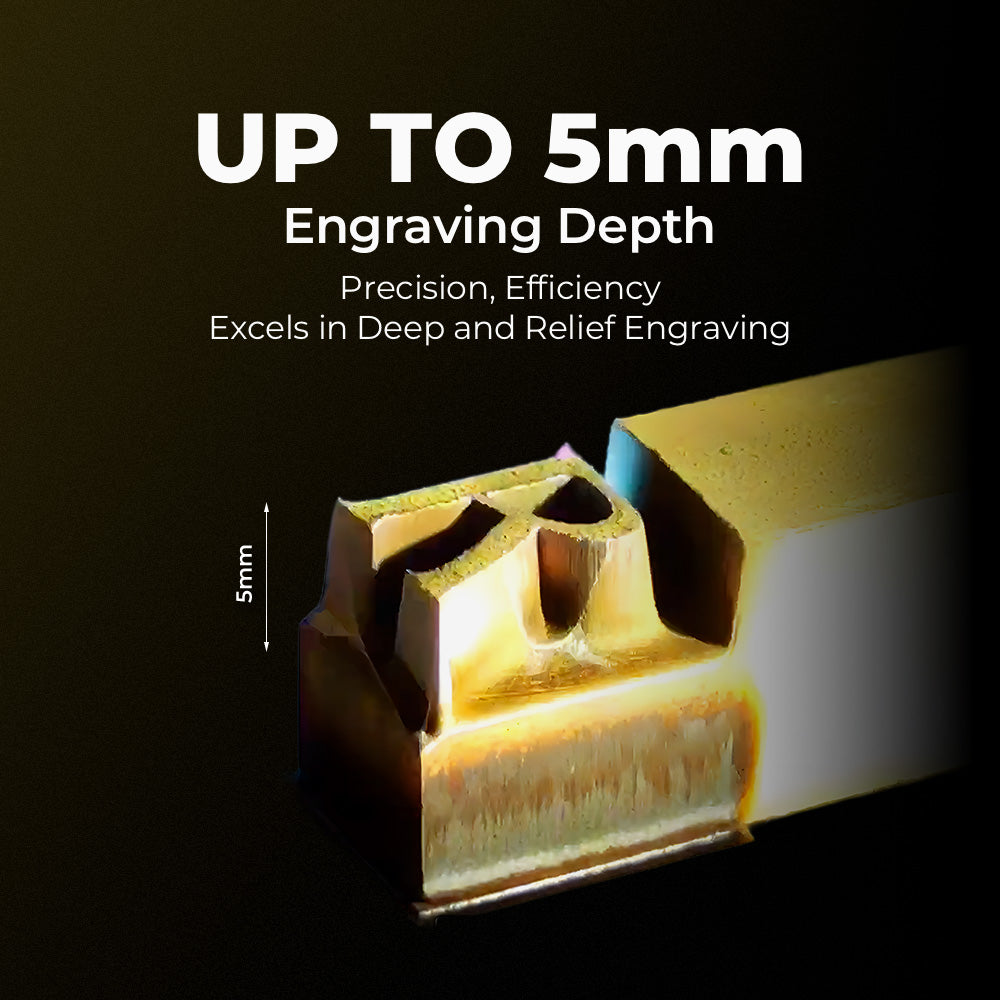

UP TO 5mm Engraving Depth | Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver
Self-developed Control Card Support Fiber, CO@ and YAG Laser | Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver
8MP HD Built-in Camera | Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver
Engraving Speed Up to 15000 mm/s | Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver

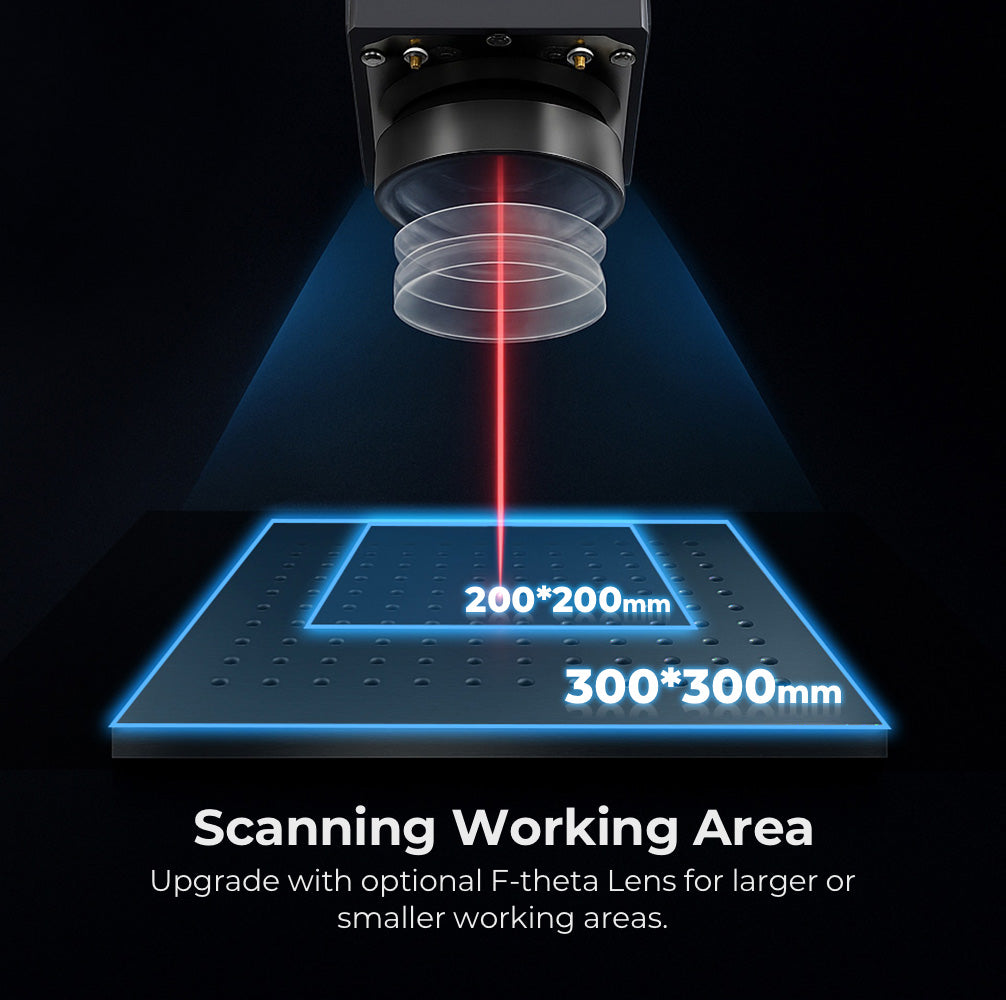

Optional F-theta Lens for Larger or Smaller Working Areas | Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver
±0.1μm Positioning Accuracy | Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver

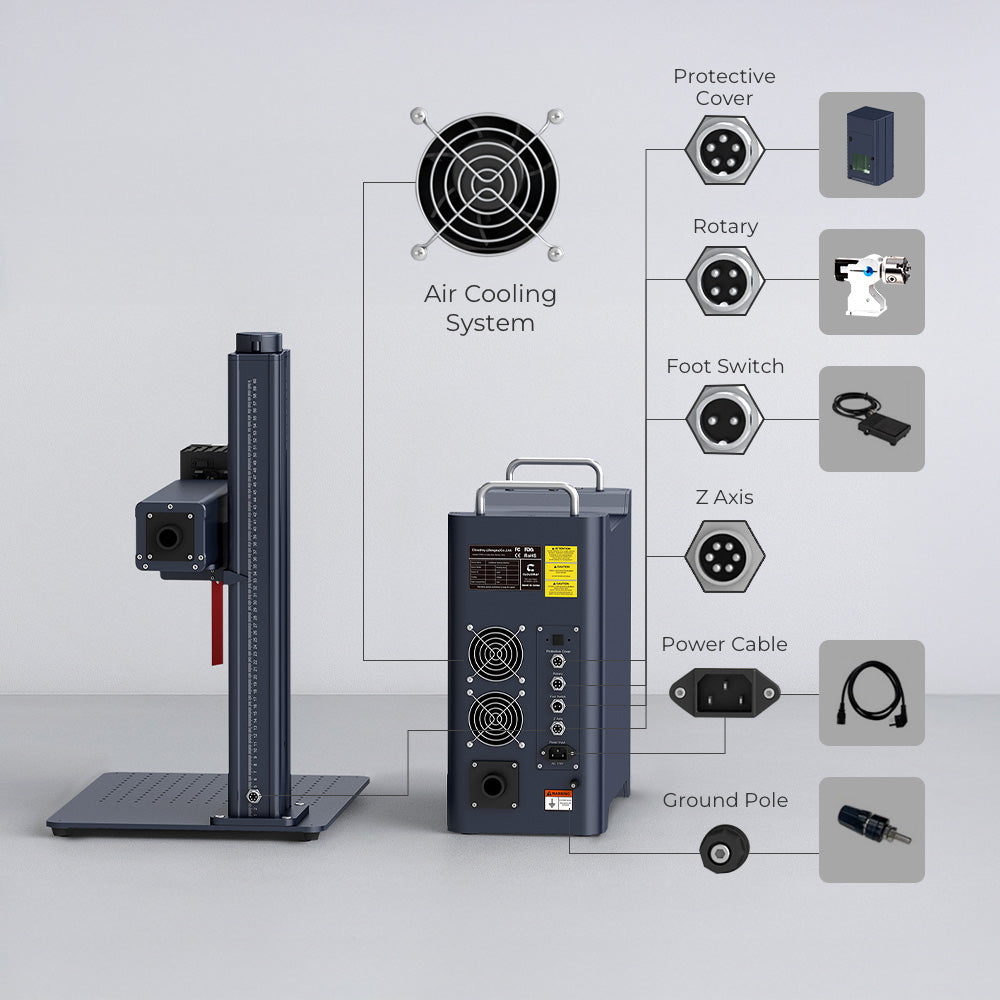

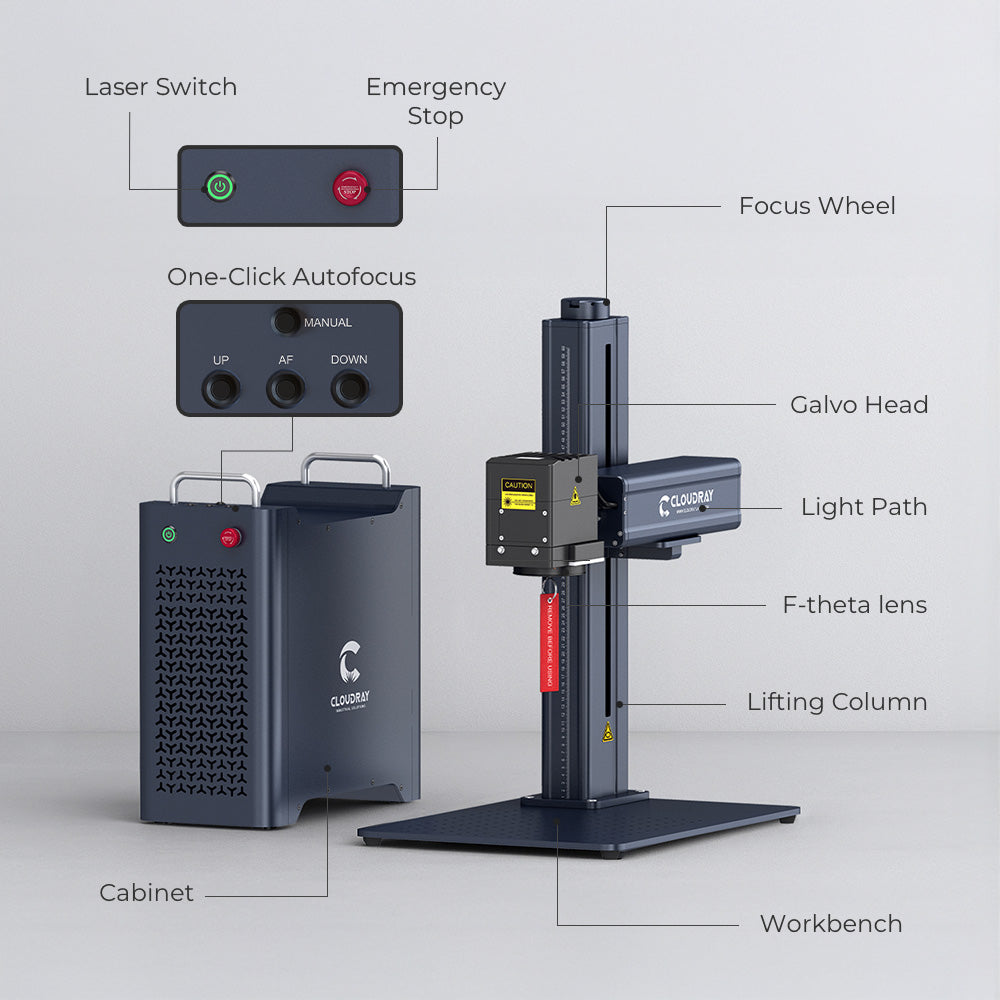

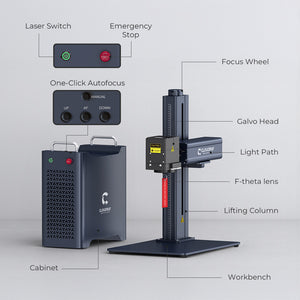

Engraver Structure | Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver
Engraver Structure | Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver
Wide Laser Application | Cloudray GM-100 100W Fiber Laser Engraver
Wide Laser Application, Including Color Marking, Black Marking | Cloudray GM-100 100W Fiber Laser Engraver
Tech Support | Cloudray Fiber Laser Engraver

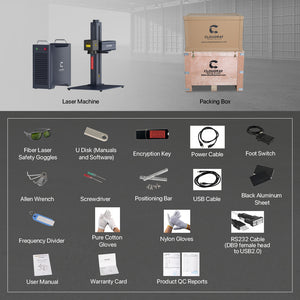

Engraver Packing List | Engraver Structure | Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver

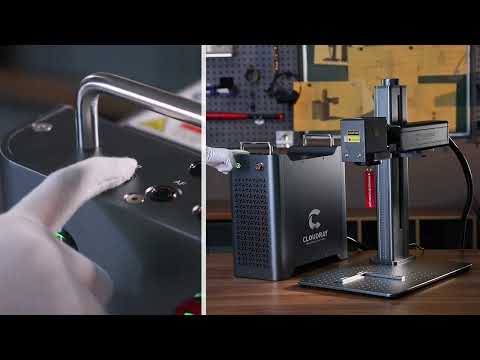

Engraver Unboxing Video | Cloudray  GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver with Built-in Camera with Electric Lifting Column-Youtube
Cloudray  GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver with Built-in Camera & Electric Lifting Column
Upgraded features | Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver
Engraver Introduction Video | Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver
Engraver Size | Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver
UP TO 5mm Engraving Depth | Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver
Self-developed Control Card Support Fiber, CO@ and YAG Laser | Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver
8MP HD Built-in Camera | Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver
Engraving Speed Up to 15000 mm/s | Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver
Optional F-theta Lens for Larger or Smaller Working Areas | Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver
±0.1μm Positioning Accuracy | Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver
Engraver Structure | Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver
Engraver Structure | Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver
Wide Laser Application | Cloudray GM-100 100W Fiber Laser Engraver
Wide Laser Application, Including Color Marking, Black Marking | Cloudray GM-100 100W Fiber Laser Engraver
Tech Support | Cloudray Fiber Laser Engraver
Engraver Packing List | Engraver Structure | Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver
Engraver Unboxing Video | Cloudray  GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver with Built-in Camera with Electric Lifting Column-Youtube

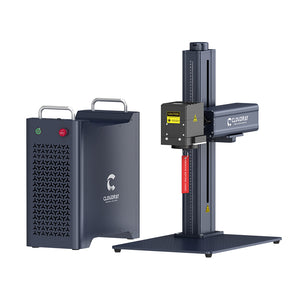

Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver with Built-in Camera & Electric Lifting Column

SKU: FM14LMGM100E2A-USA
40
People are viewing this right now
Regular price $ 9,999.00 USD Sale price $ 7,999.00 USD
Laser Power: 100W
Shipping Destination: United States
Plug: American Plug
Add to Wishlist Add to Compare
Shipping calculated at checkout.
Dedicated Customer Support: US & EU Based Tech.
Laser Machine: 2-Year Warranty.
Laser engravers with FDA, CE, ROHS certifications, and QC quality inspection report.

Safe & secure

Frequently Bought Together

Cloudray  GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver with Built-in Camera & Electric Lifting Column
Cloudray E1 Workbench Expander
Cloudray Quartz M85 Fiber Laser F-theta Scan Lens For 100W Fiber Laser Engraver
D69 D80 D100 A Series Rotary Attachment Set
Cloudray Partner LightBurn Software For Laser Cutter Control / Galvo Laser Control
Cloudray 135W FE-200M Mini Smoke Purifier Fume Extraction System
Cloudray Laser Machine Protective Cover With LED Light & Door Protection Switch
This item: Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver with Built-in Camera & Electric Lifting Column
Regular price $ 9,999.00 USD Sale price $ 7,999.00 USD
Cloudray E1 Workbench Expander with 1000*300mm Working Area
Sale price $ 1,999.00 USD
Cloudray Quartz M85 Fiber Laser F-theta Scan Lens For 100W Fiber Laser Engraver
Sale price $ 389.00 USD
Cloudray D80 D100 A Series Rotary Attachment Set
Sale price $ 199.00 USD
Cloudray Partner LightBurn Software For Laser Cutter Control / Galvo Laser Control
Sale price $ 199.00 USD
Cloudray 135W FE-200M Mini Smoke Purifier Fume Extraction System
Sale price $ 699.00 USD
Cloudray Laser Machine Protective Cover With LED Light & Door Protection Switch
Regular price $ 879.00 USD Sale price $ 799.00 USD
Cloudray  GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver with Built-in Camera & Electric Lifting Column

Cloudray GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver with Built-in Camera & Electric Lifting Column

Cloudray  GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver with Built-in Camera & Electric Lifting Column
Cloudray Laser Engraver Key Features: 100W Mopa Laser, 12000mm/s Speed, 8MP HD Camera, Auto Focus & More | Cloudray GM-100 Engraver
Cloudray  GM Series Neo 100W 200W Autofocus Mopa Fiber Laser Engraver with Built-in Camera with Electric Lifting Column-3Deep Laser Engraving Up to 5mm Engraving Depth | Cloudray GM-100 EngraverResolution Up To 1270DP, +0.1um Precision Accuracy | Cloudray GM-100 EngraverUnmatched Performance on Metals Support 1000+Materials Application | Cloudray GM-100 Engraver

Cloudray GM-100 100W Autofocus Mopa Fiber Laser Engraver with Built-in Camera with Electric Lifting Column-7

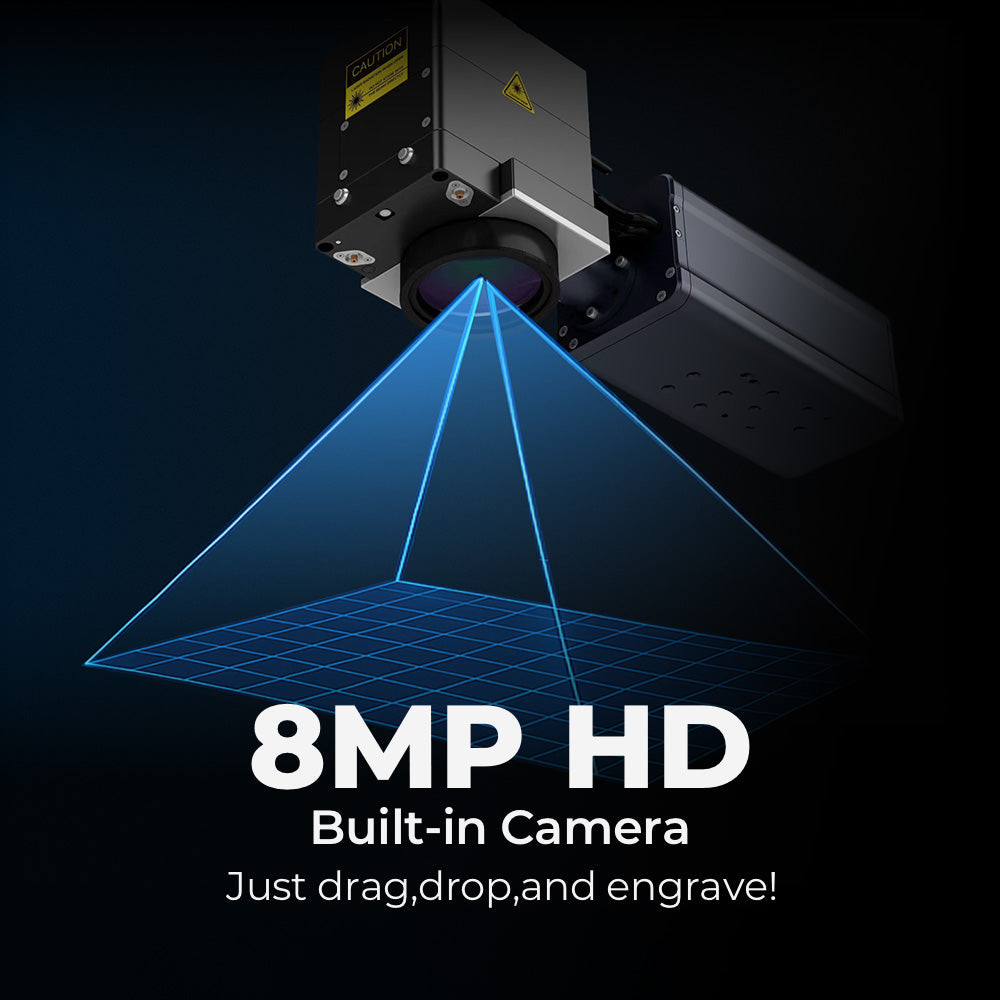

Precise Positioning with 8MP HD Built-in Camera | Cloudray GM-100 Engraver
Cloudray Laser Engraver's Fused Silica Lens: 8+ Hours Continuous Work, Stable Laser Performance | Cloudray GM-100 Engraver
Customized Laser Control Card | Cloudray GM-100 Engraver
Super Master of Materials, Excellent for Professional Applications | Cloudray GM-100 Engraver
Expert At Materials Processing, Including Color Marking, Deep Engraving, Engraving on Various Materials and More | Cloudray GM-100 Engraver
Laser Application in Business, Retail, Jewelry, Crafts, Hardware Tools, Education, Firearms, Printing, Electronics, Automotive, Mechanical, and Medical fields | Cloudray GM-100 Engraver

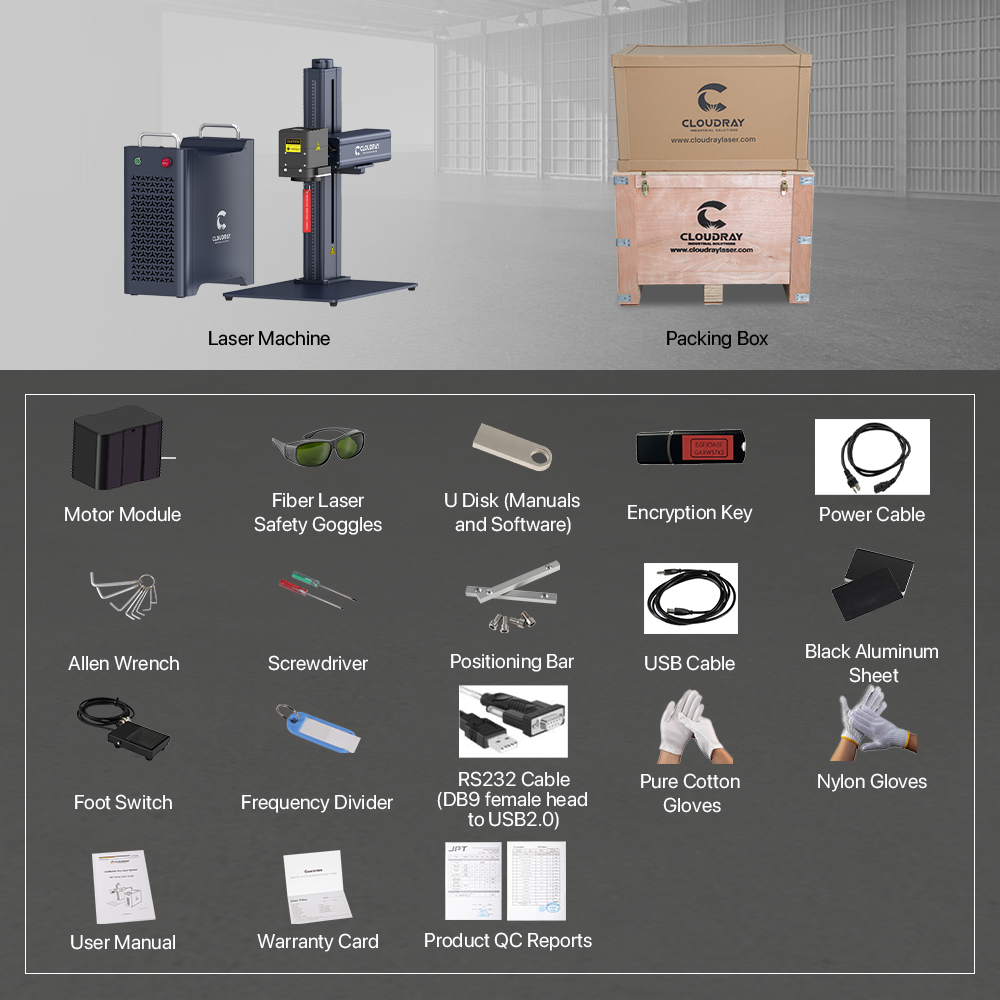

Engraver Packing List | Cloudray GM-100 Engraver

Model GM-100 GM-200
Laser 100W Mopa Laser 200W Mopa Laser
Laser Wavelength 1064nm
Lift Column Stroke 500mm 500mm
Working Area 200*200mm 200*200mm
Laser Frequency 1-4000kHz
Pulse Width 2-500ns
Max. Engraving Depth 5mm 7mm (Parameter under testing)
Max. Cutting Depth 5mm 7mm (Parameter under testing)
Max. Engraving Speed 15000mm/s
Software Ezcad2 (Support Lightburn)
Computer Windows XP, Vista, 7, 8, or 10, 11/macOS
Supported image formats PLT, DXF, AI, DST, SVG, GBR, NC, JPC, BOT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF, Code39, EAN, PDF417, DATAMATRIX, QR, etc.
Est.Laser Service Life 100,000hr
Warranty 2 Years
Package Weight 68kg 75kg
Package Size 86*61*61cm 110*63*62cm
Ambient conditions Operating temperature 5 to 35° C.
Relative humidity max. 90 %.
Non-condensing
Power Requirements *AC220V/50Hz Or AC110V/60Hz (According to local electricity supply)
Power Consumption Max. 615 W
Equipment Protection IP54 (Marking head), IP20 (Laser unit)

FAQs
QS Series: Smart Budget Option for Entry-Level Marking & Engraving. Up to 1mm engraving Depth.
MP Series: Professional-Grade Option. Enhanced Marking /Cutting Depth: Up to 5mm
GM Series: Advanced Performance for Industrial Use. 2.5D Deep Engraving +Precise Metal Cutting
UV Series: All-Material & Material-Friendly Engrvers. 3D Inner & Surface Engraving
EC Series: CO2 Precision Engraver for Non-metal Marking & Cutting
Please email us (info@cloudray.com) directly to offer us your working materials, along with the expected effect on those materials by machine, accompanied by pictures or videos.
GM-P-100
Based on the GM-100 platform, the GM-P-100 enhances Z-axis control and layered processing capabilities, allowing more precise depth management. It delivers superior 2.5D engraving performance, ideal for relief work and projects requiring high levels of detail and depth.
GM-100
Equipped with a built-in camera for visual positioning, the GM-100 supports live previews and fast positioning. This significantly reduces manual calibration time and improves overall efficiency in batch processing and multi-part applications.
The auto-focus sensor typically supports height detection within a certain range.
For most systems, it can handle surfaces up to 600 mm in height.
Yes. An 800mm electric column is available as an optional upgrade. It must be purchased separately and installed manually.
The maximum marking speed of Cloudray galvanometer system is 15,000 mm/s.
Cloudray recommends a common marking speed range of 2,000 to 5,000 mm/s, which enables high-quality marking for 1mm characters.
Typically, the maximum marking speed can reach the highest positioning speed of the galvanometer, depending on the engraver's specifications.
The machine has 2 years guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to clients’ feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality faults. Even if the machine is beyond the warranty, we can still offer technical assistance as your order is placed on www.cloudraylaser.com.
If the autofocus position is inaccurate, you can manually recalibrate and save a new autofocus position:
1. Manually adjust the laser head to the correct focal position.
2. Immediately press and hold AF + DOWN together for about 2 seconds.
3. Release the buttons when you hear a beep. The current position is now saved as the new autofocus position.
4. Press Auto Focus again to verify the recalibrated position.
Note: The autofocus position for the standard F-theta lens is preset before shipment. Recalibration may be required if the autofocus position shifts or after replacing the F-theta lens.
