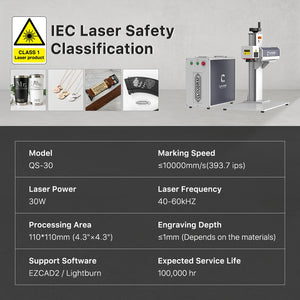

Laser Machine Specification
- Brand: Cloudray
- Product Series: QS Series
- Model: QS-30
- Marking Area(Lens): 4.3” X 4.3” (110*110mm)、7.9” X 7.9” (200x200 mm)
- Net Weight: 36kg
- Package Dimensions: 30.7*21.3*22 in (78*54*56 CM)
- Package Weight: 49kg
- Fast Global Shipping: DHL / UPS
Machine Features & Benefits
- Simple operation with high safety;
- Easy to focus the variable lens with a high-speed galvanometer (ZBTK);
- Easy focusing with Dual Red Dot Device;
- Marking and engraving on Metals & some Nonmetals
- 2-Year Warranty & Lifetime Tech Support

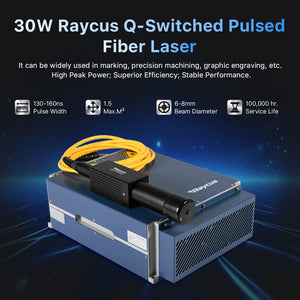

||30W Raycus Laser
|Max. Engraving Speed
||196.85 ips (5000 mm/s)

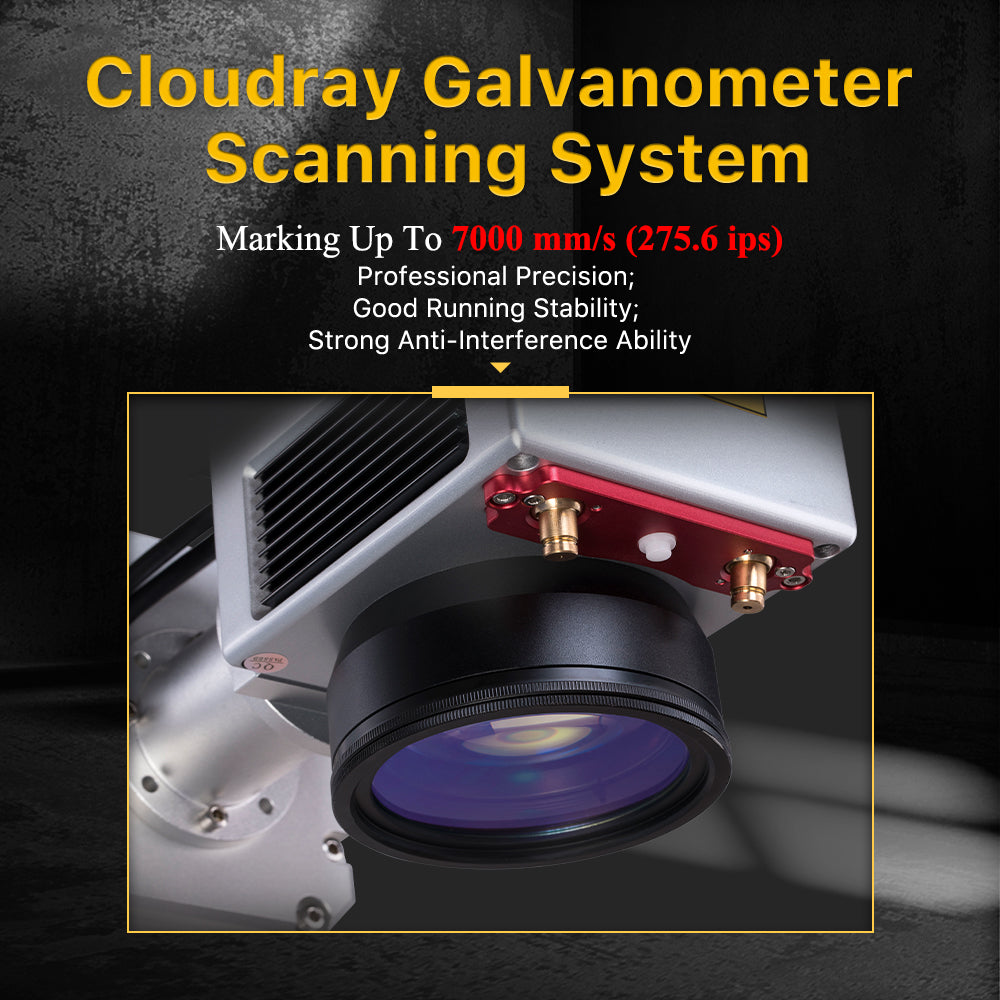

||High-Speed ZBTK (Only for www.cloudraylaser.com)
||Around 100,000 hours
||MeanWell 5V, 15V, 24V

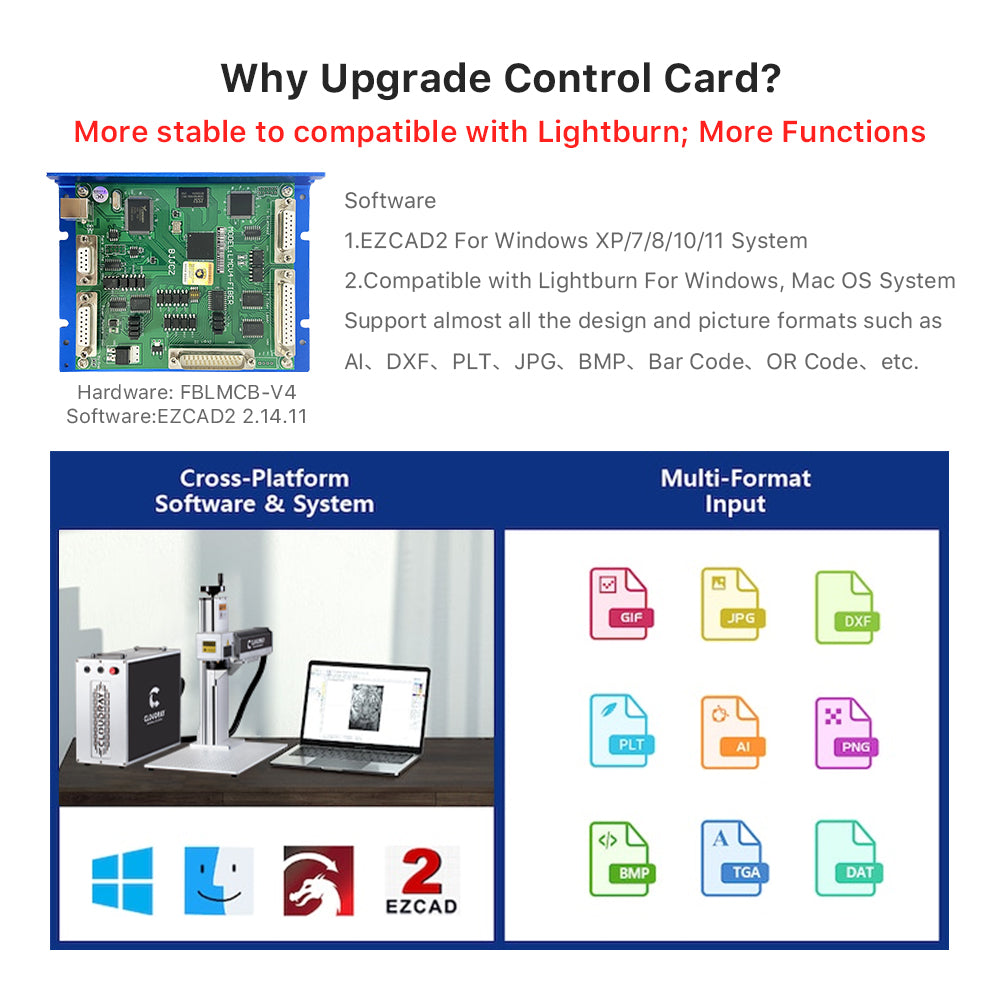

||EZCAD2 Lite for Windows OS versions XP, Vista, 7, 8,10 & 11
|Dual Red Dot Device
|F-Theta Field Lens
F160 working area 110 x 110 mm Focal Length 163 mm
F290 working area 200 x 200 mm Focal Length 310mm
||FDA Compliant & CE Certification
Manual & Software
Metals: Aluminum, Gold, Silver, Copper, Stainless Steel, Brass, Titanium, Tungsten,
Nonmetals: Colored Acrylic, Hard Plastics, Brick, Granite, Marble, Tile, Nylon, Light Button, ABS, PVC, PES, Ceramic, Rock, Stone, Marble, Artificial Leather, etc.
*Some PVC-based acrylics can create toxic fumes when lasered.
Contact us with questions on specific materials not listed, we can process a sample for confirmation.
Workshop, Hardware industry, Gift Shop, Print Shop, 3C Digital, Souvenir Shop, Jewelry Store, Pet Store, Medical Use, Small Business, Esty Seller, Munitioner, Education, Office， DIY, Kickstarter Entrepreneur.
Engraving on jewelry, guns, firearms, blades, axes, knives, coins, stamps, forks, spoons, cutlery, flasks, wallets, tumblers, mugs, cups, dog tags, slate coasters, etc.
Laser mark logo, text, barcode, numbers, serial numbers, image, photo on metal & plastic parts and tools, wrenches, measuring tools, sanitary ware, stainless steel, medical equipment, luggage, gifts, table bottom, glasses frames, instruments.
Accessories & Parts Necessary:
Upgrading & Customization Guide:
Q1：Which Configurations of Machine I need to choose?
Please email us (firstname.lastname@example.org) directly to offer us your working material, and the expected effect on those materials by machine with pictures or video.
Q2: Is there any difference to order on Cloudray Official Website (www.cloudraylaser.com) directly or on other Third-Party Platforms?
Firstly, yes, there are obvious differences. The laser machines will be equipped with unique configurations (only for machines on www.cloudraylaser.com) which have higher stability and marking efficiency. We offer lifetime Technical support and marking parameters reference after your purchase directly on www.cloudraylaser.com.
Secondly, we will only offer after-sale support for customers who directly ordered on www.cloudraylaser.com.
We will not be responsible for any orders from other third-party platforms or any offline dealers because we don’t have your order information in our system.
To ensure you can get dedicated and professional support, we suggest that you order directly from www.cloudraylaser.com.
Q3: I failed to process the payment via credit card, what should I do?
Since the machine value is high, firstly, you need to contact your credit card to check whether the amount had been exceeded your spend limit and confirm with your credit card bank all payment behavior is operated by yourself and you had difficulty in processing the payment.
Secondly, please don’t hesitate to contact us (email@example.com) immediately we will check whether our system identifies your behavior as fraud and help you deal with the problem in time.
Q4: What's the guarantee, in case the machine breaks down?
The machine has 2 years guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to clients’ feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality faults. Even if the machine is beyond the warranty, we can still offer technical assistance as your order is placed on www.cloudraylaser.com.
Q5：How Long is the delivery time？
1. Machine with the default configuration：
CN Warehouse: 7-10 Business Days
Oversea Warehouse: 3-5 Business Days
2. Customized Machine (Only Support Shippment From China Warehouse)
The average period of production: 7-10 Business Days
Shipping: 7-10 Business Days
(Notification: Customs clearance inspections will cause delays 2-3 days in logistics）
Q6: Where is your Return & Exchange Policy; Shipping Policy; Payment & Taxes?
1. Return & Exchange Policy: https://www.cloudraylaser.com/pages/return-exchange
2. Shipping Policy: https://www.cloudraylaser.com/pages/shipping
3. Payment & Taxes: https://www.cloudraylaser.com/pages/payment-taxes
Q7: Why do I have already over 10 hours mark time on my machine if this is supposed to be a brand new machine?
When our machine is produced, our engineer will check all details of the machine and keep testing the machine for a long time to ensure it can maintain stable working status even lasting for a long time.
Please don’t worry, all laser machines will be brand new machines, and please directly contact us if there is any damage or if you have any confusion concerning the machine, please don’t try to fix any problem before communication.

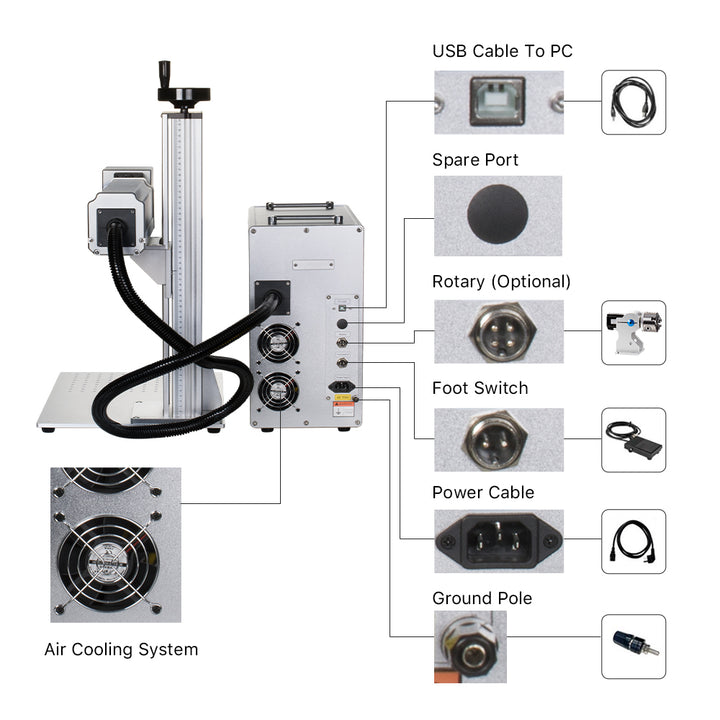

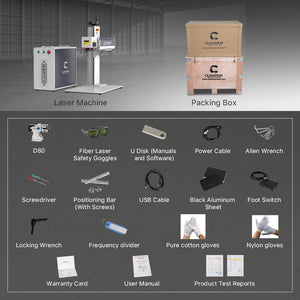

- Fiber Laser Machine Machine x1
- U Disk (Manuals and Software) x1
- Power Cable x1
- Allen Wrench x1
- Screwdriver x2
- Positioning Bar (With Screws) x2 (M6 4Pcs)
- USB Cable x1
- Color Aluminum Sheet x1
- Foot Switch x1
- Protective Glasses x1
- Locking Wrench
