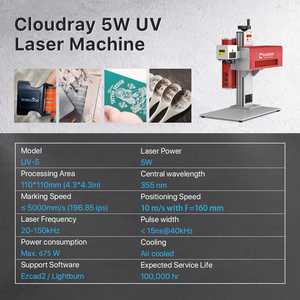

Specification | UV-5 5W UV Laser Marking Engraver
Function Overview | Cloudray UV-5 5W UV Laser Engraver
15X Increased Accuracy | Cloudray UV-5 5W UV Laser Engraver
0.002mm Engraving Accuracy | Cloudray UV-5 5W UV Laser Engraver
Upgrade Button Design | Cloudray UV-5 5W UV Laser Engraver
Engraver Size | Cloudray UV-5 5W UV Laser Engraver
Engraver Structure | Cloudray UV-5 5W UV Laser Engraver
Engraver Structure | Cloudray UV-5 5W UV Laser Engraver
Engraver Packing List | Cloudray UV-5 5W UV Laser Engraver
Laser Application | Cloudray UV-5 5W UV Laser Engraver
Laser Application | Cloudray UV-5 5W UV Laser Engraver
Cloudray UV-5 5W 355nm UV Laser Engraving Marking Machine
Engraver Application Video | Cloudray UV-5 5W UV Laser Engraver
Specification | UV-5 5W UV Laser Marking Engraver
Function Overview | Cloudray UV-5 5W UV Laser Engraver
15X Increased Accuracy | Cloudray UV-5 5W UV Laser Engraver
0.002mm Engraving Accuracy | Cloudray UV-5 5W UV Laser Engraver
Upgrade Button Design | Cloudray UV-5 5W UV Laser Engraver
Engraver Size | Cloudray UV-5 5W UV Laser Engraver
Engraver Structure | Cloudray UV-5 5W UV Laser Engraver
Engraver Structure | Cloudray UV-5 5W UV Laser Engraver
Engraver Packing List | Cloudray UV-5 5W UV Laser Engraver
Laser Application | Cloudray UV-5 5W UV Laser Engraver
Laser Application | Cloudray UV-5 5W UV Laser Engraver

(USA Warehouse) Cloudray 5W UV Air-Cooled Laser Marking Engraver with 4.3” X 4.3” Scan Area

SKU: FM14LMUVUE5ASED-USA
40
People are viewing this right now
Regular price $ 5,999.00 USD Sale price $ 3,599.00 USD

HURRY UP! SALE ENDS IN:

Shipping Destination: United States
Plug: American Plug
Add to Compare
Shipping calculated at checkout.

Safe & secure

Frequently Bought Together

Cloudray UV-5 5W 355nm UV Laser Engraving Marking Machine
Cloudray Partner LightBurn Software For Laser Cutter Control / Galvo Laser Control
D69 D80 D100 A Series Rotary Attachment Set
Cloudray 135W FE-200M Mini Smoke Purifier Fume Extraction System
Cloudray Laser Machine Protective Cover For CO2 Galvo Laser & UV Laser
This item: (USA Warehouse) Cloudray 5W UV Air-Cooled Laser Marking Engraver with 4.3” X 4.3” Scan Area
Regular price $ 5,999.00 USD Sale price $ 3,599.00 USD
Cloudray Partner LightBurn Software For Laser Cutter Control / Galvo Laser Control
Sale price $ 199.00 USD
Cloudray D80 D100 A Series Rotary Attachment Set
Sale price $ 199.00 USD
Cloudray 135W FE-200M Mini Smoke Purifier Fume Extraction System
Sale price $ 699.00 USD
Cloudray Laser Machine Protective Cover For CO2 Galvo Laser & UV Laser Sale price $ 399.00 USD
Cloudray UV-5 5W 355nm UV Laser Engraving Marking Machine

(USA Warehouse) Cloudray 5W UV Air-Cooled Laser Marking Engraver with 4.3” X 4.3” Scan Area

Machine Features & Benefits

  • Ultra-thin chassis, wall-mounted design;
  • Built-in high-speed marking laser motion control system;
  • Ultra-fine engraving and marking of special materials;
  • Cold laser processing has lower thermal stress and reduces material burning;
  • Higher quality beam, smaller focusing spot, achieving hyperfine marking;
  • Air-cooled structure, intelligent speed regulation
  • Unique Low-Power Laser Beam and Smaller Focusing Spot, No Thermal Effect, Prevent Material Deformation, Damage or Scorching.
  • Notification: Due to the unique nature of the laser, the UV laser itself comes with a one-year warranty, while the UV laser machine is covered by a two-year warranty.

Manual & Software

  • Complementary Documentation on the U disc: Download

Laser Machine Specification

Brand: Cloudray
Product Series: UV Series
Model: UV-5 (Air-cooled)
Marking Area(Lens): 110 x 110 mm
Package Dimensions: 96*54*56cm
Package Weight: 58kg
Lifespan: Around 20,000 hours
Warranty: 2 years for the machine, 1 year for the UV laser
Certifications: FDA Compliant & CE Certification

Specifications

Output Power Laser Frequency Pulse Duration
5W 10-150 kHz <15ns@40kHz
Central wavelength Processing Area Max. Marking Speed
355 nm 110 x 110 mm (4.3 x 4.3 in) 10000mm/s (393.7 ips)
Beam Diameter Beam Diameter Average Power Consumption
Non-expanding: 0.55±0.15mm 2.0±0.2mm <675W
Expected Service Life (MTTF) Support Operating Software Compatible Operating Systems
20,000 hr EZCAD2/ Lightburn Windows
 *AC110V/60Hz

YOU CAN ENGRAVE THESE MATERIALS

 🟡Glass 🟡Wood 🟡Paper 🟡Rubber 🟡Leather
🟡Building Ceramics 🟡PVC 🟡Acrylic 🟡Bamboo Products 🟡ABS

*Non-Metallic Materials And Some Metal Products

Application Cases:

Cosmetics, Drugs, Food, and other Macro-molecule material packaging surface, Flexible PCB, LCD Glass QR Code, Metal Surface Coating, Plastic Keys, Electronic Componentsm Gifts, Communication Equipment, Construction Materials, etc

Application:

UV laser is very different from CO2 laser and fiber laser. UV laser is also known as a blue laser beam, which can be engraved with low heat. The light wave or ultraviolet spectrum of the UV laser marking machine is one of the main reasons that this technology can be engraved on different materials. It does not heat the surface of the material like fiber laser and CO2 laser marking machines.
Unique Low-Power Laser Beam and Smaller Focusing Spot, No Thermal Effect, Prevent Material Deformation, Damage or Scorching.
1. Packaging Inkjet Coding, such as Cosmetics, Medicines, Food, and other Macro-molecule material packaging surface;
2. 3C Industry, Mobile phones, Keyboards, Chargers etc
3. Industry Processing: Electronic Components, such as Chips, Circuit Board, etc; LED Lineation and Silicon Processing
4. Electrical appliance housing marking
5. Metal or Non-metal Coating Removal
6. Scribing and blind groove processing of various materials
7. New ultra-thin metal foil micro-hole production
8. Glass products marking and engraving etc.
9. Engraving and marking of all plastics
10. Paper marking; Leather marking and graving; Wood Marking; Garment marking; Ceramic marking

Packing List:

  1. UV Laser Machine x1
  2. UV Laser Safety Glasses
  3. U Disk (Manuals and Software) x1
  4. Power Cable x1
  5. Allen Wrench x1
  6. Screwdriver x2
  7. Positioning Bar (With Screws) x2 (M6 4Pcs)
  8. USB Cable x1
  9. Black Aluminum Sheet x1
  10. Foot Switch x1
  11. Locking Wrench
