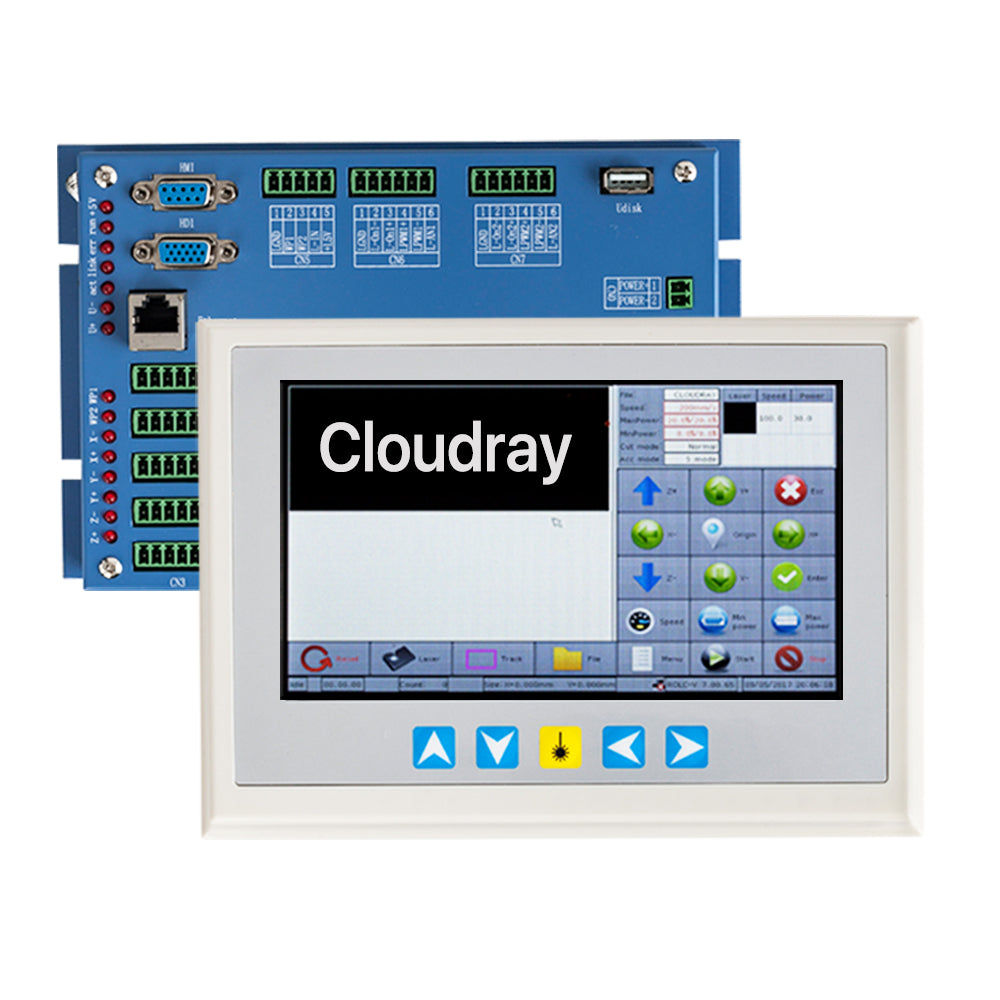

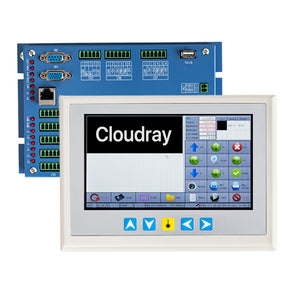

Cloudray Ruida RDC6344G Laser Controller

SKU: LC08R6344G
Cloudray Ruida RDC6344G Laser Controller
Cloudray Ruida RDC6344G Laser Controller
Cloudray Ruida RDC6344G Laser Controller

Cloudray Ruida RDC6344G Laser Controller

SKU: LC08R6344G
Regular price $ 731.00 USD
/
  • Notification: All product information, extra offers published and after-sale tech support are only adapted to products on www.cloudraylaser.com. Please check more details in FAQ before purchase.
  • Secure payments
  • Free Tax For Most Countries (Consult info@cloudray.com to check more details)
  • In stock, ready to ship
  • Inventory on the way
Shipping calculated at checkout.

Laser Controller Rduida RAC6344G

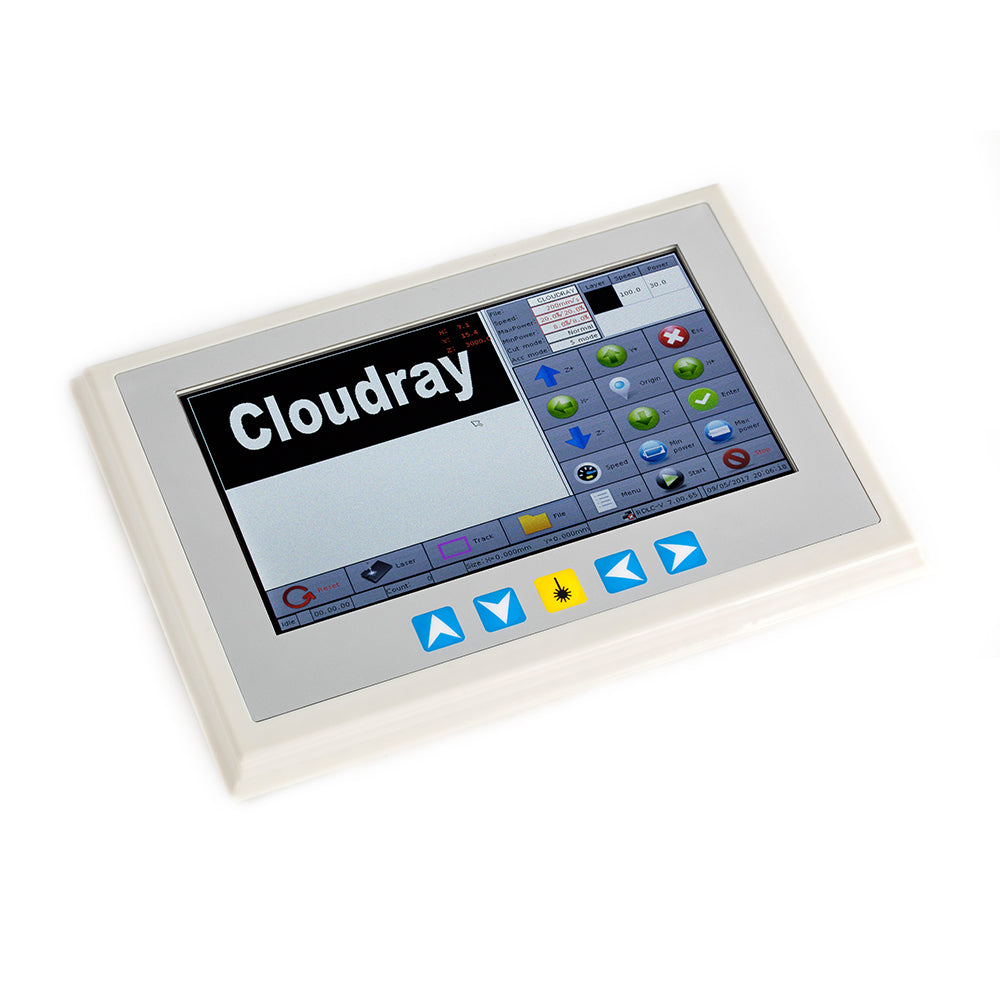

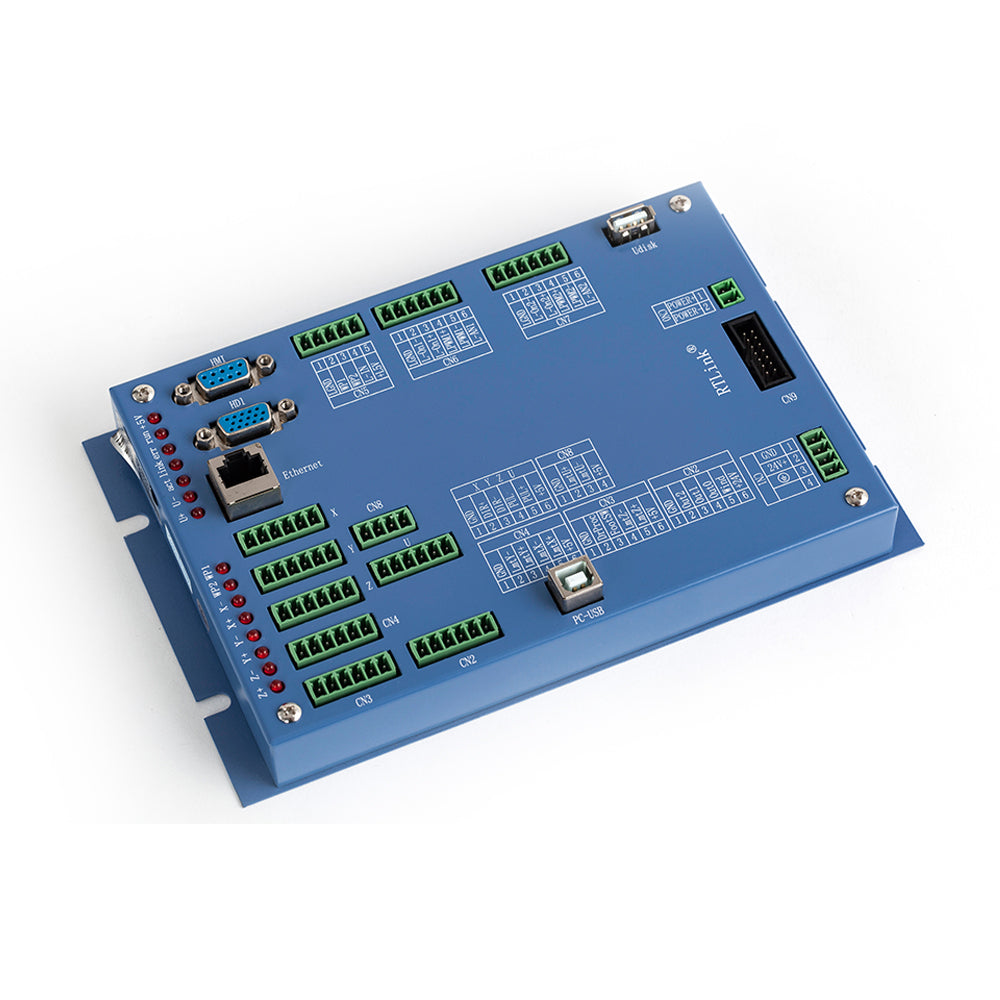

RDC6344G system is a new generation system for control of laser engraving and cutting, which is developed by RD Co., Ltd. In addition to high hardware stability, high voltage or static electricity rejection, and friendly 7'' touch panel man-machine display based on Linux. This system is provided with stronger software function including perfect 3-axis motion control function, large-capacity file storage, two-channel adjustable digits, analog laser power control interface, USB driver of stronger compatibility, multi-channel general/special IO control, and real-time clock and battery integrated for hardware encrypt, and, this system can communicate with PC by USB2.0 or Ethernet.

Product Size

Multi-Language

Technical Parameter

                         1.Digital laser control signals:
                             (1) Differential output, TTL level, 20 mA, drive capability
                             (2) PWM frequency 2K-50K for adjustable
                             (3) PWM duty ratio is 1% ~ 99%, adjustable
                             (4) PWM value is up to 4.5 V
                         2.Analog laser control signal:0 ~ 5V tracing adjustable automatically.
                         3.Motor control signal: differential output, TTL level, drive capability 20 mA.
                         4.Motor control pulse frequency:Max.500 KHZ.
                         5.USB: Max. transmission rate is 12M bps; the longest distance is 5 meters.
                         6.Interpolation: Linear/circular arc/B spline, accuracy + / - 0.5 pulse.
                         7.Output:4-channel, photoelectric isolated OC gate output; max drive capability is 500mA.
                         8.Input: 4-channel, photoelectric isolated input, TTL level.

Product Details

Packing List

1.Machine with the default configuration:CN Warehouse: 5-7 Business Days

((Notification: Customs clearance inspections will cause delays 2-3 days in logistics)

USA/EU Warehouse: 3-7 Business Days

2. Customized Machine (Only Support Shippment From China Warehouse)

The average period of production: 7-10 Business Days

Shipping: 7-10 Business Days

(Notification: Customs clearance inspections will cause delays 2-3 days in logistics)
