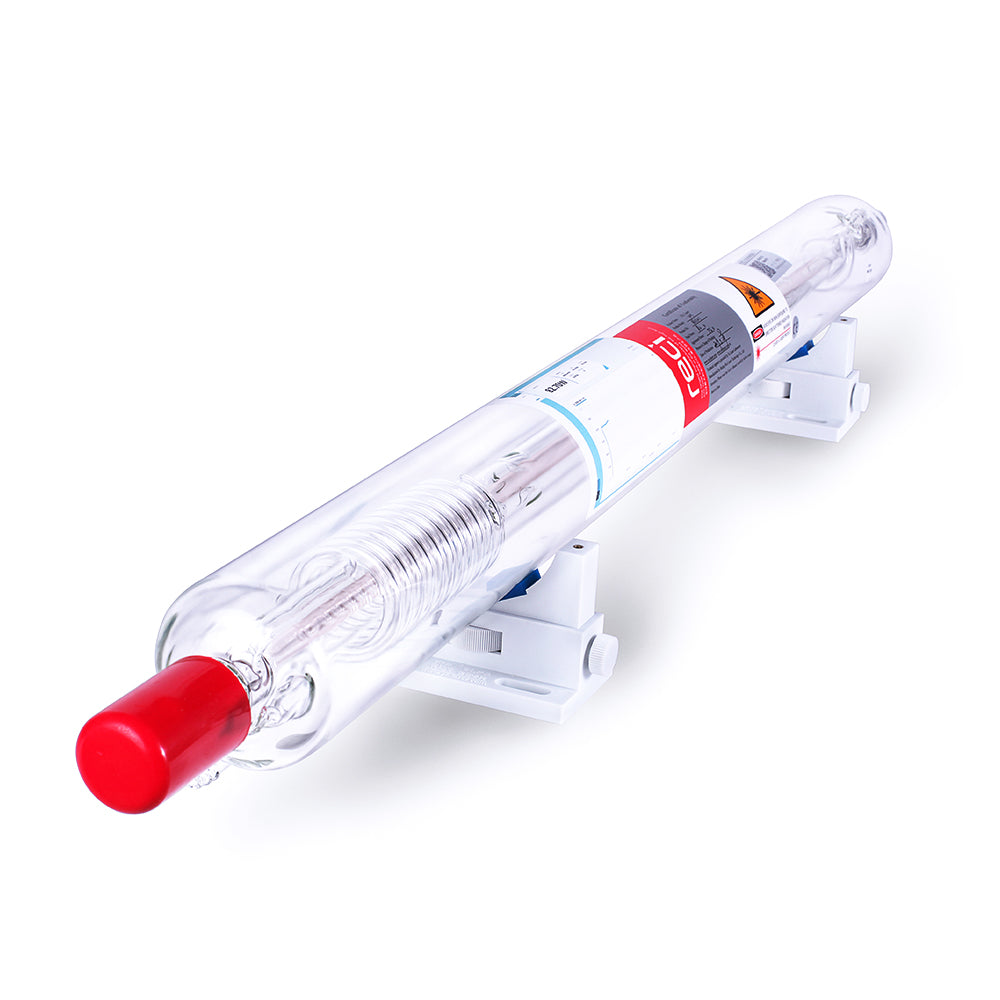

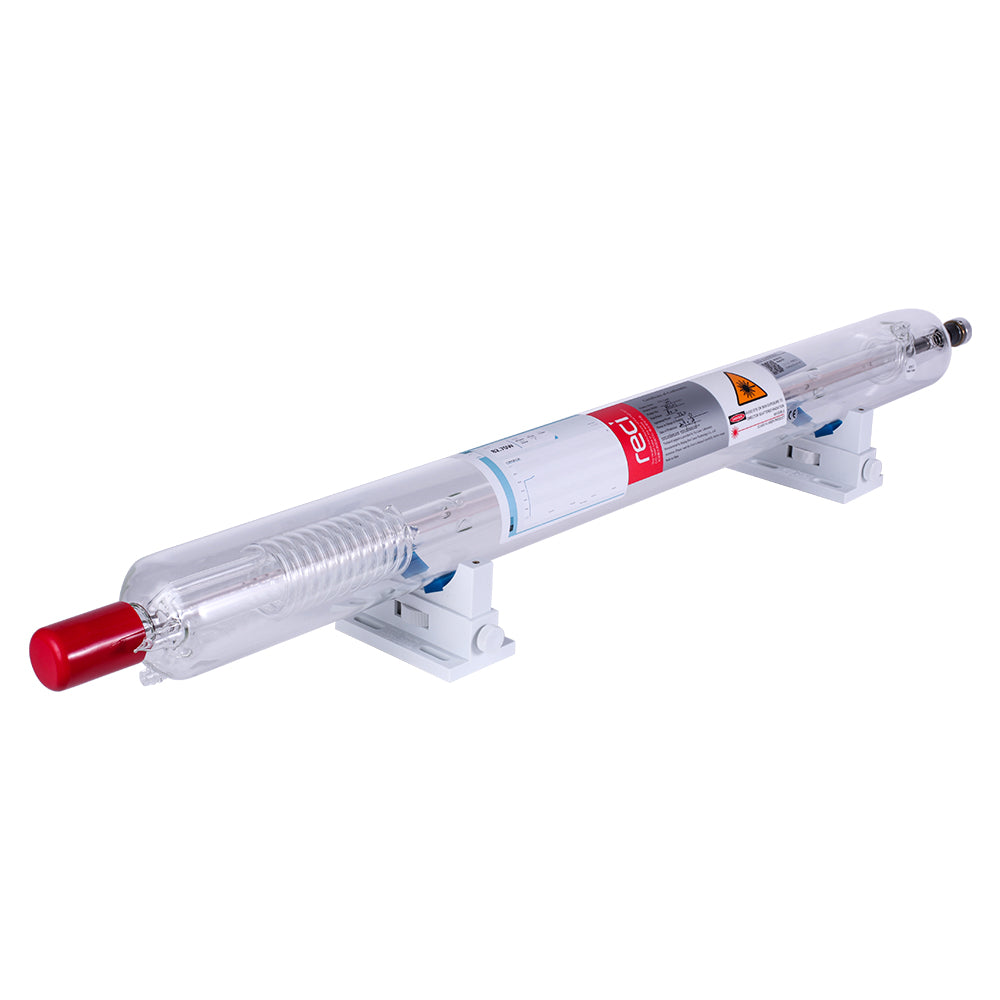

Cloudray RECI W & T Series CO2 Laser Tube

2 sold in last 8 hours
Cloudray
LT07RW1
CO2 Laser
$ 900.00 USD $ 220.00 USD
Size Guide
Model *
Ship From *
$ 269.00 USD

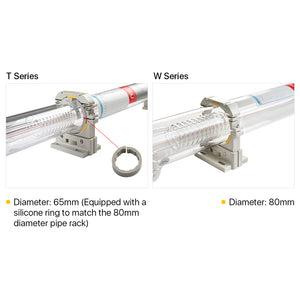

Reci Laser Tube

T Series&W Series

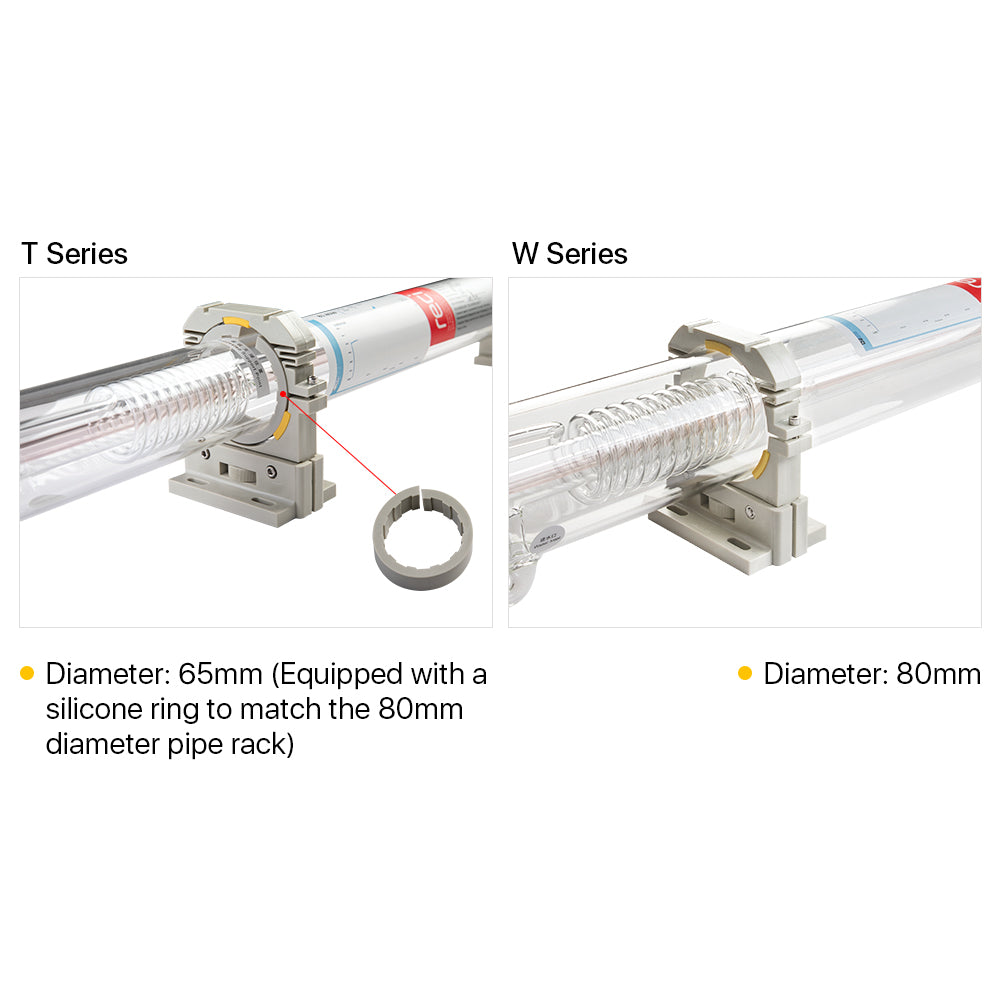

 T Series W Series

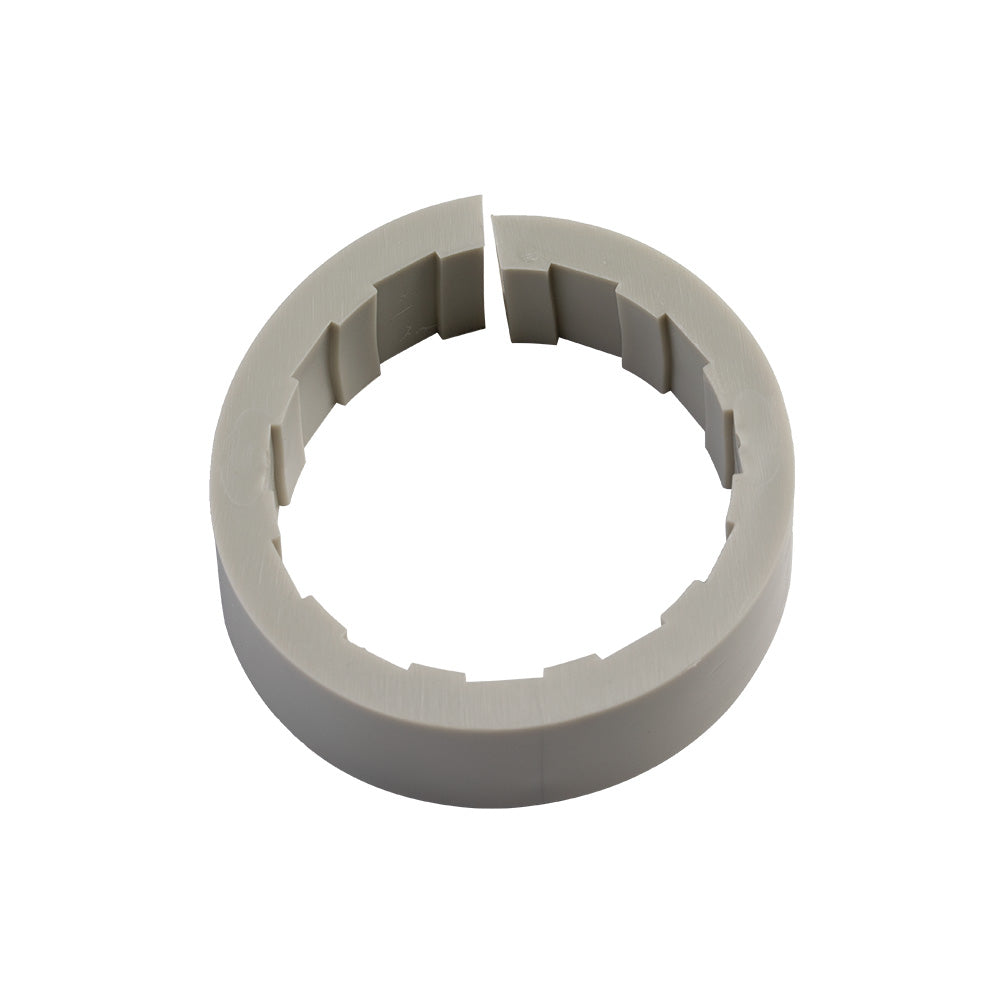

  •  Diameter:65mm( Equipped with a
    silicone ring to match the 80mm
    diameter pipe rack)
  • Diameter :80mm

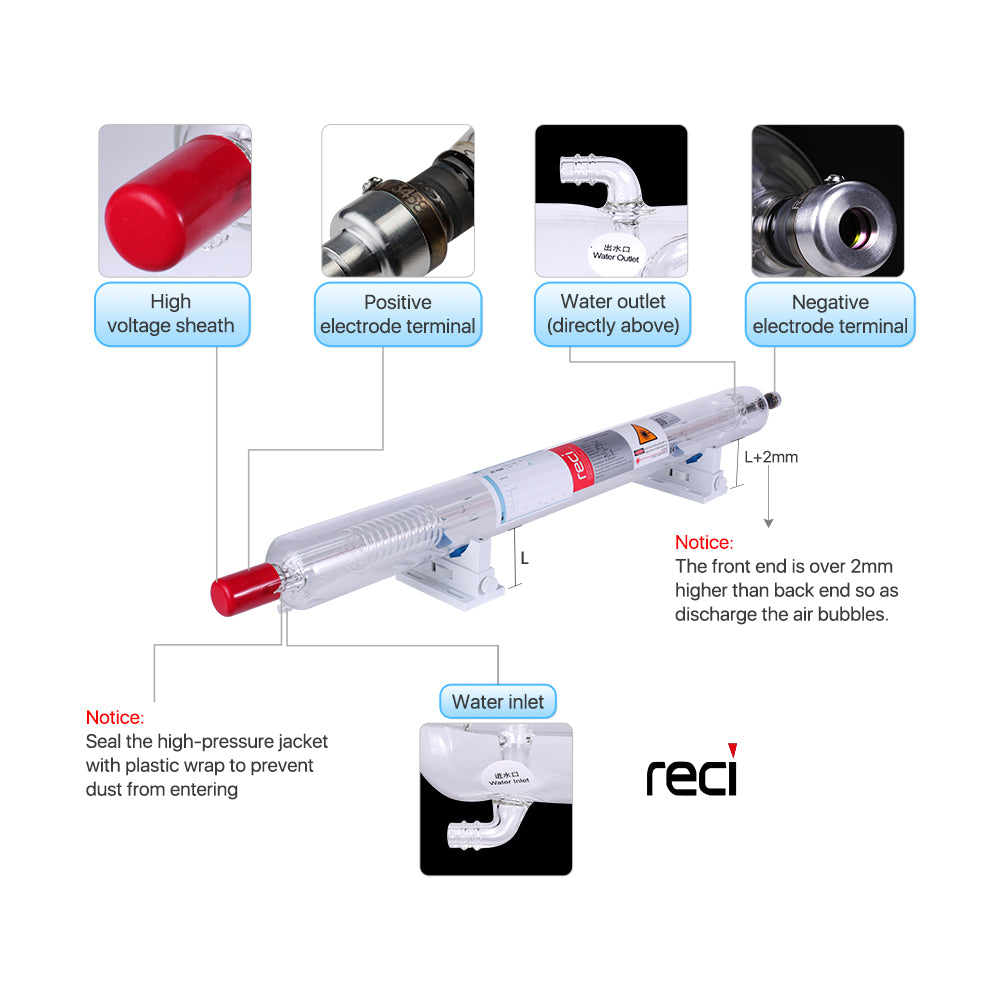

Product Structure

T Series & W Series

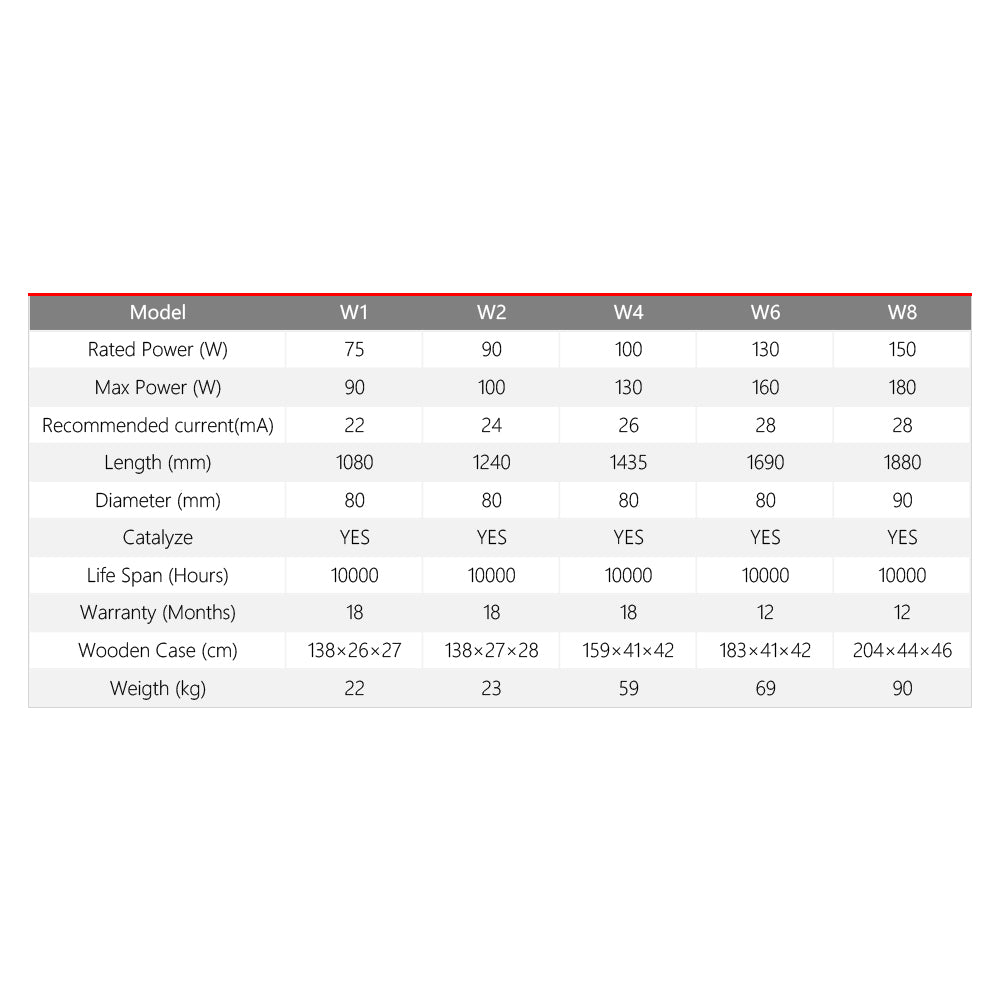

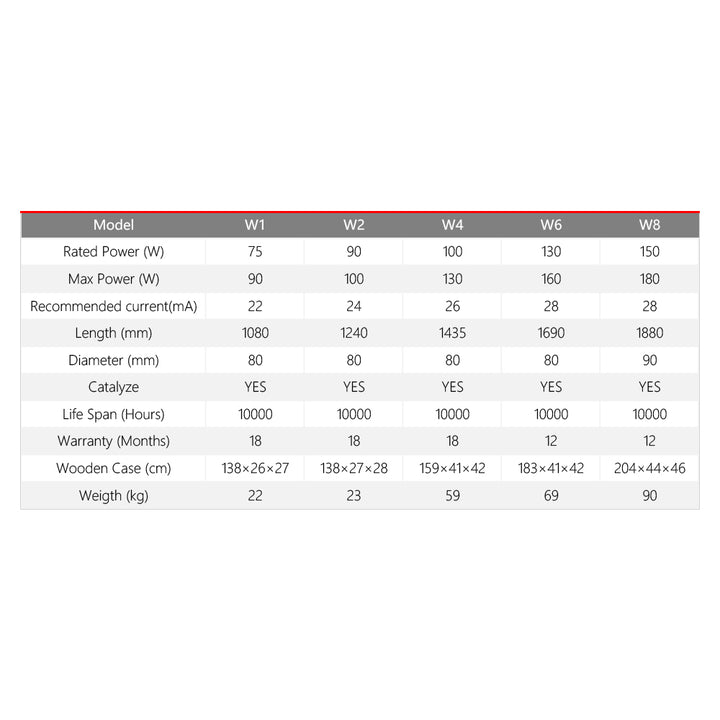

Technical Parameter

T Series & W Series

Model W1 W2 W4 W6 W8
Reated Power (W) 75 90 100 130 150
Max Power (W) 90 100 130 160 180
Length (mm) 1050 1200 1400 1650 1850
Diameter (mm) 80 80 80 80 90
Catalyze YES YES YES YES YES
Life Span (Hours) 10000 10000 10000 10000 10000
Warranty (Months) 18 18 18 12 12
Wooden Case (cm) 138x16x27 138x27x28 159x41x42 183x41x42 204x44x46
Weight (kg) 22 23 59 69 90

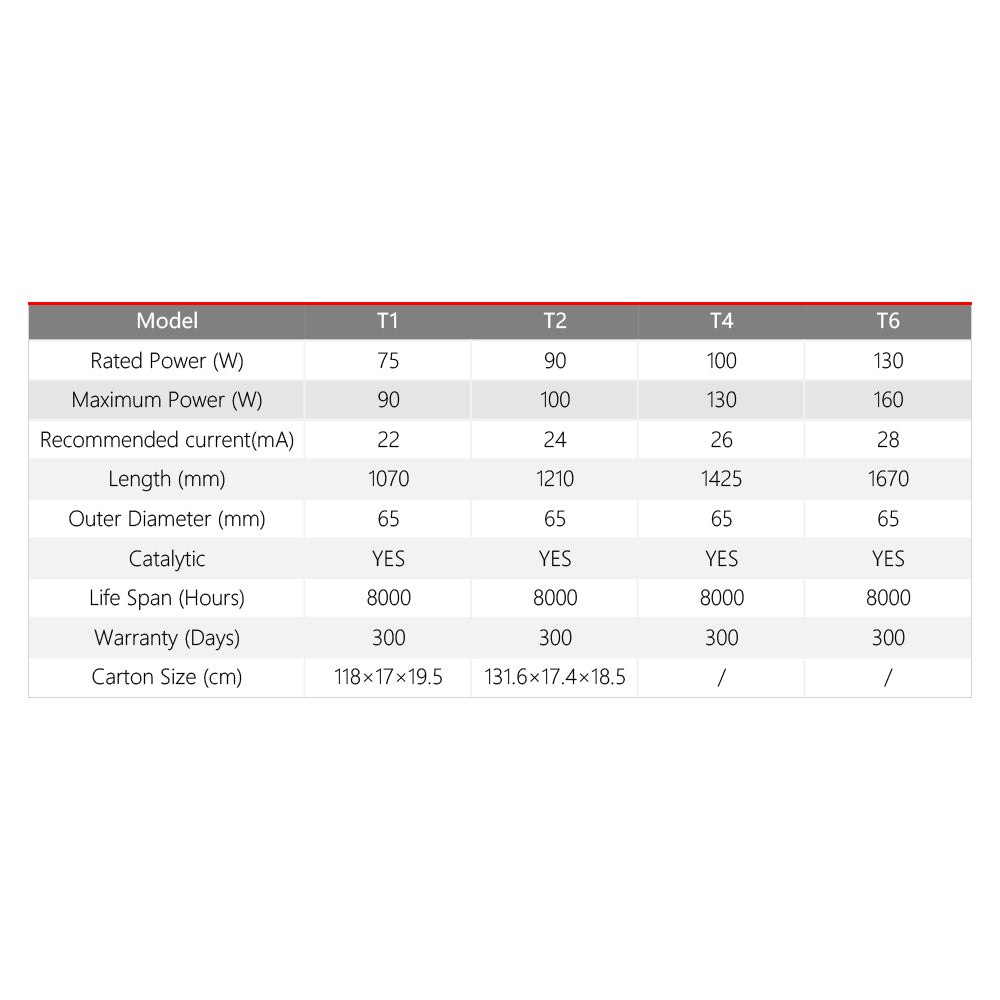

 Model T1 T2 T4 T6
Rated Power (W) 75 90 100 130
Maximum Power (W) 90 100 130 160
Length (mm) 1100 1250 1400 1650
Outer Diameter (mm) 65 65 65 65
Catalytic YES YES YES YES
Life Span (Hours) 8000 8000 8000 8000
Warranty (Days) 300 300 300 300
Carton Size (cm) 118x17x19.5 131.6x17.4x18.5 / /

Operating Conditions

T Series & W Series

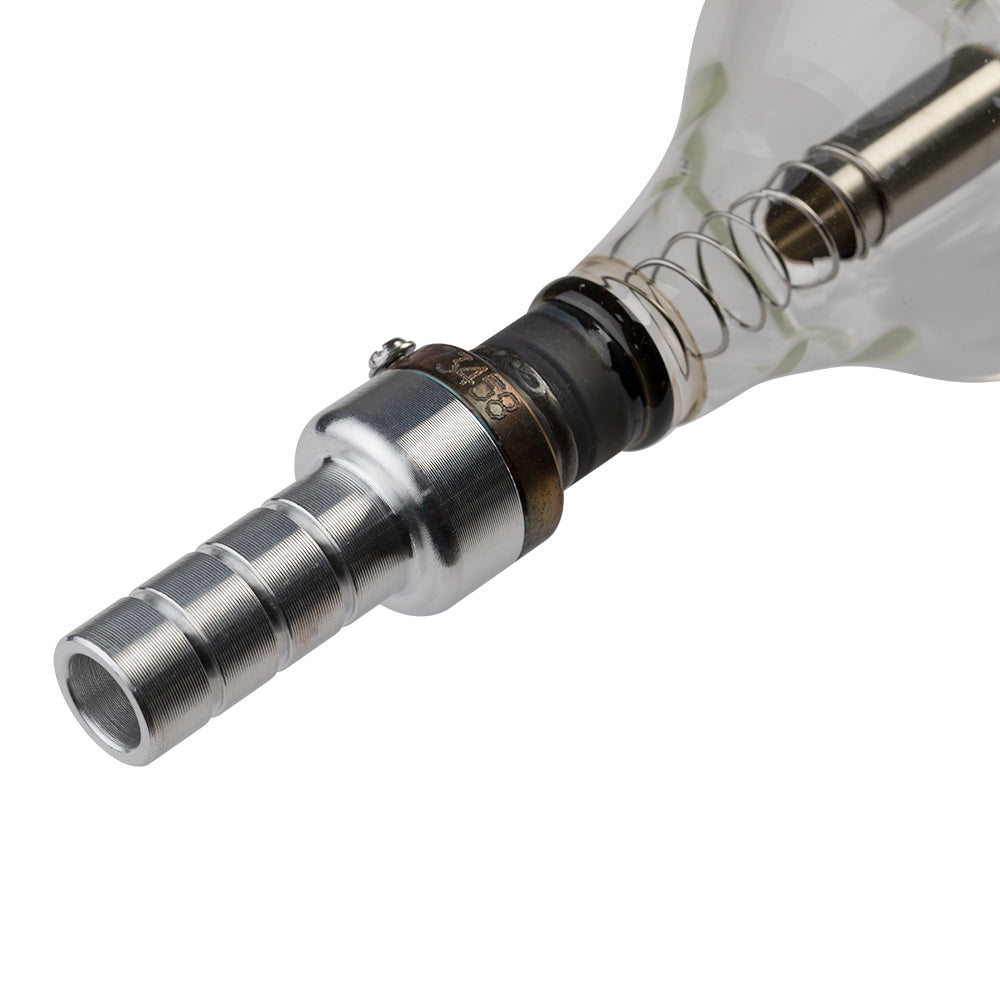

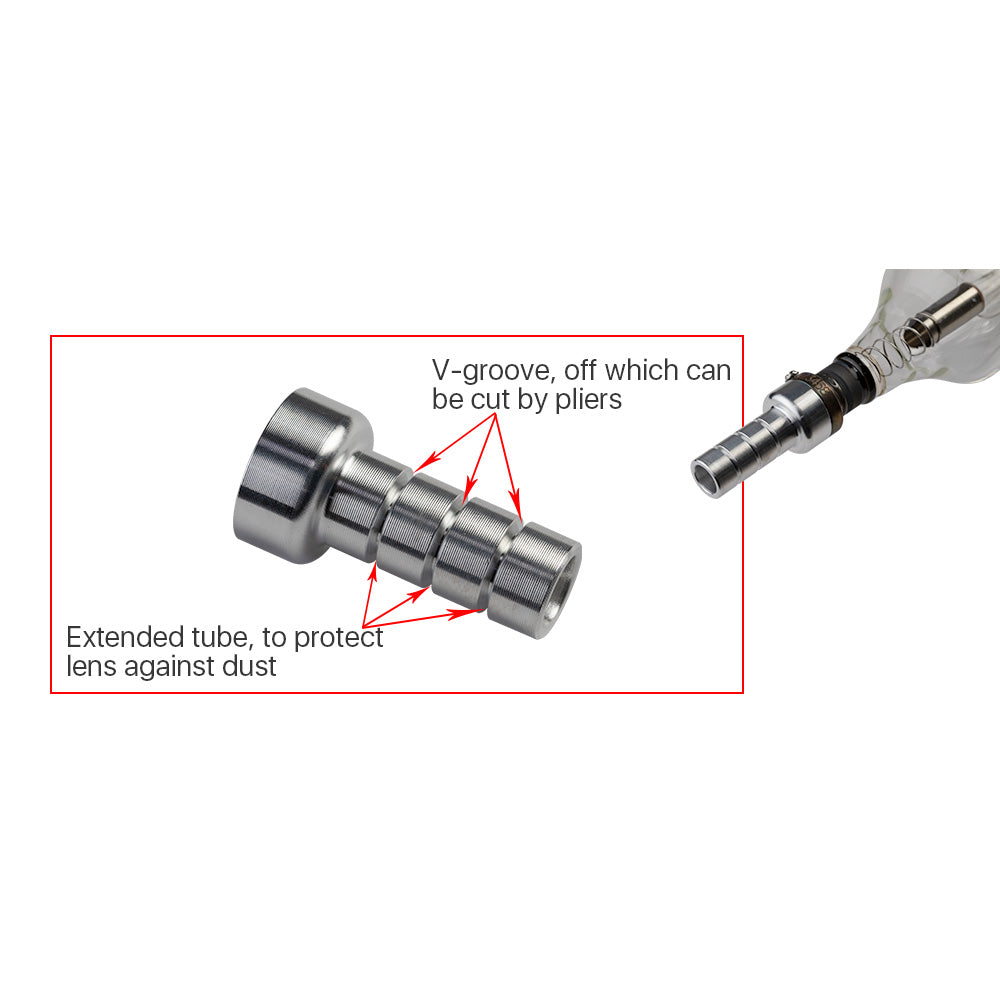

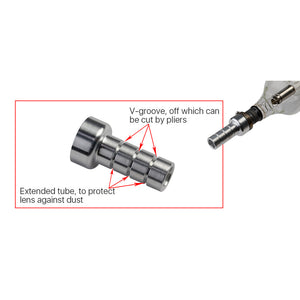

The Instructions of Extended Threaded-tube for Output Lens Protection

Note:
The extended threaded tube is recommended when Multi-layer plywood, PVC materials are to be cut. It should be installed to avoid the gas inside leaking caused by glue expansion, in the circumstance that the temperature of laser tube heads is increasing due to dust around the working environment.
Installation method:
Unscrew the original threaded -tube, and blow off the dust on the lens with the balloon. Then install the extended threaded -tube. The length can be reserved according to the actual requirement with the pliers cutting from the V-groove position.

Operating Conditions

T Series & W Series

1. Watercooling requirements: the cooling liquid is pure water, the flow rate is2-5L/min, and the water temperature is10-50℃.
2.Environmentalrequirements: temperature2-40℃, humidity10%-60%

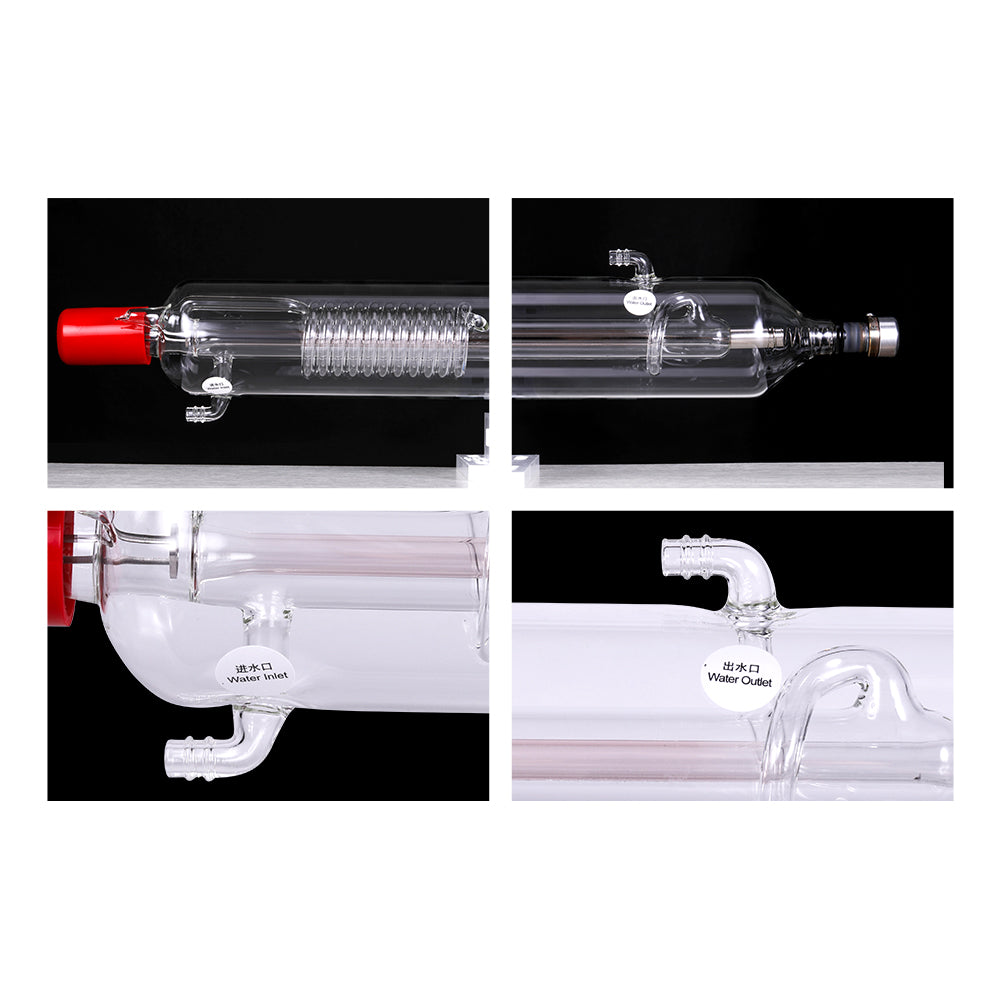

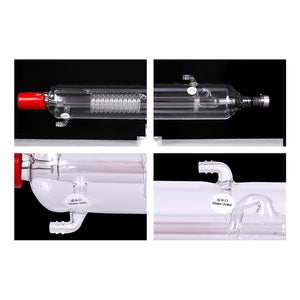

Photos

T Series & W Series
