| Warehouse Located | Available Countries | Shipping From | Shipping Time |
| USA Warehouse | USA | United States | 3~5 days |
| EU Warehouse | EU Member States | Poland | 3~5 days |
| China Warehouse | Worldwide | China | 5~10 days |
|
FREE SHIPPING WORLDWIDE Notice: If the products are shipped from the China warehouse, you need to pay the customs tax. |
Manual & Software
- The GM-100 Litemarker Machine User Manual: Download
- G3 Pro-V Laser Galvo Head User Manual: Download
- The EzCad2 Software: Download
- Galvanometer Calibration Software: Download
- Instructions for Rotating Marking: Download
Technical Specifications
| Output Power | Laser Frequency | Central wavelength |
| 100W | 1 -4000 kHz | 1064 nm |

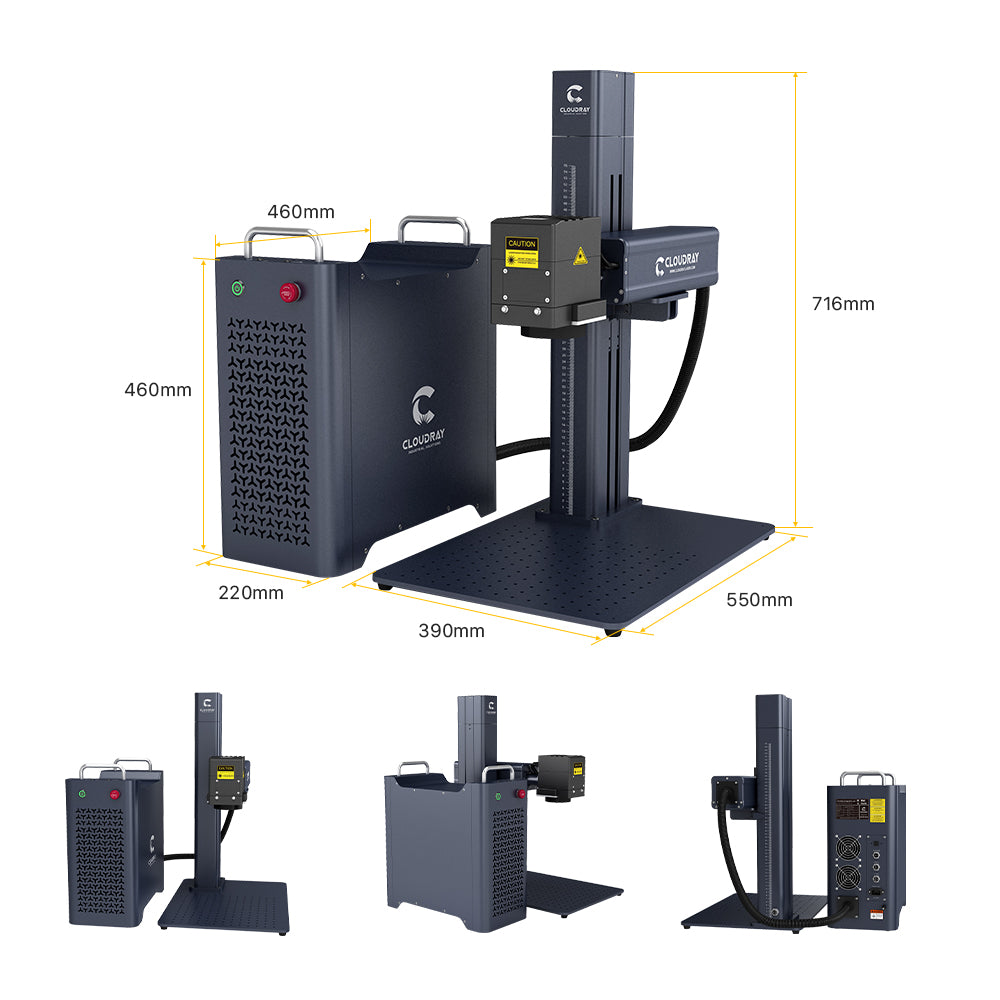

| Dimensions | Processing Area | Max. Marking Speed |
| 32"x 24"x24" | 175*175mm(6.9"*6.9") | 7000mm/s (275.6 ips) |
| Max. Engraving Depth(Single Pass) | Beam Diameter | Min. Beam Quality (Max. M²) |
| ≤2mm(Depends on the material) | 7.0±0.5mm | 1.4 |
| Pulse Duration | Equipped Rotary | Positioning Accuracy |
| 2-500 ns | Optional | ±0.1μm |
| Expected Service Life (MTTF) | Support Operating Software | Compatible Operating Systems |
| 100,000 hr | EZCAD2/ Lightburn | Windows XP, Vista, 7, 8, or 10, 11/ macOS |
| 2-Year Warranty & Lifetime Tech Support |
YOU CAN ENGRAVE ON THESE MATERIALS
| 🟡Aluminum | 🟡Gold | 🟡Silver | 🟡Stainless Steel | 🟡Brass | 🟡Titanium |
| 🟡Tungsten | 🟡Artificial Leather | 🟡Colored Acrylic | 🟡Hard Plastics | 🟡Brick | 🟡Granite |
| 🟡Marble | 🟡Tile | 🟡ABS | 🟡PVC | 🟡Ceramic | 🟡Stone |
|
* Some PVC-based acrylics can create toxic fumes when lasered.
Contact us (info@cloudray.com) with questions on specific materials not listed above, we can offer to process a sample test for confirmation.
|
Application Cases
 Laser Cutting
|
 Laser Cleaning
|
Accurate Laser Engraving
|
 |
 AAO Black Marking
|
 |
 |
 Custom Cups
|
 DIY Metal Coins
|
 Custom Gun Parts
|
 |
 Photo Engraving
|
 Custom Lighters
|
 Custom Pet Tags
|
 Marking Product Number
|
Applicable Industry
|
|
|
|
|
|
 Auto Industry
|
 Factory
|
 Electronic
|
 Medical
|
 Munition
|
 PetsShop
|
 Education
|
 Business
|
 Jewelry
|
 Office
|

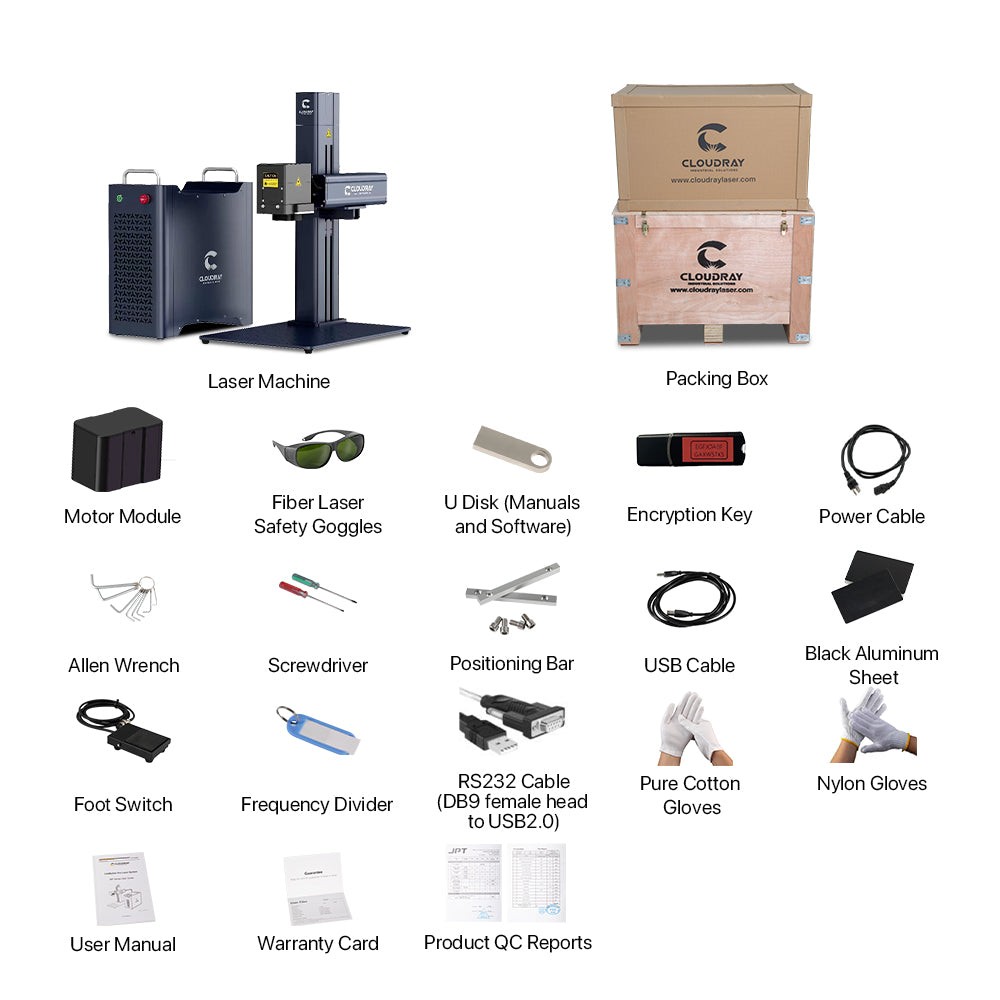

Packing List
- Fiber Laser Marking Machine（With Screws)
- Motor Module
- Fiber Laser Safety Goggles
- U Disk (Manuals and Software)
- Encryption Key
- Power Cable
- Allen Wrench
- Screwdriver
- Positioning Bar (With Screws)
- USB Cable
- Black Aluminum Sheet
- Foot Switch
- Frequency Divider
- USB (DB9 female head to USB2.0)
- Pure Cotton Gloves
- Nylon Gloves User
- Manual
- Warranty Card
- Product QC Reports
Certificate
1.Machine with the default configuration：CN Warehouse: 7-10 Business Days
((Notification: Customs clearance inspections will cause delays 2-3 days in logistics）
USA/EU Warehouse: 3-7 Business Days
2. Customized Machine (Only Support Shippment From China Warehouse)
The average period of production: 7-10 Business Days
Shipping: 7-10 Business Days
(Notification: Customs clearance inspections will cause delays 2-3 days in logistics）
Laser Marking Materials
View all
Customization & Upgrading
Machine Guide
Fiber vs. CO2 vs. UV: Which laser marker should I choose?
Laser cutting and engraving have changed the way materials are now cut and engraved. These laser machines are quickly becoming popular due to the degree of accuracy, speed, and flexibility offered by the laser engraver. The three most commonly used types of laser machines are CO2, Fiber, and UV lasers. In this blog post we will talk about each of these types, their advantages and their limitations......
How do I Choose Suitable Laser Marking/Engraving Machine From Cloudray?
Laser part marking technology is becoming more and more important in all realms of manufacturing, from automotive to aerospace and medical industries. This is because of the growing demand from manufacturers and federal regulations to be able to track and trace products ......
Get to Learn the Components and Maintenance of Laser Marking/Engraving Machine
Today, let's share the basic information concerning the the Components and Maintenance of Laser Marking/Engraving Machine.
Usually, when we want to order the suitable laser machine while there are kinds of different machine for us to choose....
FAQs
QS Series: Q-switched pulse laser (large single pulse energy for deep marking)
MP Series: Mopa (Anodized Aluminum Black Marking; Titanium & Stainless Steel Color Marking)
AR Series:2.5D Deep Engraving +Precise Metal Cutting
UV Series: UV lasers provide the most contrast on resins. UV lasers have the added benefit of creating damage-free marks.
EC Series: CO2 lasers burn the target with heat, making them ideal for marking wood, paper, ceramic and transparent targets.
Please email us (info@cloudray.com) directly to offer us your working material, and the expected effect on those materials by machine with pictures or video.
Yes, they are different. Official website and Cloudray stores on shopping platforms(Amazon/Ebay etc.) are different teams with different machine configurations and offers.
1. We are the Official website, and different from cloudray stores on platforms, we don't need to pay extra transaction fees and commissions to shopping platforms, that's why our offer is more affordable even with higher configurations.
And We only offer lifetime tech support and marking/engraving parameters, free materials for orders directly on www.cloudraylaser.com, not adapted to any orders from other sales channels.
2. Different Machine Types and Configurations. The laser machines will be equipped with unique configurations (only for machines on www.cloudraylaser.com) which have high stability and marking efficiency. Support Customization of your laser machine and upgrading solutions if needed.
3. Customer Service Support We can only offer after-sale service for customers ordered on www.cloudraylaser.com, not responsible for orders from shopping platforms as we don't have your order information in our system. Please contact the store on platforms to get related support in time.
4. Official Loyal Customers Benefits. We will run the free trial campaign from time to time for loyal customers who directly ordered on www.cloudraylser.com, not adapted to customers from other sales channels. Also, we offer free gifts for customers who ordered during grand festivals.
All product information, policies, and extra offers published on the website are only adapted to orders on www.cloudraylaser.com, and not adapted to stores on shopping platforms.
1.Machine with the default configuration：
CN Warehouse: 7-10 Business Days
Oversea Warehouse: 3-5 Business Days
2. Customized Machine (Only Support Shippment From China Warehouse)
The average period of production: 7-10 Business Days
Shipping: 7-10 Business Days
(Notification: Customs clearance inspections will cause delays 2-3 days in logistics）
1. Return & Exchange Policy:https://www.cloudraylaser.com/pages/return-exchange
2. Shipping Policy:https://www.cloudraylaser.com/pages/shipping
3. Payment & Taxes:https://www.cloudraylaser.com/pages/payment-taxes
The machine has 2 years guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to clients’ feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality faults. Even if the machine is beyond the warranty, we can still offer technical assistance as your order is placed on www.cloudraylaser.com.
