Cloudray CVD ZnSe Windows
Cloudray CVD ZnSe Windows
Cloudray CVD ZnSe Windows
Cloudray CVD ZnSe Windows
Cloudray CVD ZnSe Windows
Cloudray CVD ZnSe Windows

Cloudray CVD ZnSe Windows

$ 35.00 USD
  • SKU: ZW05C127X24
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock
Shipping calculated at checkout.

ZnSe Windows — USA CVD ZnSe

Choose high-quality imported crystal materials, which can withstand high-power lasers.

The double-sided coating is firm, wipe-resistant, not easy to fall off, and has a long service life.

High-precision processing, first use an excellent substrate, through cutting, polishing, coating and other processes to form a total.

High optical performance, high transmittance above 99.5%.

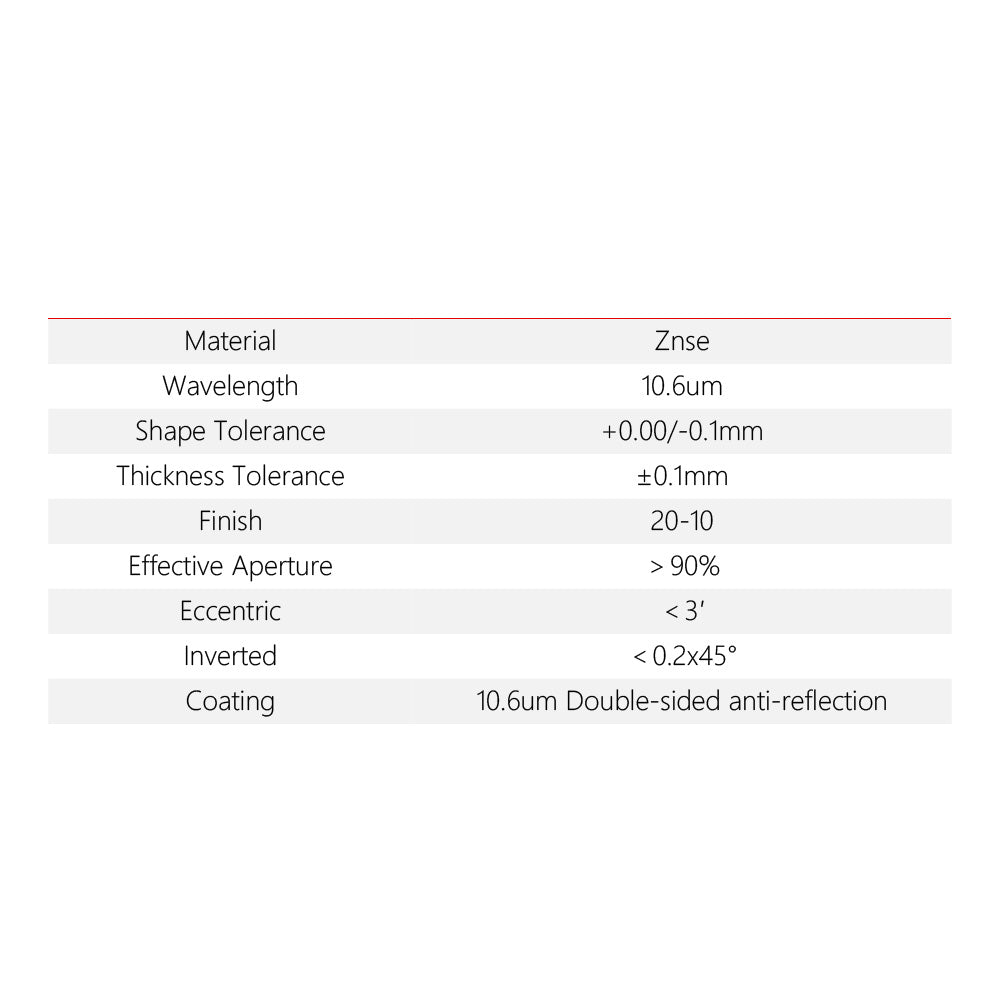

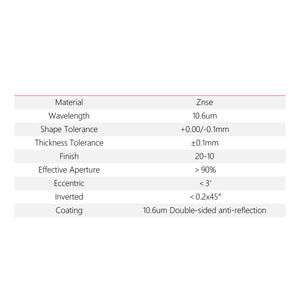

Product Details

Material

Znse

Wavelength

10.6um

Shape Tolerance

+0.00/-0.1mm

Thickness Tolerance

±0.1mm

Finish

10月20日

Effective Aperture

>90%

Eccentric

<3′

Inverted

<0.2x45°

Coating

10.6um Double-sided anti-reflection

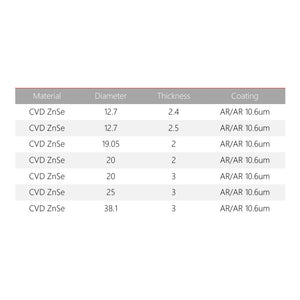

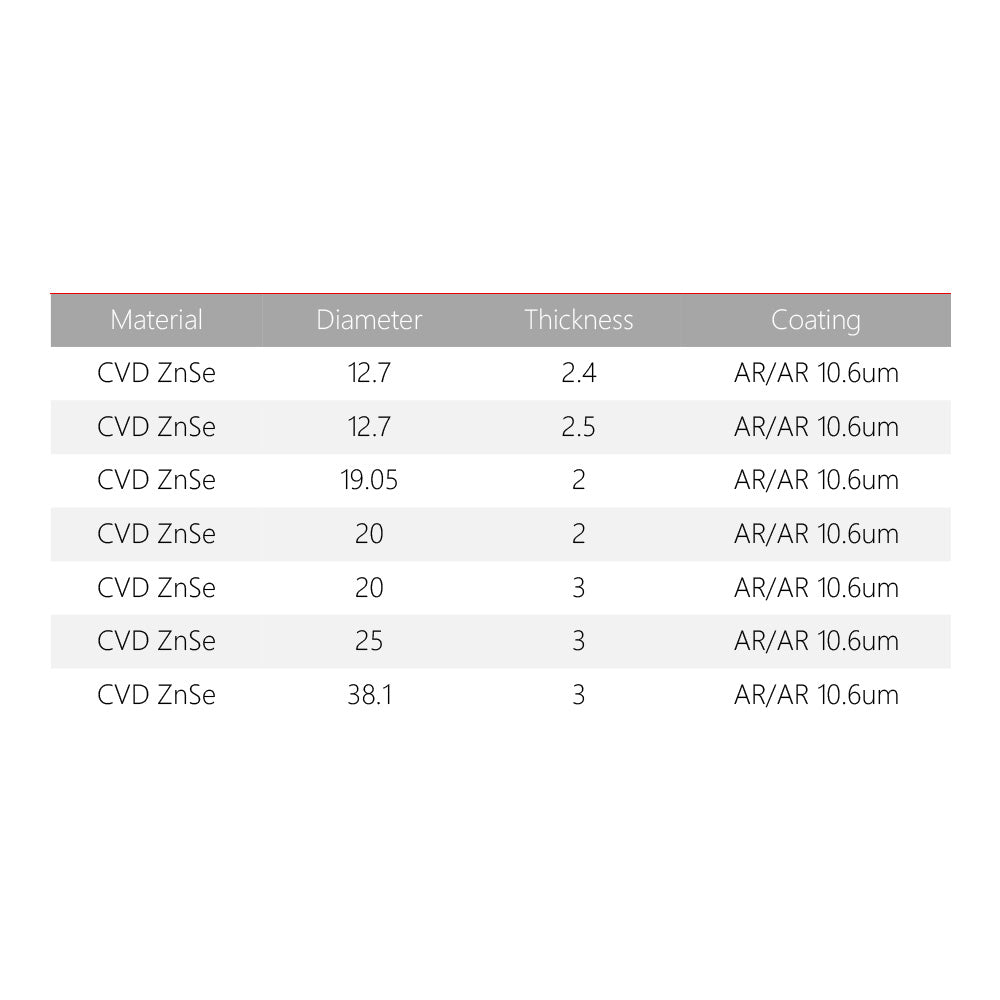

Specifications

Material

Diameter

Thickness

Coating

CVD ZnSe

12.7

2.4

AR/AR 10.6um

CVD ZnSe

12.7

2.5

AR/AR 10.6um

CVD ZnSe

19.05

2

AR/AR 10.6um

CVD ZnSe

20

2

AR/AR 10.6um

CVD ZnSe

20

3

AR/AR 10.6um

CVD ZnSe

25

3

AR/AR 10.6um

CVD ZnSe

38.1

3

AR/AR 10.6um


Cleaning instruction

1.Use an air bulb to blow off any loose contaminants. (dust, lint particles)
2. Squeeze a few drops of acetone onto the lens tissue, wetting the complete optic's diameter. (smudges, fingerprints)
3. Using the cotton swab and distilled vinegar, wipe the lens. Immediately use a wet cotton swab to remove any acetic acid, then clean with a clean dry cotton swab. (spittle, oils)
