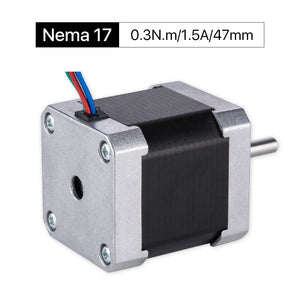

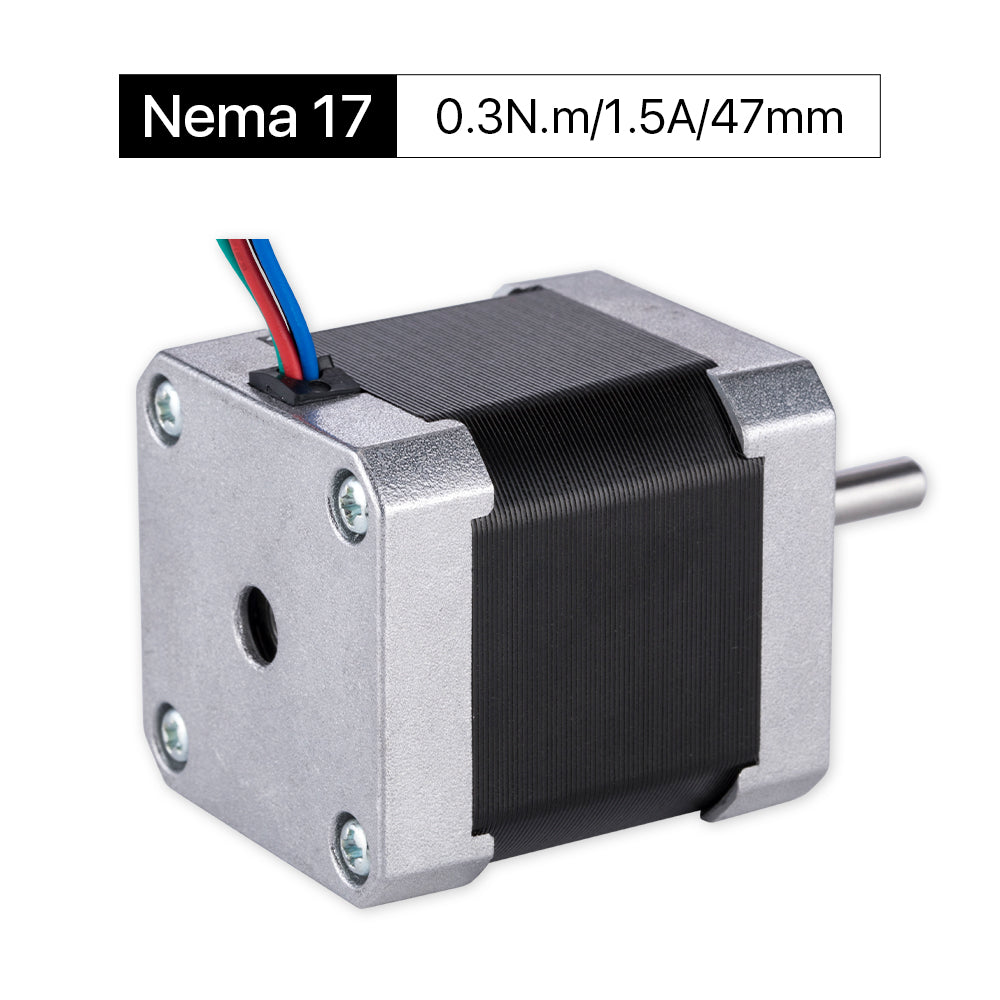

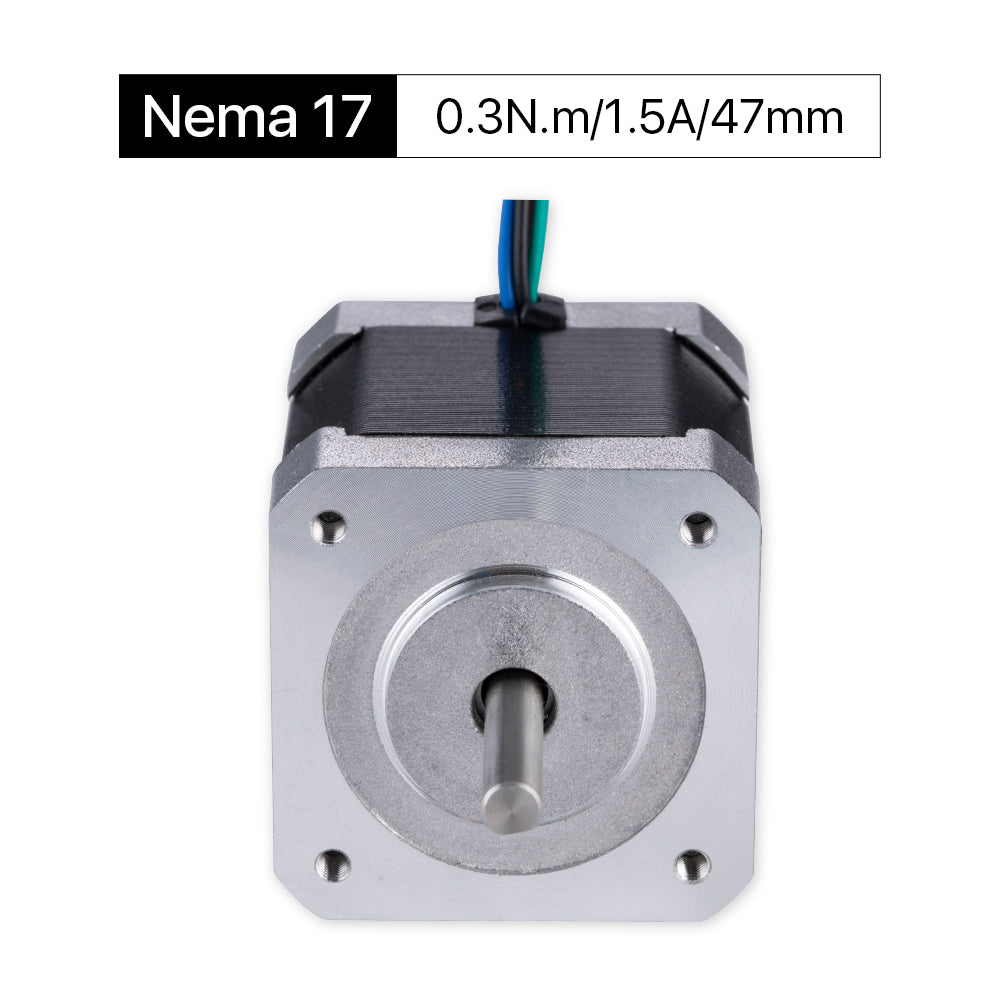

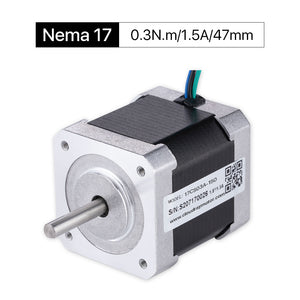

Cloudray 47mm 0.3N.m 1.5A 2 Phase Nema17 Open Loop Stepper Motor

SKU: SM47N17CS03A150
40
People are viewing this right now
Sale price $ 11.00 USD
Add to Wishlist Add to Compare
Shipping calculated at checkout.

Safe & secure

Cloudray 47mm 0.3N.m 1.5A 2 Phase Nema17 Open Loop Stepper Motor

Cloudray 47mm 0.3N.m 1.5A 2 Phase Nema17 Open Loop Stepper Motor

$ 11.00 USD

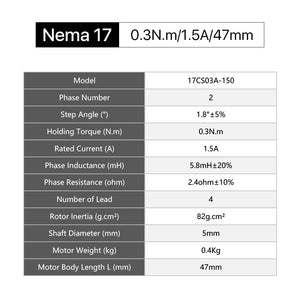

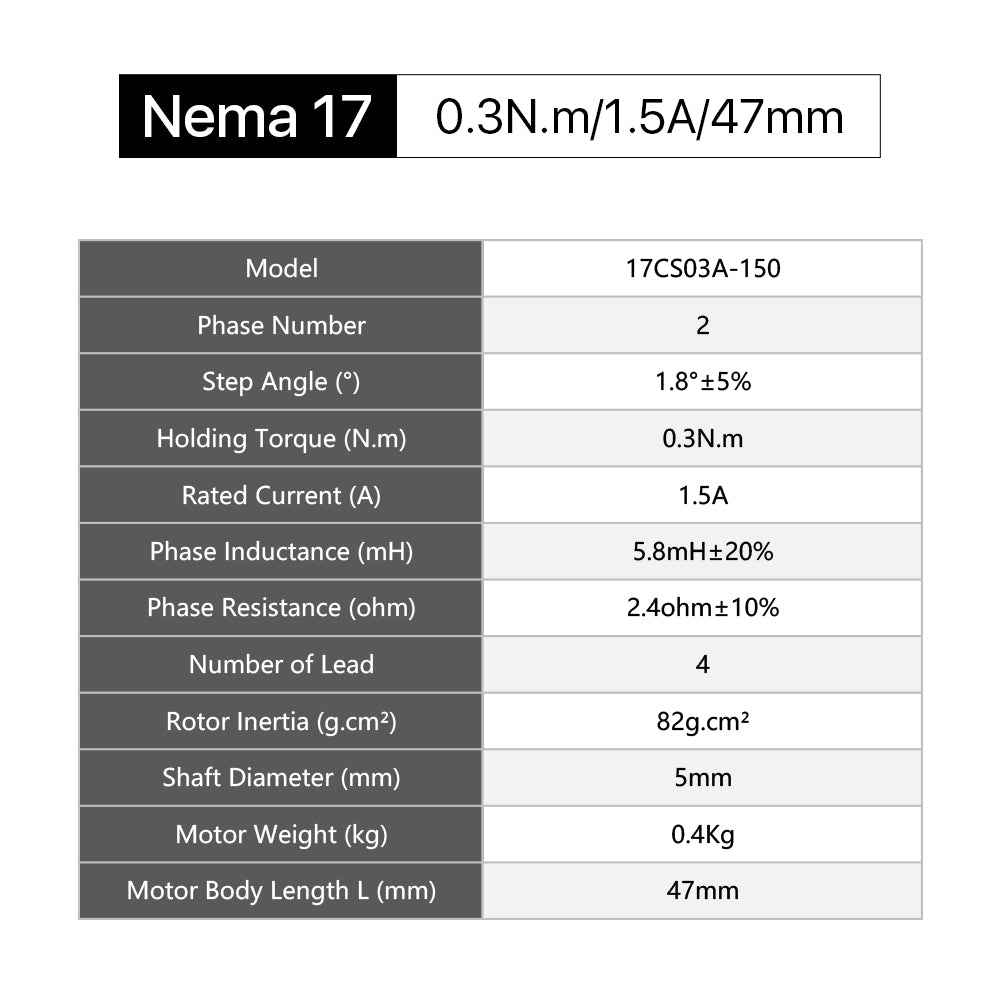

Electrical Specification

  • Manufacturer Part Number: 17CS03A-150
  • Number Of Phase: 2
  • Step Angle: 1.8 deg
  • Holding Torque: 0.3 Nm(42.48oz.in)
  • Rated Current/phase: 1.5 A
  • Phase Resistance: 2.4 ohms± 10%
  • Inductance: 5.8 mH ± 20%

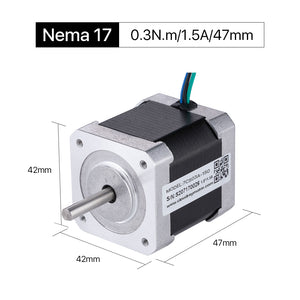

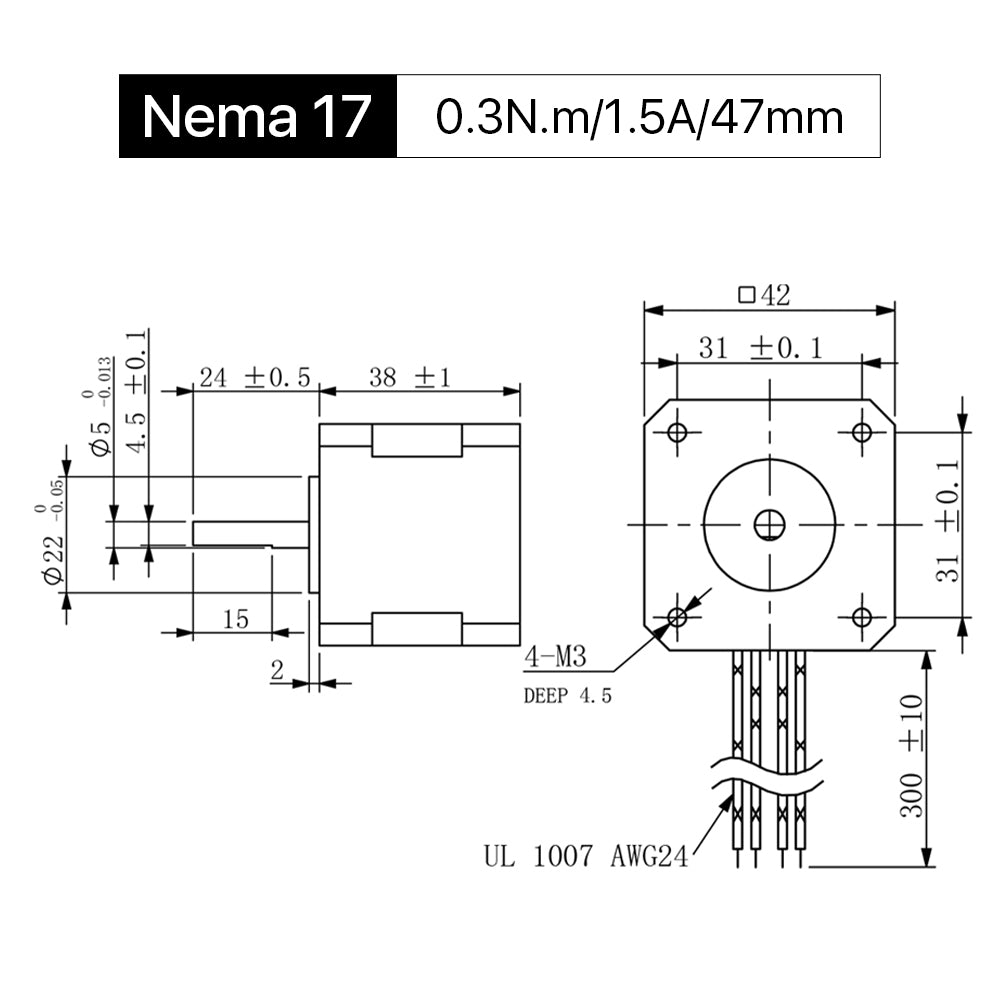

Physical Specification

  • Frame Size: 42 x 42 mm
  • Body Length: 47 mm
  • Shaft Diameter: Φ5 mm
  • Shaft Length: 24 mm
  • D-cut Length: 15 mm
  • Number of Leads: 4
  • Lead Length: 300 mm
  • Weight: 0.4 kg



Connection

A+ A- B+ B-
RED BLUE GREEN BLACK
