$ 164.00 USD $ 219.00 USD
  • SKU: PS06ZM150WMA
  • Availability: in stock Many in stock Out of stock You can purchase this product but it's out of stock
Shipping calculated at checkout.

Laser Power Supply

MYJG-150W

Features

1. Zero-current half-bridge soft-switching circuit.High efficiency and fast response. Match various manufacturers of laser tubes.
2. Simple Port Control, TTL level signals can control the laser start/stop.
3. Protection switch is to check the outside water, ventilation, etc.
4. Laser Power Adjustment: input 0V to 5V analog signal, can also input PWM signal.
5. Open Circuit Protection Function: avoid the damage to laser power supply due to laser tube burst.
6. Factory Aging Test:(1) Each power supply will go through 60℃and 12 hours aging test under full load.
                                           (2) 500 times 7 seconds Start/Stop test.

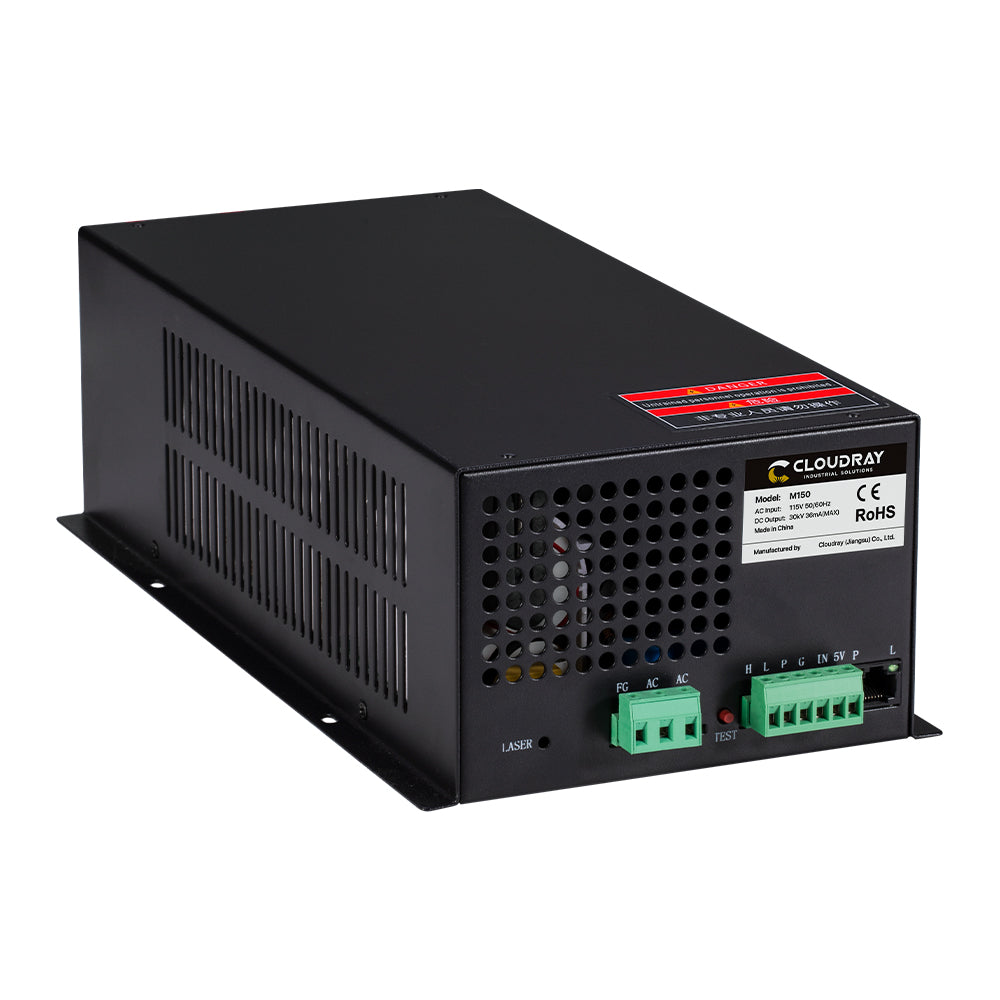

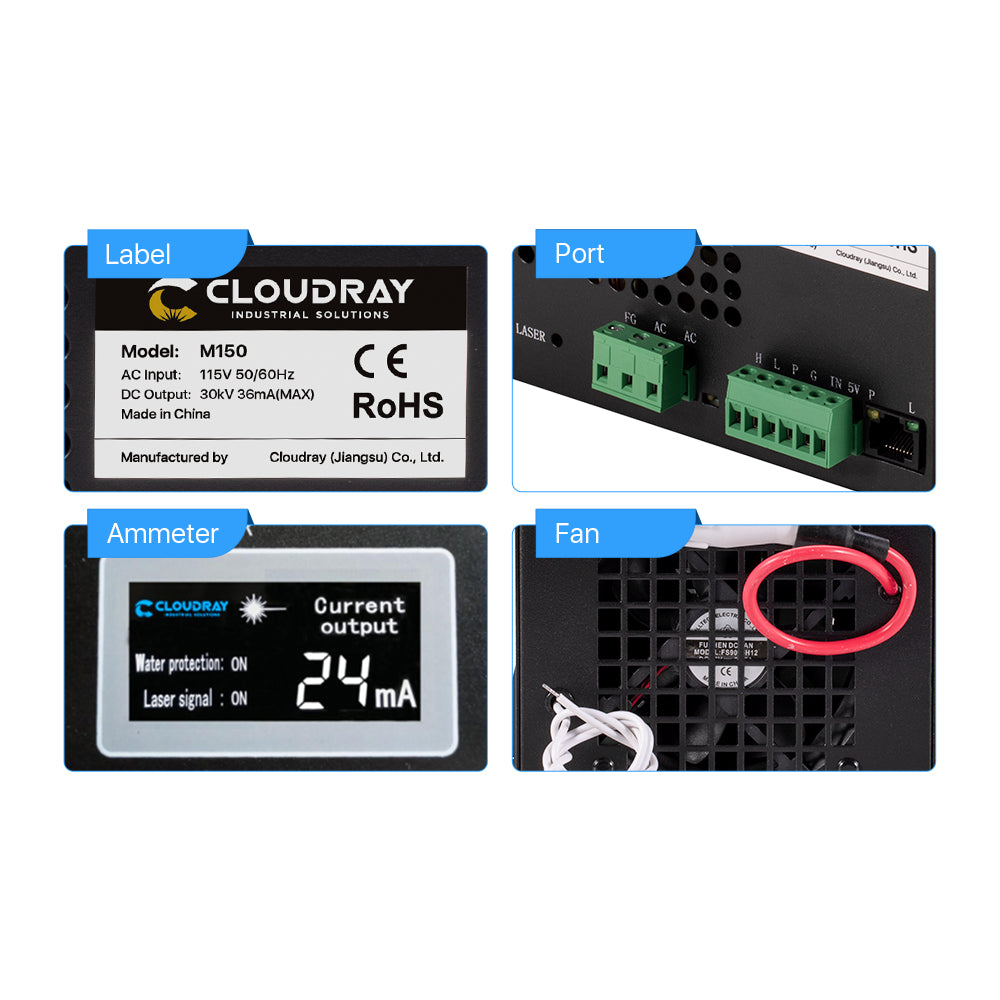

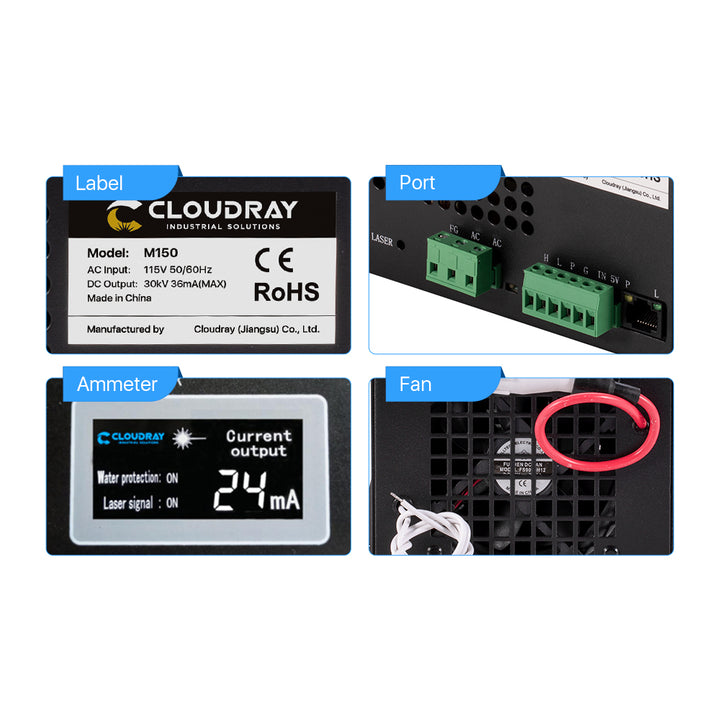

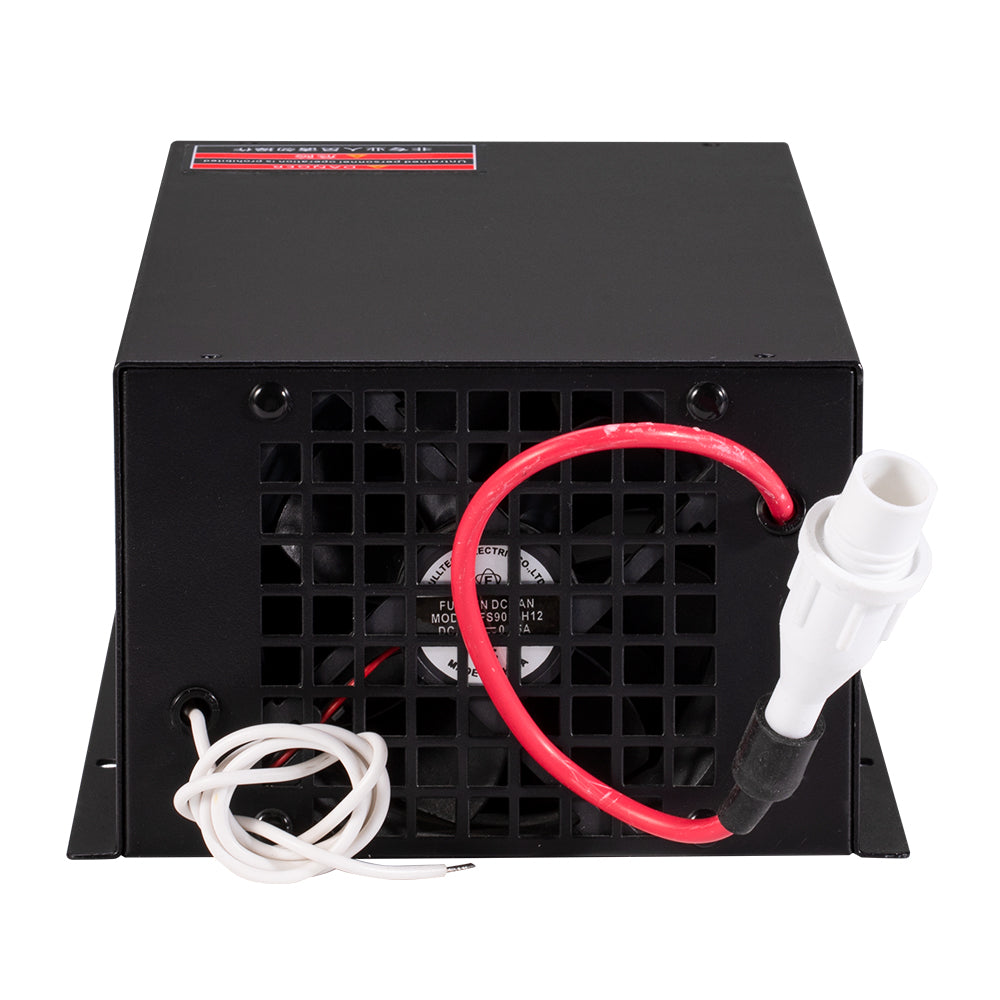

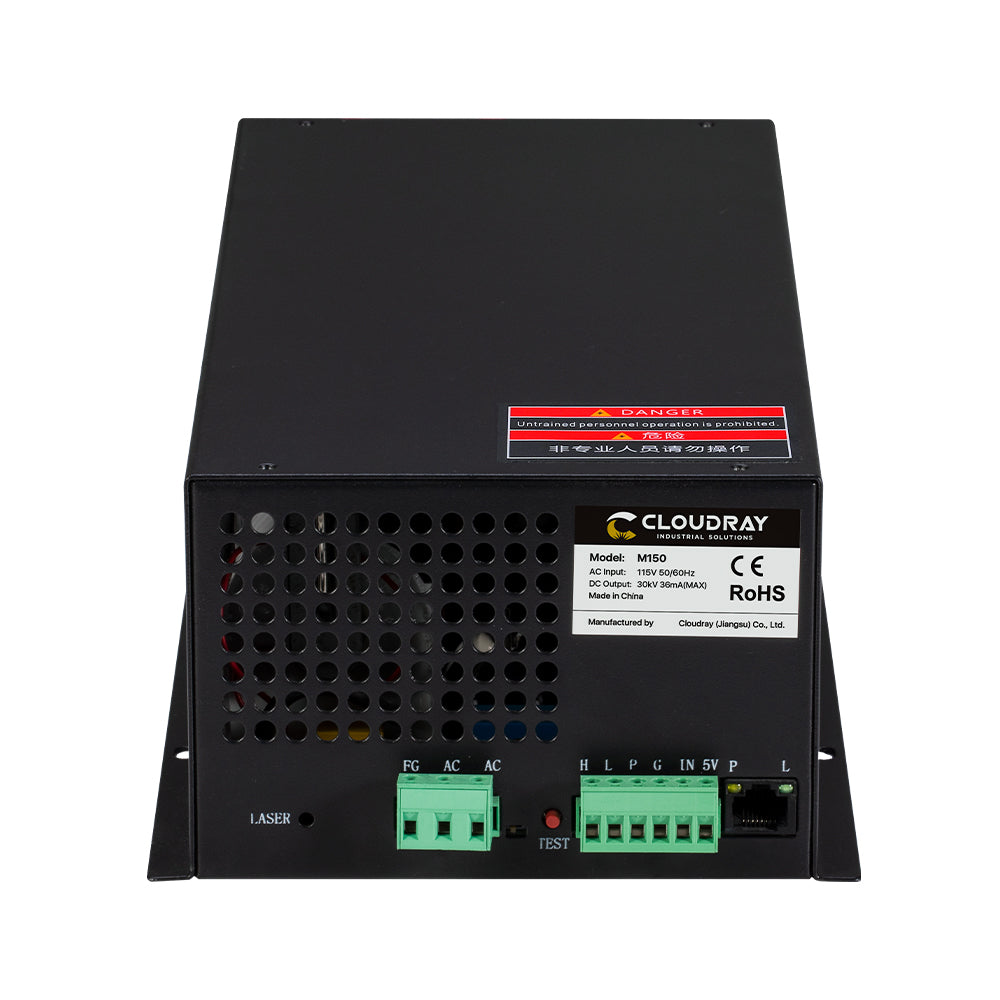

Photos

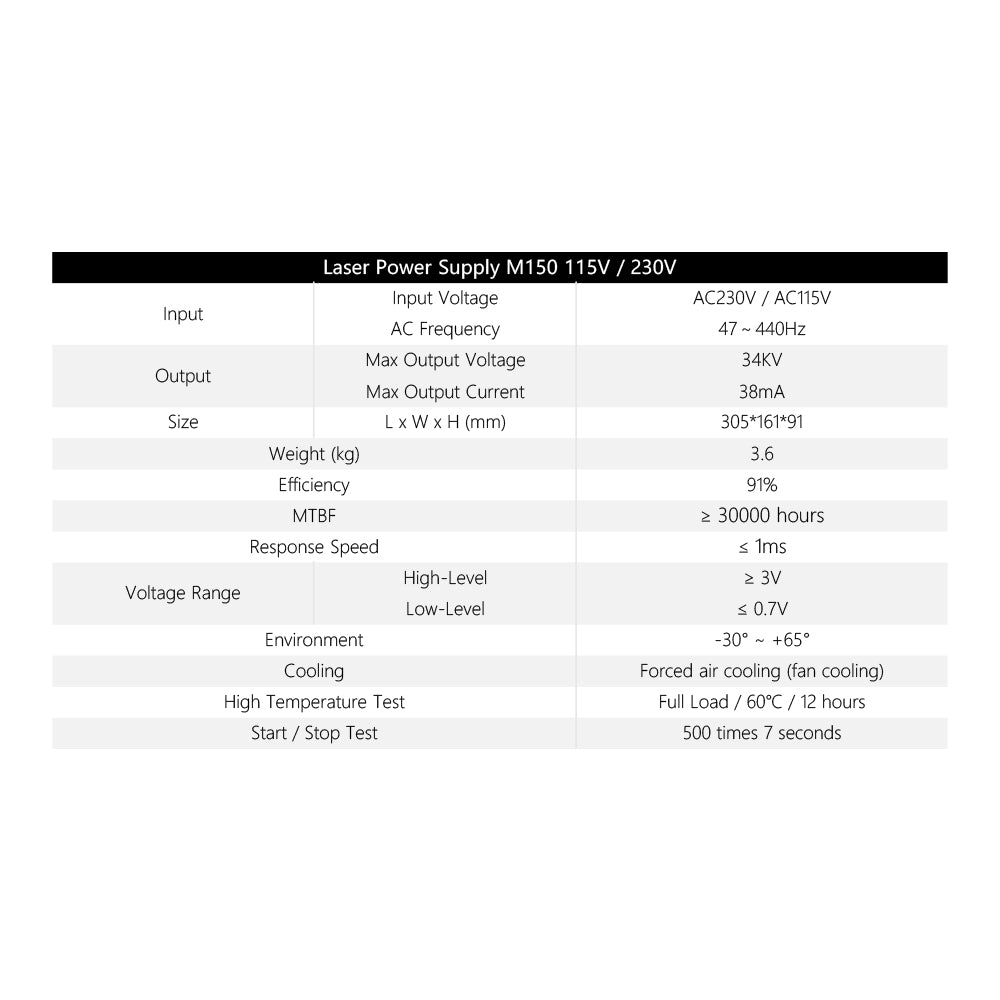

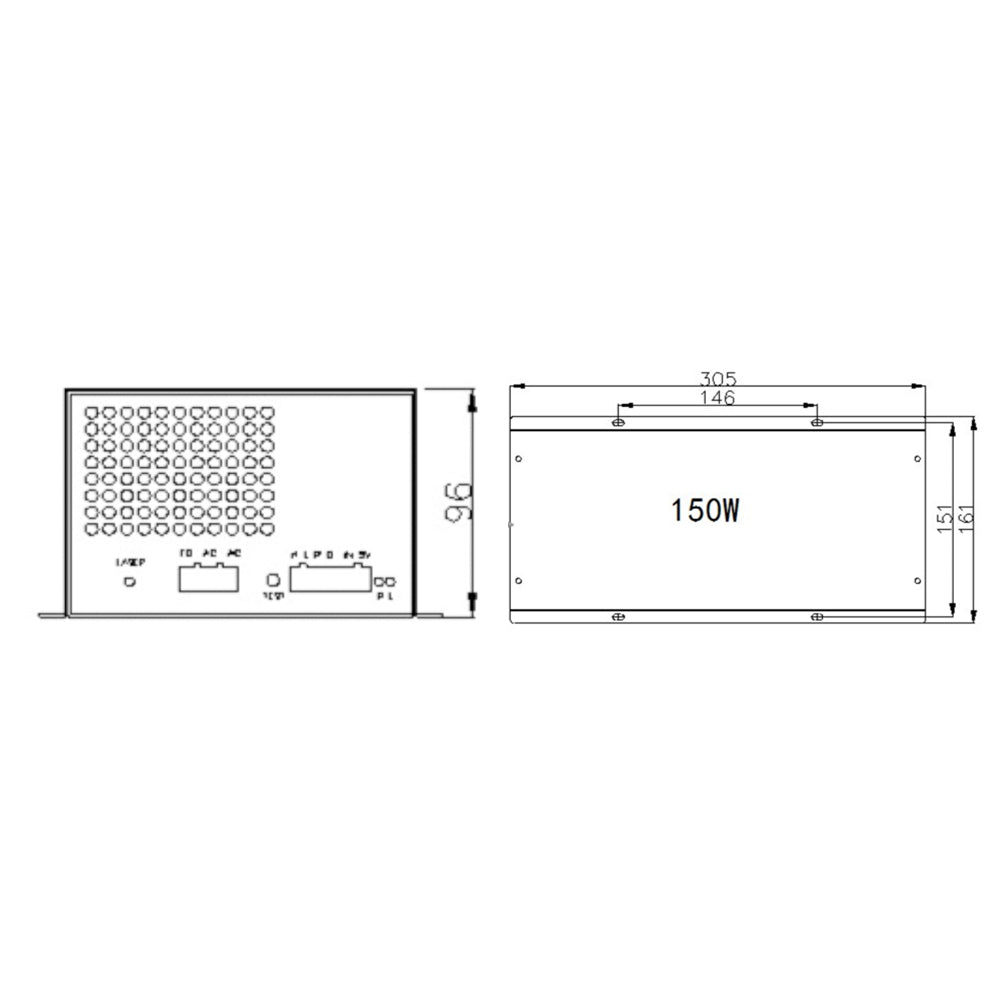

Dimension

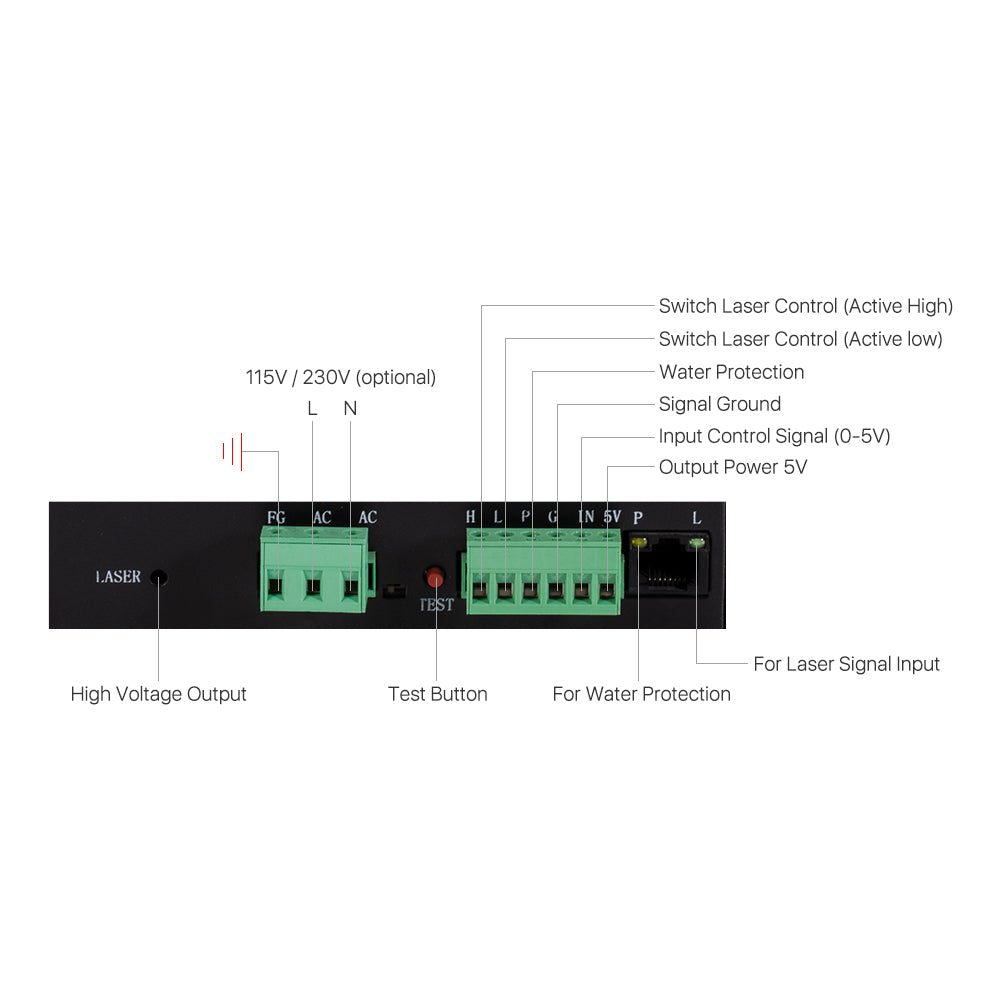

Connection Diagram

Application

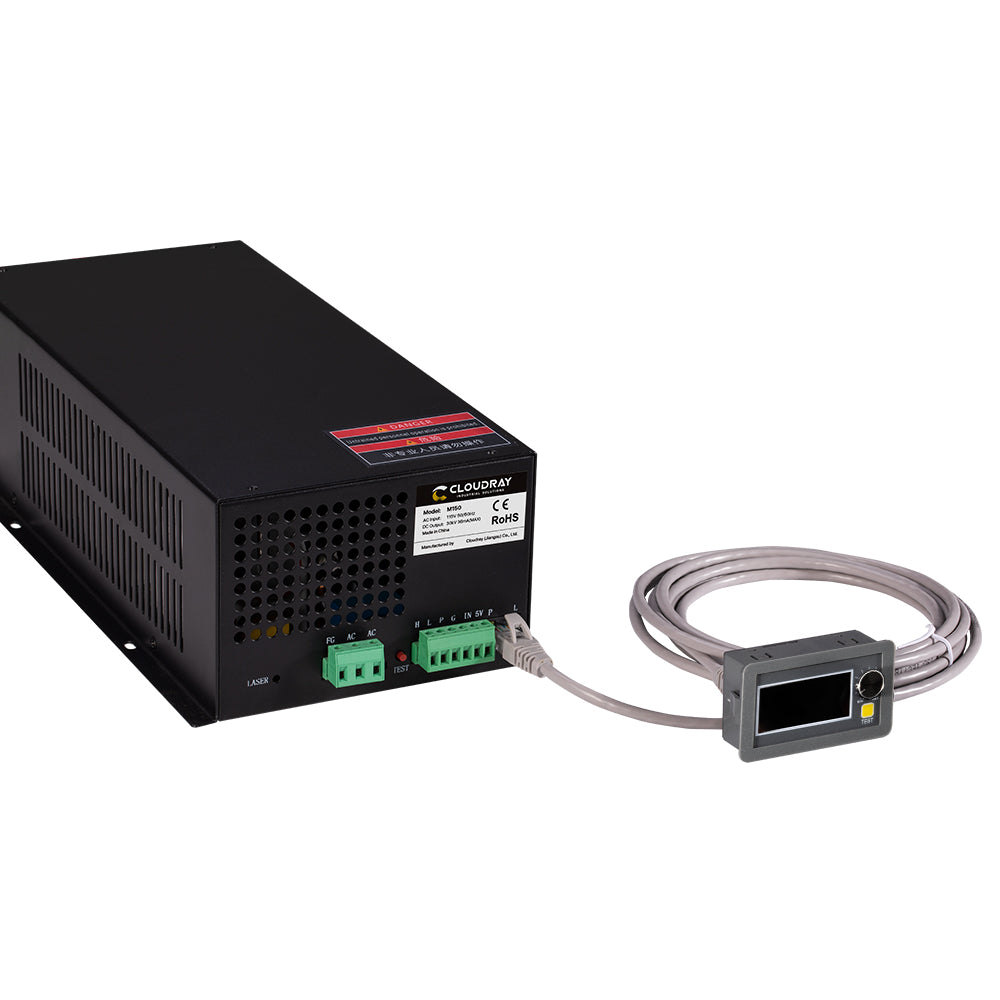

Network port for external LCD current display.

Show information status and regulate current (For MYJG100W/150W)

*LCD current display needs to be purchased.

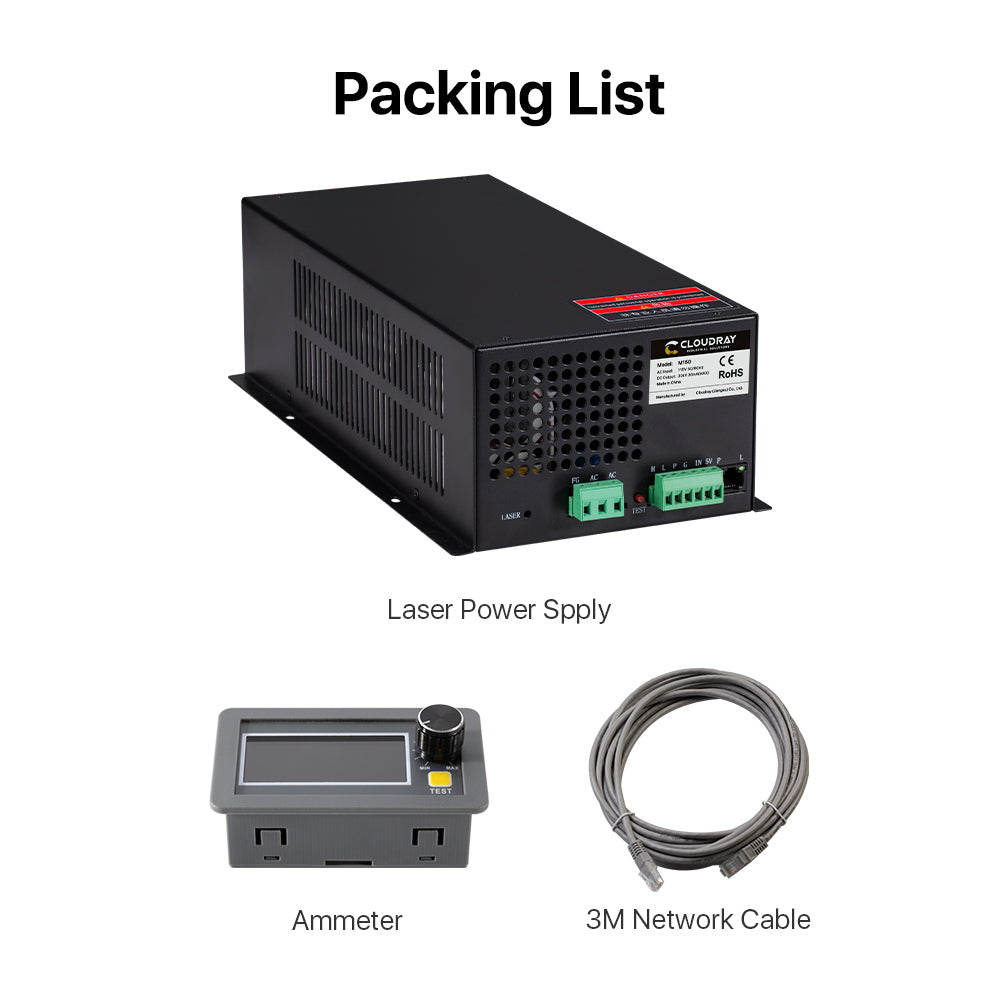

Product Packaging

Attention Item

After connecting the power supply, this switch is turned to the right, the LCD screen comes with a trimmer potentiometer to adjust the current; if it is turned to the left LCD screen to display normally, the potentiometer does not work.
