Ruida Controller RDC6332G

Many in stock

Ruida Controller


$ 465.00 USD
$ 465.00 USD
Add to wishlist
Ruida Controller

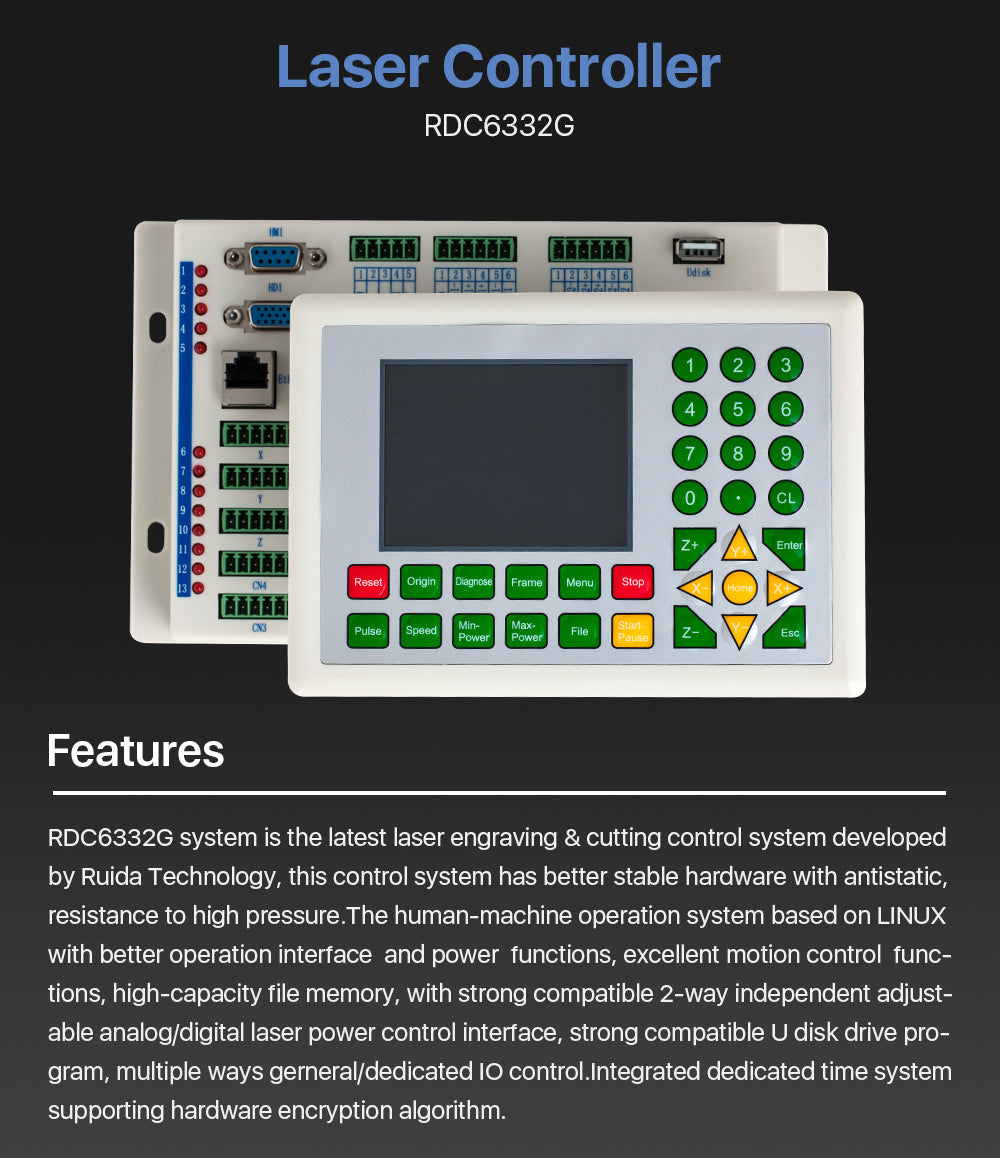

        RDC6332G system is the latest laser engraving & cutting control system developed by Ruida Technology, this control system has better stable hardware with antistatic, resistance to high pressure. The human-machine operation system based on LINUX, with better operation interface and power functions, excellent motion control functions, high-capacity file memory, with strong compatible 2-way independent adjustable analog/digital laser power control interface, strong compatible U disk drive program, multiple ways gerneral/dedicated IO control. Integrated dedicated time system supporting hardware encryption algorithm.

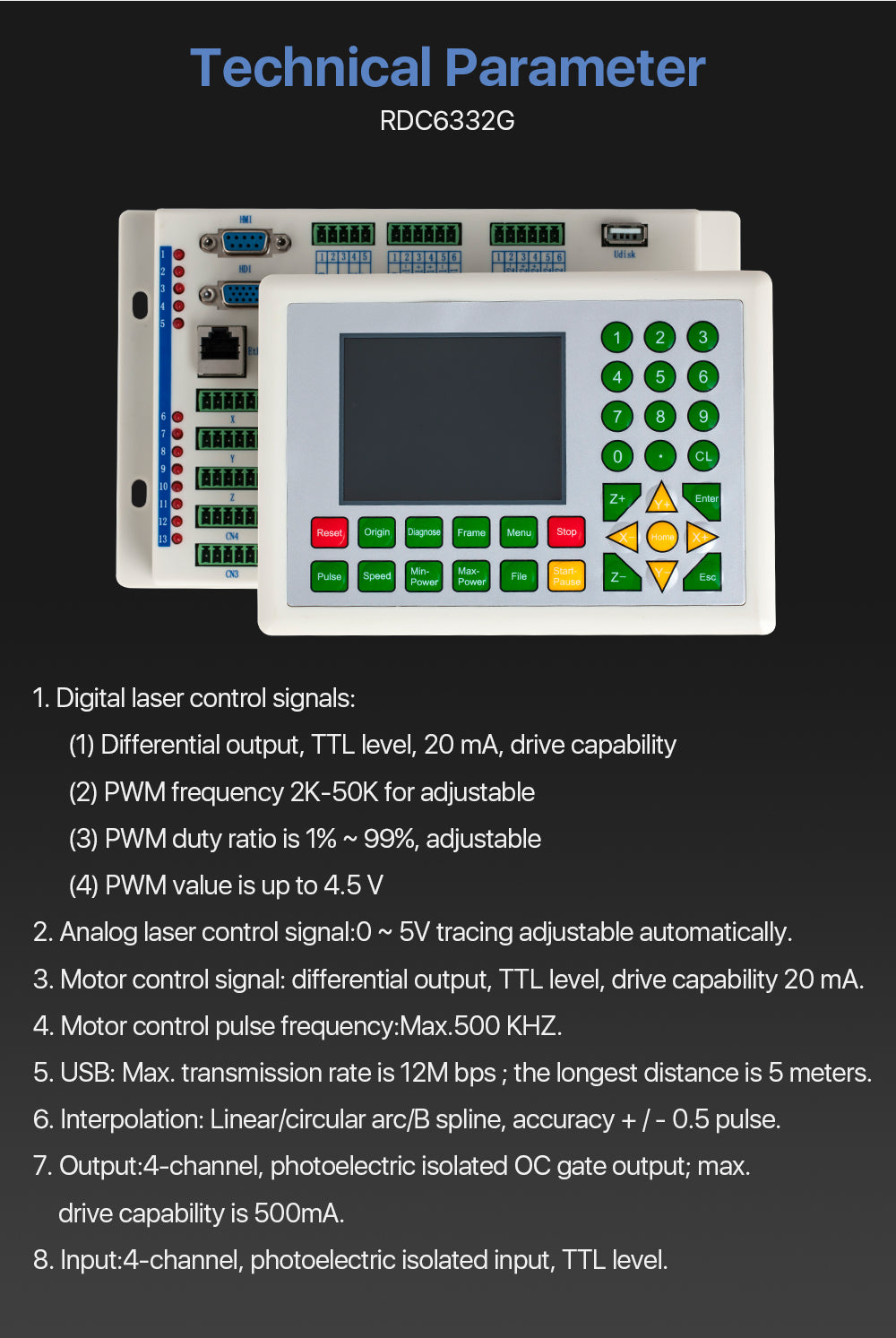

1. Digital laser control signals:

      (1) Differential output, TTL level, 20 mA,drive capability
      (2) PWM frequency 2K-50K for adjustable
      (3) PWM duty ratio is 1% ~ 99%, adjustable
      (4) PWM value is up to 4.5 V

2. Analog laser control signal:0 ~ 5V  tracing adjustable automatically.

3. Motor control signal:differential output, TTL level, drive capability 20 mA.

4. Motor control pulse frequency:Max.500 KHZ.

5. USB:Max. transmission rate is 12M bps ; the longest distance is 5 meters.

6. Interpolation:Linear/circular arc/B spline, accuracy + / - 0.5 pulse.

7. Output:4-channel, photoelectric isolated OC gate output; capability is 500mA.

8. Input:4-channel, photoelectric isolated input, TTL level.



If you need the Manuals and Software, please leave us your email address. We will send them to you.
