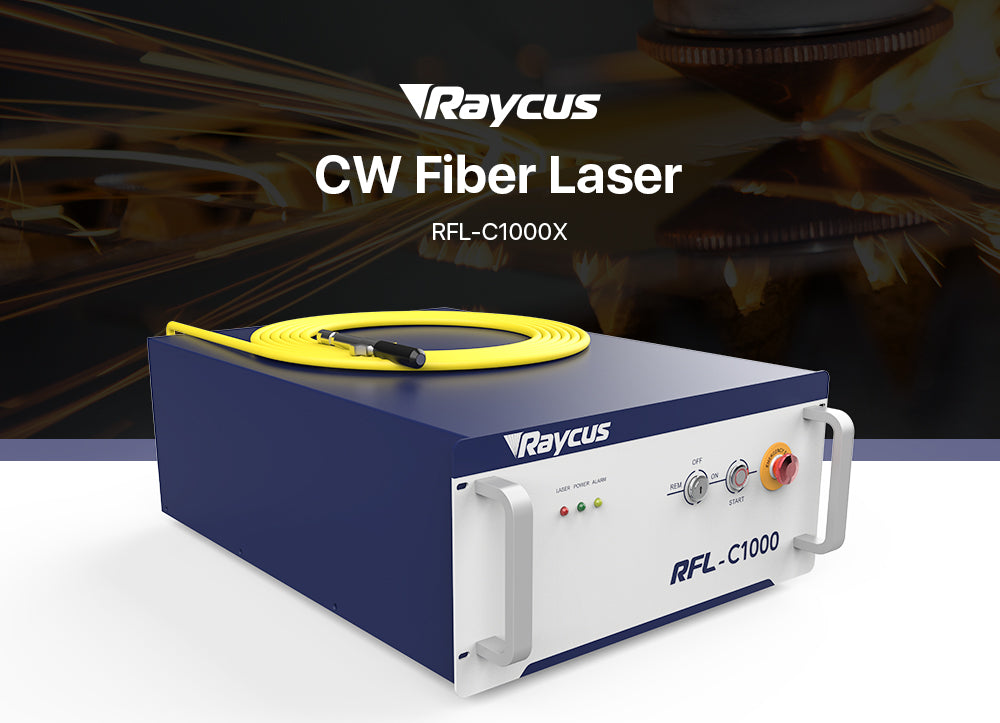

Cloudray 1000W Portable Raycus Single Module CW Fiber Laser Source

2 sold in last 8 hours
Cloudray
FLS01RC1000B20W
Fiber Cutting
$ 10,000.00 USD $ 9,000.00 USD
Size Guide
Model *
$ 9,000.00 USD
Prodcut Introduction
The third-generation single module CW fiber laser series developed by Raycus ranges from 300W to 3,000W, the new lasers has higher electro-optical conversion efficiency, higher and more stable optical quality, stronger altitude stress-resisting capacity and it applies optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect in thick sheet cutting. This machine applies to many application scenarios: cutting, welding, holing, medical device processing, etc., with a narrow seam of the cut sheet and bright section. Compared with same lasers, it has obvious advantages.
Cloudray 1000W Portable Raycus Single Module CW Fiber Laser Source
Cloudray 1000W Portable Raycus Single Module CW Fiber Laser Source
Product Specifications
Model
RFL-C1000X
Nominal Output Power (W)
1000
Operation Modes
CW/Modulated
Polarization State
Random
Output Power Tunability(%)
10~100
Emission Wavelength(nm)
1080±5
Output Power Instability(%)
±1.5
Modulation Frequency(Hz)
50~5000
Red Guide Laser Power(mW)
0.1~1
Beam Quality (mm×mrad)
BPP <2.3
Fiber Core Diameter(μm)
50
Delivery Cable Length(m)
20
Power Supply
220±10% V AC、50/60Hz
Max. Power Consumption(W)
4000

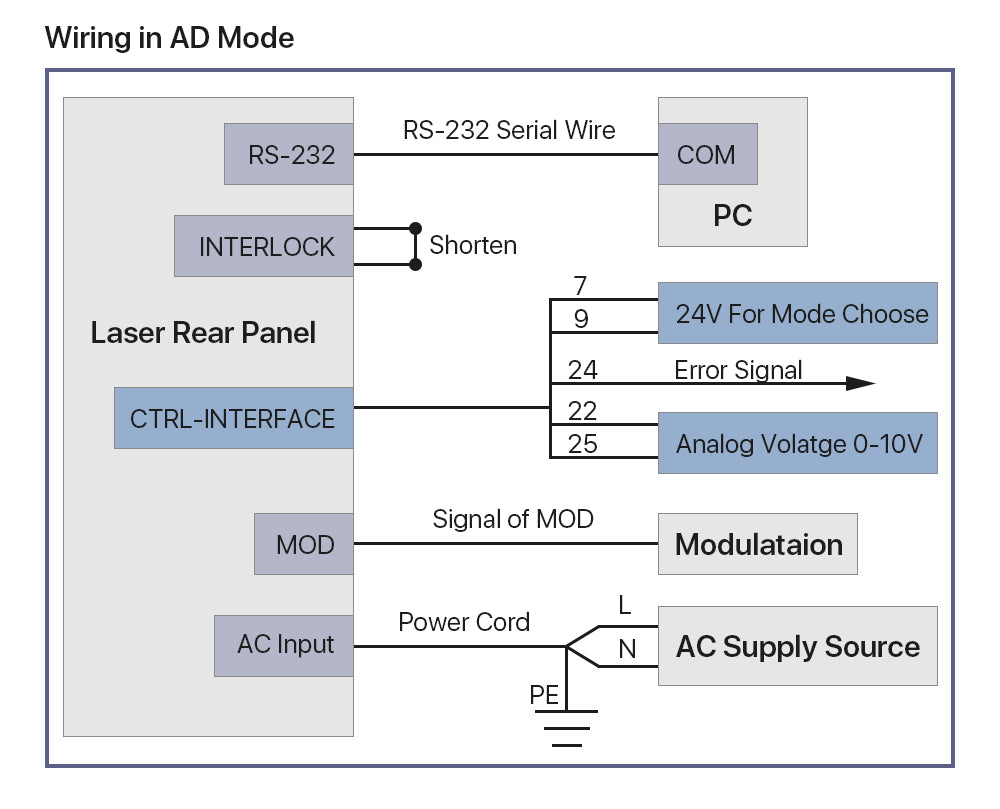

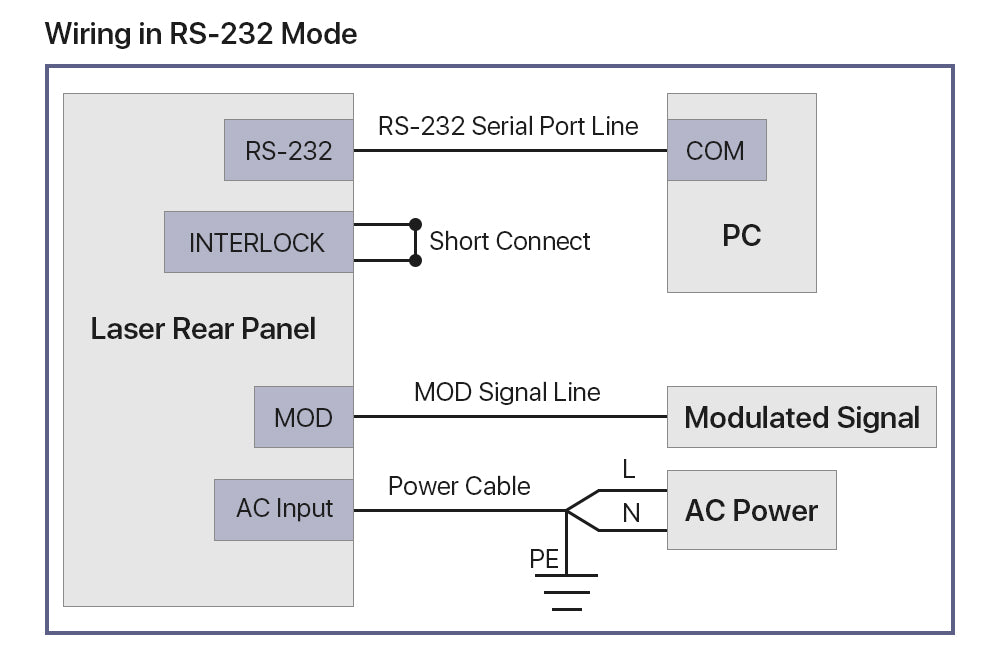

Control Mode
RS-232/AD/Ethernet
Dimensions(W×H×D)
485×237×763
Weight(kg)
<50
Operating Ambient Temperature(℃)
10℃~40℃
Humidity (%)
30-70
Storage Temperature ()
-10℃~60℃
Cooling Method
Water Cooling
Cloudray 1000W Portable Raycus Single Module CW Fiber Laser Source
Cloudray 1000W Portable Raycus Single Module CW Fiber Laser Source
Cloudray 1000W Portable Raycus Single Module CW Fiber Laser Source
Cloudray 1000W Portable Raycus Single Module CW Fiber Laser Source
Cloudray 1000W Portable Raycus Single Module CW Fiber Laser Source


Returns Policy

You may return most new, unopened items within 30 days(contact us: info@cloudray.com) of delivery for a full refund. We'll also pay the return shipping costs if the return is a result of our error (you received an incorrect or defective item, etc.).

You should expect to receive your refund within four weeks of giving your package to the return shipper, however, in many cases you will receive a refund more quickly. This time period includes the transit time for us to receive your return from the shipper (5 to 10 business days), the time it takes us to process your return once we receive it (3 to 5 business days), and the time it takes your bank to process our refund request (5 to 10 business days).

If you need to return an item, simply login to your account, view the order using the 'Complete Orders' link under the My Account menu and click the Return Item(s) button. We'll notify you via e-mail of your refund once we've received and processed the returned item.(You can return it to the address below after contacted us: Room 101, 3-A, No.10 Huashenmiao, Huashen Technology Park Yuhuatai District, Nanjing, China 210000)

Shipping

We can ship to virtually any address in the world. Note that there are restrictions on some products, and some products cannot be shipped to international destinations.

When you place an order, we will estimate shipping and delivery dates for you based on the availability of your items and the shipping options you choose. Depending on the shipping provider you choose, shipping date estimates may appear on the shipping quotes page.

Please also note that the shipping rates for many items we sell are weight-based. The weight of any such item can be found on its detail page. To reflect the policies of the shipping companies we use, all weights will be rounded up to the next full pound.

User Guide-Raycus-C100_C1000
