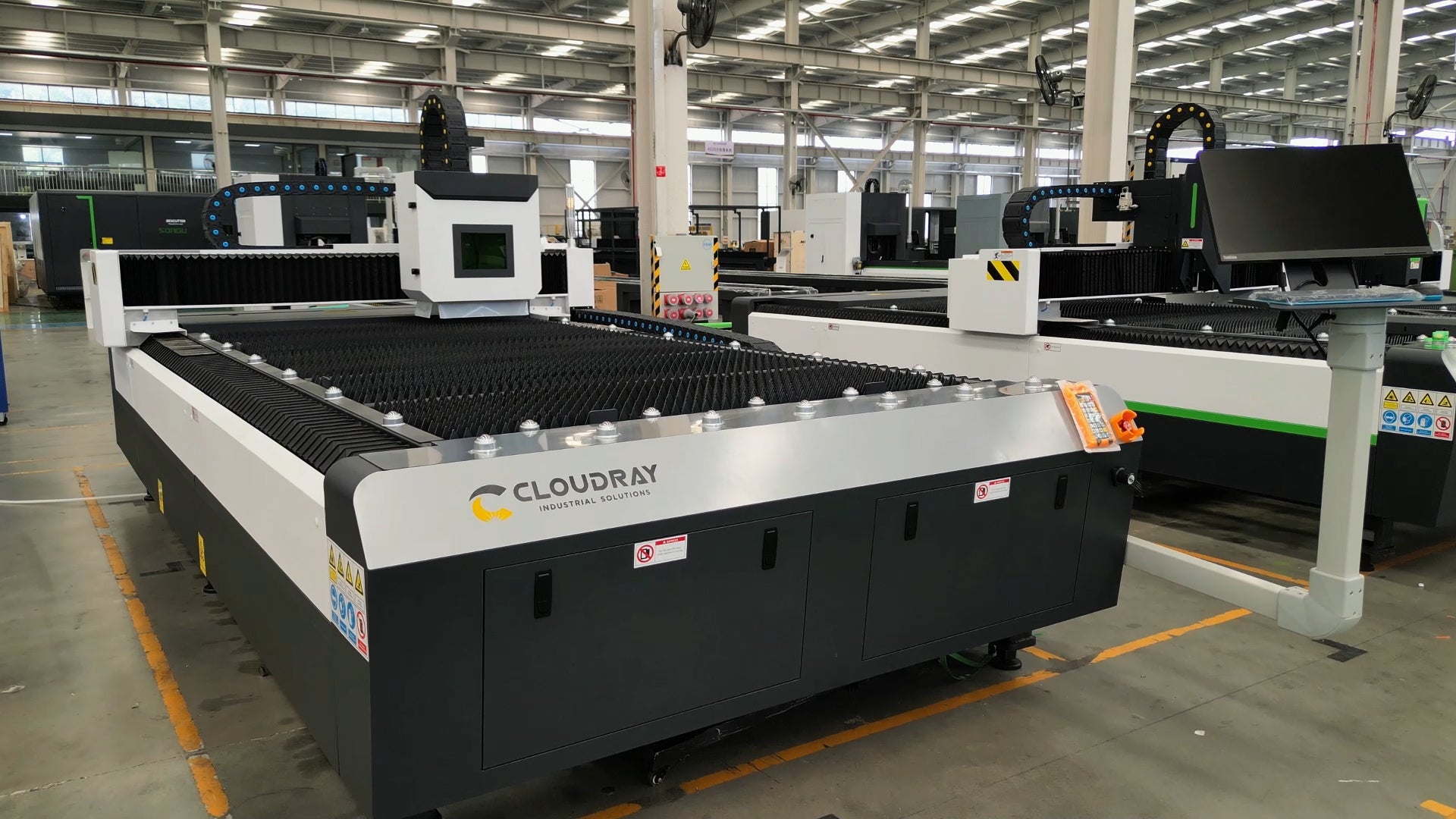

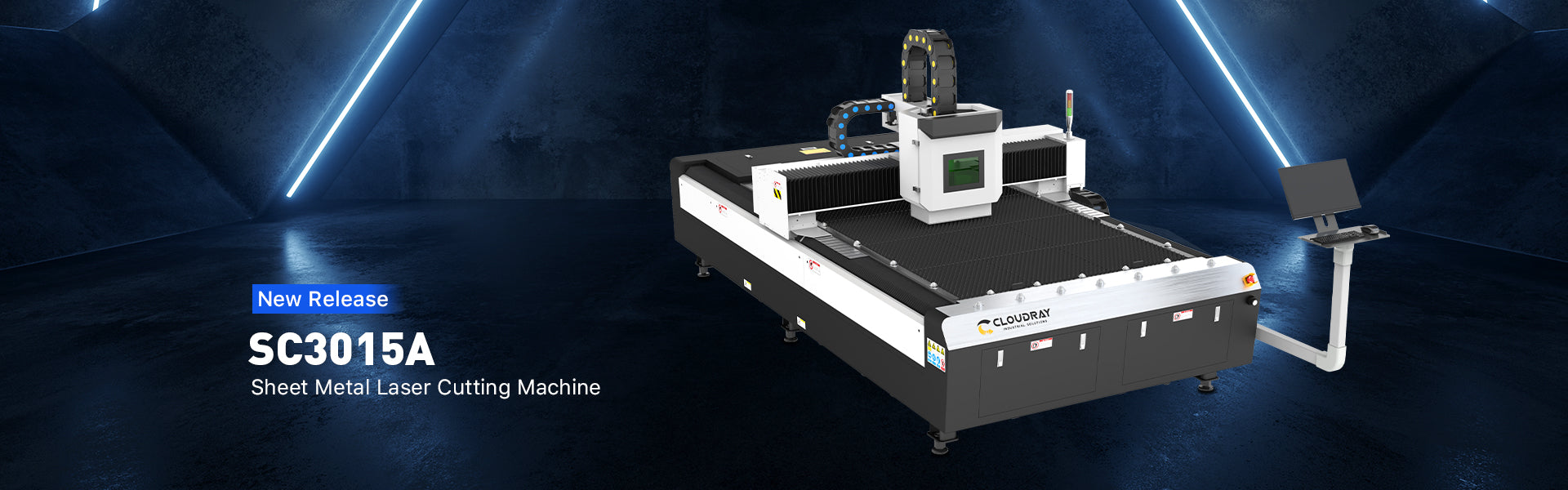

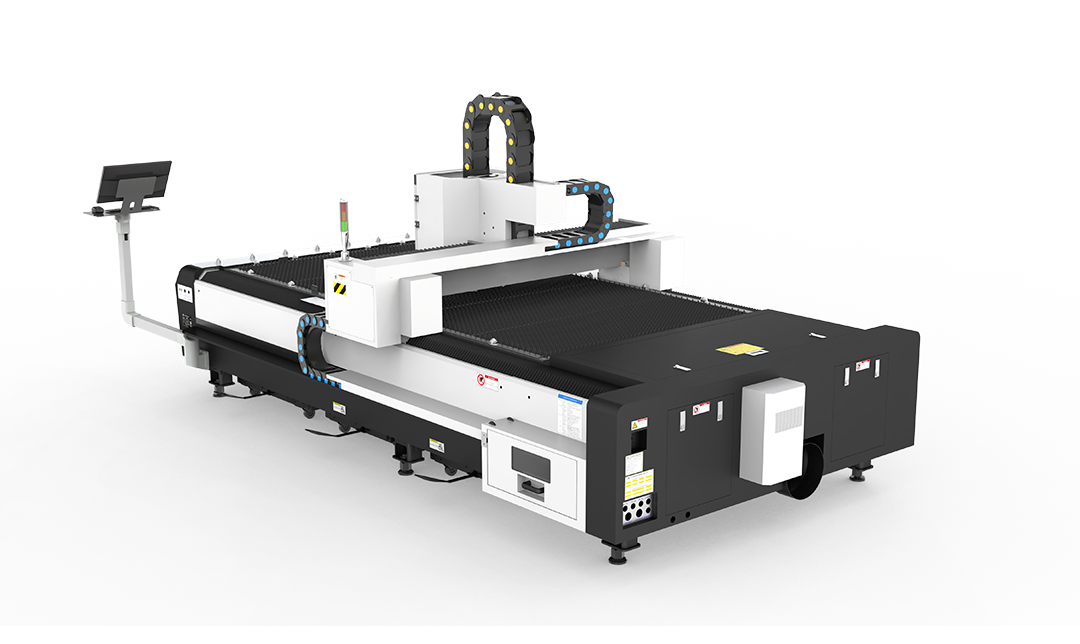

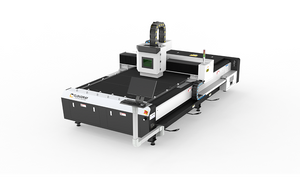

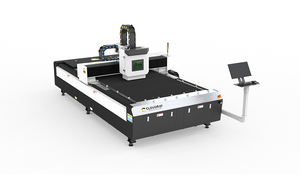

Cloudray SC3015A 3KW Fiber Laser Sheet Cutting Machine
Function Demo

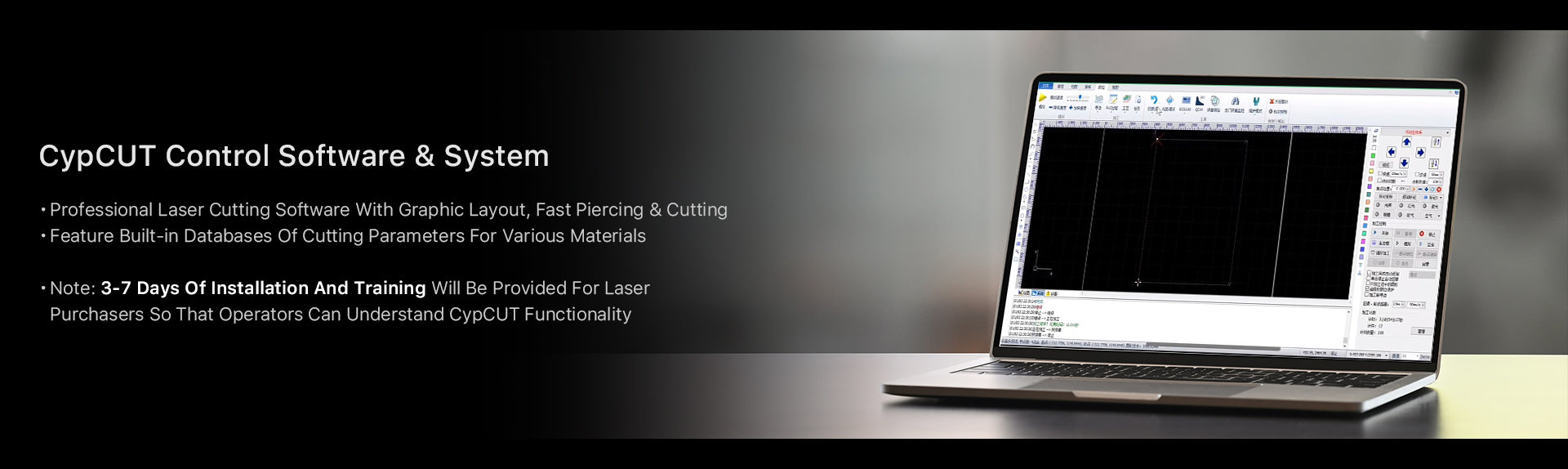

CypCUT software has selected the following functions for demonstration. For more information on choosing the most suitable features, please contact Cloudray.

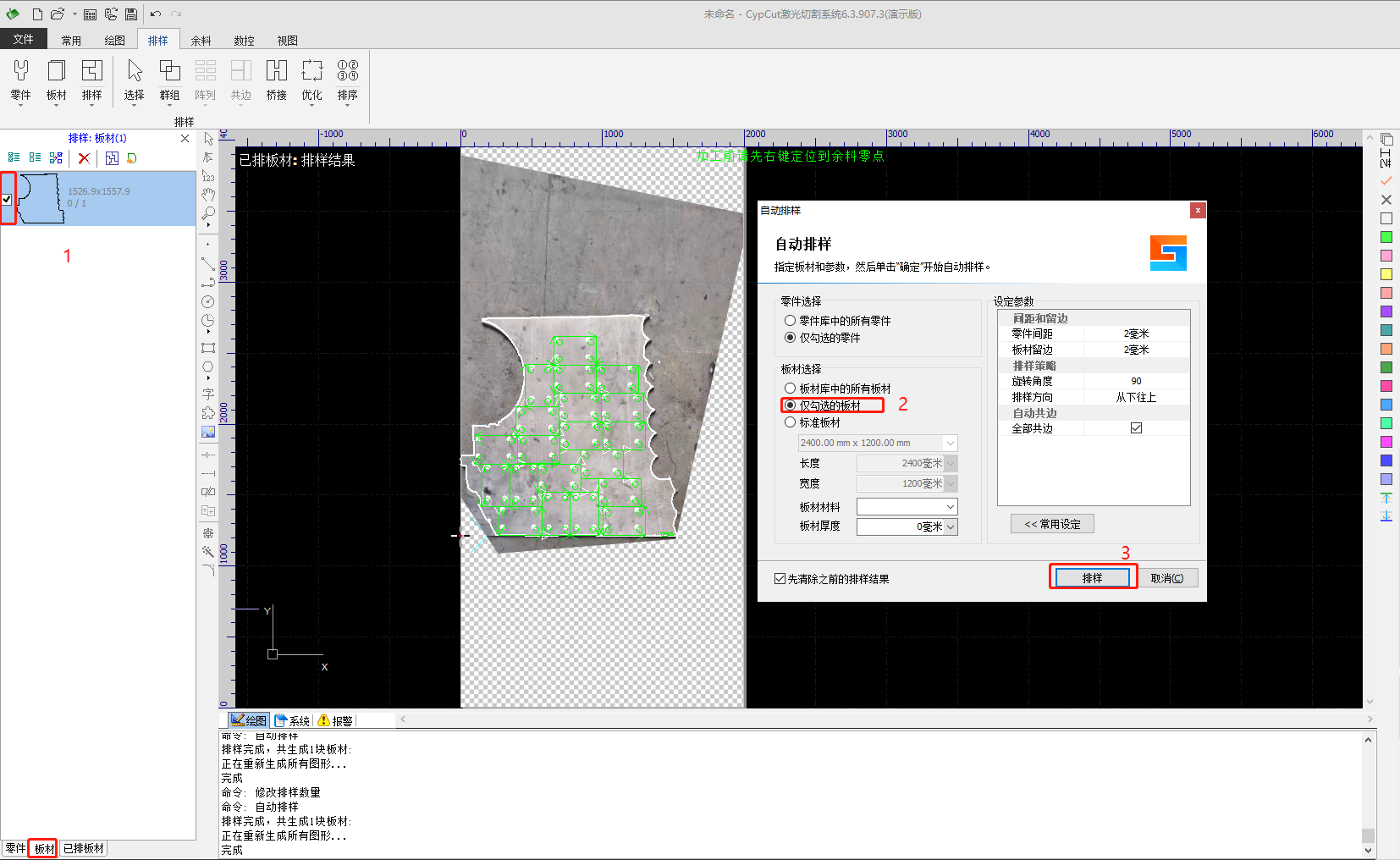

Automatic nesting

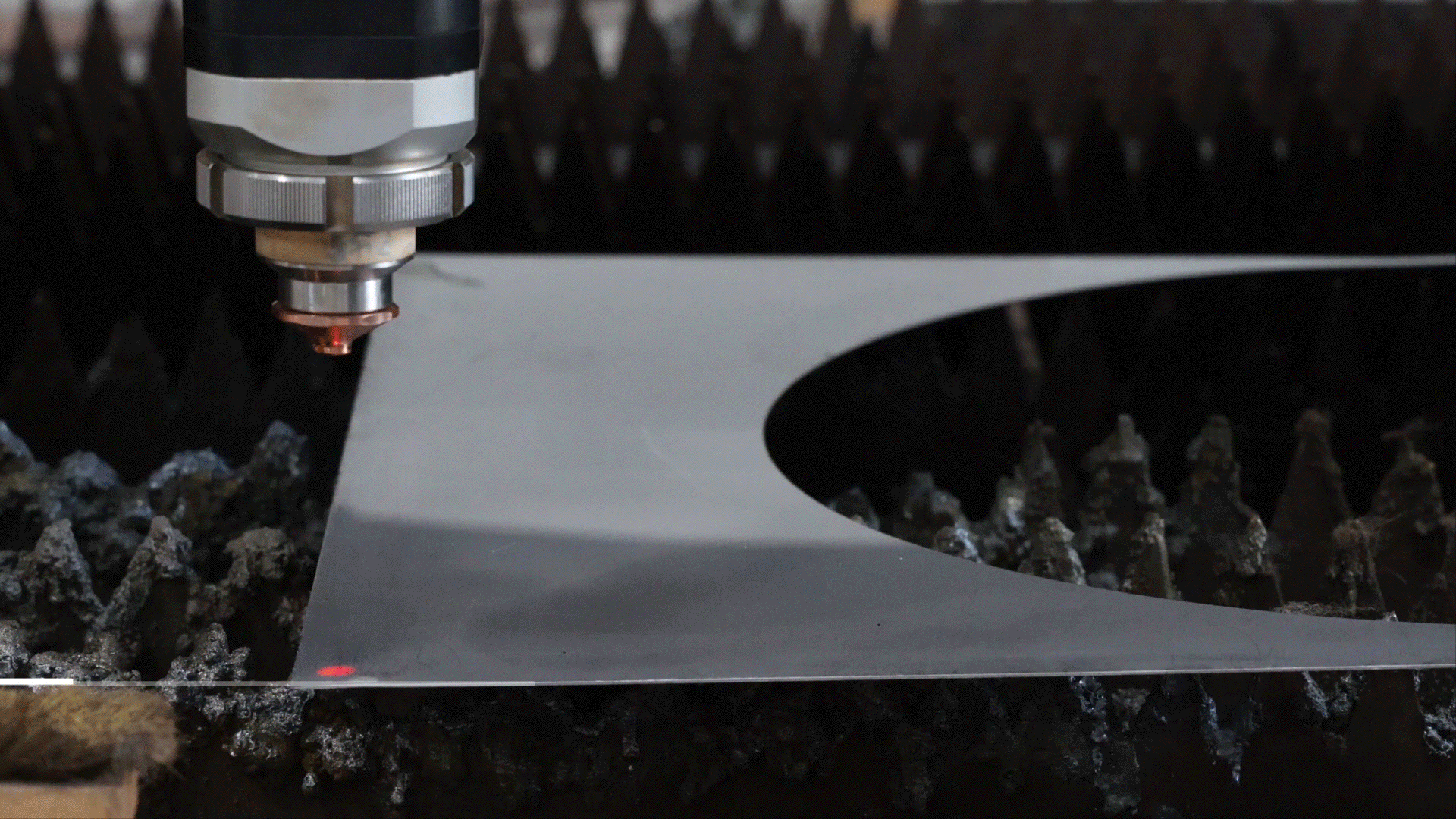

Quick Cutoff
Frame BorderContour

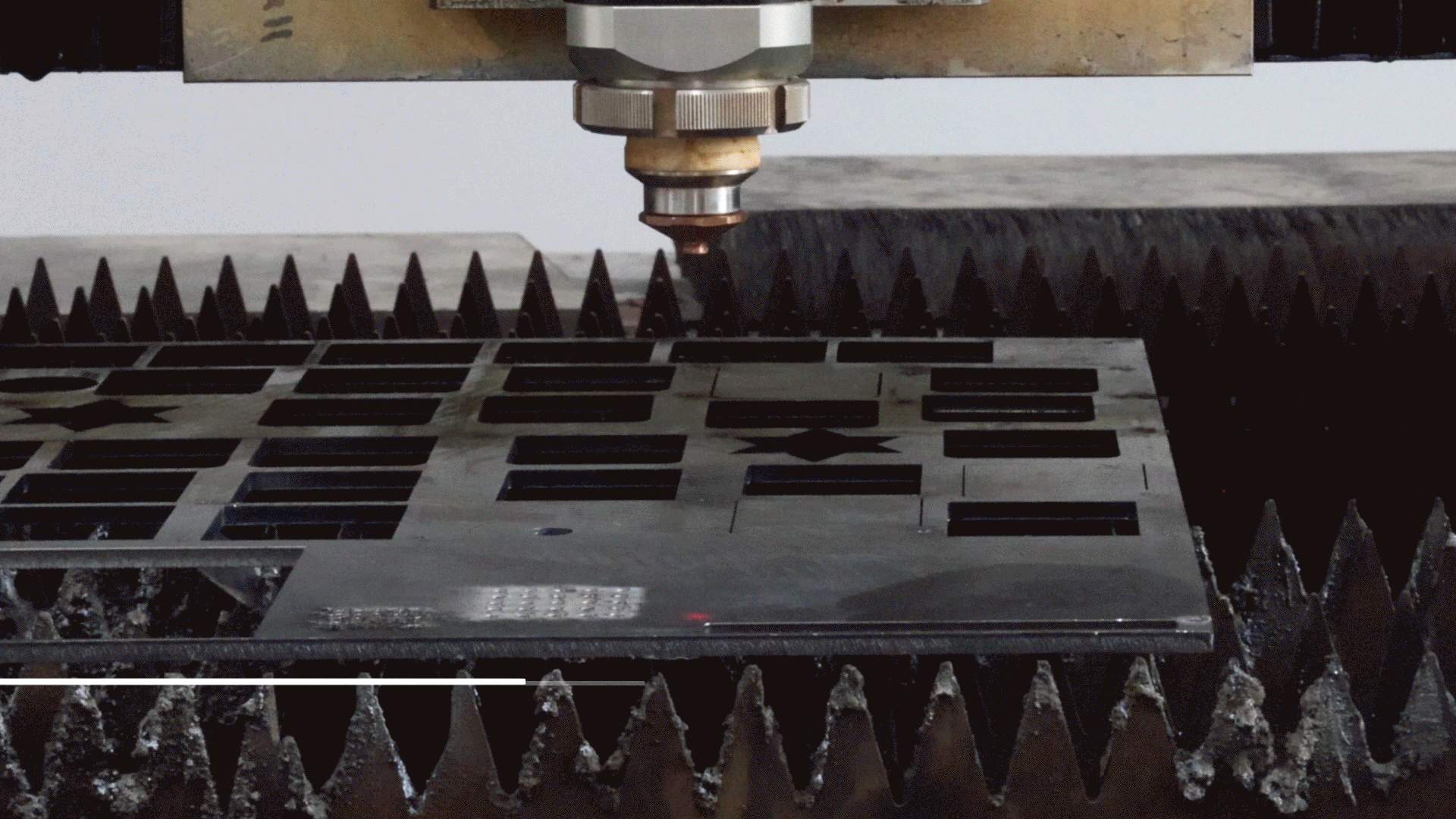

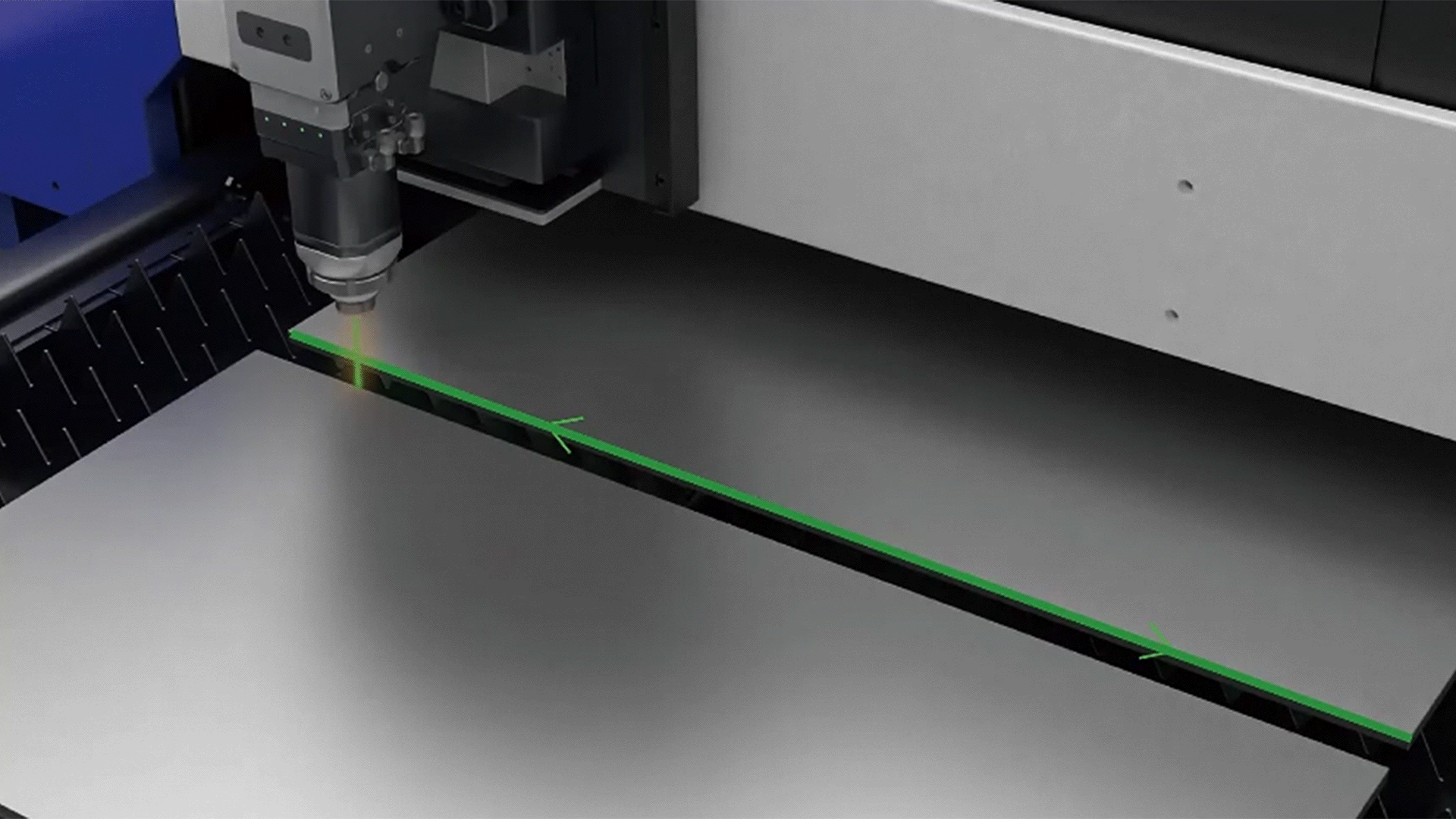

One-Path FlyCu

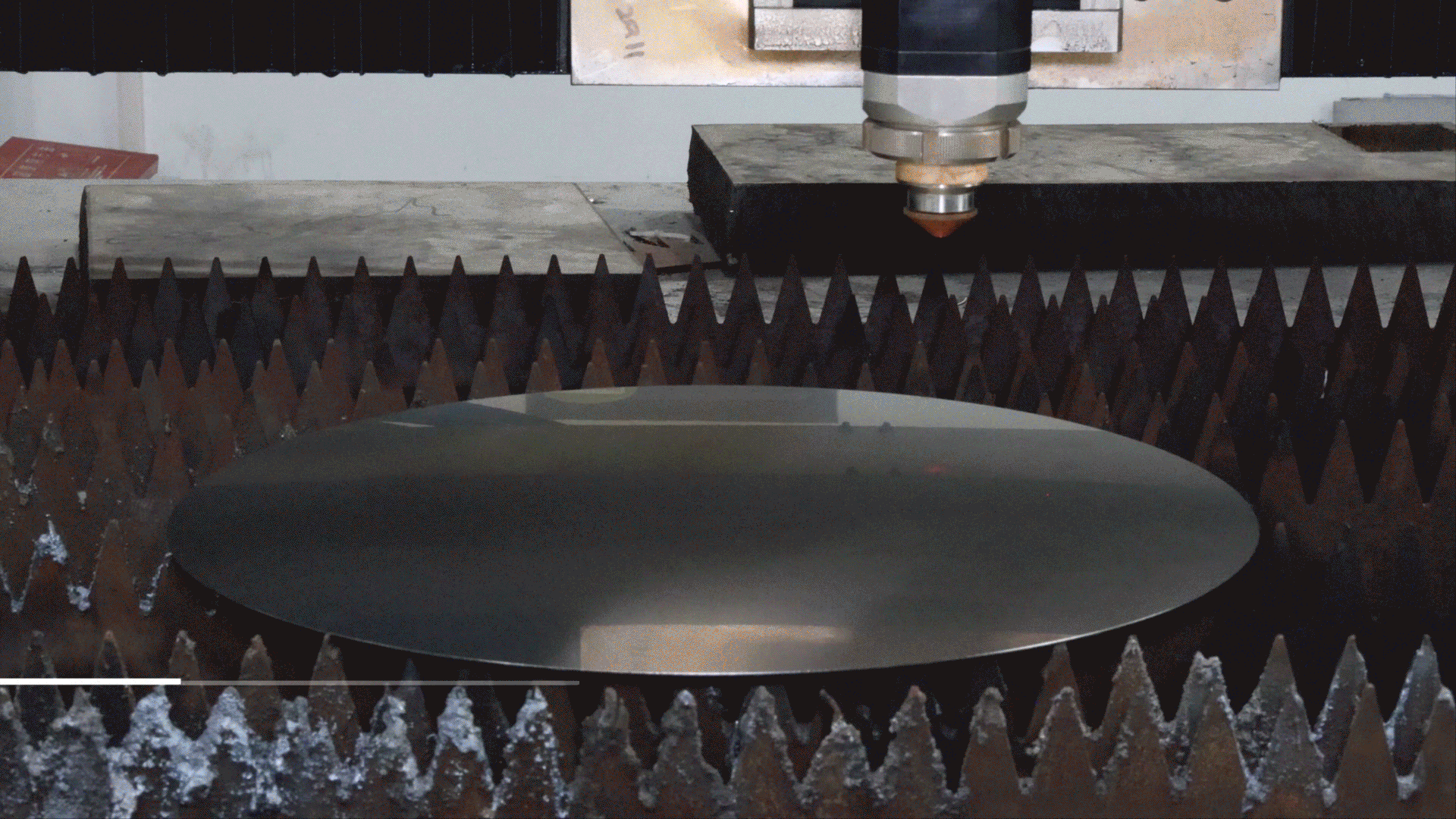

Circle Cente
Ultra DynamicCutting
Specifications
| Working Area | Max Speed | Positioning Accuracy (X/Y) | Repeated Positioning Accuracy (X/Y) |
|---|---|---|---|
| 3000*1500mm | 1333mm/s | ±0.03mm/m | ±0.02mm/m |
| Z-Axis Travel | Max Acceleration | Work Table Max Load | Laser Power |

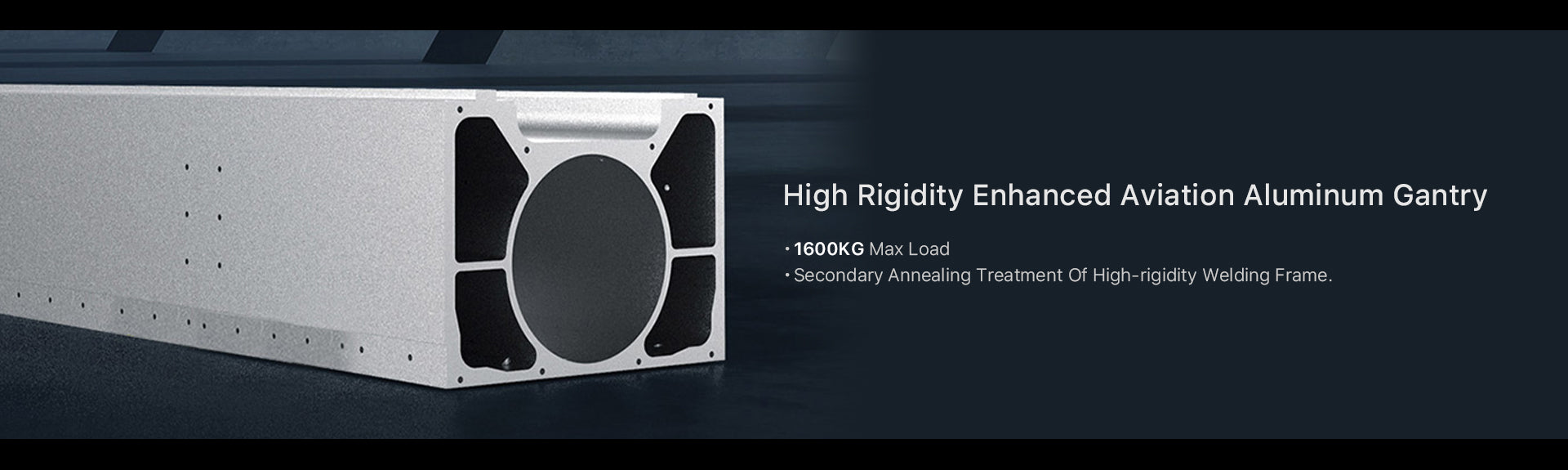

| 80mm | 1.4G | 1600KG | 1.5-6KW |
| Metal Safety Cover | Camara | Power Protection Level | Power Parameters |
| Optional | Optional | IP54 | 3-Phase AC380V 50 Hz/60 Hz |

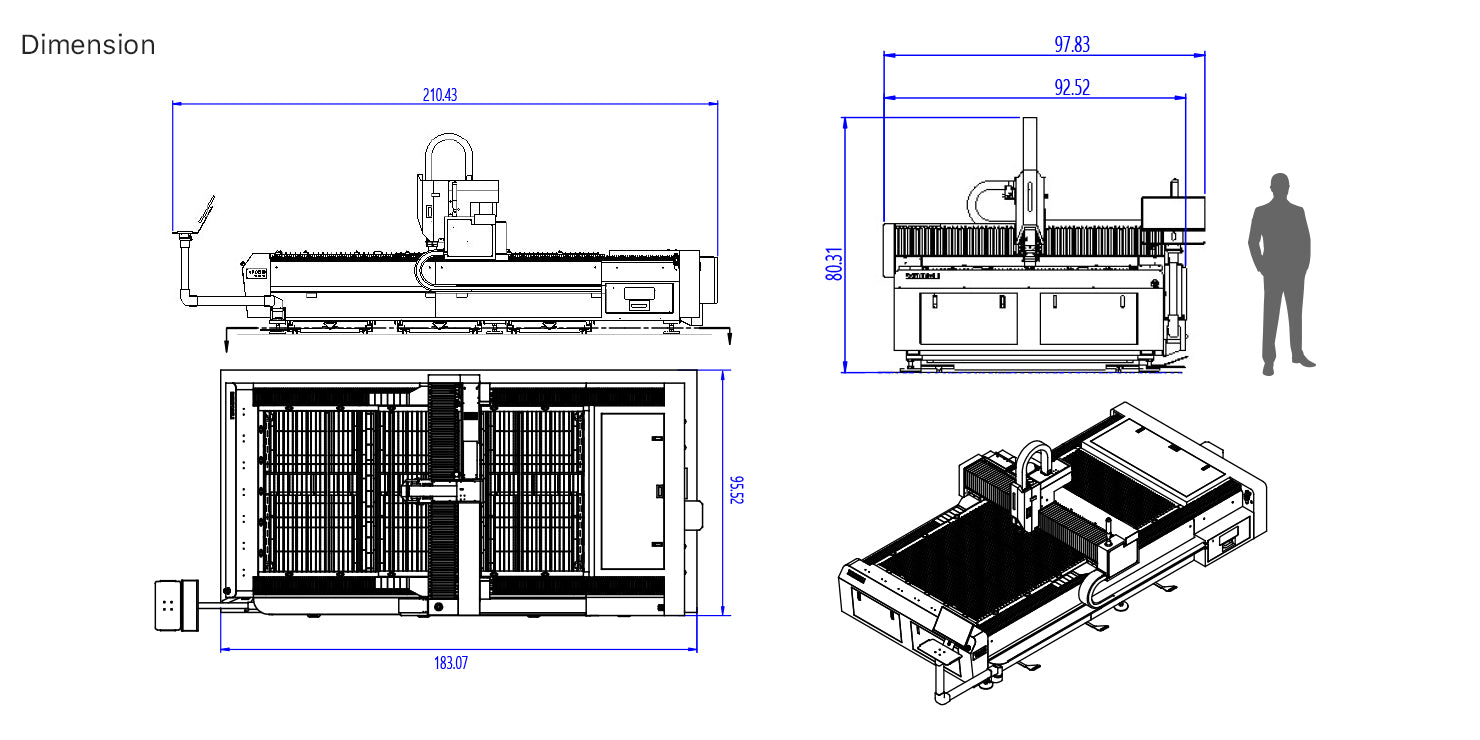

| Machine Size | Machine Net Weight | Machine Packaging Dimensions | |
| 5010*2260*2100mm | 3000KG | 5500*2750*2450mm |
If you need the cutter with other functions like Metal Safety Cover, Shuffle Table, etc. Please contact Cloudray: info@cloudray.com

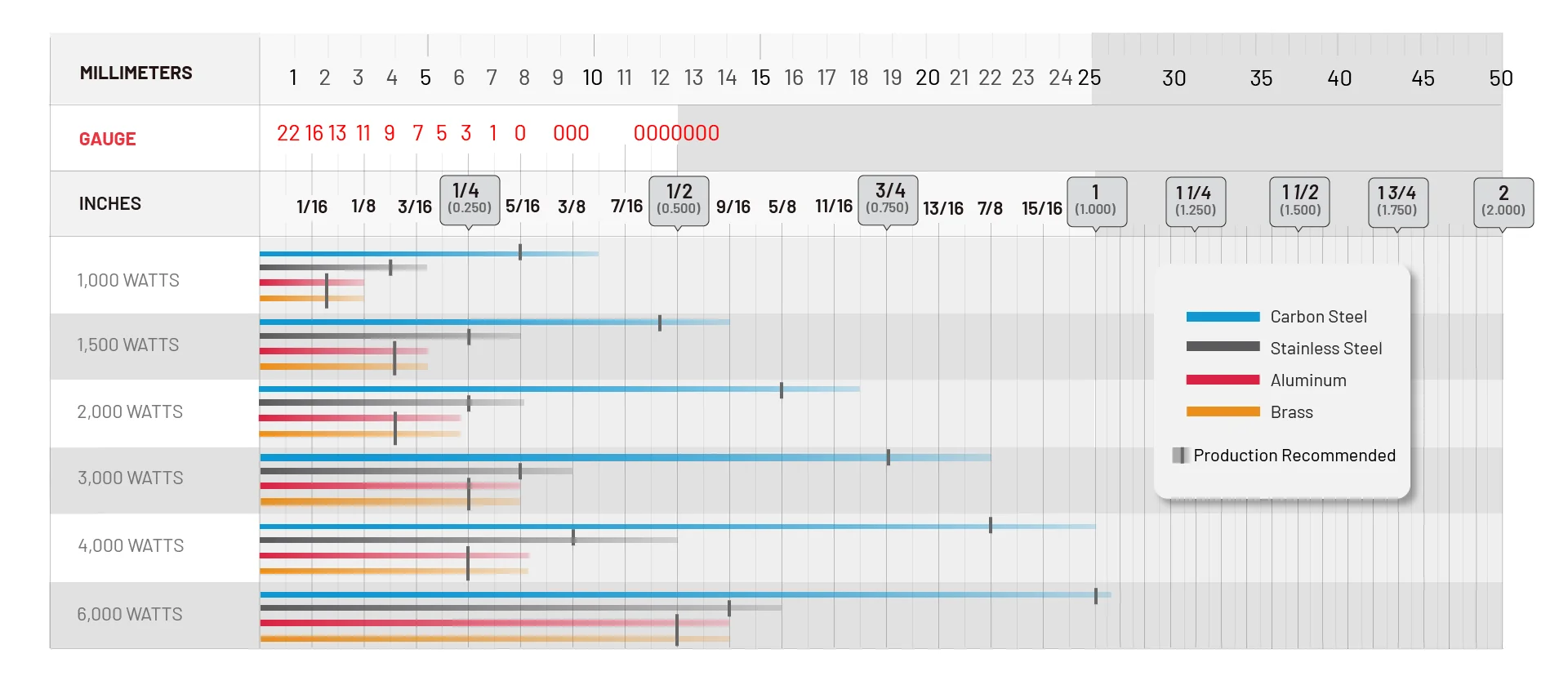

Cutting capacity
Laser power can vary from 1.5 to 6 kW depending on the thickness and quality of the material to be cut. Ask the sales office for more information to choose the right power for your needs.

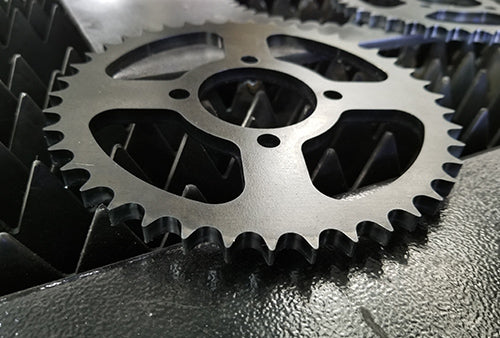

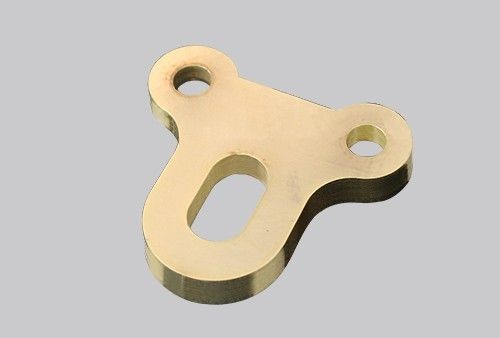

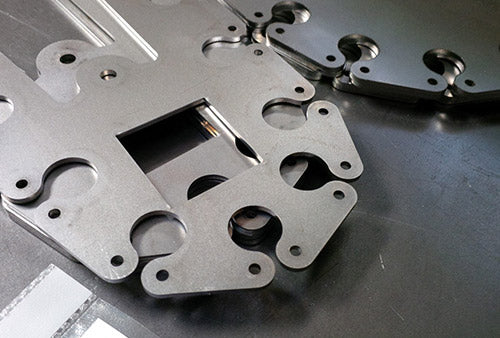

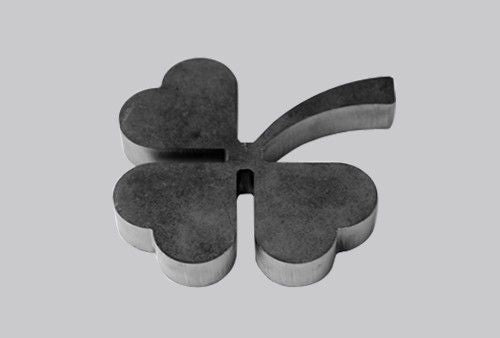

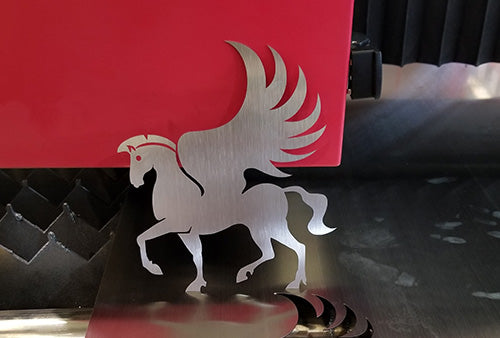

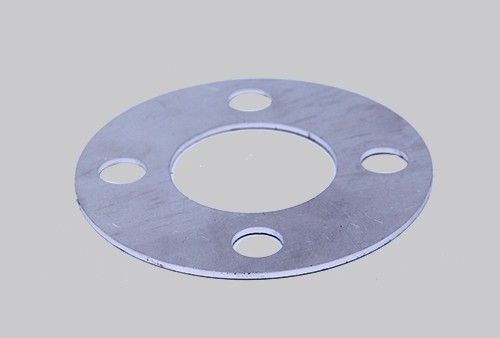

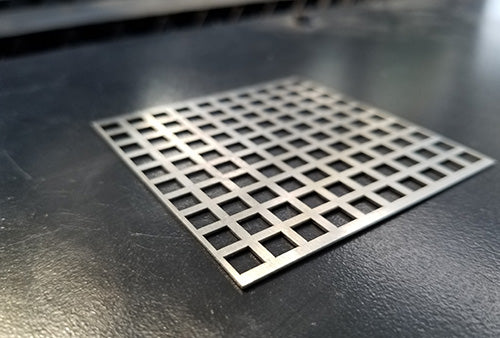

Cutting Samples
30-DAY MONEY BACK GUARANTEE
We want you to feel completely satisfied with your Cloudray Fiber Cutter purchase, and your peace of mind is our priority. We share your confidence in our machines, which is why every Fiber Cutter purchase comes with a Hassle-Free 30-day Return option. This allows you to fully experience and evaluate your new machine.
It allows you to return or exchange your purchase, within 30 days of the initial purchase. Refunds are simple and are issued once the original machine and all accompanying accessories have been returned. The refund or exchange will be issued minus the certain restocking fee for items & accessories, and shipping or handling costs are not included. Click here for details
2 YEAR LIMITED WARRANTY
Cloudray Laser warrants its products and parts against defects in materials or workmanship under normal use and service for the stated period.
The whole system (fiber laser included) is guaranteed for 2 years, while auxiliary components, such as chillers, are guaranteed for 1 year.
Applicable industries
Supercharge metal cutting across industries, replacing plasma & flame solutions with superior precision & efficiency.

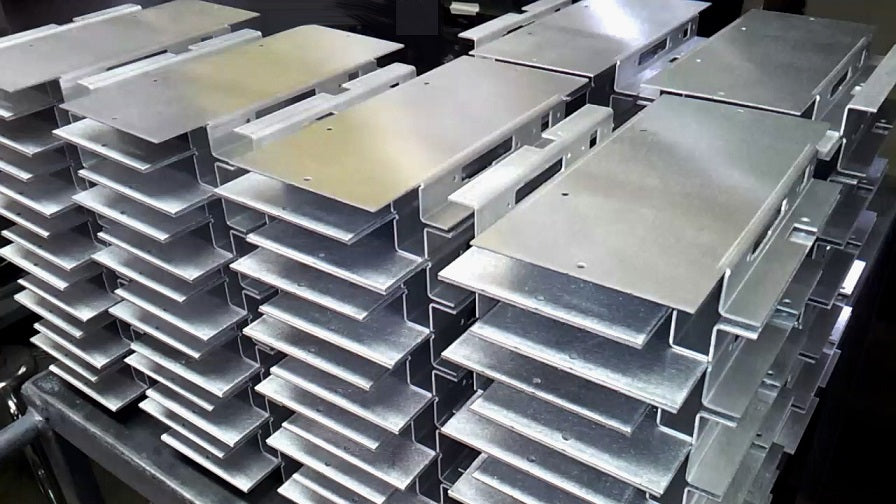

Metal fabrication
Delivers precise and efficient cutting for various metal types, enhancingproductivity in manufacturing and fabrication.

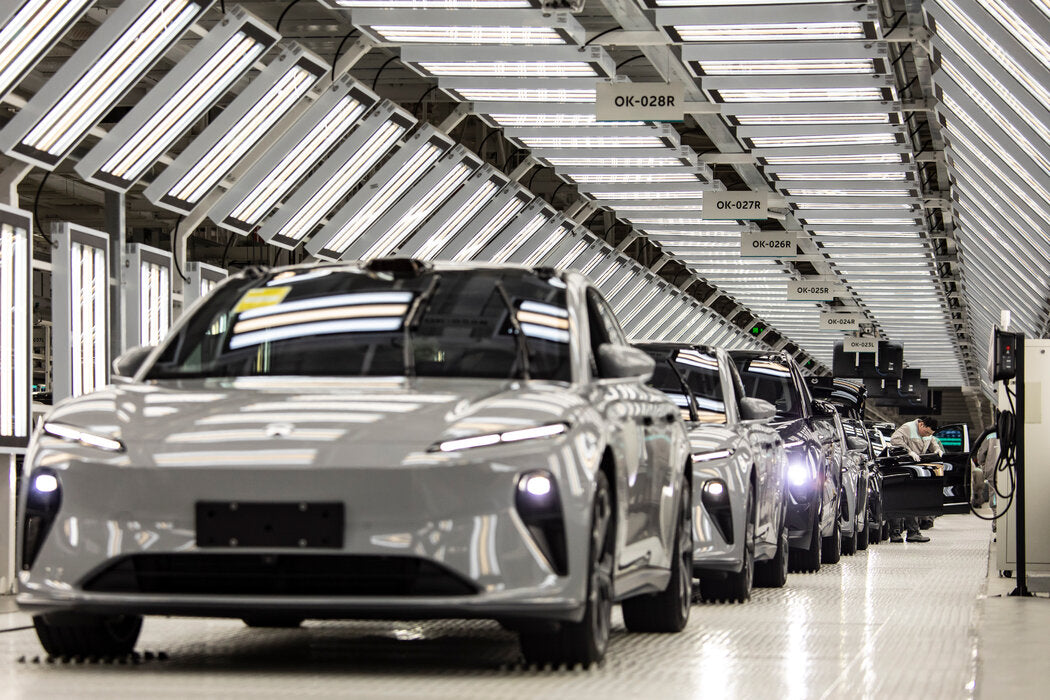

Automotive Manufacturing
Suitable for the manufacture of automotive parts, such as body structures, chassis, and interior parts, ensuring smooth cutting edges and improving product processing quality.
Signage and display making
ldeal for creating intricate designs and custom signage with precision andspeed.
Furniture and home appliances
Perfect for cutting complex components and decorative elements, offeringversatility and precision in furniture and appliance manufacturing.

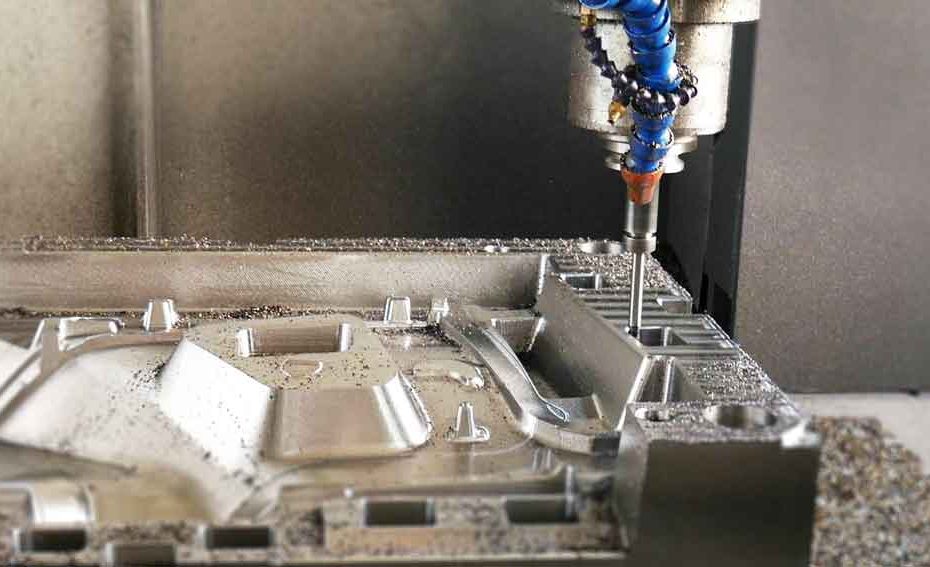

Mold manufacturing
For 1-5 mm thick metal sheets, fabricates small, fine molds that meetinternational standards.
FAQs
Cloudray supports customized upgrades for cutters, including choice for IPG, Raycus, or MAX lasers, as well as power upgrades. For more information, please contact info@cloudray.com
We have partnered with Quick Turn Financial, LLC to provide machine financing options of up to 7 years (84 months). For more information, please click here
Cloudray will always send technicians to help with installation and on-site training so you are familiar with using the laser for the jobs you intend.
If any component of the system has issues during the warranty period, service engineers can provide telephone consultation or come on-site for service at any time.
To maintain accurate cutting, first ensure that the laser optics are clean.
Regularly inspect both the laser and the chiller.
Lubricate the transmission system every two weeks, and check and replace the chiller cooling water every 45 days.
We'd highly recommend it if your cutter is performing at 3KW or higher. We also recommend featuring a protective cover if you have a busy workshop with a continuous workflow or have flammable materials lying around the machine.
Oxygen and nitrogen are the most common. Nitrogen is mainly used to cut stainless steel, aluminum, brass, etc., and oxygen is mainly used to cut carbon steel.
If you want to know cutting accuracy, the easiest way is to draw a circle, 3mm, 5mm, or 8mm, the smaller the diameter of the cutting, the round the cutting circle, which proves the cutter with high cutting accuracy.
The cutting accuracy can be controlled at 5-10 filaments, with one filament equal to 0.01mm. You can use Cypcut software to measure the cutting accuracy.
