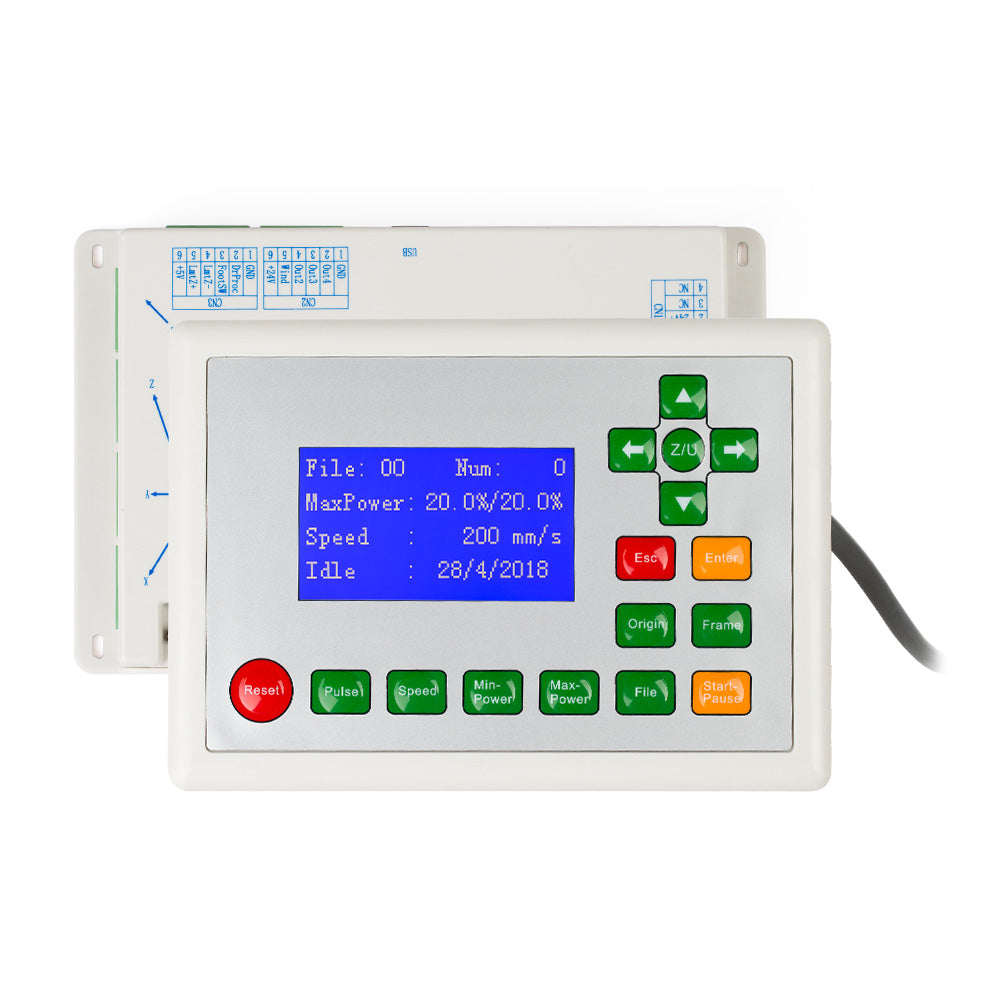

Ruida Laser Controller RDLC320-A

RDLC320-A is a controller especially for laser engraving/cutting, based on floating 32-bit DSP+FPGA architecture with high performance. It can finish large-scale complex motion control algorithm to achieve the continuous path control and position control of multi-axis movement, and energy tracking control, keeping the laser energy balance at any speed point. Large-scale logical gate array FPGA can complete the complex communication protocol and flexible IO extension. Fast communicate transmission and easy to operate.

Technical Parameter

1.Digital laser control signals
(1) Differential output, TTL level, 20 mA, drive capability
(2) PWM frequency 2.5K-50K for adjustable
(3) PWM duty ratio is 2% ~ 98%, adjustable
(4) PWM value is up to 4.5 V
2.Analog laser control signal:0 ~ 5V tracing adjustable automatically
3.Motor control signal: differential output, TTL level, drive capability 20 mA
4.Motor control pulse frequency: Max. 400 KHZ
5.USB:Max. transmission rate is 12M bps; the longest distance is 5 meters.
6.Interpolation: Linear/circular arc/B spline, accuracy + / - 0.5 pulse
7.Output:4-channel, photoelectric isolated OC gate output; max. drive capability is 300mA
8.Input:4-channel, photoelectric isolated input, TTL level

Product Size

Product Structure

Wiring Diagram

Packaging

Ruida RDLC320-A Controller&Mainboard&Panel are warranted for 12 months.
