Cloudray CO2 Laser II-VI Si Mirrors Lens

2 sold in last 8 hours
Cloudray
26SM05D25T3N
CO2 Laser
$ 16.00 USD
Size Guide
Diameter *
$ 16.00 USD

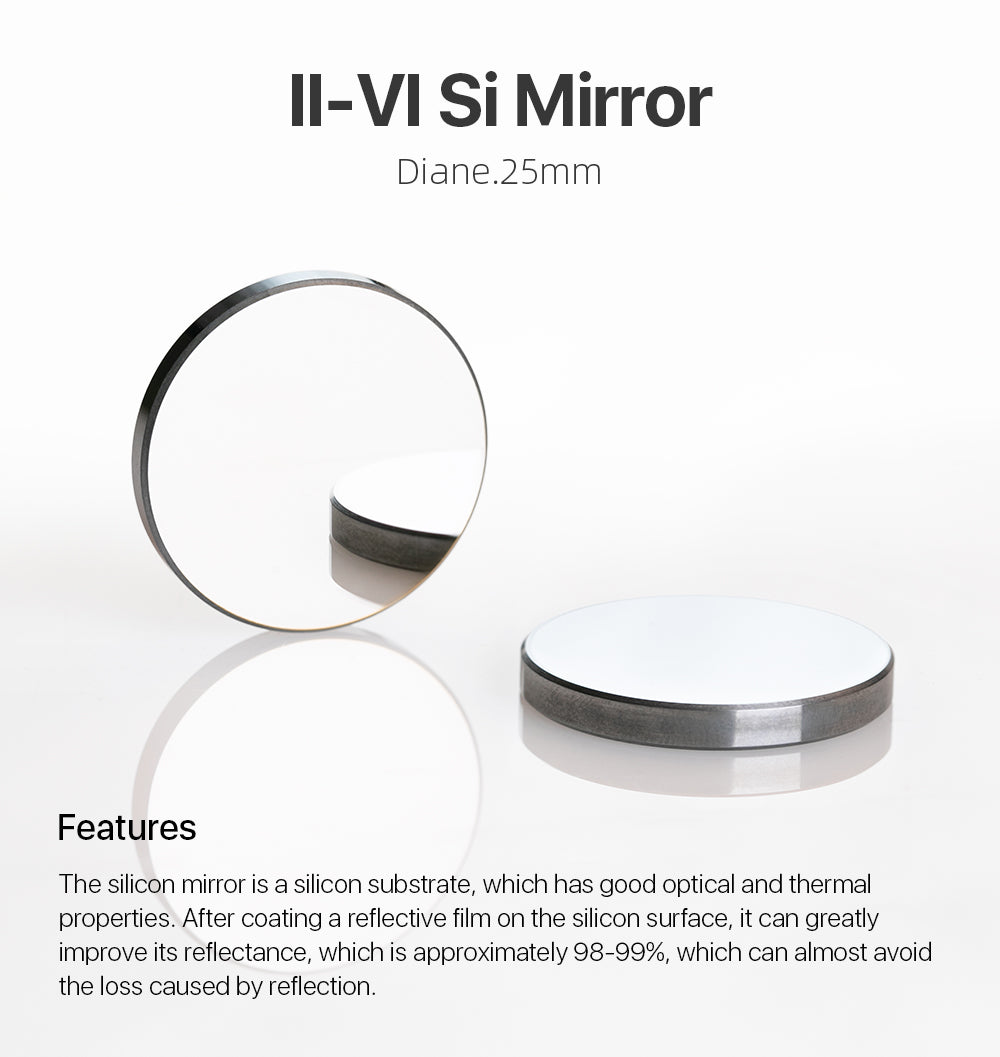

II-VI Si Mirror — Diane.25mm

The silicon mirror is a silicon substrate, which has good optical and thermal properties.
After coating a reflective film on the silicon surface, it can greatly improve its reflectance, which is approximately 98-99%, which can almost avoid the loss caused by reflection.

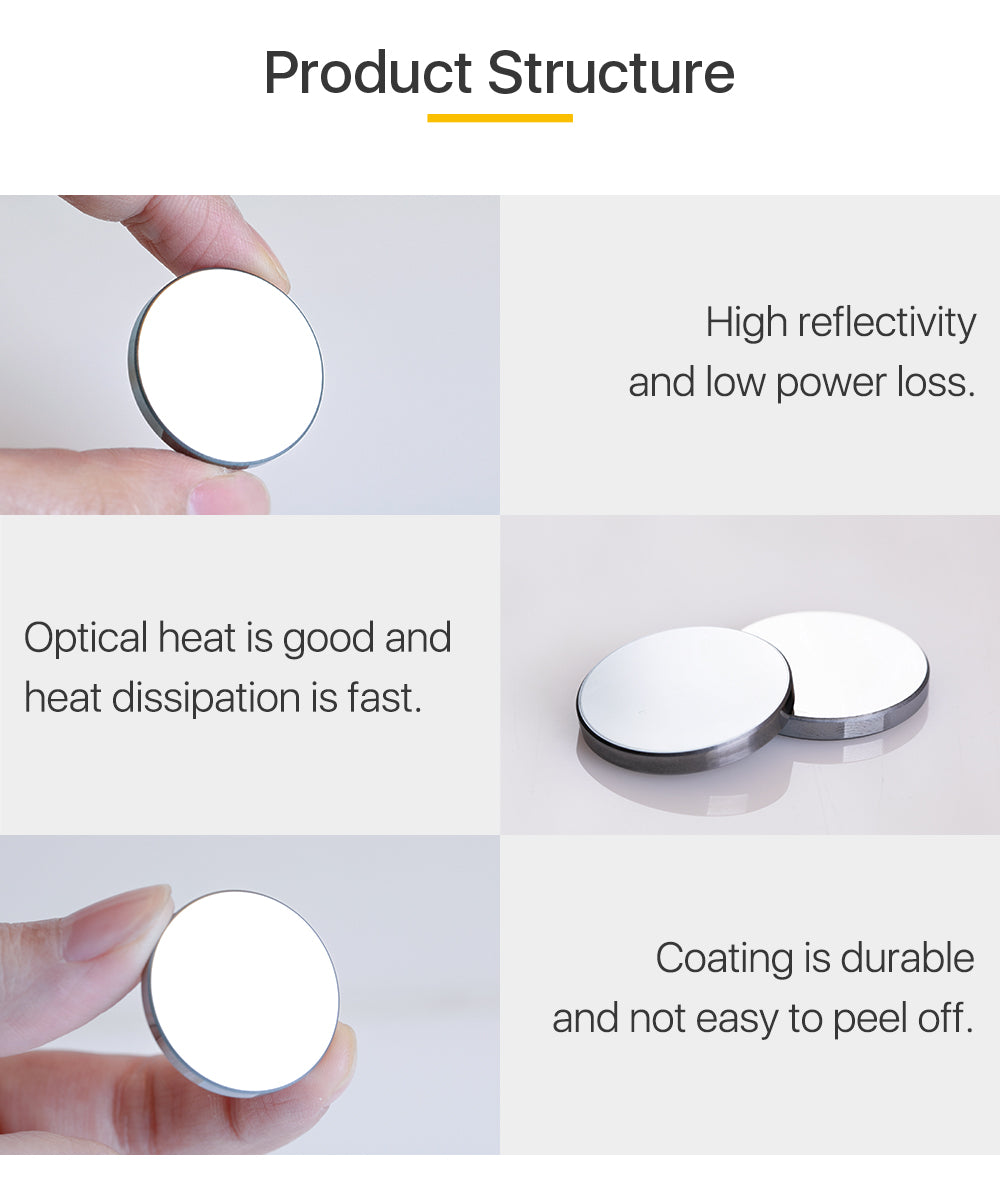

Product Structure

 High reflectivity and low power loss.
Optical heat is good and heat dissipation is fast.
Coating is durable and not eazy to peel off

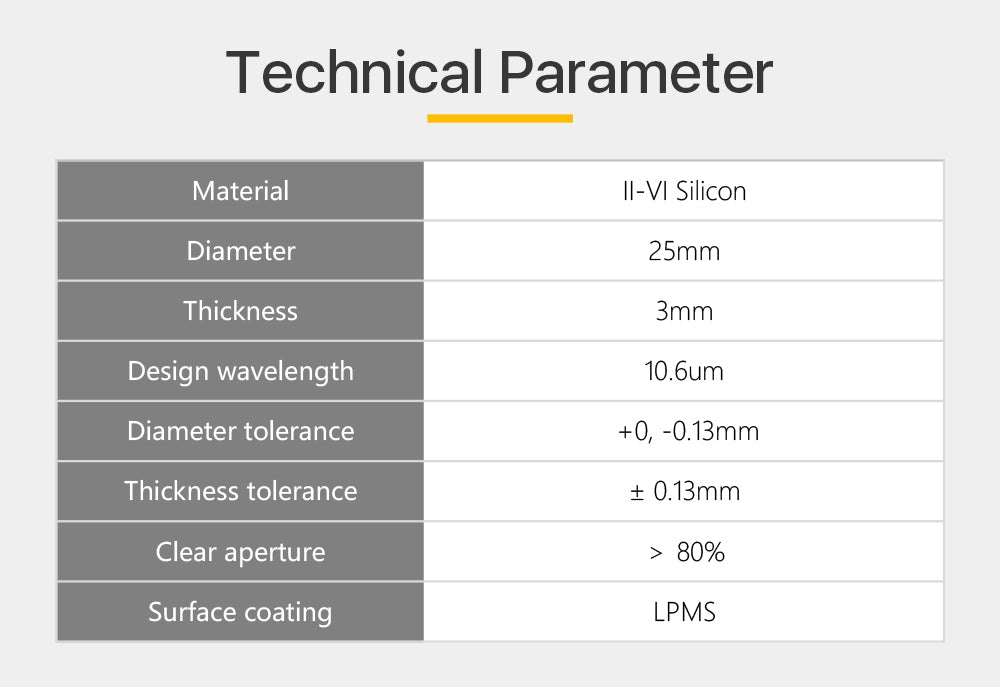

Technical Parameter

Material II-VI Silicon
Diameter 25mm
Thickness 3mm
Design wavelength 10.6um
Diameter tolerance  +0, -0.13mm
Thickness tolerance ± 0.13mm
Clear aperture > 80%
Surface coating LPMS

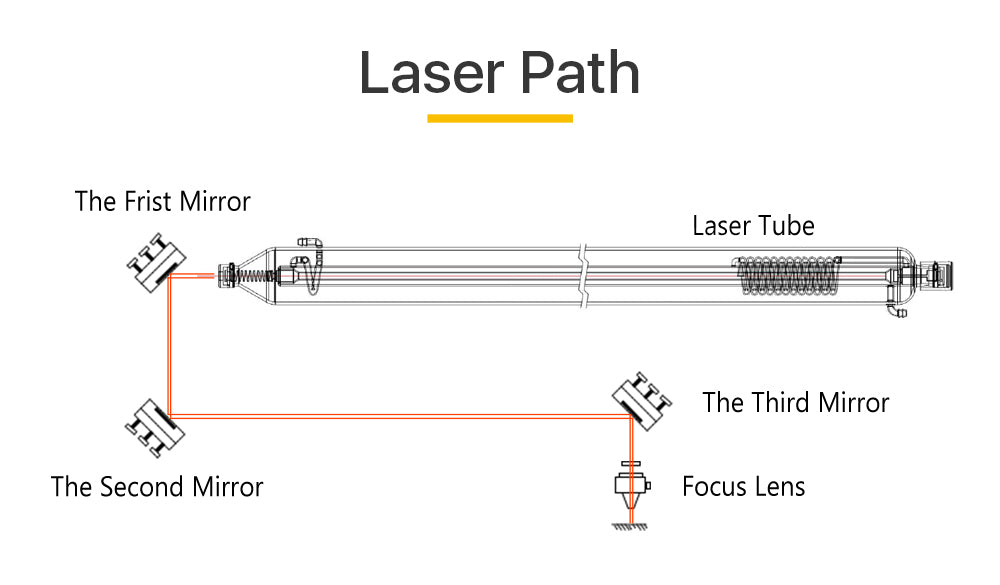

Laser Path

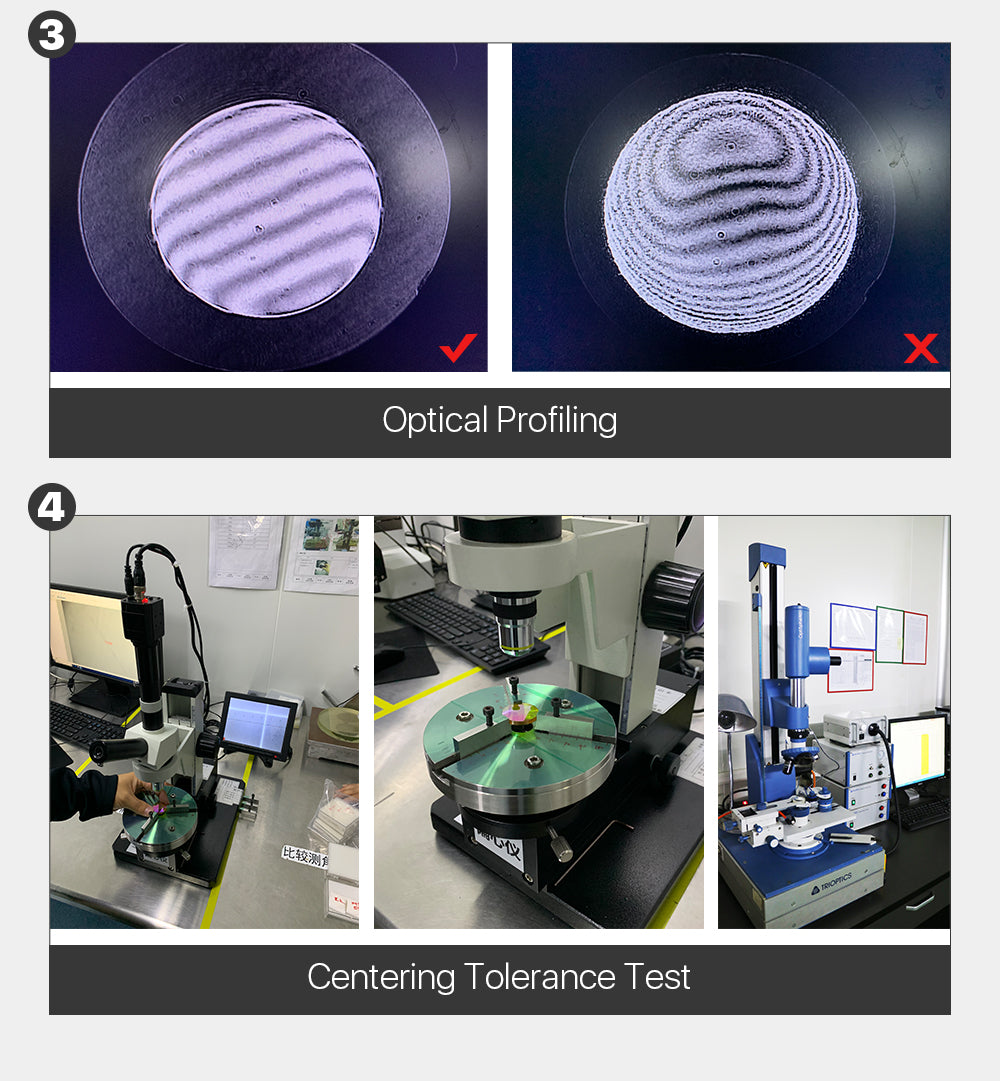

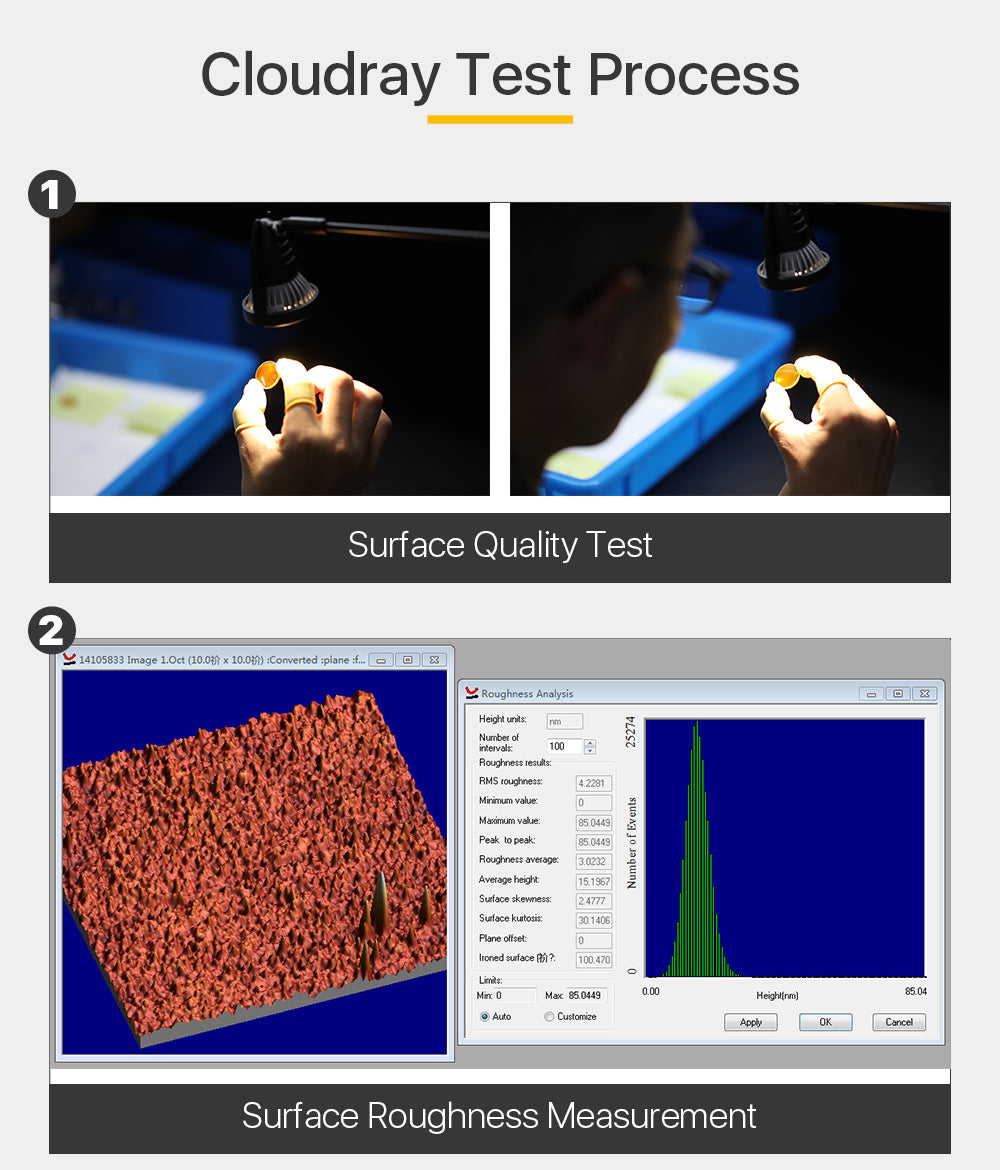

Cloudray Test Process

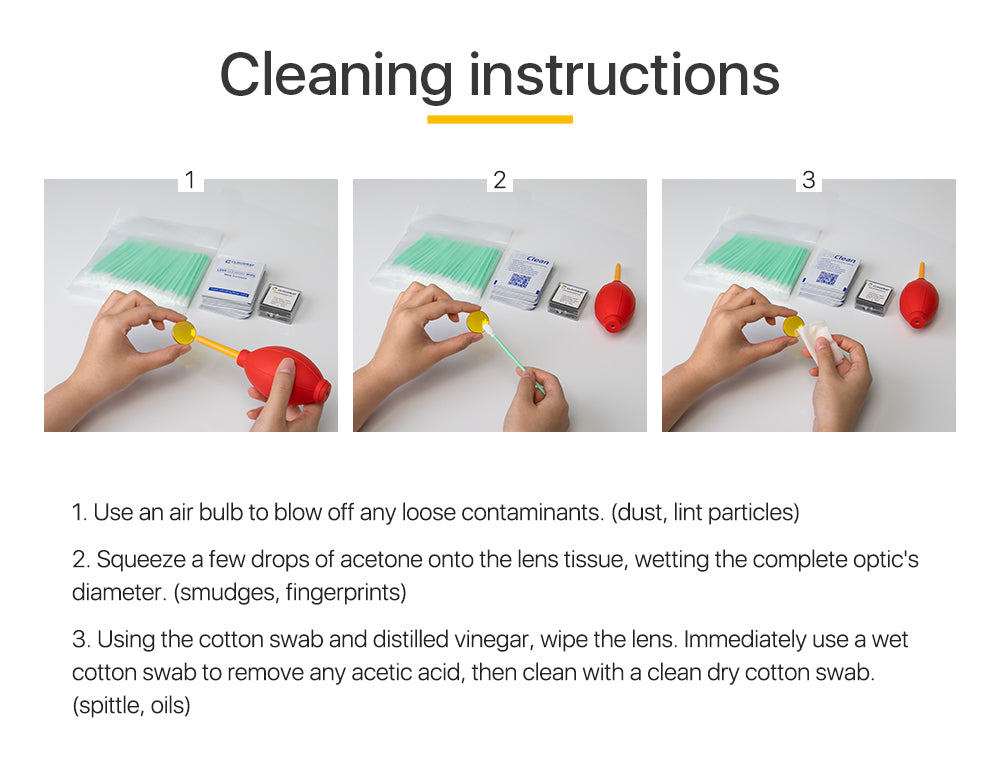

Cleaning instruction

1.Use an air bulb to blow off any loose contaminants. (dust, lint particles)
2.Squeeze a few drops of acetone onto the lens tissue, wetting the complete optic's diameter. (smudges, fingerprints)
3.Using the cotton swab and distilled vinegar, wipe the lens. Immediately use a wet cotton swab to remove any acetic acid, then clean with a clean dry cotton swab. (spittle, oils)

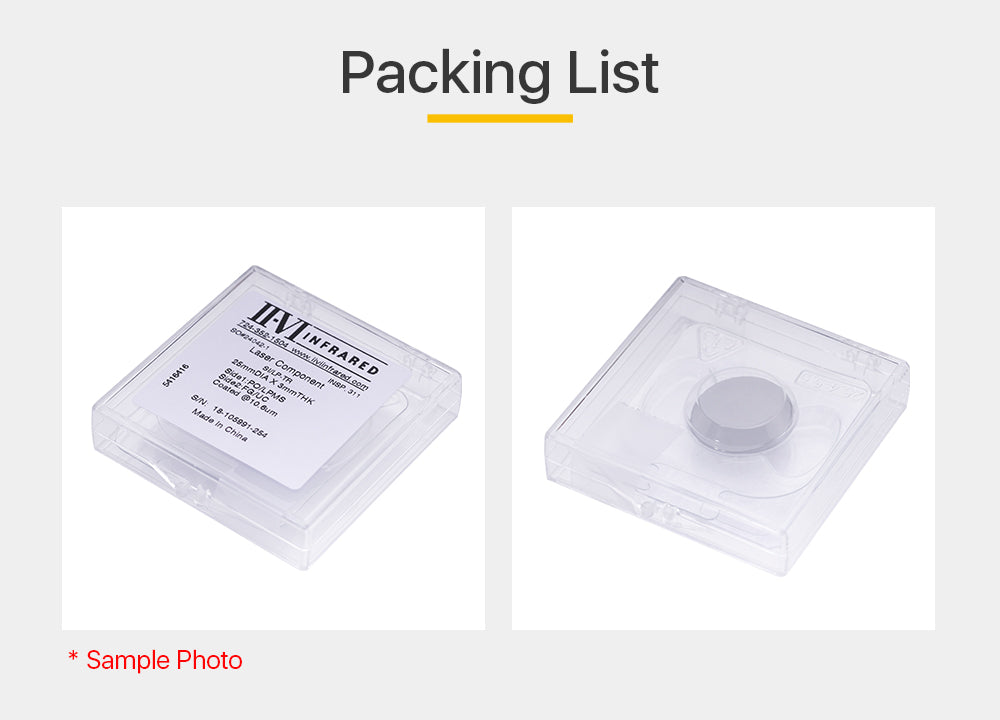

Packaging
