Cloudray 60W 110V/220V HY-T T60 CO2 Power Supply

2 sold in last 8 hours
CO2 Laser
$ 115.00 USD $ 106.90 USD
Size Guide
Voltage *
Model *
$ 106.90 USD

HY-T Serise Power Supply is warranted for 12 months.

You could take a look at [WARRANTY AND RETURN]( for more warranty terms.

Laser Power Supply

60W HY-T60


1. Zero-current half-bridge soft-switching circuit.High efficiency and fast response. Match various manufacturers of laser tubes.
2. Simple Port Control, TTL level signals can control the laser start/stop.
3. Protection switch is to check the outside water, ventilation, etc.
4. Laser Power Adjustment: input 0V to 5V analog signal, can also input PWM signal.
5. Open Circuit Protection Function: avoid the damage to laser power supply due to laser tube burst.
6. Factory Aging Test:(1) Each power supply will go through 60℃and 12 hours aging test under full load.
                                           (2) 500 times 7 seconds Start/Stop test.


Laser Power Supply T-60
Input Input Voltage AC 220V/ AC 110V
AC Frequency 47-440Hz
Output Max Output Voltage 3.5KV
Max Output Current 24mA
Size L * M * H(mm) 205*178*96
Weigth(kg) 2.2
Efficiency 90%
MTBF ≥10000 hours
Response Speed ≤1ms
Voltage Rage High-Level ≥3V
Low-Level ≤0.7V
Environment -10°~+40°
Cooling Forced Air Cooling
(Fan Cooling)
High Temperature Test Full Load/60℃/12 Hours
Start/Stop Test 500 Times 7 Seconds

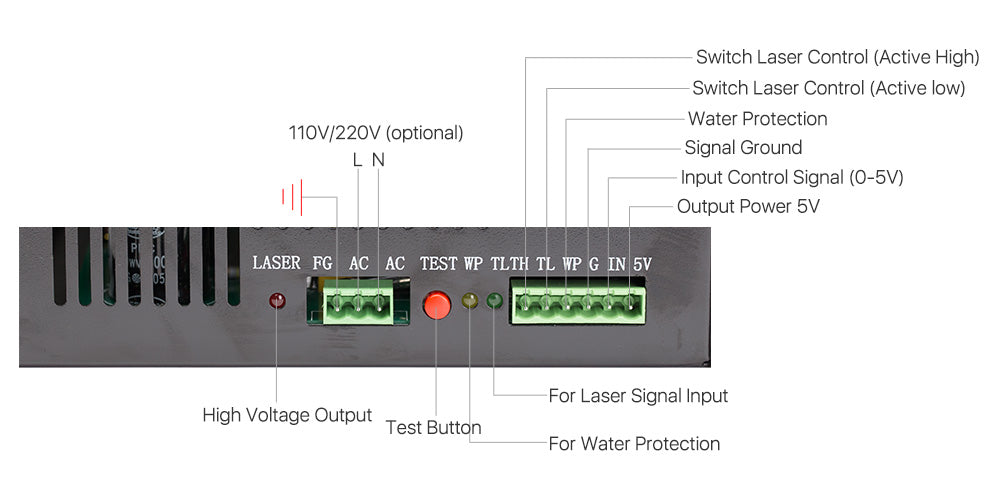

Connection Diagram

Product Packaging
