Raycus 4000W 6000W 8000W 12000W 15000W Multi-Module CW Optic Fiber Laser Source

2 sold in last 8 hours
Raycus
FLS01RCRFLC4000X
Multi-Module CW Fiber Laser
$ 300,000.00 USD $ 34,400.00 USD
Size Guide
Model *
$ 34,400.00 USD

Prodcut Introduction

The Multi-module CW Fiber Lasers developed by Raycus ranges from 3,000W to 30kW, with high electro-optical conversion efficiency, high light beam quality, high energy density, wide modulation frequency, high reliability, long service life, maintenance-free operation and advantages. The product can be widely applied in welding, precision cutting, melting and cladding, surface processing, 3Dprinting and other fields. Its optical output performance helps it better integrate with robots as a flexible manufacturing equipment to meet 3D processing requirement.

Raycus 4000W 6000W 8000W 12000W 15000W Multi-Module CW Optic Fiber Laser Source
Raycus 4000W 6000W 8000W 12000W 15000W Multi-Module CW Optic Fiber Laser Source

Product Specifications

Model RFL-C4000X RFL-C6000X RFL-C8000X RFL-C12000X RFL-C15000X
Nominal Output Power (W) 4000 6000 8000 10000 15000
Operation Modes CW/Modulated
Max. Modulation Frequency(kHz) 5 2
Output Power Stability ±1.4%
Emission Wavelength(nm) 1080±5
Red Laser Yes(Output Power0.5mW~1mW )

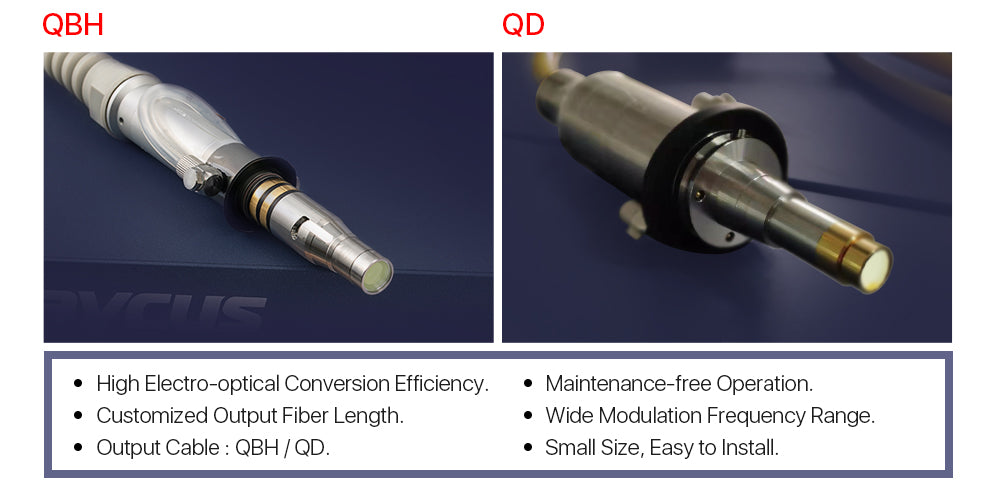

Beam Delivery Optics QBH QD
Output Fiber Diameter(μm) 100(Customizable )
BPP(mm.mrad) ≤4.5 ≤5
Polarization State Random
Delivery Cable Length (m) ≤20 ≤30 ≤20
Power Supply(V AC) 323~437,Three Phase-four Wire Connect,@47-63Hz
Control Mode RS232/AD/ RS232/ AD
Power range(%) 10~100
Dimensions (mm) 670×990×1160 900×960×1160 1200×960×1160
Weight(kg) <280 <360 <400 <450 <800
Cooling Water Cooling
Operating Temperature (℃) 10-40

Raycus 4000W 6000W 8000W 12000W 15000W Multi-Module CW Optic Fiber Laser Source
Raycus 4000W 6000W 8000W 12000W 15000W Multi-Module CW Optic Fiber Laser Source
Raycus 4000W 6000W 8000W 12000W 15000W Multi-Module CW Optic Fiber Laser Source
Raycus 4000W 6000W 8000W 12000W 15000W Multi-Module CW Optic Fiber Laser Source
Raycus 4000W 6000W 8000W 12000W 15000W Multi-Module CW Optic Fiber Laser Source
Raycus 4000W 6000W 8000W 12000W 15000W Multi-Module CW Optic Fiber Laser Source

000W-15000 Multi-Modu

Raycus 4000W 6000W 8000W 12000W 15000W Multi-Module CW Optic Fiber Laser Source
Raycus 4000W 6000W 8000W 12000W 15000W Multi-Module CW Optic Fiber Laser Source
Raycus 4000W 6000W 8000W 12000W 15000W Multi-Module CW Optic Fiber Laser Source
Raycus 4000W 6000W 8000W 12000W 15000W Multi-Module CW Optic Fiber Laser Source
Raycus 4000W 6000W 8000W 12000W 15000W Multi-Module CW Optic Fiber Laser Source
Raycus 4000W 6000W 8000W 12000W 15000W Multi-Module CW Optic Fiber Laser Source
Raycus 4000W 6000W 8000W 12000W 15000W Multi-Module CW Optic Fiber Laser Source
Raycus 4000W 6000W 8000W 12000W 15000W Multi-Module CW Optic Fiber Laser Source
